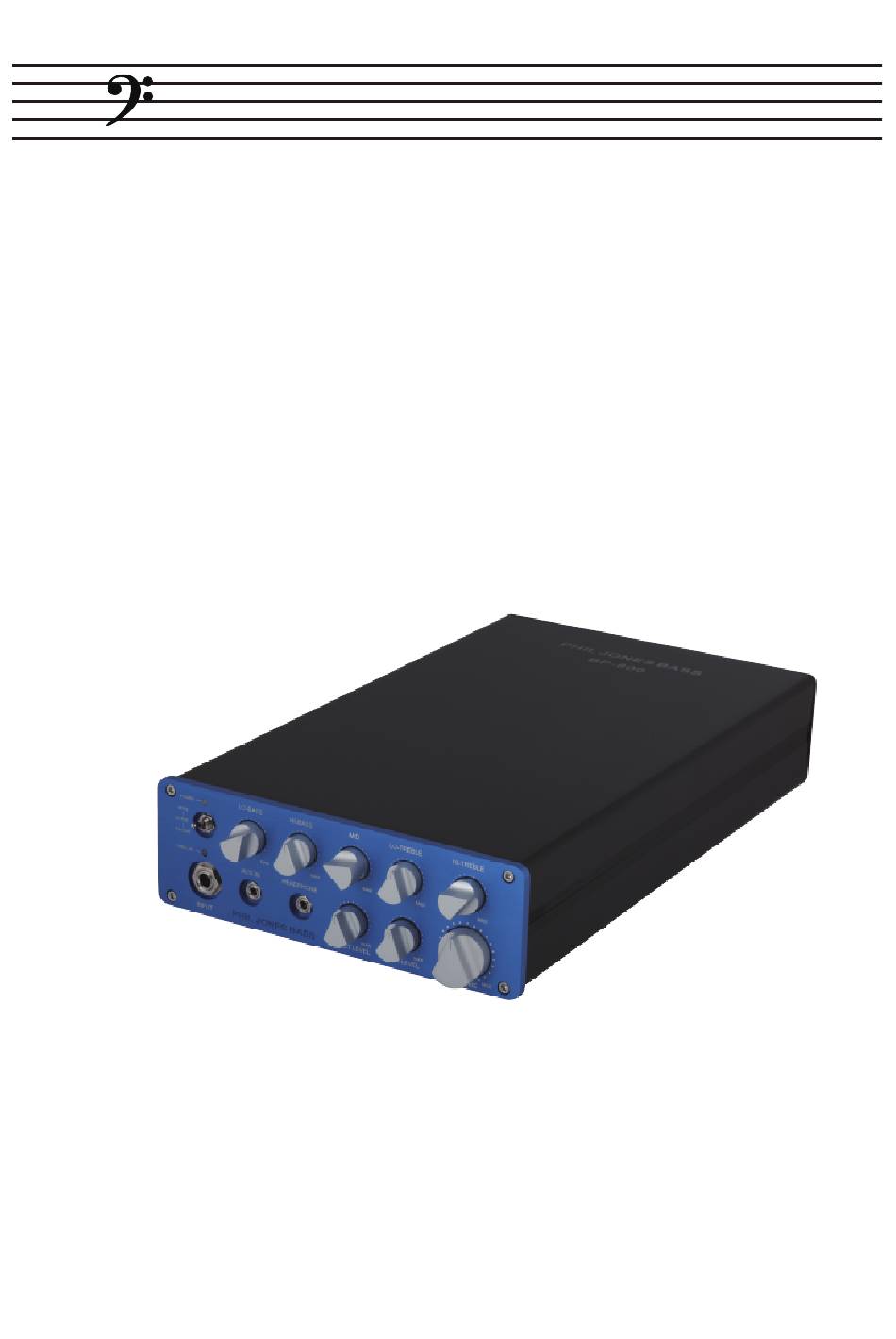

PHIL JONES BASS
PJB BP-800
OWNER'S MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Phil Jones Bass BP-800

Summary of Contents for Phil Jones Bass BP-800

  • Page 1 PHIL JONES BASS PJB BP-800 OWNER’S MANUAL...

  • Page 2: Read This First

    We have used only the finest components from around the world to create the BP-800. Reading this manual will enable you to get the best performance that you may enjoy many years of service from it.
  • Page 3 OVERVIEW OF THE BP-800 AMPLIFIER The BP-800 is a high power 800 watt D-Class power amplifier and a pure class A single channel pre-amplifier housed in a machined aluminum enclosure. D Class amplifiers are highly efficient and therefore produce far less heat than the conventional class AB amplifiers.
  • Page 4 FRONT PANEL AND BACK PANEL OVERVIEW LO-BASS HI-BASS LO-TREBLE HI-TREBLE POWER MUTE ACTIVE PASSIVE OVERLOAD AUX IN HEADPHONE PHIL JONES BASS INPUT LEVEL AUX LEVEL INPUT VOLUME POWER SPEAKER OUT DI OUT LINE IN FX SEND POST AC~INPUT LIFT LINE OUT...

  • Page 5: Front And Back Panel Description

    FRONT AND BACK PANEL DESCRIPTION 1. POWER ON INDICATOR 2. MUTE/ACTIVE/PASSIVE SELECTOR SWITCH 3. OVERLOAD INDICATOR 4. INSTRUMENT INPUT JACK Bass instrument in here. 5. LOW BASS EQ CONTROL This will adjust the fundamental tones of E and A strings on 4 string basses and B, E &...

  • Page 6: Speaker Output

    Line in from output of FX pedals or FX rack unit. 22. SPEAKER OUTPUT: The BP-800 amplifier will work on any load from 16Ω down to 4Ω, which is the safe maximum load for this amplifier. The jack sockets are in parallel so connecting two 8Ω...

  • Page 7: Operation & Positioning

    If you hear that your speakers are distorting and the overload indicator is on, TURN DOWN THE VOLUME CONTROL! The BP-800 amplifier is rated as 800 watts into 4 ohms but that does not mean it is the maximum output power. This is the output power without audible distortion.

  • Page 8: Specifications

    Pre Amp Out: 1.2V FX send: 1V Bal.Line Out: Typical 600mV EQ: CENTER FREQUENCIES 50Hz, 160Hz, 630Hz, 2.5KHz,12KKz at +/- 18dB Dimensions(WxDxH): 7.5x13x2.8 (inchs) Weight: 6 lbs / 2.7 kg The BP-800 comes with a 12 ft AC Grounded Power Cord.

  • Page 9: Service & Warranty Information

    Further questions, please contact PJB by email info@philjonespuresound.com, or call 314-814-3383. PHIL JONES BASS American Acoustic Development LLC 8509 Mid County Industrial Dr, St Louis, MO 63114 USA Tel: 855-BASS-510 (855-227-7510) www.pjbworld.com...
  • Page 10 PHIL JONES BASS American Acoustic Development LLC 8509 Mid County Industrial Dr, St Louis, MO 63114 USA Tel: 855-BASS-510 (855-227-7510) www.pjbworld.com Printed in China...
