PJB BASS CUB
OWNER'S MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Phil Jones Bass BASS CUB

Summary of Contents for Phil Jones Bass BASS CUB

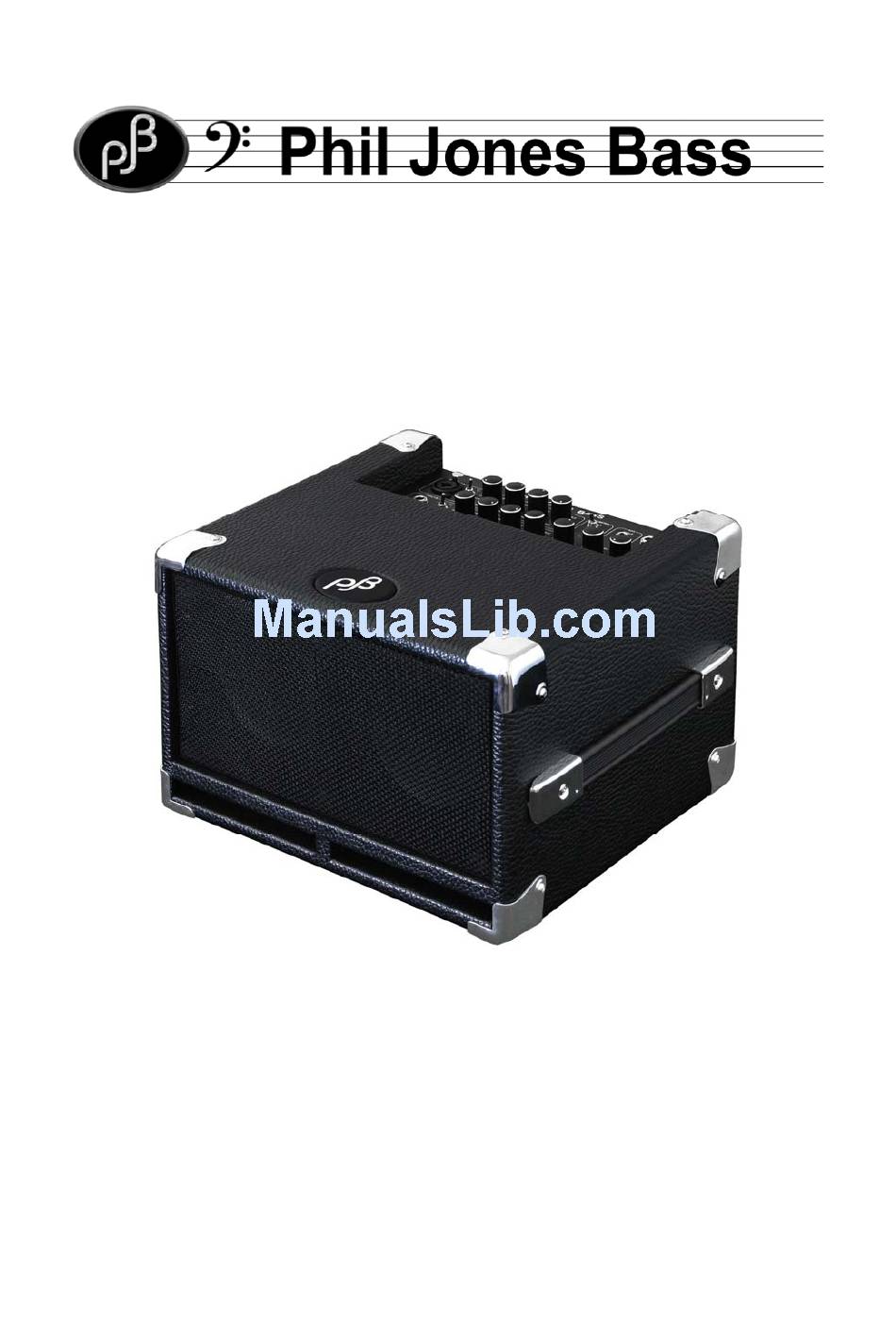

  • Page 1 PJB BASS CUB OWNER’S MANUAL...

  • Page 2: Read This First

    Thank you for purchasing the PJB BASS CUB. A great deal of dedication and passion went into designing and building this no compromise, high performance compact-combo amplifier. It was conceived to be a dedicated amplifier for the “connoisseur” bassist. Reading this manual will enable you to get the best performance from it so that you may enjoy many years of service.

  • Page 3: Amplifier Features

    Sometimes all you need is an amp that can deliver true bass tones but without the hassle of getting out a big rig amplifier. The Bass Cub is 100 watts of pure tone in a “shoebox” size package and so light, it can be lifted even with a finger! It can sit on the floor or on top of a desk.

  • Page 4: Front Panel Overview

    FRONT PANEL OVERVIEW INPUT A LIMITER HEADPHONE PUSH INPUT LEVEL BASS TREBLE INPUT CLIP HIGH POWER -18dB +18dB -18dB +18dB -18dB +18dB INPUT B MASTER VOL LEVEL CLIP INPUT LEVEL BASS TREBLE MUTE HIGH -18dB +18dB -18dB +18dB -18dB +18dB BACK PANEL OVERVIEW POWER LIFT...

  • Page 5: Front Panel Description

    FRONT PANEL DESCRIPTION 1. INSTRUMENT INPUT JACK CHANNEL A This is a combo socket accepts both standard ¼ inch mono jack and XLR plug. This input is not suitable for high impedance piezo pickups. 2. INPUT GAIN SWITCH CHANNEL A High: Higher sensitivity, high impedance input for passive basses with magnetic pickups Low: Lower sensitivity input setting for guitars/basses with onboard electronics.

  • Page 6: Back Panel Description

    14. CLIP/ MUTE INDICATOR When the amplifier output is clipping, the LED will light up with red. When muted, the LED will light up with green. 15. INPUT GAIN SWITCH CHANNEL B High: Higher sensitivity, high impedance input. Low: Lower sensitivity input setting for guitars with onboard electronics. Mute: mute the input stage, when switch on, the clip LED will light up with green.

  • Page 7: Power On/Off Switch

    Connect to instrument tuner. This output can also be used as an additional line out. OPERATION & POSITIONING TURN THE VOLUME DOWN on the BASS CUB before plugging in your instrument. Positioning the BASS CUB for Best Sound Often, playing in different venues will cause your bass to sound different. This is partially due to the acoustics of the hall influencing the low frequency waves that are coming from your speaker.
  • Page 8 Where you position the BASS CUB will ultimately affect your low frequency limit. For best results keep the BASS CUB on the floor. Placing it on objects off the floor will cause it to sound thin and lack bass punch. Placing the BASS CUB with the back close to a wall will help reinforce the lower notes.

  • Page 9: Specifications

    SPECIFICATIONS Speaker Computer Optimized Vented Enclosure Speaker Frequency Response: 60Hz –15KHz Speaker Compliment: 2 x 5inch proprietary, extended-range drivers Speaker Sensitivity: 91dB/W/M Internal Speaker Impedance: 4 Ohms Dimensions: 12” W x 10.8” D x 7.8” H Weight: 13.2 lbs Amplifier PJB 100watt, class A/B amplifier with digital switch mode power supply.
  • Page 10 SERVICE/WARRANTY INFORMATION The BASS CUB has a warranty period of 2 years, starting from the date of purchase. The buyer must complete and return the enclosed warranty card within 14 days of purchase. This warranty covers defect in materials or workmanship that occurs in normal use. Within warranty period PJB will repair or replace the defect unit free of labor and parts charge.
