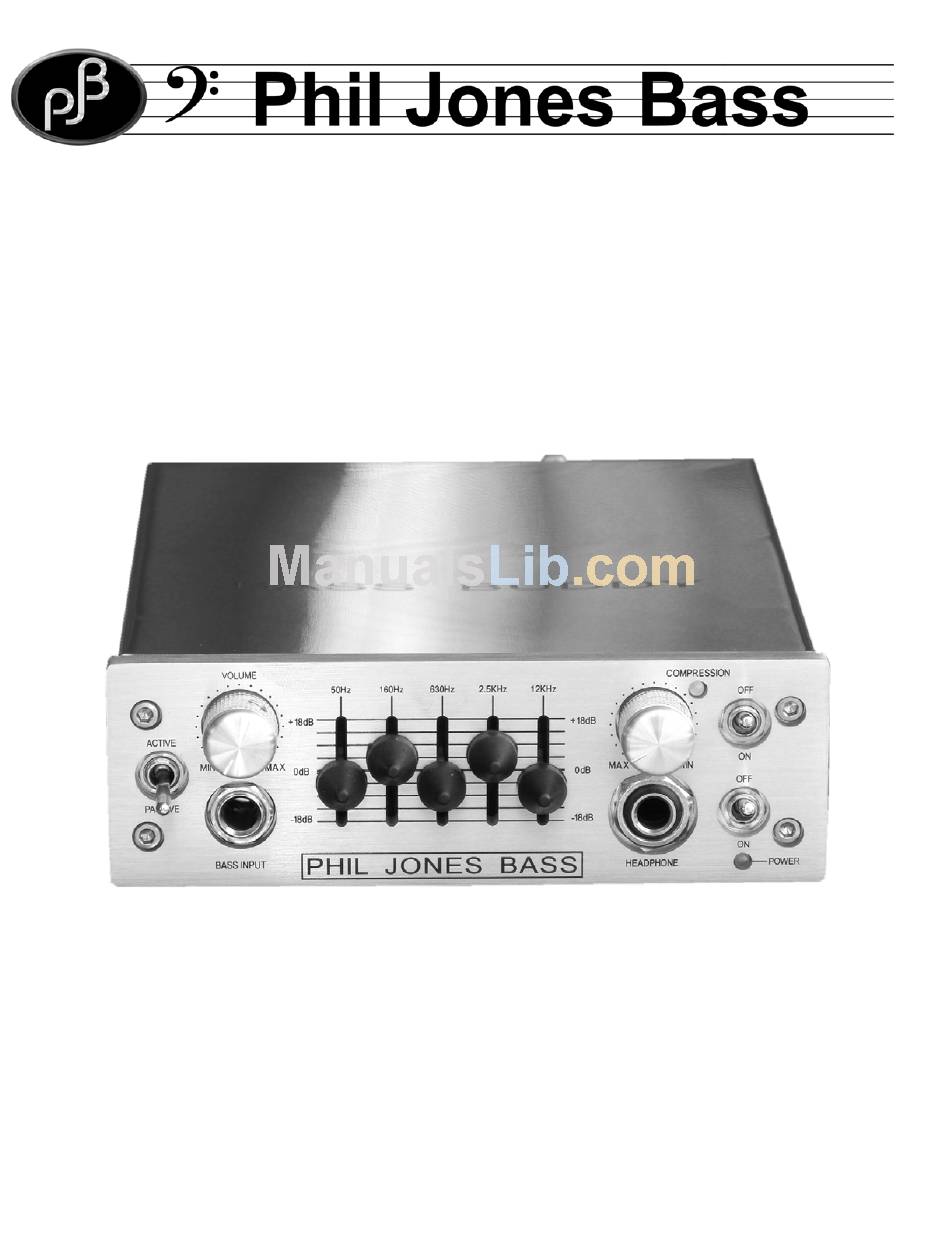

- Page 1 PJB BASS BUDDY OWNER’S MANUAL...
-
Page 2: Table Of Contents
Read First ----------------------------------------------------------------------------------Page 1 General Overview & Introduction ----------------------------------------------------Page 2 Front & Back Panel Overview ---------------------------------------------------------Page 2 Front & Back Panel Description ------------------------------------------------------Page 3 Operation -----------------------------------------------------------------------------------Page 4 Specifications-------------------------------------------------------------------------------Page 6 Service/Warranty information ---------------------------------------------------------Page 7 READ THIS FIRST Thank you for purchasing the Bass Buddy. A great deal of dedication and passion went into designing and building this no-compromise, high performance unit. -
Page 3: General Overview & Introduction
OVERVIEW OF THE BASS BUDDY • Switch able Active / Passive input matches both magnetic and piezo pickups. • Powerful 5 Band Graphic EQ. • Natural Sounding Optical Limiter. • Hi-fi Stereo Headphone Output. • Low Noise Pre-amp output. • World-class Studio Quality, Balanced Line output. •... -
Page 4: Front & Back Panel Description
1. PASSSIVE/ ACTIVE BASS INPUT SWITCH. This switch allows you to match the BassBuddy to match either active or passive basses either with magnetic or piezo pickups. PASSIVE Higher sensitivity, high impedance input (120mV/ 4.7MΩ). For bass instruments that do not have active electronics, suited for older ‘vintage’... -
Page 5: Operation
11. DC POWER SUPPLY INPUT SOCKET Use only the dedicated PJB unit for the Bass Buddy. BATTERY COMPARTMENT – REMOVABLE COVER. 13. STEREO INPUT VOLUME CONTROL. Use to control the level of backing/rhythm track. 14. STEREO MINI-JACK INPUT. Input feed from music or backing tracks. This input goes directly in stereo to feed the headphones only. It is not connected to the 5 Band EQ or line outputs. - Page 6 Using Bass Buddy on Battery Power. To conserve battery life, when the Bass Buddy is on battery power, the 10 watt internal amplifier is not connected. The typical running time of the Bass Buddy on battery power is around 3 hours with high-quality, conventional disposable batteries and is depending on how loud the headphone volume is.
-
Page 7: Specifications
Using the Stereo input. A stereo mini jack (14) on rear of unit will accept a variety of input sources. Such as headphone output from a computer, I-Pod, MP3 player drum machine, etc. Using the Stereo RCA adaptor, Bass Buddy will accept signals from home audio or recording equipment such as CD player outputs or Mixer outputs. -
Page 8: Service/Warranty Information
Depending on the complexity of the repair work, your dealer may return the defect unit to PJB service center for repair or replacement. American Acoustic Development LLC. 8559 Page Ave St. Louis, MO 63114...
