- Page 1 BASS CUB II BG-110 OWNER’S MANUAL...
-
Page 2: Read This First
Thank you for purchasing the PJB BASS CUB . A great deal of dedication and passion went into designing and building this no-compromise, high- performance compact-combo amplifier. It was conceived to be a dedicated amplifier for the “connoisseur” bassist Reading and following this manual will enable you to get the best performance from the amp and ensure its longevity. -
Page 3: Amplifier Features

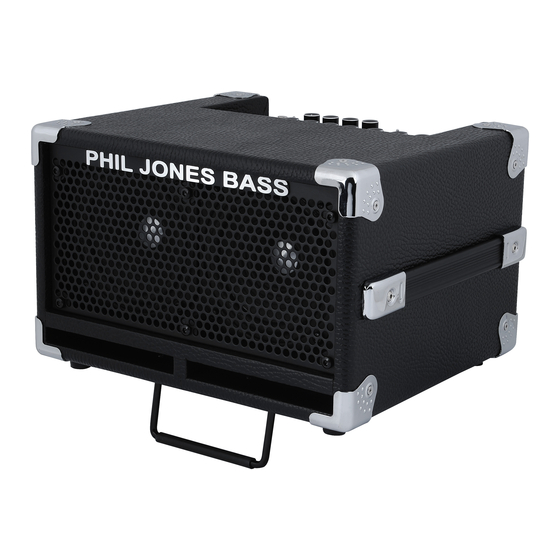

OVERVIEW OF THE BASS CUB Sometimes all you need is an amplifier that can deliver true bass tones but without the hassle of getting out a big rig amplifier. The BASS CUB is 110 watts of pure tone in a “shoebox” size package and so light, it can be lifted even with a finger! It can sit on the floor or on top of a desk. -
Page 4: Front Panel Overview
FRONT PANEL OVERVIEW FRONT PANEL DESCRIPTION 1. INSTRUMENT INPUT JACK CHANNEL A This is a combo socket accepts both standard ¼ inch mono jack and XLR plug. This input is not suitable for high impedance piezo pickups. 2. INPUT GAIN SWITCH CHANNEL A High: Higher sensitivity, high impedance input for passive basses with magnetic pickups Low: Lower sensitivity input setting for guitars/basses with onboard... - Page 5 8. INSTRUMENT INPUT JACK CHANNEL B This is a standard ¼ inch mono jack socket. This is a high impedance input that can be used with Piezo pickups on double basses. Channel A is not high impedance and will not work well on Piezo pickups. 9.
-
Page 6: Back Panel Overview
20. MASTER VOLUME CONTROL This is the master volume control and it controls how much power you send to your speakers as well as the line out socket on the back of the amp. When setting up your tone or plugging in your instrument, you should keep this control at a low level. -
Page 7: Back Panel Description
BACK PANEL DESCRIPTION 23. GROUND LIFT SWITCH This allows the grounding of balanced out socket to be disconnected. This is useful if you are experiencing hum caused by ground loops/problems. 24. BALANCED LINE OUT This is an ultra-low impedance (200Ω) balanced line out for use with recording or PA mixing consoles. -
Page 8: Operation & Positioning
OPERATION & POSITIONING TURN THE VOLUME DOWN on the BASS CUB before plugging in your instrument. CAUTION: Extreme overload on the amplifier can cause the failure of the loudspeakers. The BASS CUB BG110 is designed for the highest performance possible so care must be used not to push the amplifier beyond its limits. - Page 9 Where you position, the BASS CUB will ultimately affect your low-frequency limit. For best performance, keep the BASS CUB on the floor. Placing it on objects off the floor will cause it to sound thin and lack bass punch. Placing the BASS CUB with the back close to a wall will help reinforce the lower notes.
-
Page 10: Specifications
SPECIFICATIONS Amplifier 110 watt class D amplifier with digital switch-mode power supply. Signal to Noise Ratio ≥85 dB(A) (EQ off, Volume on Full.) Impedance High Input: >2MΩ/22pF Low Input: >100KΩ/22pF Line Input: >40KΩ Pre Amp Line Out: < 2KΩ Bal. Out: <200Ω Levels High Input: 10mV-1.5V Low Input: 20mV-4.5V... -
Page 11: Service & Warranty Information
Further questions, please contact your local distributors or PJB by email info@philjonespuresound.com. For servicing outside USA please contact our distributor in your country. Information can be found on our website. PHIL JONES BASS American Acoustic Development LLC 8509 Mid County Industrial Dr St Louis, MO 63114 USA Tel: 855-227-7510 (855-BASS-510) www.pjbworld.com... - Page 12 American Acoustic Development LLC 8509 Mid County Industrial Dr, St Louis, MO 63114 USA WWW.PJBWORLD.COM Printed in China...
