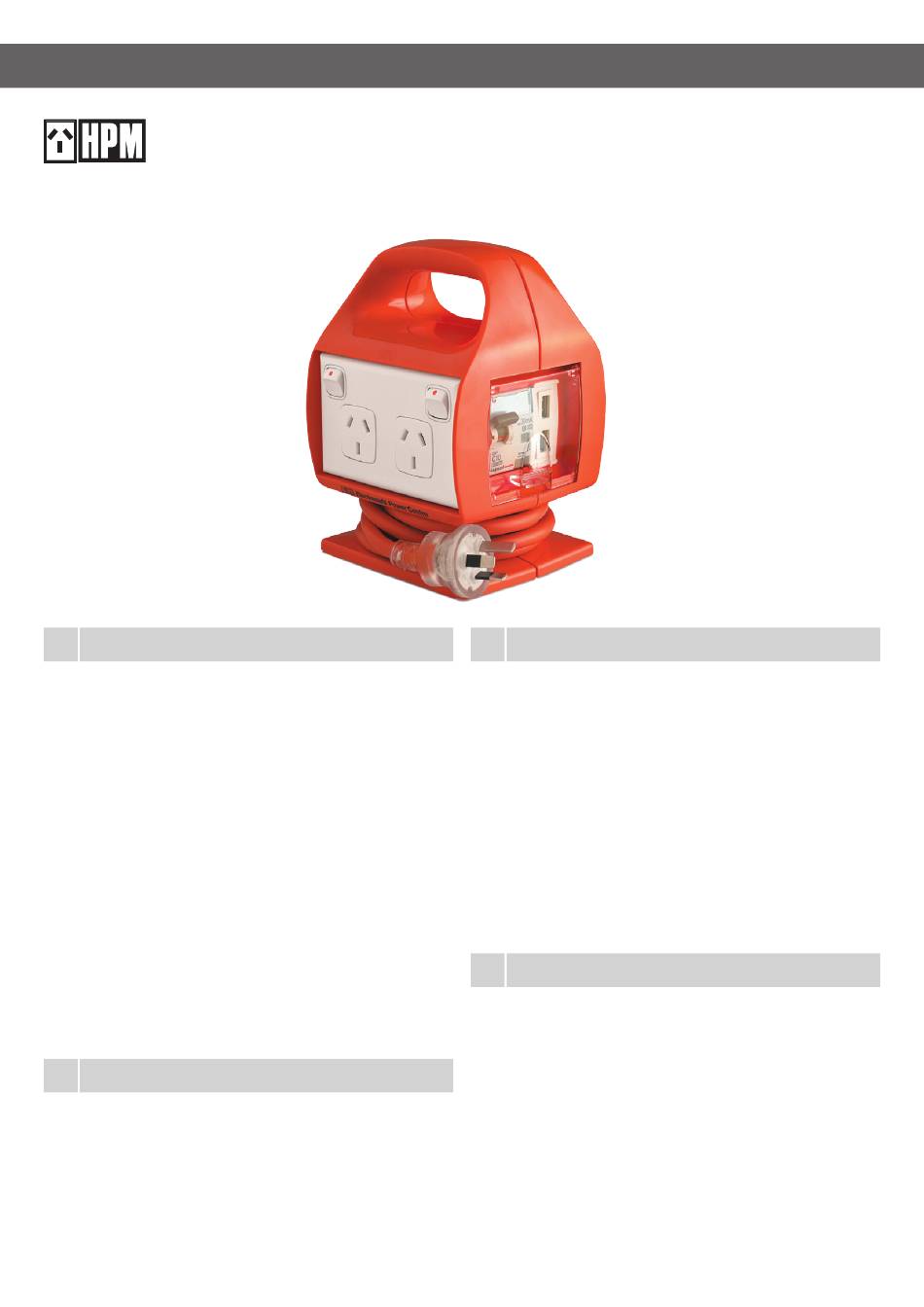

LEGRAND HPM Electresafe REPC410 Instruction Manual

1 Instructions for use
Step 1. Uncoil lead fully from around base.
Step 2. Plug your Powercentre into a fixed powerpoint and turn the
powerpoint on. Do not plug into an extension lead.
Step 3. Lift clear protective cover on side and ensure the RCBO
toggle is ON.
Step 4. TEST THE RCBO BEFORE EACH USE by pressing the Test
Button. The RCBO toggle should immediately trip to the
OFF position. If the RCBO fails to trip OFF, after the RCBO
Test Button is pressed, do not use as the RCBO may be
faulty. Return to HPM for repair.
Step 5. RESET THE RCBO by simply switching the RCBO toggle
to ON.
Your Powercentre is now ready for use.
Simply plug in your tools and use as normal.
The RCBO can also trip through overcurrent. If too many high current
tools are plugged into your Powercentre the RCBO will automatically
cut off the power. To restore power (after removing the tool/s causing
the overload) simply switch the RCBO toggle, under the clear
protective cover, to the ON position.
2 Ideal for
Ideal for construction sites and workshops. This product complies
with both AS/NZS 3190 and AS/NZS 3012 construction site
requirements for a Portable Socket Outlet Assembly (PSOA) and is
IP33 rated.

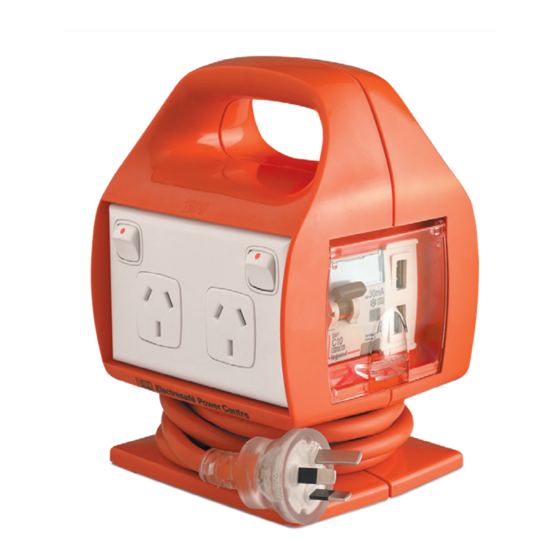

Electresafe Powercentre with RCBO Protection
®
Cat. REPC410, REPC415 & REPC410USB
3 Specifications
Voltage: 230-240V a.c. 50Hz
Max Load:
2400W 10A and 3600W 15A
Lead:
1.0mm
1.5mm
Plug: Clear, fully moulded
Rated Residual Current: 30mA
Typical Trip Time: 30ms
IP Rating: IP33
USB output:
5V d.c., 2 x 2.4A
(REPC410USB model only)
Classification: Type A, FS and Class H rating.
Impact resistant material
4 Key features
Built in RCBO (Residual Current Breaker with Overload) to provide
■
both overload protection and protect against electrocution.
HPM Excel Double Pole Shuttered Outlets for extra safety.
■
Orange polycarbonate casing and orange lead are of heavy duty
■
rating and highly visible for extra safety.
Low cable entry and large base for better stability when in use.
■
Lead can be fully wound onto unit for easy storage or
■
transportation when not in use.
Plug 'Parking Clip' feature to help prevent lead unraveling when
■
not in use.
IP33 rated.
■
Instruction Manual
flexible heavy duty – 1.8m (10A)
2
flexible heavy duty – 1.8m (15A)
2
