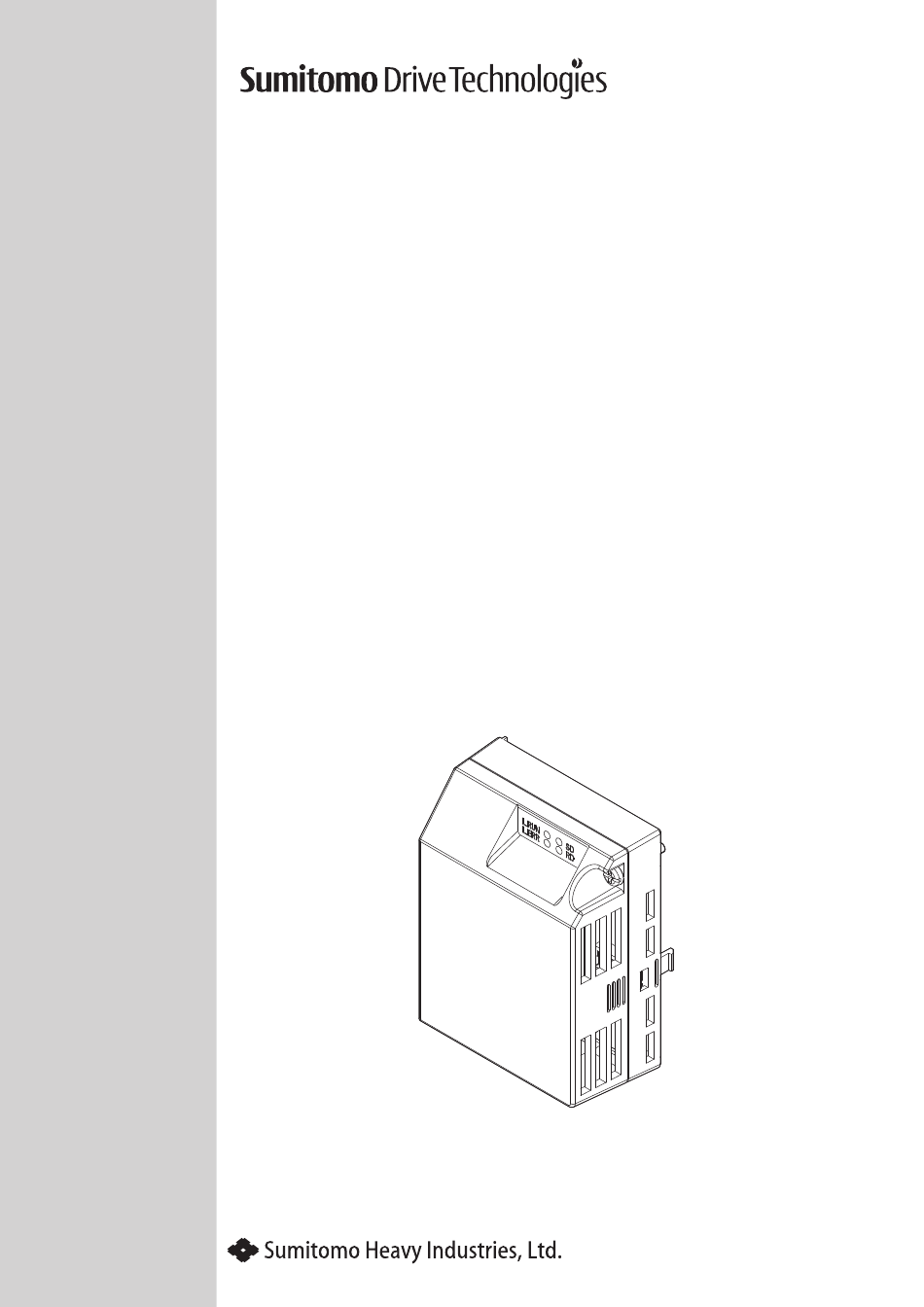

Inverter HF-520 Option
CC-Link
Technical Manual
Type SI-C3/V-H
NOTICE
1. Make sure that this technical manual is delivered to
the end user of inverter unit.
2. Read this manual before installing or operating the
inverter unit, and store it in a safe place for
reference.
Manual
No.DM2304E-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HF-520 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sumitomo HF-520

Summary of Contents for Sumitomo HF-520

  • Page 1 Inverter HF-520 Option CC-Link Technical Manual Type SI-C3/V-H NOTICE 1. Make sure that this technical manual is delivered to the end user of inverter unit. 2. Read this manual before installing or operating the inverter unit, and store it in a safe place for reference.
  • Page 2 Moreover, because Sumitomo is constantly striving to improve its high-quality products, the information contained in this manual is subject to change without notice. Every precaution has been taken in the preparation of this manual. Sumitomo assumes no responsibility for errors or omissions. Neither is any liability assumed for damages...

  • Page 3: Table Of Contents

    Table of Contents 1 PREFACE AND SAFETY ............. . 4 2 PRODUCT OVERVIEW .

  • Page 4: Preface And Safety

    Any warnings provided by Sumitomo must be promptly provided to the end user. Sumitomo offers an express warranty only as to the quality of its products in conforming to standards and specifications published in the Sumitomo manual.
  • Page 5 Do not modify the drive circuitry. Failure to comply could result in damage to the drive and will void warranty. SUMITOMO is not responsible for any modification of the product made by the user. This product must not be modified.
  • Page 6 Warning information is displayed on the option unit as shown in the figure below. Follow all warnings and safety instructions when using the product. L.RUN L.ERR HF-520 WARNING Risk of electric shock. Read manual before installing. Wait 5 minutes for capacitor discharge after disconnecting power supply.

  • Page 7: Product Overview

    2 Product Overview Product Overview ◆ About This Product CC-Link Option (Model: SI-C3/V-H) is designed for connecting a drive to a field network using the CC-Link protocol. This option is conforming to CC-Link Ver.1.10. By installing the CC-Link Option to a drive, it is possible to do the following from a CC-Link master device: •...

  • Page 8: Receiving

    3 Receiving Receiving Please perform the following tasks after receiving the CC-Link Option: • Inspect the CC-Link Option for damage. • Verify receipt of the correct model by checking the information on the nameplate (see Figure • If you have received the wrong model or the CC-Link Option does not function properly, contact your supplier. ◆...

  • Page 9: Cc-Link Option Components

    4 CC-Link Option Components CC-Link Option Components ◆ CC-Link Option Figure 2 CC-Link with cover attached CC-Link with cover removed underside L.RUN L.ERR A – LED (SD) H – Nameplate B – LED (RD) I – Function Earth cable connection (FE) C –...
  • Page 10 4 CC-Link Option Components ◆ CC-Link Option LED Display Table 3 CC-Link Operation LED Status Indication Name Operating Status Remarks Color Status Normal operation • Receiving data normally • Timed out waiting to receive L.RUN Green Timed out • Logging onto the network •...

  • Page 11: Installation Procedure

    5 Installation Procedure Installation Procedure ◆ Section Safety DANGER Electrical Shock Hazard Do not connect or disconnect wiring while the power is on. Failure to comply will result in death or serious injury. Disconnect all power to the drive, wait at least five minutes after all indicators are off, measure the DC bus voltage to confirm safe level, and check for unsafe voltages before servicing to prevent electric shock.
  • Page 12 5 Installation Procedure ◆ Wiring Diagram Table 4 Wiring Diagram Using a single drive <1> CC-Link cable Terminal resistor Master DRIVE device CC-Link Option <2> <3> Using multiple drives CC-Link cable Master DRIVE CC-Link device Option <2> <3> CC-Link DRIVE Option <3>...
  • Page 13 5 Installation Procedure ◆ Installing the Option Unit Remove the front cover of the drive before installing the CC-Link Option. Follow the directions below for proper installation. Switch off the power supply to the drive. DANGER! Electrical Shock Hazard - Do not connect or disconnect wiring while the power is on. Failure to comply will result in death or serious injury. Before installing the CC-Link Option, disconnect all power to the drive.
  • Page 14 5 Installation Procedure Connect the CC-Link Option to the drive. Properly secure the tabs on the left and right sides of the CC-Link Option to the drive case. Figure 9 tabs should line up tabs should line up Figure 9 Attach CC-Link Option Connect the ground cable from the drive ground terminal to the CC-Link Option ground.
  • Page 15 Communication Cable Specifications ■ Use only CC-Link dedicated communication cable; the Sumitomo warranty does not cover other cable types. For more information on cables, refer to the CC-Link website at http://www.cc-link.org/. Sumitomo recommends using CC-Link cables suitable for the conditions listed in...
  • Page 16 5 Installation Procedure Figure 14 blue blue white white yellow yellow A – sheath F – drain (concentrated) B – shield G – DB C – aluminum tape H – DA D – DG I – drain (spread out) E – ground Figure 14 Cable Diagram Terminal Resistor Connection ■...

  • Page 17: Cc-Link Option Drive Parameters

    6 CC-Link Option Drive Parameters CC-Link Option Drive Parameters Confirm proper setting of the all parameters in Table 6 before starting network communications. Table 6 Parameter Settings Name Description Default Selects the frequency reference input source 0: Operator - Digital preset speed d1-01 to d1-17 1: Terminals - Analog input terminal A1 or A2 b1-01 Frequency Reference Selection...

  • Page 18: Basic Functions

    7 Basic Functions Basic Functions This interface allows the drive to be connected to a CC-Link network as a remote device, making it possible to operate, adjust settings, and monitor the operation status of the drive using the PLC program. Both bit and word data cyclic transmission are available, and high speed communication up to 10 Mbps is possible.
  • Page 19 Note: 1. For a list of command codes, write data units, and setting ranges, refer to Command Codes on page 27 Extended Command Codes on page 2. Refer to the MEMOBUS/Modbus Data Table in Appendix C of the HF-520 Technical Manual for a list of monitor data using the MEMOBUS/Modbus message area.

  • Page 20: Cc-Link Data Table

    8 CC-Link Data Table CC-Link Data Table ◆ Remote I/O The drive takes up a single station address in the buffer memory or the PLC. The table below shows the drive I/O as seen from the PLC side. Note: Refer to the PLC’s programming manual for information on the PLC’s buffer memory. PLC →...
  • Page 21 8 CC-Link Data Table Drive → PLC ■ Table 10 Remote I/O Table (Drive → PLC) Device Signal Name Description Default ON: Forward Run Command Present (includes DC Injection Braking) Forward Run – OFF: No Forward Run Command ON: Reverse Run Command Present Reverse Run –...
  • Page 22 Hz (output frequency) % (percent of maximum output frequency) (calculated from the maximum output frequency and the number of motor poles) User-set (according to parameter o1-10 and o1-11) Note: Refer to the HF-520 Technical Manual for more details on parameter settings.

  • Page 23: Troubleshooting

     If a magnetic contactor is identified as a source of noise, install a surge absorber to the contactor coil. A data error occurred due to noise  Use cables recommended by Sumitomo, or another type of shielded line. The shield should be grounded on the PLC side and on the CC-Link Option side.
  • Page 24 9 Troubleshooting LED Operator Display Fault Name CC-Link Option Fault (port A) oFA30 to oFA43 Communication ID error Cause Possible Solution  Replace the CC-Link Option. CC-Link Option hardware fault ■ Minor Faults and Alarms LED Operator Display Minor Fault Name Station Address Error CC-Link Option is set to an address outside the allowable setting range.
  • Page 25 9 Troubleshooting Faults that Occur with a Single Drive ■ The example below demonstrates how to read the LED display on the CC-Link Option to determine the cause of a fault and corrective action. Figure 17 Station 1 DRIVE Power Master supply device...
  • Page 26 9 Troubleshooting Faults when running multiple drives ■ The example below demonstrates how to read the LED display on the CC-Link Option to determine the cause of a fault and the corrective action to take when multiple drives are running from the same network. The example assumes that SW, M/S, and PRM on the master device are all off, indicated that the master device is operating normally.

  • Page 27: Cc-Link Code Numbers

    10 CC-Link Code Numbers CC-Link Code Numbers ◆ Command Codes Table 18 Command Codes Command Code Name Description 0: LED operator 1: Control circuit terminals (sequencer input) 1181H Read Run command source 2: MEMOBUS communications 3: Option unit 0: LED operator 1: Control circuit terminals (analog input) 1180H Read frequency reference source...
  • Page 28 10 CC-Link Code Numbers ◆ Extended Command Codes Table 19 Extended Command Codes Command Code Name Read Write Operation signals H5-12 = 0: Forward run command (0 = Stop, 1 = Forward run) H5-12 = 1: Run command (0 = Stop, 1 = Run) H5-12 = 0: Reverse run command (0 = Stop, 1 = Reverse run) H5-12 = 1: Forward/Reverse (0 = Forward, 1 = Reverse) External fault (EF0)
  • Page 29 10 CC-Link Code Numbers ◆ Monitor Codes Table 20 Monitor Codes Monitor Code Name Comments 0000H Reserved 0001H Output frequency Units are determined by o1-03. 0002H Output current Units are either 0.1 A or 0.01 A, depending on the capacity of the drive. 0003H Output voltage reference Units: 0.1 V...
  • Page 30 10 CC-Link Code Numbers Monitor Code Name Comments 101CH CPF contents 1 <1> 101DH CPF contents 2 <1> 101EH Reserved 101FH Alarm contents 1 1020H Alarm contents 2 1021H Alarm contents 3 1022H Alarm contents 4 1023H Alarm contents 5 1027H Output frequency when fault occurred 1028H...
  • Page 31 10 CC-Link Code Numbers Fault Name Extended Command Code Fault Code (U2, U3) (Monitor Code) Fault contents 3 MEMOBUS communication fault (CE) 0021H Option communications error (bUS) 0022H Reserved – Reserved – Control fault (CF) 0025H Reserved – Option unit external fault (EF0) 0027H 122H PID feedback loss (FbL)
  • Page 32 10 CC-Link Code Numbers Fault Name Extended Command Code Fault Code (U2, U3) (Monitor Code) CPF contents 1 Reserved – Reserved – A/D conversion error (CPF02) 0083H PWM data error (CPF03) 0084H Reserved – Reserved – EEPROM data error (CPF06) 0087H 130H Terminal board communication error (CPF07)

  • Page 33: Specifications

    11 Specifications Specifications ◆ Specifications Table 22 Option Specifications Model SI-C3/V-H (PCB model: SI-C3) CC-Link Version Version 1.10 Station Type Remote device station No. of Occupied Stations Communication Speed 156 kbps to 10 Mbps Ambient Temperature –10°C to +50°C Humidity up to 95% RH (no condensation) Storage Temperature –20°C to +60°C (allowed for short-term transport of the product)

  • Page 34: Warranty

    12 Warranty Warranty ◆ Warranty policy on inverter Warranty period The warranty period is 18 months from date of shipment or 12 months after initial opera-tion, whichever comes first. In the event that any problem or damage to the Product arises during the "Warranty Pe-riod" from defects in the Product whenever the Product is properly installed and combined with the Buyer's equipment or machines maintained as specified in the maintenance ma-nual, and properly operated under the conditions described in the catalog or as otherwise agreed upon in writing between the Seller and Buyer or its customers;...
  • Page 35 U.S.A France Singapore Sumitomo Machinery Corporation of America SM-Cyclo France SAS (SMFR) Sumitomo (SHI) Cyclo Drive Asia Pacific Pte. (SMA) Ltd. (SCA) 8 Avenue Christian Doppler, 77700 Serris, France 4200 Holland Blvd. Chesapeake,VA 23323,U.S.A. 15 Kwong Min Road, Singapore 628718...
