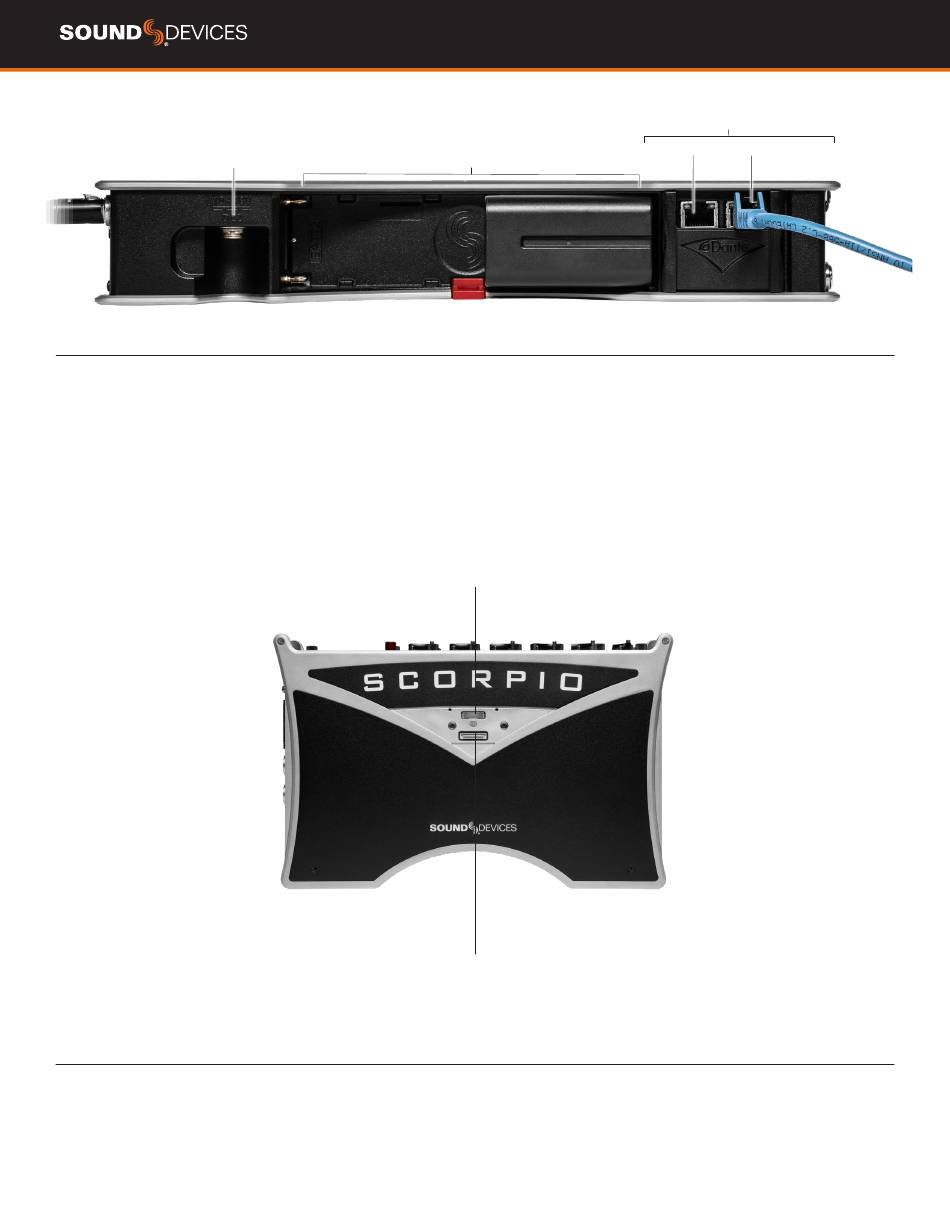

REAR PAN EL
10-18 V DC 2 TA4 jack
10-18V DC2 TA4 JACK Accepts DC voltages from 10–18 V for pow-
ering. [pin-1- GND, pin-2- Smart Battery DATA, pin-3- Smart Battery
CLOCK, pin-4- +10-18 VDC]
BATTERY 1, BATTERY 2 DOCKING Sony L-Mount type batteries
may be used. When connected to an external DC source via DC1 or
DC2 the L-Mount batteries can be charged if enabled in the Power
menu.
TO P PANEL
TEST CONNECTOR Used during manufacturing.
MULTIPIN MOLEX RIBBON CONNECTOR Used for connecting SL-
6. Remove all power on Scorpio and the SL-6 before connecting.
The SL-Riser is required to connect the SL-6 to Scorpio.
Scorpio User Guide
Battery 1, Battery 2 Docking
DANTE RJ45 JACKS Two-1 GbE ports serving as a Dante audio net-
work connections. The Dante interface provides 32 inputs and 32 out-
puts simultaneously. Routing is defined through the Channel Source
and Output menus. Dante Controller app on Mac/PC (from Audinate)
needed to route and use Dante.
Multipin Molex Ribbon Connector for SL-6
Test connector for manufacturing
Dante /Ethernet RJ-45 jacks
Primary Ethernet port
Secondary Ethernet port
