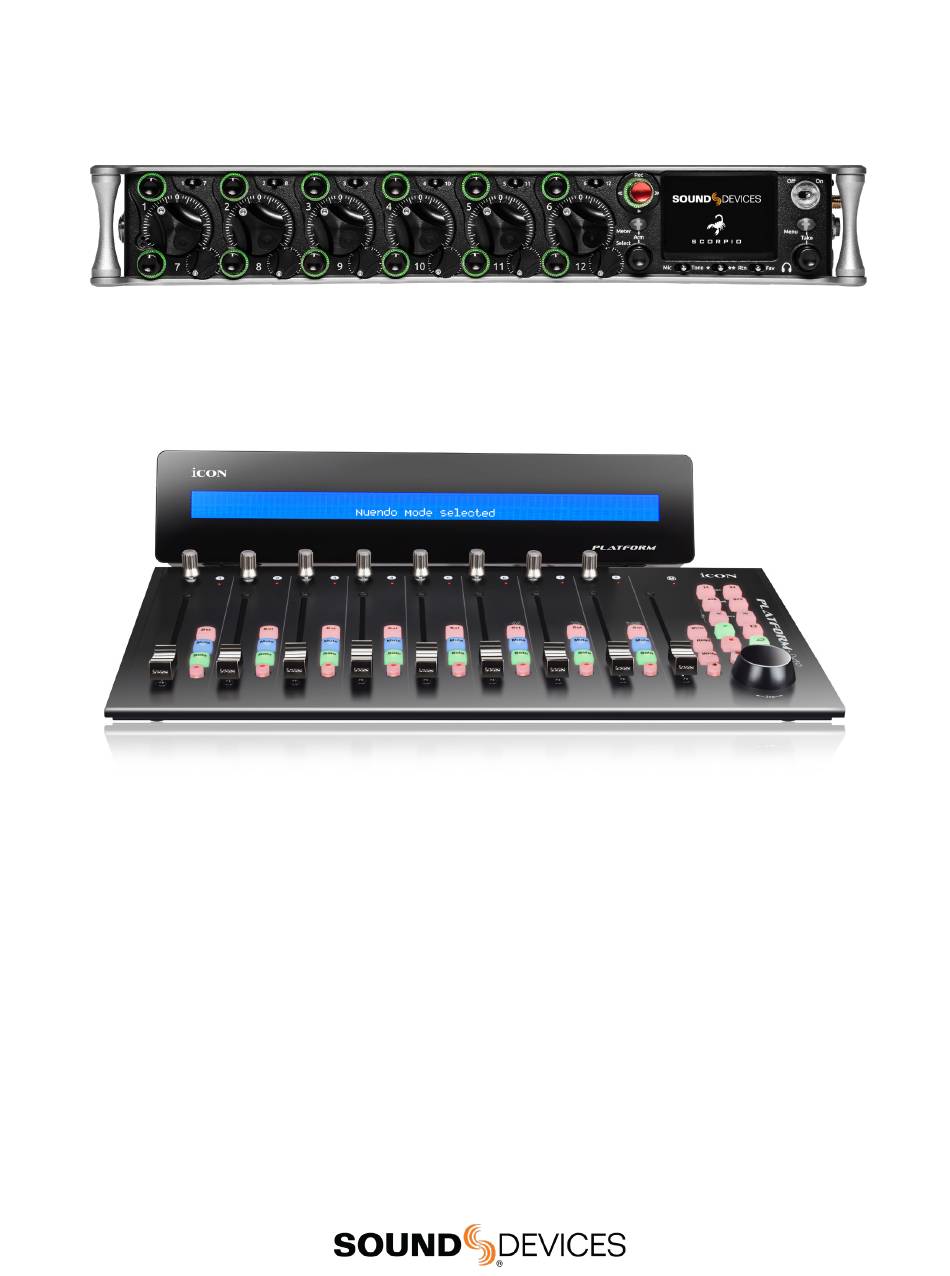

  • Page 1 Scorpio & Icon Platform M+ Operational Guide...
  • Page 2 Sound Devices, LLC does not accept responsibility for any losses due to the user of this guide. Trademarks The “wave”...
  • Page 3 1. Connect a 12-18 VDC power source to the DC In on the Platform M+ rear panel. DC connector is 5 mm width, center pin +ve. 2. Connect Scorpio’s USB-A port to the USB-B port on the rear of the Platform M+. You can also connect via a USB hub connected to the Scorpio’s USB-A port.

  • Page 4: Mix Mode

    KNOB rotate to set channel routing to the bus [Off, Pre, MUTE channel mute. Post, or Send]. SEL opens the Scorpio channel screen. Knobs 1-8 change their SOLO press to PFL the channel. function as follows: MUTE press to mute the channel.

  • Page 5: Transport Controls

    Rec, Stop, Play, <<, >> duplicate the functionality of Scorpio’s trans- port joystick. Menu (RTZ) Button Press to access Scorpio’s main menu and to back out of menus. Sel and HP (Zoom) Buttons The jog wheel has two mutually exclusive modes determined by the two buttons above it.
  • Page 6 Post Office Box 576 E7556 State Rd. 23 and 33 Reedsburg, Wisconsin 53959 USA support@sounddevices.com +1 608.524.0625 main +1 608.524.0655 fax 800.505.0625 toll free www.sounddevices.com...
