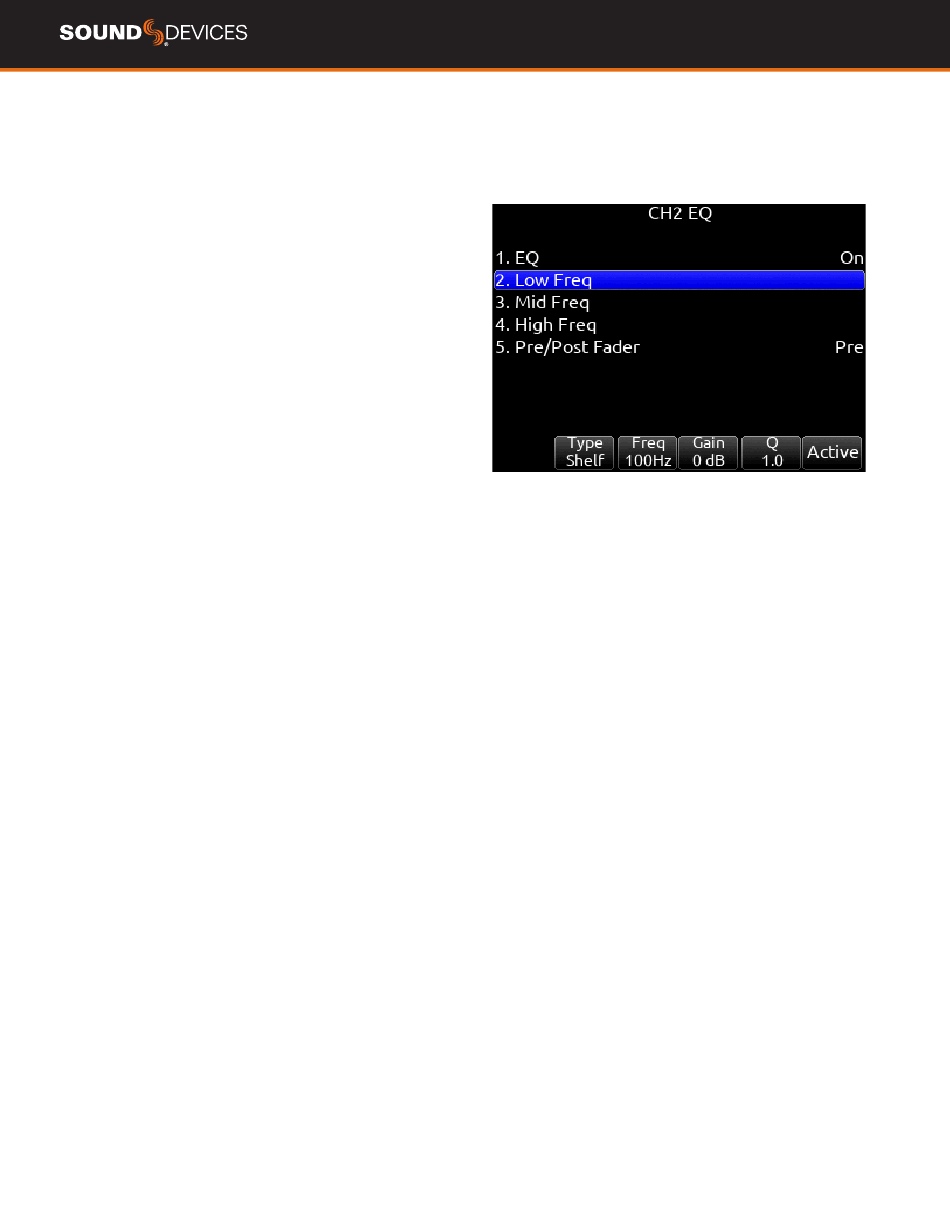

Channel EQ

1. EQ Selects channel EQ state. [Off*, On]
2. LOW FREQ Selects low frequency EQ filter parameters.
a. Type- Indicates Shelf or Peaking filter [Shelf, Peak]
b. Freq- Indicates frequency of the filter, continuously-variable from
20 Hz to 20 kHz (100Hz*).
c. Gain- Indicates gain of the filter, continuously-variable from -15dB
to +15 dB in 1 dB increments (0 dB*).
d. Q- Indicates "Q" or bandwidth of the filter, continuously-variable
from .5 - 10 in .1 increments (1.0*).
e. Bypass- Indicates state of the filter [Bypass (orange fill)]*
3. MID FREQ Selects mid frequency EQ filter parameters.
a. Freq- Indicates frequency of the filter, continuously-variable from
200-20 kHz in 10 Hz increments (5000Hz*).
b. Gain- Indicates gain of the filter, continuously-variable from -15 dB
to +15 dB in 1 dB increments (0 dB*).
c. Q- Indicates "Q" or bandwidth of the filter, continuously-variable
from .5-10 in .1 increments (1.0*).
d. Bypass- Indicates state of the filter [Bypass(orange fill)]*.
4. HI FREQ Selects high frequency EQ filter parameters.
a. Type- Indicates Shelf or Peaking filter [Peak, Shelf]
b. Freq- Indicates frequency of the filter, continuously-variable from
20 Hz to 20 kHz. (100 Hz*).
c. Gain- Indicates gain of the filter, continuously-variable from -15dB
to +15 dB in 1 dB increments. (0 dB*)
d. Q- Indicates "Q" or bandwidth of the filter, continuously-variable
from .5 - 10 in .1 increments. (1.0*)
e. Bypass- Indicates state of the filter. [Bypass (orange fill)]*
5. PRE/POST-FADER Indicates where the EQ is inserted into the
audio chain. Pre-fade or Post-fade [Pre*, Post]
EQ will apply to bus sends when applied Pre-fade only .
