Buses
Selects routing for Buses L,R and 1-10.

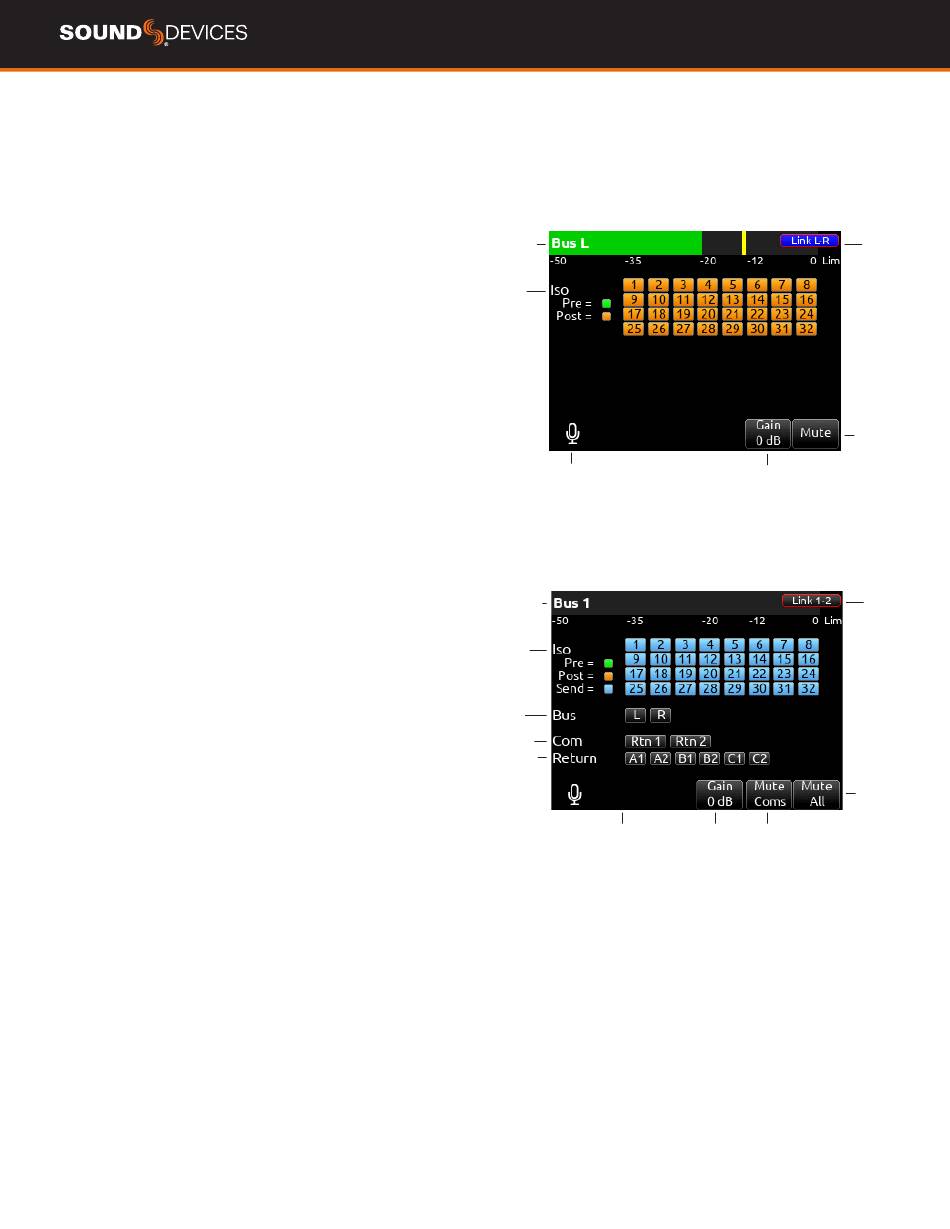

1. BUS METER Audio level meter for the selected bus.
2. LINK *-* Selects linking for two even-to-odd numbered adjacent
buses. Links bus Gain, Mute Coms, and Mute All functions.
3. ISO Any ISO channel contributes to Bus mix. [Green fill in text box
= Pre-fade, Orange fill in text box = Post-fade
4. BUS [L,R, 1,2 (available on buses 3-10).
5. COM [Rtn 1, Rtn 2 (not available on L,R buses)
6. RETURN [A1, A2, B1, B2, C1, C2 (not available on L,R buses)
7. GAIN Use ** toggle to select and adjust selected bus gain in 1 dB
increments. [Off-16dB]
8. MUTE COMS Selects muting of Coms 1, 2 sends and returns.
9. MUTE ALL Indicates mute status of bus. Blue icon = muted. Tog-
gle Mute All On/Off with the "Fav" toggle.
