Summary of Contents for Tylo SENSE COMBI USA Pure

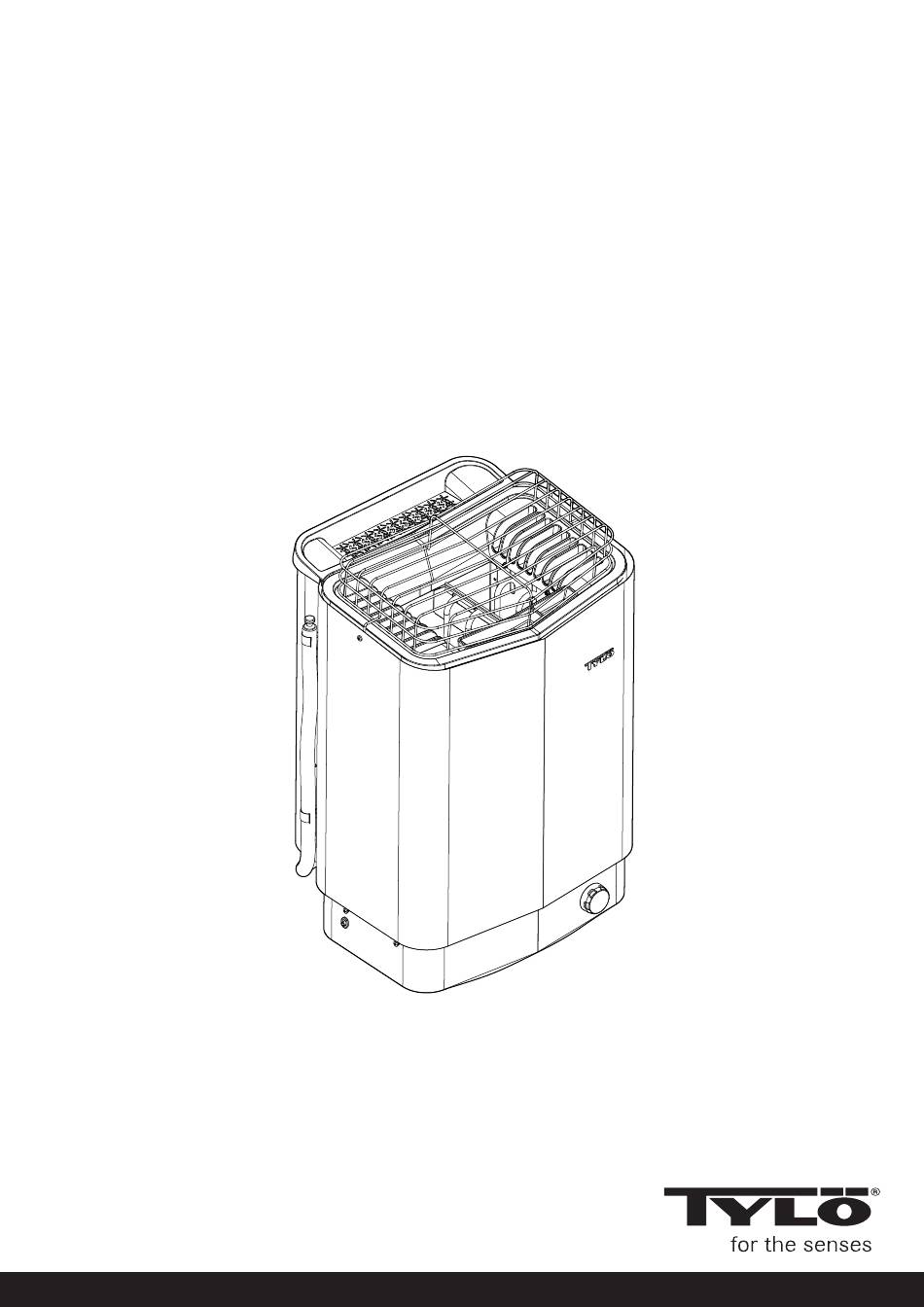

- Page 1 SENSE COMBI USA 2016-10-18 Pure/Elite ENGLISH INSTALLATION / USER GUIDE FRANÇAIS NOTICE D’INSTALLATION ET D’UTILISATION Compliments of www.saunasandstuff.com 2900 5260...
-
Page 2: Table Of Contents
Compliments of www.saunasandstuff.com USER GUIDE............... 12 INSTALLATION GUIDE..........3 GENERAL INFORMATION ..........12 BEFORE INSTALLATION ............ 3 PRIOR TO USE ..............12 Parts ............... 3 The fi rst time you use the heater ......12 Installation requirements ........3 Prior to each use ............ 12 Installation tools ............ -
Page 3: Installation Guide
Compliments of www.saunasandstuff.com INSTALLATION GUIDE Contact your dealer if anything is missing. Control panel Pure is supplied with Sense Combi Pure. BEFORE INSTALLATION Control panel Elite WiFi is supplied with Sense Combi Elite. See separate guides. Parts Check that the following parts are included in the packaging: Installation requirements To ensure safe use of the heater, check that the following criteria are met:... - Page 4 Compliments of www.saunasandstuff.com Positioning the control panel The control panel can be installed inside or outside of the sauna room. The control panel must be correctly positioned with regard to safety distances below when installed inside the sauna room Figure 2: Schematic diagram of installation Sauna heater Control panel Sensor...
- Page 5 Compliments of www.saunasandstuff.com Sauna room ventilation Removing the Rock Guard In a sauna, the air should be changed about 6 times an hour. See Unscrew the two screws on the side of the heater and lift the Figure 6. rock guard upwards, see Figure 7. (This is necessary when fi lling the stone compartment or cleaning the fragrance holder and air It is recommended that ventilation openings meet the require- humidifi...
-
Page 6: Installation
Compliments of www.saunasandstuff.com Typical wall construction Figure 10: Opening/closing the cover Figure 8: Typical wall construction INSTALLATION Connect the heater using standard wiring (Fk or EKK) approved for fi xed installation. Sauna heater installation Any single wires (Fk) must be protected in electrical conduits (VP) Attach the bracket and spacers to the wall following the speci- to the heater. - Page 7 Compliments of www.saunasandstuff.com Connect the light cable (if relevant) (7), see Figure 11, to the 12. Install the sensor on the wall see Fig 15 and 16. The therm- terminal (8) according to the wiring diagram Figure 19. istor wire may also be passed through the wall see Fig 17 Close the cover and tighten the screws (see Figure 10).
-
Page 8: External On/Off Switch (Option)
Compliments of www.saunasandstuff.com Fig 17: Wiring through the wall - Combi Pure. Fig 18: Wiring through the wall - Combi Elite. Unusual voltages/numbers of phases Contact Tylö Customer Service before connecting to voltages or numbers of phases that are not listed in the wiring diagram Figure External ON/OFF switch (option) The external ON/OFF switch can be positioned anywhere outside the sauna, not to exceed 75 feet from the heater, to avoid voltage... -
Page 9: Connection/Wiring
Compliments of www.saunasandstuff.com CONNECTION/WIRING DIAGRAM 208 V 1 Phase 240 V 1 Phase Model Amperage Output Wire Size Amperage Output Wire Size Amps Amps Sense Combi-U 7 Sense Combi-U 8 Note: Heating elments do not change for voltage changes. The heater output will changed based on the voltage applied to heater. 5,3-8,3 kW * ** RJ10 4P4C... -
Page 10: Description Of Cabling/Modular Contacts
Compliments of www.saunasandstuff.com Description of cabling/modular contacts Pos 1. Pos 2. Pos 3. Pos 4. Pos 5. Ext sw Door sw Bim/NTC Addon (option) Pin 1: Pin 1: Pin 1: Pin 1: Bim Pin: Pin 2: NTC Pin 2: LED Pin 2: LED Pin 2: NTC Pin 3: NTC... -
Page 11: Dimensions
Compliments of www.saunasandstuff.com DIMENSIONS 17,0" 7,3"... -
Page 12: User Guide
Compliments of www.saunasandstuff.com USER GUIDE Default settings Using the control panel for the fi rst time: See instructions supplied with the control panel. GENERAL INFORMATION Prior to each use Congratulations on your new sauna heater! Follow this user guide Check the following to get the most from your purchase. -
Page 13: Use
Compliments of www.saunasandstuff.com Water reservoir in operation: The control panel in general 1. When in use and if the water level drops below the upper level See instructions supplied with the control panel. sensor, it will continue to operate as normal but a single fi lled-in drop symbol will show on the Elite control panel display (Pure Water reservoir control panel shows unlit water drop). -
Page 14: External On/Off Switch (Option)
Compliments of www.saunasandstuff.com Air humidifi er WARNING! Do not confuse the instructions for the air humidifi er with those for the water reser- voir. DANGER! Do not pour water into the fragrance holder once it has been heated up, as this can cause boiling water to splash on the sauna occupants. -
Page 15: Descaling The Water Reservoir
Compliments of www.saunasandstuff.com WARNING! If the stone compartment fi lls up with gravel and small stones, the tubular element can be damaged as a result of overheating, as air fl ow will be insuffi cient. TROUBLESHOOTING Temperature Safety Switches The heater's temperature protection devices: •... -
Page 16: Troubleshooting The Sauna Heater
Compliments of www.saunasandstuff.com Troubleshooting the sauna heater Information! Contact the dealer during the guarantee period in the event of faults. See the instructions for the control panel for details of faults not covered in this user guide. Table 1: Troubleshooting the sauna heater Symptom Possible cause Remedy... -
Page 17: Spare Parts List
Compliments of www.saunasandstuff.com SPARE PARTS LIST Figure 11: Spare parts 2 9600 0223 Tubular element Figure 10: Spare parts 1 9600 0730 Herb bowl 9600 0731 Hose with plug Combi U8 Tubular Elements 3001-924 9600 0732 Filler grille Combi U7 Tubular element 3001-920 9600 0733 Wall bracket Stone compartment... -
Page 18: Heater Wiring Diagram
Compliments of www.saunasandstuff.com HEATER WIRING DIAGRAM WATER TANK Electrodes BACK MIDDLE FRONT High Limit Control Heater Circuit board GND M X17 X18 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 GND GND 208 V~ 240 V~ Type Sense...
