Backyard 30015 Owner's Manual

Pacific view wooden playset
Hide thumbs

Advertisement

Quick Links

Download this manual

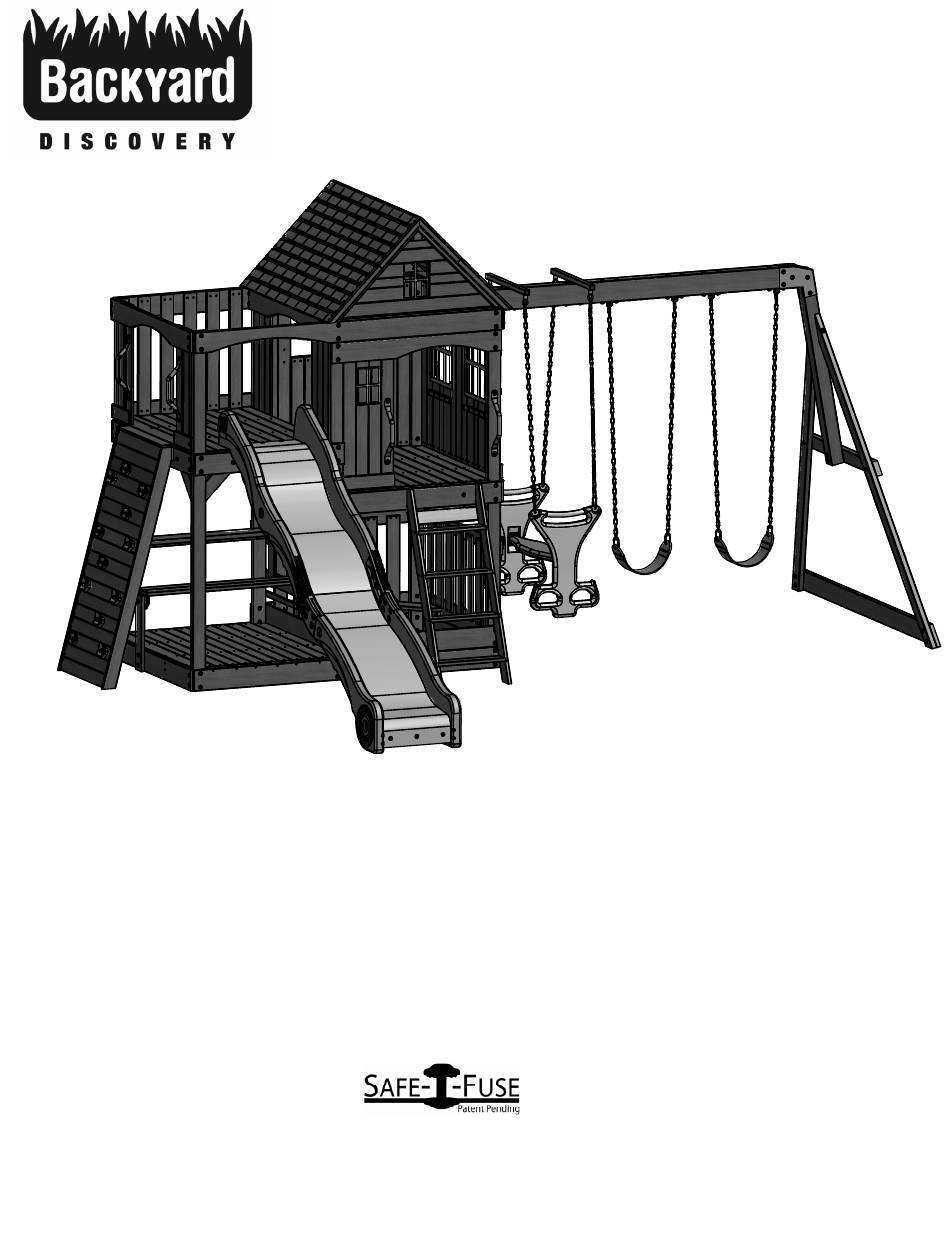

PACIFIC VIEW
WOODEN PLAYSET
MODEL: #30015
• Owner's Manual
• Frequently Asked Questions
• Assembly Instructions
• Warranty Information
Features the
fastening system.
Save this assembly manual for future reference in the event that
you need to order replacement parts.
Made in China
INS-30015-A-PACIFIC VIEW-ENG 10/20/14

Advertisement

loading

Related Manuals for Backyard 30015

Summary of Contents for Backyard 30015

  • Page 1 • Owner's Manual • Frequently Asked Questions • Assembly Instructions • Warranty Information Features the fastening system. Save this assembly manual for future reference in the event that you need to order replacement parts. Made in China INS-30015-A-PACIFIC VIEW-ENG 10/20/14...
  • Page 2 STOP PARE Missing A Part? CALL US BEFORE GOING BACK TO THE STORE! The store where you made your purchase does not stock parts for this item. If you have assembly questions or if you need parts, whether they are missing or damaged ¡LLÁMENOS ANTES DE REGRESAR A LA TIENDA! La tienda donde realizó...
  • Page 3 Owner’s Manual Play Set Dear Customer: Please read entire booklet completely before beginning the assembly process. Equipment is recommended for use by children 3 to 10 years of age. Structures are not intended for public use. The Company does not warranty any of its residential structures subjected to commercial use such as: Daycare, Preschool, Nursery School, Recreational Park, or any similar Commercial Application.
  • Page 4 Owner’s Manual Play Set Please refer to the Assembly section of the Assembly Manual for Maximum Fall Height. Positioning Your Playcenter 1. The Playcenter is designed to be installed on a level surface by an Adult with an Adult helper. Place in a flat area of your yard to minimize ground preparation.
  • Page 5 Owner’s Manual Play Set The following chart explains the fall height in feet from which a life threatening head injury would not be expected Critical Heights in feet (m) of Tested Materials Material Uncompressed Depth Compressed Depth 6" (152mm) 9" (228mm) 12" (304mm) to 9"...
  • Page 6 Owner’s Manual Play Set 18. Verify that any suspended climbing ropes, chain, or cable are secured at both ends and that they cannot be looped back on it. 19. Instruct children not to attach items to the playground equipment that are not specifically designed for use with the equipment, such as, but not limited to, jump ropes, clothesline, pet leashes, cables and chain as they may cause a strangulation hazard.
  • Page 7 Third Party Assembly: Customer may, in their sole discretion, elect to use a third party person or service to assemble this product. Backyard Discovery assumes no responsibility or liability for any charge incurred by the Customer for any assembly services’.
  • Page 8 Owner’s Manual Play Set APPENDIX A Information on Playground Surfacing Materials: SECTION 4 OF THE CONSUMER PRODUCT SAFETY COMMISSION’S OUTDOOR HOME PLAYGROUND SAFETY HANDBOOK X3.1 Select Protective Surfacing—One of the most important things you can do to reduce the likelihood of serious head injuries is to install shock-absorbing protective surfacing under and around your play equipment.

  • Page 9: Tools Required For Installation

    Tools Required for Installation: (These are the tools that are generally required for assembly of our outdoor products. These tools are not included with the outdoor product purchase.) (Square) (Level 24") (Tape Measure) (Phillips Screw Driver) (Claw Hammer) (Drill Attachments: Phillips Head) (Cordless Drill or (1/8"...
  • Page 10 Basic Setup Dimensions Place the set on level ground, not less than 6 ft [2 m] from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry lines, or electrical wires. 29'-7 1/2" [9 m] 17'-7 1/2" [5.4 m] 25'-5"...

  • Page 11: Parts Identification

    Parts Identification Wood Components (NOT TO SCALE) A50 - SWING BEAM - W102416 3 3/8"x5 1/4"x89 1/2" (86x134x2274) E1 - RIGHT FRONT TOWER LEG - W4L05380 1 3/8"x3 3/8"x89 1/2" (36x86x2274) E2 - CENTER FRONT TOWER LEG - W4L05382 1 3/8"x3 3/8"x89 1/2" (36x86x2274) E3 - LEFT FRONT TOWER LEG - W4L05381 1 3/8"x3 3/8"x89 1/2"...
  • Page 12 Parts Identification Wood Components (NOT TO SCALE) G13 - SAND BOX SEAT - W100629 1"x5 1/4"x17 3/4" (24x134x450) G15 - FLOOR RAIL - W100793 1"x5 1/4"x45 1/2" (24x134x1156) G2 - WALL RAIL - W100618 1"x5 1/4"x82 1/4" (24x134x2088) G3 - WALL RAIL - W100619 1"x5 1/4"x82 1/4"...
  • Page 13 Parts Identification Wood Components (NOT TO SCALE) H6 - SEAT UPRIGHT - W100635 1"x3 3/8"x19" (24x86x482) H74 - LEFT UPRIGHT - W100608 1"x3 3/8"x50 3/4" (24x86x1290) H75 - RIGHT UPRIGHT - W100609 1"x3 3/8"x50 3/4" (24x86x1290) H76 - LADDER RUNG - W100611 1"x3 3/8"x18 1/8"...
  • Page 14 Parts Identification Wood Components (NOT TO SCALE) L73 - WINDOW SHUTTER - W100786 5/8"x4 3/8"x16" (16x112x406) M1 - ROOF CAP - W4L05369 5/8"x3 3/8"x51 7/8" (16x86x1318) M10 - WALL BOARD - W100652 5/8"x3 3/8"x35" (16x86x888) M102 - ATTACHMENT BOARD - W4L05242 5/8"x3 3/8"x27 7/8"...
  • Page 15 Parts Identification Wood Components (NOT TO SCALE) M22 - GABLE BOARD - W100664 5/8"x3 3/8"x9 1/2" (16x86x241) M23 - WINDOW TRIM - W100665 5/8"x3 3/8"x12 7/8" (16x86x328) M24 - WALL BOARD - W4L04632 5/8"x3 3/8"x29 7/8" (16x86x758) M27 - BOTTOM WALL BOARD - W4L04580 (13) 5/8"x3 3/8"x21 3/8"...
  • Page 16 Parts Identification Wood Components (NOT TO SCALE) M76 - ROCK WALL BOARD - W4L05239 5/8"x3 3/8"x26 5/8" (16x86x675) M8 - WALL BOARD - W100650 (11) 5/8"x3 3/8"x41" (16x86x1040) M9 - WALL BOARD - W100651 5/8"x3 3/8"x32" (16x86x812) N1 - FLOOR BOARD - W4L05399 5/8"x2 3/8"x50 7/8"...
  • Page 17 Parts Identification Wood Components (NOT TO SCALE) (1) FP1 - FLOOR PANEL - W2A01679 1 5/8"x17 1/8"x50 1/4" (40x434x1276) (1) FP2 - FLOOR PANEL - W2A01680 1 5/8"x16 1/8"x50 1/4" (40x408x1276) (2) RP1 - ROOF PANEL - W2A01677 1 3/4"x19 1/4"x53 3/4" (45x490x1366) (2) RP2 - ROOF PANEL - W2A01678 1 3/4"x16 1/4"x53 3/4"...
  • Page 18 Parts Identification Hardware QG - BOLT WH 5/16X6 - H100023 B - NUT BARREL WH 5/16x5/8 - H100004 AE - BOLT WH 5/16x5 3/4 - H100032 (15) D - NUT BARREL WH 5/16x7/8 - H100005 QD - BOLT WH 5/16x4-1/4 - H100166 (11) C - NUT BARREL WH 5/16x1 1/2 - H100006 S - BOLT WH 5/16x3 3/4 - H100019...
  • Page 19 Parts Identification Hardware AT - BOLT HEX 3/8x5 3/4 - H100056 AS - BOLT HEX 5/16x4 1/4 - H100054 AJ - BOLT HEX 5/16x1 1/4 - H100042 - T-40 TORX BIT - A100042 (68) Z - LAG SCREW WH 5/16x2 - H100027 CA - WASHER FLAT 11x25 - H100102 BL - SCREW TAPPING 14x3/4 - H100083 (22)
  • Page 20 Parts Identification Accessories (NOT TO SCALE) TR - SLIDE RAIL 10' TOP RIGHT GREEN - A100033 DS - SLIDE RAIL 10' BOTTOM RIGHT GREEN - A100031 DT - SLIDE RAIL 10' TOP LEFT GREEN - A100032 DR - SLIDE RAIL 10' BOTTOM LEFT GREEN - A100030 FX - HAND GRIP METAL GREEN 381 c/c - A100118 EY - TUBING CAP GLIDER SUPPORT - A100067 EX - GLIDER BUSHING BYD GREEN - A100066...
  • Page 21 Parts Identification Accessories (NOT TO SCALE) DX - SLIDE BED 10' LIGHT GREEN - A100035 (4) SWING HANGER - A4M00505 TB - SWING BEAM EXTENSION BRACKET-LEFT - A100325 TC - SWING BEAM EXTENSION BRACKET-RIGHT - A100326 - SWING SEAT GREEN - A6P00054 - GREEN HC ROCK #1 - A6P00036 DJ - GLIDER ARM LIGHT GREEN - A100021 - GREEN HC ROCK #2 - A6P00037...
  • Page 22 H74 - LEFT UPRIGHT - W100608 1"x3 3/8"x50 3/4" (24x86x1290) H76 - LADDER RUNG - W100611 1"x3 3/8"x18 1/8" (24x86x460) H75 - RIGHT UPRIGHT - W100609 1"x3 3/8"x50 3/4" (24x86x1290) 4 FOOT LADDER ASSEMBLY STEP 1 SCREW PFH (16) SCREW PFH 8x2 (8 PLCS) 4 PLCS SCREW PFH 8x2...
  • Page 23 M73 - REAR SUPPORT - W100610 5/8"x3 3/8"x19 1/4" (16x86x488) 4 FOOT LADDER ASSEMBLY STEP 2 SCREW PFH SCREW PFH 8x2 (4 PLCS)

  • Page 24: Screw Pfh 8X1

    E72 - LEFT RAIL - W100036 M74 - ROCK WALL BOARD - W100987 (10) 1 3/8"x3 3/8"x61 3/4" (36x86x1570) 5/8"x3 3/8"x26 5/8" (16x86x675) E73 - RIGHT RAIL - W100037 1 3/8"x3 3/8"x61 3/4" (36x86x1570) M75 - ROCK WALL BOARD - W4L05240 5/8"x3 3/8"x26 5/8"...
  • Page 25 M102 - ATTACHMENT BOARD - W4L05242 5/8"x3 3/8"x27 7/8" (16x86x707) ROCKWALL STEP 2 T-NUT 5/16 SCREW PFH 8x1 1/2 M102 T-NUT 5/16 (2 PLCS) T-NUTS ON BACK SIDE SCREW PFH 8x1 1/2 (4 PLCS)
  • Page 26 - GREEN HC ROCK #2 - A6P00037 - GREEN HC ROCK #1 - A6P00036 ROCKWALL STEP 3 BOLT PTH (24) WASHER 1/4x3/4 (24) LOCK INT 8x15 (24) T-NUT 1/4 BOLT PTH 1/4x3/4 (24 PLCS) WASHER LOCK INT 8x15 (24 PLCS) T-NUT 1/4 (24 PLCS)

  • Page 27: Swing Beam Assembly

    A50 - SWING BEAM - W102416 3 3/8"x5 1/4"x89 1/2" (86x134x2274) TB - SWING BEAM EXTENSION BRACKET-LEFT - A100325 TC - SWING BEAM EXTENSION BRACKET-RIGHT - A100326 GD - L BRACKET 66x66x127 - A100140 SWING BEAM ASSEMBLY STEP 1 BOLT WH 5/16x3 BOLT HEX 5/16x4 1/4...
  • Page 28 SP50 - SWING BEAM SUPPORT - W102417 E51 - ANGLE BRACE - W100948 3 3/8"x3 3/8"x49 3/8" (86x86x1254) 1 3/8"x3 3/8"x88 3/4" (36x86x2254) E50 - END SUPPORT - W100949 G50 - GROUND BOARD - W100947 1 3/8"x3 3/8"x44 1/8" (36x86x1120) 1"x5 1/4"x86 3/4"...
  • Page 29 SWING BEAM ASSEMBLY STEP 3 NUT BARREL WH 5/16x7/8 BOLT WH (2 PLCS) 5/16x3 NUT BARREL WH 5/16x7/8 BOLT WH 5/16x3 (2 PLCS)
  • Page 30 (4) SWING HANGER - A4M00505 SWING BEAM ASSEMBLY WASHER STEP 4 LOCK INT 10x18 WASHER T-NUT 3/8 FLAT 11x25 (8 PLCS) BOLT HEX 3/8x5 3/4 T-NUT 3/8 SWING HANGER (4 PLCS) WASHER FLAT 11x25 (8 PLCS) WASHER LOCK INT 10x18 (8 PLCS) BOLT HEX 3/8x5 3/4 (8 PLCS)
  • Page 31 BY - SWING HANGER QUICK LINK - H100097 EY - TUBING CAP GLIDER SUPPORT - A100067 EW - GLIDER SUPPORT BYD GREEN - A100065 EX - GLIDER BUSHING BYD GREEN - A100066 SWING BEAM ASSEMBLY STEP 5 NUT LOCK 5/16 (4 PLCS) BOLT WH 5/16x5 3/4...

  • Page 32: Quick Link

    FT - CHAIN GREEN 47" - A100096 FA - QUICK LINK - A100069 DN - GLIDER SEAT DARK GREEN - A100025 DJ - GLIDER ARM LIGHT GREEN - A100021 GLIDER ASSEMBLY BOLT WH 5/16x5 3/4 NUT LOCK 5/16 WASHER FLAT 8x27 CHAIN GREEN 47"...

  • Page 33: Swing Assembly

    EF - CHAIN GREEN 57" - A100047 FA - QUICK LINK - A100069 - SWING SEAT GREEN - A6P00054 SWING ASSEMBLY MAKE TWO. CHAIN GREEN 57" (2 PLCS) QUICK LINK (2 PLCS) SWING SEAT GREEN (1 PLC)
  • Page 34 M70 - SLIDE BED SUPPORT - W100935 DX - SLIDE BED 10' LIGHT GREEN - A100035 5/8"x3 3/8"x19 7/8" (16x86x505) 10 FOOT SLIDE ASSEMBLY STEP 1 BOLT WH 5/16x1/2 T-NUT 5/16 DX - SLIDE BED 10' LIGHT GREEN (SEE SLIDE ASSEMBLY INSTALLATION STEP FOR DECK MOUNTING HOLE BOLT WH 5/16x1/2...
  • Page 35 DS - SLIDE RAIL 10' BOTTOM RIGHT GREEN - A100031 TR - SLIDE RAIL 10' TOP RIGHT GREEN - A100033 DT - SLIDE RAIL 10' TOP LEFT GREEN - A100032 DR - SLIDE RAIL 10' BOTTOM LEFT GREEN - A100030 10 FOOT SLIDE ASSEMBLY STEP 2 BOLT WH...
  • Page 36 DW - SLIDE SUPPORT TUBE 21.34x505 - A100034 21.34 OD x 2.77 W x 505 10 FOOT SLIDE ASSEMBLY STEP 3 PLACE (1) SLIDE RAIL ASSEMBLY ON A FLAT SURFACE AND BEGIN INSERTING SLIDE BED AT THE BOTTOM OF THE SLIDE RAIL (FIG. 1). HAVE A HELPER BEND THE SLIDE BED TOWARDS THE TOP OF THE SLIDE AND INSERT THE BED INTO THE SLIDE CAVITY.
  • Page 37 10 FOOT SLIDE ASSEMBLY STEP 4 ONCE THE SLIDE BED, SUPPORT TUBES, AND SUPPORT BOARD ARE COMPLETELY IN THE CAVITY AND SUPPORT POCKET, SECURE USING 3" SCREWS AT EACH OF THE PILOT HOLE LOCATIONS AS SHOWN. REPEAT PROCESS FOR OPPOSITE SLIDE RAIL. SCREW PFH (38) SCREW PFH 8x3...
  • Page 38 E7 - LEFT REAR TOWER LEG - W100714 1 3/8"x3 3/8"x89 1/2" (36x86x2274) E3 - LEFT FRONT TOWER LEG - W4L05381 1 3/8"x3 3/8"x89 1/2" (36x86x2274) G8 - WALL RAIL - W100624 G4 - FLOOR RAIL - W4L05402 1"x5 1/4"x49" (24x134x1244) 5/8"x5 1/4"x49"...
  • Page 39 E2 - CENTER FRONT TOWER LEG - W4L05382 1 3/8"x3 3/8"x89 1/2" (36x86x2274) E6 - CENTER REAR TOWER LEG - W4L05379 1 3/8"x3 3/8"x89 1/2" (36x86x2274) K2 - BASE/SAND BOX BOARD - W4L05398 5/8"x5 1/4"x49" (16x134x1244) G4 - FLOOR RAIL - W4L05402 5/8"x5 1/4"x49"...
  • Page 40 (1) E5 - RIGHT REAR TOWER LEG - W2A01691 1 3/8"x3 3/8"x89 1/2" (36x86x2274) E1 - RIGHT FRONT TOWER LEG - W4L05380 1 3/8"x3 3/8"x89 1/2" (36x86x2274) G6 - FLOOR RAIL - W100622 G5 - WALL RAIL/SWING MOUNT - W100621 1"x5 1/4"x49"...
  • Page 41 K5 - GROUND BOARD - W4L05397 5/8"x5 1/4"x45 1/2" (16x134x1156) H10 - BOTTOM FLOOR BOARD SUPPORT - W100677 1"x3 3/8"x5 1/4" (24x86x134) G1 - BASE BOARD - W4L05396 5/8"x5 1/4"x82 1/4" (16x134x2088) STEP 4 BOLT WH BOLT WH (12) 5/16x2 5/16x3 WASHER (20)
  • Page 42 H10 - BOTTOM FLOOR BOARD SUPPORT - W100677 G15 - FLOOR RAIL - W100793 1"x3 3/8"x5 1/4" (24x86x134) 1"x5 1/4"x45 1/2" (24x134x1156) G12 - FLOOR RAIL - W4L05377 G10 - FLOOR RAIL - W100626 1"x5 1/4"x40 1/8" (24x134x1018) 1"x5 1/4"x45 1/2" (24x134x1156) STEP 5 BOLT WH (12)
  • Page 43 G2 - WALL RAIL - W100618 1"x5 1/4"x82 1/4" (24x134x2088) K1 - WALL RAIL - W100639 5/8"x5 1/4"x45 1/2" (16x134x1156) G3 - WALL RAIL - W100619 1"x5 1/4"x82 1/4" (24x134x2088) STEP 6 BOLT WH BOLT WH (12) 5/16x2 1/4 5/16x2 WASHER (16) LOCK EXT...
  • Page 44 E4 - DECK BRACE - W100615 1 3/8"x3 3/8"x15 1/2" (36x86x394) STEP 7 LAG SCREW BOLT WH WH 5/16x2 5/16x2 1/4 WASHER LOCK EXT T-NUT 5/16 8x19 E4 4 PLCS T-NUT 5/16 (4 PLCS) WASHER LOCK EXT 8x19 (8 PLCS) BOLT WH 5/16x2 1/4 (4 PLCS) LAG SCREW WH 5/16x2...
  • Page 45 H1 - FLOOR JOIST - W100630 H3 - FLOOR JOIST - W100632 1"x3 3/8"x45 1/2" (24x86x1156) 1"x3 3/8"x40 1/8" (24x86x1018) H9 - FLOOR JOIST - W100638 1"x3 3/8"x35 3/4" (24x86x908) SQ - "A" REVISION TAG - A100314 STEP 8 SCREW PWH 8x5/8 SCREW PFH (24)
  • Page 46 H6 - SEAT UPRIGHT - W100635 1"x3 3/8"x19" (24x86x482) STEP 9 BOLT WH 5/16x1 1/2 WASHER LOCK EXT T-NUT 5/16 8x19 BOLT WH 5/16x1 1/2 (4 PLCS) WASHER LOCK EXT 8x19 (4 PLCS) T-NUT 5/16 (4 PLCS)
  • Page 47 (1) FP2 - FLOOR PANEL - W2A01680 (1) FP1 - FLOOR PANEL - W2A01679 1 5/8"x16 1/8"x50 1/4" (40x408x1276) 1 5/8"x17 1/8"x50 1/4" (40x434x1276) M2 - FLOOR BOARD - W4L05411 5/8"x3 3/8"x46" (16x86x1168) STEP 10 SCREW PFH (26) 8x1 1/2 SCREW PFH (12) 8x1 3/4...
  • Page 48 M3 - FLOOR BOARD - W4L05400 L1 - OUTSIDE FILLER FLOOR BOARD - W4L05406 (11) 5/8"x3 3/8"x50 7/8" (16x86x1292) 5/8"x4 3/8"x46" (16x112x1168) STEP 11 SCREW PFH (78) 11 PLCS (EVENLY SPACED) 8x1 1/2 SCREW PFH 8x1 1/2 (78 PLCS)
  • Page 49 N1 - FLOOR BOARD - W4L05399 5/8"x2 3/8"x50 7/8" (16x60x1292) M3 - FLOOR BOARD - W4L05400 5/8"x3 3/8"x50 7/8" (16x86x1292) L1 - OUTSIDE FILLER FLOOR BOARD - W4L05406 5/8"x4 3/8"x46" (16x112x1168) STEP 12 SCREW PFH (64) 8x1 1/2 M3 9 PLCS SCREW PFH 8x1 1/2 (64 PLCS)
  • Page 50 M6 - WALL RAIL - W100648 5/8"x3 3/8"x45 1/2" (16x86x1156) M11 - WALL RAIL - W100653 5/8"x3 3/8"x40 1/8" (16x86x1018) STEP 13 BOLT WH 5/16x2 T-NUT 5/16 WASHER LOCK EXT 8x19 T-NUT 5/16 (6 PLCS) WASHER LOCK EXT 8x19 (6 PLCS) BOLT WH 5/16x2 (6 PLCS)
  • Page 51 M5 - WALL RAIL - W100647 M18 - WALL RAIL - W100660 5/8"x3 3/8"x49" (16x86x1244) 5/8"x3 3/8"x16 7/8" (16x86x430) STEP 14 BOLT WH LAG SCREW 5/16x2 WH 5/16x2 WASHER T-NUT 5/16 LOCK EXT 8x19 WASHER LOCK EXT 8x19 (2 PLCS) LAG SCREW WH 5/16x2 (2 PLCS) T-NUT 5/16...
  • Page 52 M5 - WALL RAIL - W100647 M21 - WALL RAIL - W4L05383 5/8"x3 3/8"x49" (16x86x1244) 5/8"x3 3/8"x10 1/2" (16x86x268) STEP 15 LAG SCREW WH 5/16x2 WASHER LOCK EXT 8x19 WASHER LOCK EXT 8x19 (4 PLCS) LAG SCREW WH 5/16x2 (4 PLCS)
  • Page 53 M9 - WALL BOARD - W100651 5/8"x3 3/8"x32" (16x86x812) STEP 16 SCREW PFH (24) 8x1 1/8 M9 6 PLCS SCREW PFH 8x1 1/8 (24 PLCS) 2 5/16...
  • Page 54 M24 - WALL BOARD - W4L04632 5/8"x3 3/8"x29 7/8" (16x86x758) STEP 17 1 1/8 1 1/8 1 1/8 1 1/8 SCREW PFH (16) 8x1 1/8 4 PLCS SCREW PFH 8x1 1/8 (16 PLCS)
  • Page 55 M24 - WALL BOARD - W4L04632 5/8"x3 3/8"x29 7/8" (16x86x758) STEP 18 2 3/4 TYPICAL SPACING SCREW PFH (20) 2 3/4 8x1 1/8 M24 5 PLCS SCREW PFH 8x1 1/8 (20 PLCS)
  • Page 56 M8 - WALL BOARD - W100650 5/8"x3 3/8"x41" (16x86x1040) STEP 19 SCREW PFH (16) 8x1 1/8 SCREW PFH 8x1 1/8 (16 PLCS) M8 4 PLCS...
  • Page 57 M13 - WALL BOARD - W100655 M12 - WINDOW TRIM - W100654 5/8"x3 3/8"x24 1/4" (16x86x616) 5/8"x3 3/8"x32" (16x86x812) STEP 20 SCREW PFH (28) 8x1 1/8 M13 7 PLCS (EVENLY SPACED) FLUSH, CENTER IN OPENING SCREW PFH 8x1 1/8 (28 PLCS)
  • Page 58 M23 - WINDOW TRIM - W100665 5/8"x3 3/8"x12 7/8" (16x86x328) STEP 21 1 11/16 1 11/16 5 7/8 SCREW PFH 8x1 1/8 8 11/16 3 1/8 SCREW PFH 8x1 1/8 (6 PLCS)
  • Page 59 M8 - WALL BOARD - W100650 L2 - WALL BOARD - W100641 5/8"x3 3/8"x41" (16x86x1040) 5/8"x4 3/8"x18" (16x112x456) N5 - WALL BOARD - W100671 5/8"x2 3/8"x7" (16x60x178) L3 - WALL BOARD - W100642 N3 - WALL BOARD - W100669 5/8"x4 3/8"x7" (16x112x178) 5/8"x2 3/8"x18"...
  • Page 60 O1 - WALL SUPPORT - W100672 5/8"x1 3/8"x13" (16x34x330) HN - PLASTIC WINDOW BYD GREEN - A100010 STEP 23 SCREW PFH (10) 8x1 1/8 PLASTIC WINDOW BYD GREEN (2 PLCS) SCREW PWH SCREW PWH 8x3/4 8x3/4 (8 PLCS) CENTER WINDOW 2 PLCS IN OPENING WALL SUPPORT IS APPROXIMATELY...
  • Page 61 O4 - WINDOW SHUTTER SLAT - W100787 L73 - WINDOW SHUTTER - W100786 5/8"x1 3/8"x5 3/8" (16x34x136) 5/8"x4 3/8"x16" (16x112x406) STEP 24 2 7/8 1 3/16 1 3/16 3 1/4 SCREW PFH (12) 8x1 1/2 L73 3 PLCS O4 6 PLCS SCREW PFH 8x1 1/2 (12 PLCS)
  • Page 62 M29 - WALL BOARD - W100666 M30 - WALL BOARD - W4L05378 5/8"x3 3/8"x5" (16x86x126) 5/8"x3 3/8"x35" (16x86x888) M16 - WALL BOARD - W100658 EJ - L BRACKET 54x67 - A100053 M10 - WALL BOARD - W100652 5/8"x3 3/8"x21" (16x86x532) 5/8"x3 3/8"x35"...
  • Page 63 O2 - WALL SUPPORT - W100673 5/8"x1 3/8"x10" (16x34x254) GK - WINDOW 216x267 GREEN - A100146 STEP 26 SCREW PFH 8x1 1/8 SCREW PWH 8x3/4 SCREW PWH 8x3/4 (4 PLCS) CENTER WINDOW IN OPENING WALL SUPPORT IS APPROXIMATELY 2 1/4" BELOW BOTTOM OF WINDOW WINDOW 216x267 GREEN (1 PLC) SCREW PFH 8x1 1/8...
  • Page 64 J1 - ROOF RAFTER - W4L05410 M1 - ROOF CAP - W4L05369 1"x2 3/8"x33 5/8" (24x60x854) 5/8"x3 3/8"x51 7/8" (16x86x1318) STEP 27 LOCATE SCREW SCREW PFH 8x1 1/2 APPROXIMATELY 1" DOWN FROM ROOF PEAK, SCREW PFH PRE-DRILL USING 3/16" BIT SCREW PFH 8x2 (2 PLCS) SCREW PFH 8x1 1/2...
  • Page 65 ROOF BASE ASSEMBLY STEP 28 ROOF BASE ASSEMBLY SCREW PFH SCREW PFH 8x2 1/2 8x2 1/2 (8 PLCS) 1/2" (13mm) 47 5/8...
  • Page 66 M7 - WALL CAP - W100649 5/8"x3 3/8"x40 7/8" (16x86x1038) STEP 29 SCREW PFH 8x2 1/2 SCREW PFH 8x2 1/2 (6 PLCS)
  • Page 67 M20 - GABLE BOARD - W100662 5/8"x3 3/8"x12 1/4" (16x86x310) M19 - GABLE BOARD - W100661 M22 - GABLE BOARD - W100664 5/8"x3 3/8"x15 1/4" (16x86x387) 5/8"x3 3/8"x9 1/2" (16x86x241) M15 - GABLE BOARD - W100657 M4 - GABLE BOARD - W100646 N4 - GABLE BOARD - W100670 5/8"x3 3/8"x19"...
  • Page 68 O1 - WALL SUPPORT - W100672 5/8"x1 3/8"x13" (16x34x330) GK - WINDOW 216x267 GREEN - A100146 STEP 31 REPEAT STEP 30 AND 31 ON OPPOSITE SIDE. SCREW PFH (20) CENTER WINDOW AND WALL SUPPORTS IN OPENING. 8x1 1/8 WALL SUPPORTS ARE 1" (25mm) FROM WINDOW. WINDOW 216x267 GREEN (1 PLC) SCREW PWH...
  • Page 69 (2) RP2 - ROOF PANEL - W2A01678 (2) RP1 - ROOF PANEL - W2A01677 1 3/4"x16 1/4"x53 3/4" (45x412x1366) 1 3/4"x19 1/4"x53 3/4" (45x490x1366) STEP 32 REPEAT THIS STEP FOR OPPOSITE SIDE. SCREW PFH (24) 8x1 3/4 SCREW PFH 8x1 3/4 (12 PLCS)
  • Page 70 N2 - MENDING PLATE - W4L05370 5/8"x2 3/8"x5" (16x60x126) STEP 33 SCREW PFH 8x1 1/8 SCREW PFH 8x1 1/8 (4 PLCS) 2 PLCS...
  • Page 71 FX - HAND GRIP METAL GREEN 381 c/c - A100118 STEP 34 BOLT WH 5/16x1 1/2 1 11/16 1 11/16 T-NUT 5/16 BOLT WH 5/16x1/2 DRILL 7/16" (10mm) DIAMETER HOLES (4 PLCS) 3 1/16 T-NUT 5/16 (8 PLCS) BOLT WH 5/16x1 1/2 (2 PLCS) HAND GRIP METAL GREEN 381 c/c (4 PLCS)
  • Page 72 T1 - SEAT SUPPORT - W4L05373 1"x1 3/8"x4 3/8" (24x34x112) STEP 35 SCREW PFH 8x1 1/2 7 13/16 7 13/16 4 7/16 6 3/8 SCREW PFH 8x1 1/2 T1 4 PLCS (8 PLCS)
  • Page 73 G13 - SAND BOX SEAT - W100629 1"x5 1/4"x17 3/4" (24x134x450) STEP 36 SCREW PFH 8x1 3/4 SCREW PFH 8x1 3/4 (8 PLCS) G13 2 PLCS...
  • Page 74 M27 - BOTTOM WALL BOARD - W4L04580 5/8"x3 3/8"x21 3/8" (16x86x544) STEP 37 2 5/8 TYPICAL SPACING 2 5/8 1 5/16 SCREW PFH (24) 8x1 1/8 SCREW PFH 8x1 1/8 (24 PLCS) 6 PLCS...
  • Page 75 M27 - BOTTOM WALL BOARD - W4L04580 5/8"x3 3/8"x21 3/8" (16x86x544) STEP 38 2 13/16 TYPICAL SPACING 2 13/16 SCREW PFH (28) 8x1 1/8 1 5/16 SCREW PFH 8x1 1/8 (28 PLCS) M27 7 PLCS...
  • Page 76 M14 - PICNIC SEAT SUPPORT - W4L05371 5/8"x3 3/8"x22" (16x86x558) STEP 39 LAG SCREW WH 5/16x2 WASHER LOCK EXT 8x19 BOLT WH 5/16x1 1/2 T-NUT 5/16 LAG SCREW WH 5/16x2 (2 PLCS) T-NUT 5/16 (2 PLCS) WASHER LOCK EXT 8x19 (4 PLCS) BOLT WH 5/16x1 1/2 (2 PLCS)
  • Page 77 K4 - TABLE SUPPORT - W4L05407 H8 - TABLE SUPPORT - W100637 5/8"x3 3/8"x13 1/2" (16x86x342) 1"x3 3/8"x12" (24x86x306) STEP 40 LAG SCREW WH 5/16x2 WASHER LOCK EXT 8x19 BOLT WH BOLT WH 5/16x1 1/2 5/16x1 1/4 T-NUT 5/16 T-NUT 5/16 (4 PLCS) WASHER LOCK EXT 8x19 (6 PLCS)
  • Page 78 O3 - SAFETY RAIL - W4L05395 5/8"x1 3/8"x20 1/2" (16x34x520) STEP 41 SCREW PFH 8x1 1/8 SCREW PFH 8x1 3/4 SCREW PFH (1 PLC) 8x1 3/4 SCREW PFH 8x1 1/8 (1 PLC)
  • Page 79 H2 - PICNIC TABLE SEAT - W4L05409 G11 - PICNIC TABLE TOP - W4L05408 1"x3 3/8"x41 3/8" (24x86x1050) 5/8"x5 1/4"x42" (16x134x1066) STEP 42 SCREW PFH (16) 8x1 3/4 2 PLCS SCREW PFH 8x1 3/4 (16 PLCS) 2 PLCS...
  • Page 80 (1) LADDER ASSEMBLY STEP 43 WASHER WASHER LOCK EXT 8x19 LOCK EXT (2 PLCS) 8x19 LAG SCREW WH 5/16x2 (2 PLCS) LAG SCREW WH 5/16x2 PRE-DRILL 3/16" HOLES IN LADDER ASSEMBLY LADDER ASSEMBLY...
  • Page 81 (1) ROCKWALL ASSEMBLY STEP 44 BOLT WH 5/16x1 1/4 2 5/16 2 5/16 WASHER 1 11/16 LOCK EXT 8x19 ROCKWALL ASSEMBLY...
  • Page 82 (1) SWINGBEAM ASSEMBLY STEP 45 BOLT HEX 5/16x1 1/4 BOLT HEX 5/16x1 1/4 WASHER (4 PLCS) SPLIT 5/16 WASHER SPLIT 5/16 WASHER (4 PLCS) FLAT 8x27 WASHER FLAT 8x27 (4 PLCS) SWINGBEAM ASSEMBLY...
  • Page 83 (2) SWING ASSEMBLY (1) GLIDER ASSEMBLY STEP 46 GLIDER ASSEMLBY SWING ASSEMBLY...
  • Page 84 BOLT WH 5/16x1/2 (1) SLIDE ASSEMBLY T-NUT 5/16 STEP 47 4 1/16 BOLT WH 5/16x1/2 (3 PLCS) 4 3/8 T-NUT 5/16 (3 PLCS) SLIDE ASSEMBLY (CENTER IN OPENING) DRILL 7/16" (10mm) DIAMETER HOLES WHERE SHOWN.
  • Page 85 - GROUND STAKE REBAR - A4M00527 STEP 48 DRILL 7/16" (10mm) DIAMETER HOLES APPROXIMATELY WHERE SHOWN. BOLT WH NUT BARREL 5/16x1/2 NOTE: WH 5/16x5/8 FAILURE TO USE GROUND STAKES CAN VOID WARRANTY AND CAUSE INJURY! WASHER NUT BARREL LOCK EXT WH 5/16x7/8 12x19 GROUND STAKE...

  • Page 86: Final Step

    Y1 - OUTSIDE FILLER FLOOR BOARD - W4L05752 5/8"x4"x46" (16x102x1168) STEP 49 SCREW PFH 8x1 1/2 SCREW PFH 8x1 1/2 (6 PLCS) FINAL STEP DOUBLE CHECK EVERY BOLT, SCREW AND NUT FOR TIGHTNESS. MAKE SURE EVERY BOARD IS SECURE AND MAKE SURE THE PLAY SET IS LEVEL. ENJOY YOUR NEW PLAY SET!

  • Page 87: Limited Warranty

    Limited Warranty. In addition, Backyard Discovery will replace any parts within the first 30 days from date of purchase found to be missing from or damaged in the original packaging.
