Backyard 1801349 Owner's Manual

Spring cottage playhouse
Hide thumbs

Advertisement

Quick Links

Download this manual

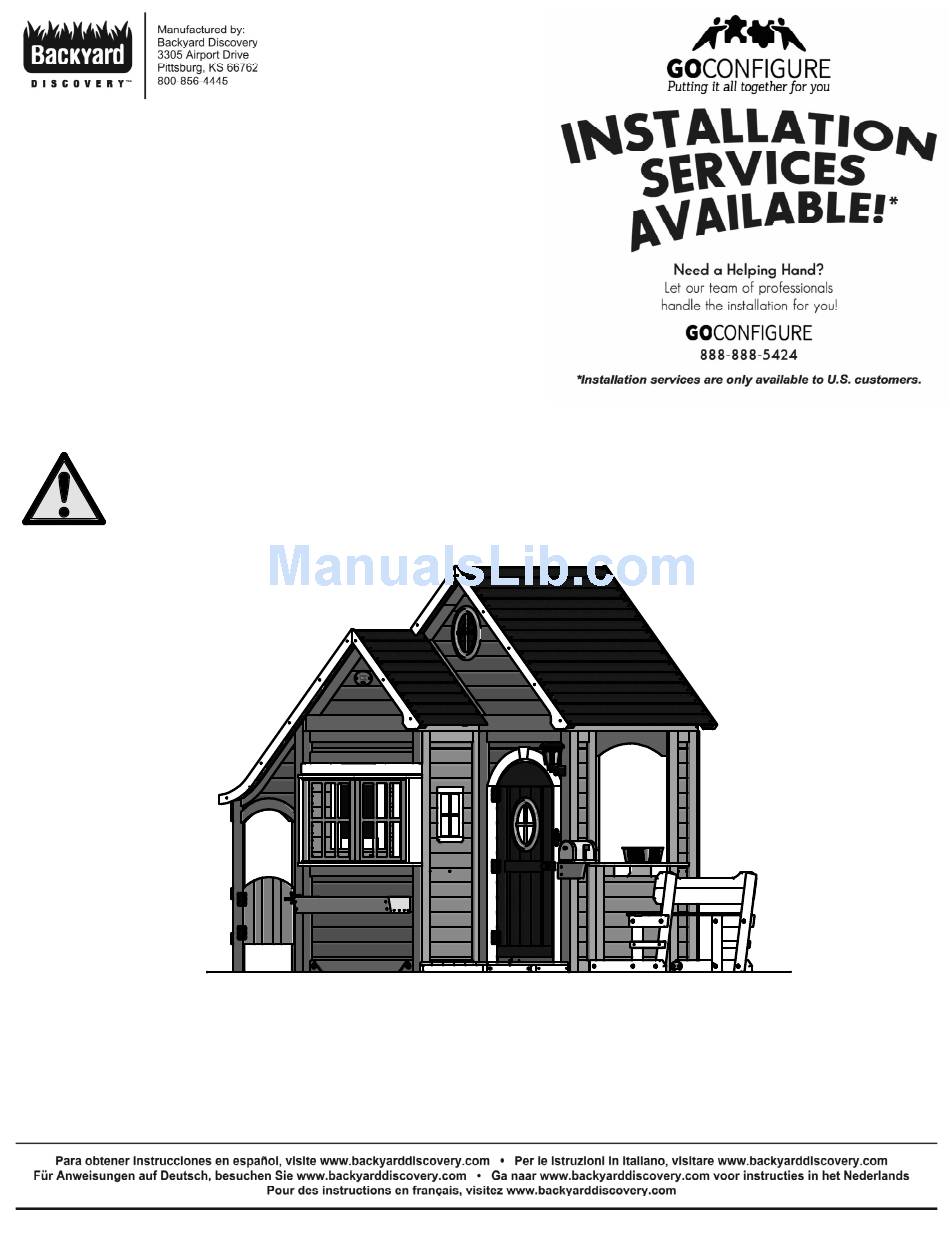

SPRING COTTAGE
PLAYHOUSE
MODEL: # 1801349
BOOKLET INCLUDES:
• Owner's Manual
• Frequently Asked Questions
• Assembly Instructions
• Warranty Information
WARNING
Adult Assembly Required.
Not suitable for children under two years,
due to sharp points and small parts .
Save this assembly manual for future reference in the event that
Made in China
INS-1801349-A-SPRING COTTAGE-ENG 1-19-18
For the most up to date assembly manual,
to register your set or to order replacement parts please visit
www.backyarddiscovery.com
you need to order replacement parts.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1801349 and is the answer not in the manual?

Questions and answers

Related Manuals for Backyard 1801349

Summary of Contents for Backyard 1801349

  • Page 1 SPRING COTTAGE PLAYHOUSE MODEL: # 1801349 BOOKLET INCLUDES: • Owner's Manual • Frequently Asked Questions • Assembly Instructions • Warranty Information WARNING Adult Assembly Required. Not suitable for children under two years, due to sharp points and small parts .
  • Page 2 With Go Configure, we bring you 18 years of experience right to your doorstep. We service a wide array of indoor and outdoor recreation products that most consumers don’t have the time or ability to deliver & install themselves. We do the heavy lifting, so you don’t have to! •...
  • Page 3 STOP PARE Missing A Part? CALL US BEFORE GOING BACK TO THE STORE! The store where you made your purchase does not stock parts for this item. If you have assembly questions or if you need parts, whether they are missing or damaged Call Toll-Free Help Line or visit www.backyarddiscovery.com ¡LLÁMENOS ANTES DE REGRESAR A LA TIENDA! La tienda donde realizó...

  • Page 4: For Your Records

    Owner’s Manual Play House Dear Customer: Please read entire booklet completely before beginning the assembly process. Equipment is recommended for use by children 2 to 10 years of age. Structures are not intended for public use. The Company does not warranty any of its residential structures subjected to commercial use such as: Daycare, Preschool, Nursery School, Recreational Park, or any similar Commercial Application.
  • Page 5 Owner’s Manual Play House Please refer to the Assembly section of the Assembly Manual for Maximum Fall Height. Positioning Your Play house 1. The Play house is designed to be installed on a level surface by an Adult with an Adult helper.

  • Page 6: Maintenance Instructions

    Owner’s Manual Play House The following chart explains the fall height in feet from which a life threatening head injury would not be expected Critical Heights in feet (m) of Tested Materials Material Uncompressed Depth Compressed Depth 6" (152mm) 9" (228mm) 12"...
  • Page 7 Owner’s Manual Play House all moving parts including swing seats, ropes, cables, and chains for wear, Check • rust, or deterioration. Replace as needed. Check metal parts for rust. If found, sand and repaint using non Lead-based paint • meeting the requirements of Title 16 CRF Part 1303.

  • Page 8: Disposal Instructions

    Owner’s Manual Play House Owner’s Manual Play House Disposal Instructions: Disposal Instructions: When the Play house use is no longer desired, it should be disassembled and use is no longer desired, it should be disassembled and use is no longer desired, it should be disassembled and disposed of in such a way that no unreasonable hazards will exist at the time the unit disposed of in such a way that no unreasonable hazards will exist at the time the unit disposed of in such a way that no unreasonable hazards will exist at the time the unit...
  • Page 9 Owner’s Manual Play House APPENDIX A Information on Playground Surfacing Materials: The following information is from the United States Consumer Product Safety Commission’s Information Sheet for playground surfacing material; also see the following website for additional information:. www.cpsc.gov/cpscpub/pubs/323.html X3. CONSUMER INFORMATION SHEET FOR PLAYGROUND SURFACING MATERIALS X3.1 Select Protective Surfacing—One of the most important things you can do to reduce the likelihood of serious head injuries is to install shock-absorbing protective surfacing under and around your play equipment.
  • Page 10 Owner’s Manual Play House This information has been extracted from the CPSC publications “Playground Surfacing — Technical Information Guide” and “Handbook for Public Playground Safety.” Copies of these reports can be obtained by sending a postcard to: Office of Public Affairs, U.S. Consumer Product Safety Commission, Washington, D.C., 20207 or call the toll-free hotline: 1- 800-638-2772.
  • Page 11 Play House Assembly Manual FAQs: 1. Does the area for the play house need to be level? Yes. Backyard Discovery recommends the play house be positioned on a flat level area for maximum safety and durability. Any stakes provided should be used to secure it firmly to the ground.

  • Page 12: Tools Required For Installation

    Tools Required for Installation: (These are the tools that are generally required for assembly of our outdoor products. These tools are not included with the outdoor product purchase.) (Level 24") (Square) (Claw Hammer) (Tape Measure) (Rubber Mallet - Optional) (Phillips Screw Driver) (Drill Attachments: (Cordless Drill or Phillips Head)
  • Page 13 SAFETY AND ASSEMBLY INFORMATION SELECTING THE CORRECT LOCATION FOR YOUR PLAY PRODUCT IS IMPORTANT FOR YOUR CHILDREN’S SAFETY AND THE PRODUCT’S LONGEVITY Dimensions: General Information: • The Spring Cottage has one layout option. Your set has been designed and engineered for Layout: children only and for residential use only.

  • Page 14: Parts Identification

    Parts Identification Wood Components (NOT TO SCALE) G1 - TOP RAIL - W4L08976 15/16"x5 1/4"x48 13/16" (24x134x1240) G3 - SUPPORT - W4L08983 15/16"x5 1/4"x22 11/16" (24x134x577) H1 - DOOR TRIM - W4L08946 15/16"x2 5/8"x3 3/8" (24x66x86) H2 - WINDOW TRIM - W4L08951 15/16"x3 3/8"x18 1/4"...
  • Page 15 Parts Identification Wood Components (NOT TO SCALE) H9 - SUPPORT - W4L08982 15/16"x3 3/8"x6 3/4" (24x86x172) H10 - FLOWER BOX - W4L11674 15/16"x3 3/8"x26 7/16" (24x86x672) H11 - FLOWER BOX - W4L08988 15/16"x3 3/8"x6 9/16" (24x86x166) H12 - SUPPORT - W4L11681 15/16"x3 3/8"x7 7/8"...
  • Page 16 Parts Identification Wood Components (NOT TO SCALE) J8 - CHAIR UPRIGHT - W4L11684 1"x2 3/8"x12" (24x60x305) J9 - CHAIR UPRIGHT - W4L11685 1"x2 3/8"x21 1/2" (24x60x546) J10 - BENCH GROUND BOARD - W4L11688 1"x2 3/8"x22 1/2" (24x60x573) J11 - CHAIR RAIL - W4L11686 1"x2 3/8"x11 1/8"...
  • Page 17 Parts Identification Wood Components (NOT TO SCALE) K5 - FASCIA BOARD - W4L11678 5/8"x5 1/4"x55" (16x133x1395) M1 - WINDOW TRIM - W4L08950 5/8"x3 3/8"x35 13/16" (16x86x910) M2 - SHELF - W4L08980 5/8"x3 3/8"x60 11/16" (16x86x1542) M3 - FASCIA BOARD - W4L08986 5/8"x3 3/8"x48 1/8"...
  • Page 18 Parts Identification Wood Components (NOT TO SCALE) N1 - DOOR TRIM - W4L08944 5/8"x2 3/8"x37 13/16" (16x60x960) N2 - WINDOW TRIM - W4L08947 5/8"x2 3/8"x46 3/4" (16x60x1188) N3 - DOOR TRIM - W4L08987 5/8"x2 3/8"x37 13/16" (16x60x960) N4 - FASCIA BOARD - W4L11677 5/8"x2"x19 1/8"...
  • Page 19 Parts Identification Wood Components (NOT TO SCALE) (2) WP1-WALL PANEL-W2A02216 1 1/16"x8 1/16"x51 9/16" (27x204x1310) (1) WP2-WALL PANEL-W2A02217 1 1/16"x22 11/16"x48 13/16" (27x577x1240) (1) WP3-WALL PANEL-W2A02218 1 1/16"x9"x51 9/16" (27x229x1310) (1) WP4-WALL PANEL-W2A02219 1 1/16"x9"x51 9/16" (27x229x1310)
  • Page 20 Parts Identification Wood Components (NOT TO SCALE) (2) WP5-WALL PANEL-W2A02220 1 1/16"x22 7/16"x22 11/16" (27x570x577) (1) WP6-WALL PANEL-W2A02528 1 1/16"x10"x51 9/16" (27x254x1310) (1) WP7-WALL PANEL-W2A02529 1 1/16"x17 15/16"x51 9/16" (27x455x1310) (1) WP8-WALL PANEL-W2A02530 1 1/16"x22 11/16"x35 13/16" (27x577x910)
  • Page 21 Parts Identification Wood Components (NOT TO SCALE) (1) WP9-WALL PANEL-W2A02531 1 1/16"x6 15/16"x35 13/16" (27x176x910) (1) WP10-WALL PANEL-W2A02532 1 1/16"x6 15/16"x35 13/16" (27x176x910) (1) WP11-WALL PANEL-W2A02533 1 1/16"x28 1/8"x51 9/16" (27x715x1310) (1) WP12-WALL PANEL-W2A02539 1 1/16"x9"x51 9/16" (27x229x1310)
  • Page 22 Parts Identification Wood Components (NOT TO SCALE) (1) GP2-GABLE PANEL-W2A02540 1 1/16"x35 13/16"x17 7/8" (27x909x455) (1) GP3-GABLE PANEL-W2A02541 1 1/16"x62 15/16"x27" (27x1598x686) (1) GP4-GABLE PANEL-W2A02542 1 1/16"x62 15/16"x27 7/16" (27x1598x697)
  • Page 23 Parts Identification Wood Components (NOT TO SCALE) (1) RP1-ROOF PANEL-W2A02543 2 13/16"x28 7/16"x20 1/4" (71x723x515) (1) RP2-ROOF PANEL-W2A02544 1 3/8"x62 7/16"x28 7/8" (35x1586x734) (1) GP5-GABLE PANEL-W2A02545 1 1/16"x15 5/8"x9 1/8" (27x397x231) (1) RP3-ROOF PANEL-W2A02546 1 3/8"x28 7/8"x44 9/16" (35x734x1132)
  • Page 24 Parts Identification Wood Components (NOT TO SCALE) (1) RP4-ROOF PANEL-W2A02547 1 3/8"x20 1/16"x44 9/16" (35x510x1132) (1) RP5-ROOF PANEL-W2A02548 1 3/8"x19 5/8"x44 9/16" (35x499x1132) (1) WP17-WALL PANEL-W2A02549 1 1/8"x21 1/16"x54 15/16" (28x535x1396) (1) WP18-WALL PANEL-W2A02550 1 1/16"x21 1/16"x54 15/16" (27x535x1396)
  • Page 25 Parts Identification Wood Components (NOT TO SCALE) (1) RP6-ROOF PANEL-W2A02551 1 3/8"x16 1/8"x23 11/16" (35x410x602) (3) RP7-ROOF PANEL-W2A02552 1 3/8"x3 3/8"x23 11/16" (35x86x602) (1) FP1-FENCE PANEL-W2A02553 1 1/16"x12"x18 15/16" (27x305x481) (1) GP1-GATE PANEL-W2A02554 1 1/16"x14 5/16"x14 7/8" (27x364x378)
  • Page 26 Parts Identification Wood Components (NOT TO SCALE) (1) DP1-DOOR PANEL-W2A025555 1 1/16"x16 1/8"x41 7/8" (27x410x1063) (1) PP1-PORCH PANEL-W2A02556 1 15/16"x17 15/16"x27 1/16" (50x455x688)
  • Page 27 Parts Identification Hardware NUT BARREL WH 5/16x7/8 BLK - H100192 WASHER LOCK EXT 12x19 BLK - H100199 BOLT WH 5/16x3/4 BLK - H100663 (13) WASHER LOCK EXT 8x15 SD - H100547 (11) NUT BARREL WH 1/4x7/8 SD - H100548 WASHER LOCK EXT 6x15 SD - H100546 NUT BARREL WH 1/4x5/8 SD - H100545 (46) SCREW PFH 8x2 SD - H100542...
  • Page 28 Parts Identification Hardware T-30 TORX WRENCH - H100114 T-40 TORX WRENCH - A100041 T-30 TORX BIT - H100147 T-40 TORX BIT - A100042...
  • Page 29 Parts Identification Accessories (NOT TO SCALE) L BRACKET WHITE 32x51 - A100133 (1) PHONE KIT-A100132 DOOR BELL - A100174 LATCH - A100264 "A" REVISION TAG - A100314 (1) CHALK BOARD-A4M00934 BAY WINDOW PANEL - A100373...
  • Page 30 Parts Identification Accessories (NOT TO SCALE) BYD ID TAG (MEDIUM) AGES 2 TO 10 - A4M00528 GROUND STAKE REBAR - A4M00527 (24) HINGE (DOOR, SPRING LOADED) - A4M00624 90° L-BRACKET - BLK - A4M00555 DOOR STOP - A4M00933 MAILBOX - A6P00017 KNOB - BLK - A6P00067...
  • Page 31 Parts Identification Accessories (NOT TO SCALE) FAUCET KIT - A6P00024 STOVE KIT - A6P00025 SURFACE MOUNT BASIN - A6P00032 APPLE ORANGE STRAWBERRY WATERMELON CARROT CORN PLASTIC KNIFE CUTTING BOARD OUTDOOR LIGHT FIXTURE - A6P00068 FRUIT BASKET KIT - A6P00069 DOOR BELL PLATE - A6P00290...
  • Page 32 J10 - BENCH GROUND BOARD - W4L11688 J9 - CHAIR UPRIGHT - W4L11685 O1 - CHAIR RAIL - W4L11687 1"x2 3/8"x22 1/2" (24x60x573) 1"x2 3/8"x21 1/2" (24x60x546) 5/8"x1 3/8"x10 1/4" (16x34x259) J11 - CHAIR RAIL - W4L11686 J8 - CHAIR UPRIGHT - W4L11684 1"x2 3/8"x11 1/8"...
  • Page 33 J10 - BENCH GROUND BOARD - W4L11688 J9 - CHAIR UPRIGHT - W4L11685 O1 - CHAIR RAIL - W4L11687 1"x2 3/8"x22 1/2" (24x60x573) 1"x2 3/8"x21 1/2" (24x60x546) 5/8"x1 3/8"x10 1/4" (16x34x259) J11 - CHAIR RAIL - W4L11686 J8 - CHAIR UPRIGHT - W4L11684 1"x2 3/8"x11 1/8"...
  • Page 34 M13 - BENCH SEAT - W4L11689 5/8"x3 3/8"x30 1/8" (16x86x764) BENCH ASSEMBLY STEP 3 SCREW PFH 8x1 1/2 SD SCREW PFH 8x1 1/2 SD (8 PLCS)
  • Page 35 M14 - BENCH BACK - W4L11690 M15 - BENCH BACK - W4L11691 5/8"x3 3/8"x30 1/8" (16x86x764) 5/8"x3 3/8"x30 1/8" (16x86x764) BENCH ASSEMBLY STEP 4 SCREW PFH 8x1 1/2 SD SCREW PFH 8x1 1/2 SD (8 PLCS)
  • Page 36 (1) WP1-WALL PANEL-W2A02216 (1) WP4-WALL PANEL-W2A02219 1 1/16"x8 1/16"x51 9/16" (27x204x1310) 1 1/16"x9"x51 9/16" (27x229x1310) 90° L-BRACKET - BLK - A4M00555 STEP 1 PLAYHOUSE ASSEMBLY SCREW PWH 8x3/4 SCREW PWH 8x3/4 BLK (6 PLCS) 90° L-BRACKET - BLK (3 PLCS) NOTE: THROUGH OUT MANUAL, THE TONGUE FACES UPWARD...
  • Page 37 (1) WP5-WALL PANEL-W2A02220 1 1/16"x22 7/16"x22 11/16" (27x570x577) STEP 2 SCREW PFH 8x1 SD SCREW PFH 8x1 SD (7 PLCS) NOTE: HOLES GO UP REAR RIGHT...
  • Page 38 (1) WP2-WALL PANEL-W2A02217 1 1/16"x22 11/16"x48 13/16" (27x577x1240) STEP 3 SCREW PFH 8x1 SD SCREW PFH 8x1 SD (7 PLCS) NOTE: HOLES GO UP RIGHT REAR...
  • Page 39 (1) WP1-WALL PANEL-W2A02216 1 1/16"x8 1/16"x51 9/16" (27x204x1310) STEP 4 SCREW PFH 8x1 SD RIGHT REAR SCREW PFH 8x1 SD (7 PLCS)
  • Page 40 (1) WP3-WALL PANEL-W2A02218 90° L-BRACKET - BLK - A4M00555 1 1/16"x9"x51 9/16" (27x229x1310) STEP 5 SCREW PWH 8x3/4 LEFT REAR SCREW PWH 8x3/4 BLK (6 PLCS) 90° L-BRACKET - BLK (3 PLCS) RIGHT...
  • Page 41 (1) WP5-WALL PANEL-W2A02220 1 1/16"x22 7/16"x22 11/16" (27x570x577) STEP 6 SCREW PFH 8x1 SD (7 PLCS) SCREW PFH 8x1 SD NOTE: HOLES GO UP REAR LEFT RIGHT...
  • Page 42 (1) WP6-WALL PANEL-W2A02528 1 1/16"x10"x51 9/16" (27x254x1310) STEP 7 SCREW PFH 8x1 SD REAR LEFT SCREW PFH 8x1 SD (7 PLCS) RIGHT...
  • Page 43 (1) WP7-WALL PANEL-W2A02529 1 1/16"x17 15/16"x51 9/16" (27x455x1310) STEP 8 (16) SCREW PFH 8x1 SD REAR LEFT SCREW PFH 8x1 SD (16 PLCS) RIGHT...
  • Page 44 (1) WP8-WALL PANEL-W2A02530 1 1/16"x22 11/16"x35 13/16" (27x577x910) 90° L-BRACKET - BLK - A4M00555 STEP 9 SCREW PWH 8x3/4 90° L-BRACKET - BLK (2 PLCS) SCREW PWH 8x3/4 BLK (4 PLCS) NOTE: LOCATION OF HOLES LEFT FRONT REAR RIGHT...
  • Page 45 (1) WP10-WALL PANEL-W2A02532 1 1/16"x6 15/16"x35 13/16" (27x176x910) 90° L-BRACKET - BLK - A4M00555 STEP 10 WP10 90° L-BRACKET - BLK (2 PLCS) SCREW PWH 8x3/4 SCREW PWH 8x3/4 BLK (4 PLCS) WP10 FRONT RIGHT REAR LEFT...
  • Page 46 (1) WP11-WALL PANEL-W2A02533 1 1/16"x28 1/8"x51 9/16" (27x715x1310) STEP 11 WP11 SCREW PFH 8x2 SD SCREW PFH 8x2 SD (4 PLCS) WP11 FRONT RIGHT REAR LEFT...
  • Page 47 90° L-BRACKET - BLK - A4M00555 (1) WP12-WALL PANEL-W2A02539 1 1/16"x9"x51 9/16" (27x229x1310) STEP 12 90° L-BRACKET - BLK SCREW PFH 8x1 SD (3 PLCS) SCREW PWH 8x3/4 BLK WP12 (6 PLCS) SCREW PWH 8x3/4 WP12 SCREW PFH 8x1 SD (7 PLCS) FRONT RIGHT...
  • Page 48 J5 - SUPPORT - W4L08981 15/16"x2 3/8"x6 3/4" (24x60x172) STEP 13 SCREW PFH 8x1 1/4 SCREW PFH 8x1 1/4 SD (4 PLCS) LEFT REAR RIGHT FRONT...
  • Page 49 J4 - SUPPORT - W4L08979 15/16"x2 3/8"x10 1/8" (24x60x257) STEP 14 SCREW PFH 8x1 1/4 SCREW PFH 8x1 1/4 SD (4 PLCS) LEFT REAR FRONT RIGHT...
  • Page 50 (1) CHALK BOARD-A4M00934 STEP 15 SCREW PFH 8x2 SD SCREW PFH 8x1 SD NOTE: ALIGN SCREWS WITH PILOT HOLES ON BACK OF CHALK BOARD SCREW PFH 8x2 SD (2 PLCS) SCREW PFH 8x1 SD LEFT (2 PLCS) REAR FRONT RIGHT...
  • Page 51 N2 - WINDOW TRIM - W4L08947 5/8"x2 3/8"x46 3/4" (16x60x1188) STEP 16 SCREW PFH 8x1 1/2 SD (6 PLCS) SCREW PFH 8x1 1/2 FLUSH LEFT REAR FRONT RIGHT...
  • Page 52 M2 - SHELF - W4L08980 5/8"x3 3/8"x60 11/16" (16x86x1542) STEP 17 SCREW PFH 8x1 1/2 SD SCREW PFH 8x1 1/2 (8 PLCS) NOTE: CENTER HOLES OFFSET TO THE OUTSIDE OF PLAYHOUSE. LEFT REAR FRONT RIGHT...
  • Page 53 H9 - SUPPORT - W4L08982 G3 - SUPPORT - W4L08983 15/16"x3 3/8"x6 3/4" (24x86x172) 15/16"x5 1/4"x22 11/16" (24x134x577) STEP 18 SCREW PFH 8x2 SD SCREW PFH 8x1 1/2 SD (10 PLCS) SCREW PFH 8x2 SD (6 PLCS) (10) SCREW PFH 8x1 1/2 REAR LEFT FLUSH...
  • Page 54 J7 - FLOWER BOX - W4L08989 H10 - FLOWER BOX - W4L11674 15/16"x2 3/8"x26 7/16" (24x60x672) 15/16"x3 3/8"x26 7/16" (24x86x672) H11 - FLOWER BOX - W4L08988 M5 - FLOWER BOX - W4L11675 15/16"x3 3/8"x6 9/16" (24x86x166) 5/8"x3 3/8"x28 3/8" (16x86x720) STEP 19 (12) SCREW PFH 8x2 SD...
  • Page 55 K2 - SHELF - W4L08977 5/8"x5 1/4"x33 11/16" (16x134x856) STEP 20 SCREW PFH 8x1 1/2 SCREW PFH 8x1 1/2 SD (8 PLCS) FLUSH LEFT REAR FRONT RIGHT...
  • Page 56 K1 - WINDOW TRIM - W4L08948 5/8"x5 1/4"x27 3/16" (16x134x690) STEP 21 SCREW PFH 8x1 1/2 SCREW PFH 8x1 1/2 SD (3 PLCS) FLUSH REAR LEFT FRONT RIGHT...
  • Page 57 J1 - SUPPORT - W4L08949 15/16"x2 3/8"x4 3/16" (24x60x107) STEP 22 SCREW PFH 8x1 1/2 SD SCREW PFH 8x2 SD (2 PLCS) SCREW PFH 8x1 1/2 SCREW PFH 8x2 SD (2 PLCS) FLUSH TO BOTTOM OF WINDOW TRIM AND WALL SIDE REAR LEFT FRONT...
  • Page 58 K1 - WINDOW TRIM - W4L08948 5/8"x5 1/4"x27 3/16" (16x134x690) STEP 23 SCREW PFH 8x1 1/2 SCREW PFH 8x1 1/2 SD (3 PLCS) FLUSH RIGHT REAR LEFT FRONT...
  • Page 59 J1 - SUPPORT - W4L08949 15/16"x2 3/8"x4 3/16" (24x60x107) STEP 24 SCREW PFH 8x2 SD SCREW PFH 8x1 1/2 SD (2 PLCS) SCREW PFH 8x1 1/2 SCREW PFH 8x2 SD (2 PLCS) FLUSH TO BOTTOM OF WINDOW TRIM AND WALL SIDE RIGHT REAR LEFT...
  • Page 60 J3 - WINDOW POST - W4L08978 15/16"x2 3/8"x23 9/16" (24x60x599) G1 - TOP RAIL - W4L08976 15/16"x5 1/4"x48 13/16" (24x134x1240) N6 - WALL CLEAT - W4L11683 5/8"x2 3/8"x9 13/16" (16x60x250) STEP 25 SCREW PFH 8x1 1/2 SCREW PFH 8x1 SD SCREW PFH 8x1 SD (4 PLCS) SCREW PFH 8x1 1/2 SD...
  • Page 61 N5 - WALL CLEAT - W4L11682 H4 - TOP RAIL - W4L08970 5/8"x2 3/8"x3 15/16" (16x60x100) 15/16"x3 3/8"x39 1/2" (24x86x1004) STEP 26 SCREW PFH 8x1 1/2 SCREW PFH 8x1 1/2 SD BEVEL FACES OUTWARD (8 PLCS) FLUSH RIGHT REAR LEFT FRONT...
  • Page 62 H5 - TOP RAIL - W4L08971 15/16"x3 3/8"x60 13/16" (24x86x1544) STEP 27 SCREW PFH 8x2 SD SCREW PFH 8x1 1/2 FLUSH SCREW PFH 8x1 1/2 SD (2 PLCS) SCREW PFH 8x2 SD (2 PLCS) LEFT REAR FRONT RIGHT...
  • Page 63 N5 - WALL CLEAT - W4L11682 H3 - TOP RAIL - W4L08969 5/8"x2 3/8"x3 15/16" (16x60x100) 15/16"x3 3/8"x57 7/16" (24x86x1459) STEP 28 SCREW PFH 8x2 SD (2 PLCS) SCREW PFH 8x2 SD FLUSH (16) SCREW PFH 8x1 1/2 BEVEL FACES OUTWARD SCREW PFH 8x1 1/2 SD (16 PLCS) REAR...
  • Page 64 N5 - WALL CLEAT - W4L11682 H6 - TOP RAIL - W4L08972 H7 - TOP RAIL - W4L08973 5/8"x2 3/8"x3 15/16" (16x60x100) 15/16"x3 3/8"x17 15/16" (24x86x455) 15/16"x3 3/8"x27 1/16" (24x86x688) STEP 29 SCREW PFH 8x2 SD SCREW PFH 8x1 1/2 SCREW PFH 8x2 SD (2 PLCS) BEVEL FACE OUTWARD...
  • Page 65 H8 - TOP RAIL - W4L08974 15/16"x3 3/8"x33 11/16" (24x86x856) STEP 30 SCREW PFH 8x2 SD SCREW PFH 8x2 SD FLUSH (4 PLCS) FLUSH LEFT REAR FRONT RIGHT...
  • Page 66 (1) WP9-WALL PANEL-W2A02531 1 1/16"x6 15/16"x35 13/16" (27x176x910) 90° L-BRACKET - BLK - A4M00555 STEP 31 90° L-BRACKET - BLK (2 PLCS) SCREW PWH 8x3/4 SCREW PWH 8x3/4 BLK (4 PLCS) FRONT LEFT REAR RIGHT...
  • Page 67 M1 - WINDOW TRIM - W4L08950 5/8"x3 3/8"x35 13/16" (16x86x910) STEP 32 SCREW PFH 8x1 1/2 SCREW PFH 8x1 1/2 SD (3 PLCS) LEFT REAR FRONT RIGHT...
  • Page 68 J2 - BAY WINDOW - W4L08975 15/16"x2 3/8"x35 13/16" (24x60x910) 90° L-BRACKET - BLK - A4M00555 STEP 33 SCREW PWH 8x3/4 90° L-BRACKET - BLK (2 PLCS) SCREW PWH 8x3/4 BLK (4 PLCS) LEFT FRONT REAR RIGHT...
  • Page 69 M1 - WINDOW TRIM - W4L08950 5/8"x3 3/8"x35 13/16" (16x86x910) BAY WINDOW PANEL - A100373 STEP 34 SCREW PFH 8x1 1/2 BAY WINDOW PANEL (2 PLCS) INSERT TOP AND BOTTOM PROTRUSIONS INTO HOLES IN M1 BOARDS SCREW PFH 8x1 1/2 SD (3 PLCS) FRONT RIGHT...
  • Page 70 H2 - WINDOW TRIM - W4L08951 15/16"x3 3/8"x18 1/4" (24x86x464) STEP 35 SCREW PFH 8x1 3/4 SCREW PFH 8x1 SD SCREW PFH 8x1 SD (4 PLCS) MIDDLE HOLES SCREW PFH 8x1 3/4 SD (4 PLCS) END HOLES REAR LEFT FRONT RIGHT...
  • Page 71 N1 - DOOR TRIM - W4L08944 H1 - DOOR TRIM - W4L08946 5/8"x2 3/8"x37 13/16" (16x60x960) 15/16"x2 5/8"x3 3/8" (24x66x86) Y1 - ARCH TRIM - W4L08945 N3 - DOOR TRIM - W4L08987 5/8"x4"x12 5/8" (16x101x320) 5/8"x2 3/8"x37 13/16" (16x60x960) STEP 36 (19) SCREW PFH 8x1 SD HINGE HOLES...
  • Page 72 N5 - WALL CLEAT - W4L11682 5/8"x2 3/8"x3 15/16" (16x60x100) (1) GP2-GABLE PANEL-W2A02540 1 1/16"x35 13/16"x17 7/8" (27x909x455) STEP 37 SCREW PFH 8x1 1/2 SCREW PFH 8x1 1/2 SD (8 PLCS) RIGHT FRONT LEFT REAR...
  • Page 73 N5 - WALL CLEAT - W4L11682 5/8"x2 3/8"x3 15/16" (16x60x100) (1) GP4-GABLE PANEL-W2A02542 90° L-BRACKET - BLK - A4M00555 1 1/16"x62 15/16"x27 7/16" (27x1598x697) STEP 38 SCREW PFH 8x1 1/2 SCREW PFH 8x1 SD SCREW PFH 8x1 SD (2 PLCS) TOP HOLES SCREW PWH 8x5/8 90°...
  • Page 74 (1) RP1-ROOF PANEL-W2A02543 2 13/16"x28 7/16"x20 1/4" (71x723x515) STEP 39 SCREW PFH 8x1 3/4 SCREW PFH 8x1 1/2 SD (3 PLCS) SCREW PFH 8x1 3/4 SD (4 PLCS) SCREW PFH 8x1 1/2 FLUSH FLUSH RIGHT REAR FRONT FRONT RIGHT LEFT...
  • Page 75 (1) GP5-GABLE PANEL-W2A02545 1 1/16"x15 5/8"x9 1/8" (27x397x231) STEP 40 SCREW PFH 8x1 SD SCREW PFH 8x1 SD SCREW PFH 8x1 SD (2 PLCS) FRONT LEFT REAR RIGHT...
  • Page 76 (1) GP3-GABLE PANEL-W2A02541 1 1/16"x62 15/16"x27" (27x1598x686) N5 - WALL CLEAT - W4L11682 5/8"x2 3/8"x3 15/16" (16x60x100) STEP 41 SCREW PFH 8x1 1/2 SCREW PFH 8x1 1/2 SD (8 PLCS) LEFT REAR FRONT RIGHT...
  • Page 77 M4 - RAFTER - W4L08985 5/8"x3 3/8"x11" (16x86x280) STEP 42 SCREW PWH 8x3/4 SCREW PWH 8x3/4 SD (4 PLCS) REAR LEFT FRONT RIGHT...
  • Page 78 (1) RP5-ROOF PANEL-W2A02548 1 3/8"x19 5/8"x44 9/16" (35x499x1132) STEP 43 FLUSH SCREW PFH 8x1 1/2 SCREW PFH 8x1 1/2 SD (4 PLCS) FLUSH LEFT REAR FRONT RIGHT...
  • Page 79 (1) RP4-ROOF PANEL-W2A02547 1 3/8"x20 1/16"x44 9/16" (35x510x1132) STEP 44 FLUSH SCREW PFH 8x1 1/2 SCREW PFH 8x1 1/2 SD (4 PLCS) RIGHT REAR LEFT FRONT...
  • Page 80 (1) RP3-ROOF PANEL-W2A02546 1 3/8"x28 7/8"x44 9/16" (35x734x1132) STEP 45 FLUSH SCREW PFH 8x1 1/2 SCREW PFH 8x1 1/2 SD (6 PLCS) LEFT REAR FRONT RIGHT...
  • Page 81 (1) WP17-WALL PANEL-W2A02549 1 1/8"x21 1/16"x54 15/16" (28x535x1396) 90° L-BRACKET - BLK - A4M00555 STEP 46 FLUSH SCREW PWH 8x3/4 WP17 SCREW PWH 8x3/4 BLK (6 PLCS) 90° L-BRACKET - BLK (3 PLCS) RIGHT FRONT WP17 REAR LEFT...
  • Page 82 90° L-BRACKET - BLK - A4M00555 (1) WP18-WALL PANEL-W2A02550 1 1/16"x21 1/16"x54 15/16" (27x535x1396) STEP 47 90° L-BRACKET - BLK (3 PLCS) SCREW PWH 8x3/4 WP18 SCREW PWH 8x3/4 BLK (6 PLCS) REAR RIGHT WP18 FRONT LEFT...
  • Page 83 (1) FP1-FENCE PANEL-W2A02553 1 1/16"x12"x18 15/16" (27x305x481) STEP 48 SCREW PFH 8x1 1/2 SD SCREW PFH 8x1 1/2 (4 PLCS) REAR RIGHT LEFT FRONT...
  • Page 84 (1) RP2-ROOF PANEL-W2A02544 1 3/8"x62 7/16"x28 7/8" (35x1586x734) STEP 49 SCREW PFH 8x1 1/2 FLUSH RIGHT SCREW PFH 8x1 1/2 SD (6 PLCS) REAR LEFT FRONT...
  • Page 85 (1) RP6-ROOF PANEL-W2A02551 1 3/8"x16 1/8"x23 11/16" (35x410x602) STEP 50 FLUSH SCREW PFH 8x1 1/2 SCREW PFH 8x1 1/2 SD (4 PLCS) RIGHT REAR LEFT FRONT...
  • Page 86 (3) RP7-ROOF PANEL-W2A02552 1 3/8"x3 3/8"x23 11/16" (35x86x602) STEP 51 FLUSH SCREW PFH 8x1 1/2 RIGHT SCREW PFH 8x1 1/2 SD (6 PLCS) REAR LEFT FRONT...
  • Page 87 K3 - TRIM - W4L11680 5/8"x5 1/4"x18 15/16" (16x134x481) HINGE (DOOR, SPRING LOADED) - A4M00624 (1) GP1-GATE PANEL-W2A02554 LATCH - A100264 1 1/16"x14 5/16"x14 7/8" (27x364x378) STEP 52 SCREW PFH 8x1 1/2 (14) SCREW PWH 8x3/4 SCREW PWH 8x1/2 LATCH (1 PLCS) SCREW PFH 8x1 1/2 SD (4 PLCS)
  • Page 88 (1) PP1-PORCH PANEL-W2A02556 1 15/16"x17 15/16"x27 1/16" (50x455x688) STEP 53 SCREW PFH 8x1 3/4 SCREW PFH 8x1 3/4 SD (3 PLCS) SCREW PFH 8x1 SD SCREW PFH 8x1 SD (3 PLCS) REAR LEFT FRONT RIGHT...
  • Page 89 HINGE (DOOR, SPRING LOADED) - A4M00624 (1) DP1-DOOR PANEL-W2A025555 1 1/16"x16 1/8"x41 7/8" (27x410x1063) STEP 54 HINGE (DOOR, SPRING LOADED) (18) SCREW PWH 8x1/2 (3 PLCS) SCREW PWH 8x1/2 BLK (18 PLCS) REAR LEFT FRONT RIGHT...
  • Page 90 KNOB - BLK - A6P00067 DOOR BELL PLATE - A6P00290 DOOR BELL - A100174 DOOR STOP - A4M00933 STEP 55 SCREW PFH 8x1 3/4 SCREW PFH 8x3/4 DOOR BELL PLATE (1 PLCS) DOOR BELL SCREW PFH 8x1 SD (1 PLCS) SCREW PFH 6x5/8 BLK (2 PLCS) SCREW PFH 6x5/8...
  • Page 91 (1) BENCH ASSEMBLY STEP 56 BOLT WH 1/4x1 SD NUT BARREL WH NUT BARREL WH 1/4x5/8 SD 1/4x5/8 SD (2 PLCS) WASHER LOCK EXT 8x15 SD (2 PLCS) WASHER LOCK EXT 8x15 SD BOLT WH 1/4x1 SD L BRACKET WHITE 32x51 (2 PLCS) (2 PLCS) LEFT...
  • Page 92 FRUIT BASKET KIT - A6P00069 FAUCET KIT - A6P00024 STOVE KIT - A6P00025 SURFACE MOUNT BASIN - A6P00032 STEP 57 SCREW PWH 8x5/8 SD SCREW PFH 8x1 1/2 (4 PLCS) SCREW PFH 8x1 1/2 SD (2 PLCS) SCREW PFH 8x1 SD SCREW PWH 8x5/8 SD (2 PLCS) FRUIT BASKET KIT...
  • Page 93 (1) PHONE KIT-A100132 STEP 58 PHONE KIT SCREW PFH 8x1/2 (1 PLCS) SCREW PFH 8x1/2 SD (2 PLCS) LEFT RIGHT REAR...
  • Page 94 BYD ID TAG (MEDIUM) AGES 2 TO 10 - A4M00528 STEP 59 SCREW PFH 8x1/2 BYD ID TAG (MEDIUM) AGES 2 TO 10 (1 PLCS) SCREW PFH 8x1/2 SD (2 PLCS) RIGHT LEFT FRONT...
  • Page 95 OUTDOOR LIGHT FIXTURE - A6P00068 STEP 60 SCREW PFH 8x1 3/4 SCREW PFH 8x1 3/4 SD OUTDOOR LIGHT FIXTURE (2 PLCS) (1 PLCS) REAR LEFT FRONT RIGHT...
  • Page 96 "A" REVISION TAG - A100314 STEP 61 SCREW PWH 8x3/4 SCREW PWH 8x3/4 BLK (2 PLCS) "A" REVISION TAG (1 PLCS) REAR LEFT FRONT RIGHT...
  • Page 97 H12 - SUPPORT - W4L11681 15/16"x3 3/8"x7 7/8" (24x86x200) MAILBOX - A6P00017 STEP 62 MAILBOX FRAME MAILBOX FRAME (1 PLCS) SCREW PFH 8x2 SD (1 PLCS) MAILBOX BODY (1 PLCS) SCREW PFH 8x1 MAILBOX MACHINE SCREW INCLUDED IN KIT MAILBOX FLAG (1 PLCS) MAILBOX FRONT DOOR (1 PLCS)
  • Page 98 M3 - FASCIA BOARD - W4L08986 N4 - FASCIA BOARD - W4L11677 5/8"x3 3/8"x48 1/8" (16x86x1222) 5/8"x2"x19 1/8" (16x50x487) STEP 63 SCREW PFH 8x1 1/2 FLUSH SCREW PFH 8x1 1/2 SD (7 PLCS) REAR LEFT FRONT RIGHT...
  • Page 99 K5 - FASCIA BOARD - W4L11678 5/8"x3 3/8"x55 1/8" (16x86x1395) M6 - FASCIA BOARD - W4L11676 5/8"x3 3/8"x29" (16x86x736) STEP 64 SCREW PFH 8x1 1/2 FLUSH SCREW PFH 8x1 1/2 SD (8 PLCS) REAR LEFT FRONT RIGHT...
  • Page 100 M3 - FASCIA BOARD - W4L08986 5/8"x3 3/8"x48 1/8" (16x86x1222) STEP 65 (10) SCREW PFH 8x1 1/2 FRONT LEFT REAR FLUSH RIGHT SCREW PFH 8x1 1/2 SD (10 PLCS)
  • Page 101 K4 - FASCIA BOARD - W4L11679 5/8"x5 1/4"x26" (16x133x661) STEP 66 SCREW PFH 8x1 1/2 FRONT RIGHT REAR LEFT FLUSH SCREW PFH 8x1 1/2 SD (3 PLCS)
  • Page 102 GROUND STAKE REBAR - A4M00527 STEP 67 NUT BARREL WH 5/16x7/8 BLK BOLT WH 5/16x3/4 WASHER LOCK EXT 12x19 BLK GROUND STAKE REBAR (4 PLCS) NUT BARREL WH 5/16x7/8 BLK (4 PLCS) WASHER LOCK EXT 12x19 BLK (4 PLCS) BOLT WH 5/16x3/4 BLK (4 PLCS) TAP IN GROUND STAKES AT AN APPROXIMATE 45 ~ ~ ~ ~ ANGLE AT 4 CORNERS OF PLAYHOUSE.

  • Page 103: Limited Warranty

    Limited Warranty This Limited Warranty by Backyard Discovery applies to products manufactured under the Backyard Discovery brand or its other brands including but not limited to Backyard Botanical, Adventure Playsets, and Leisure Time Products. Backyard Discovery warrants that this product is free from defect in materials and workmanship for a period of one (1) year from the original date of purchase.
  • Page 104 Backyard Discovery disclaims all other representations and warranties of any kind, express or implied. This Warranty gives you specific legal rights. You may have other rights as well which vary from state to state or province to province. This warranty excludes all...
