10. Install the master link as shown in Figure 10.
11. Repeat for the other four wheels.
SuperDroid Robots, Inc
224 Technology Park Lane
Fuquay Varina, NC 27526
www.SuperDroidRobots.com
Revised: February 8, 2019
IG52-DB Heavy Duty Enclosed Robot

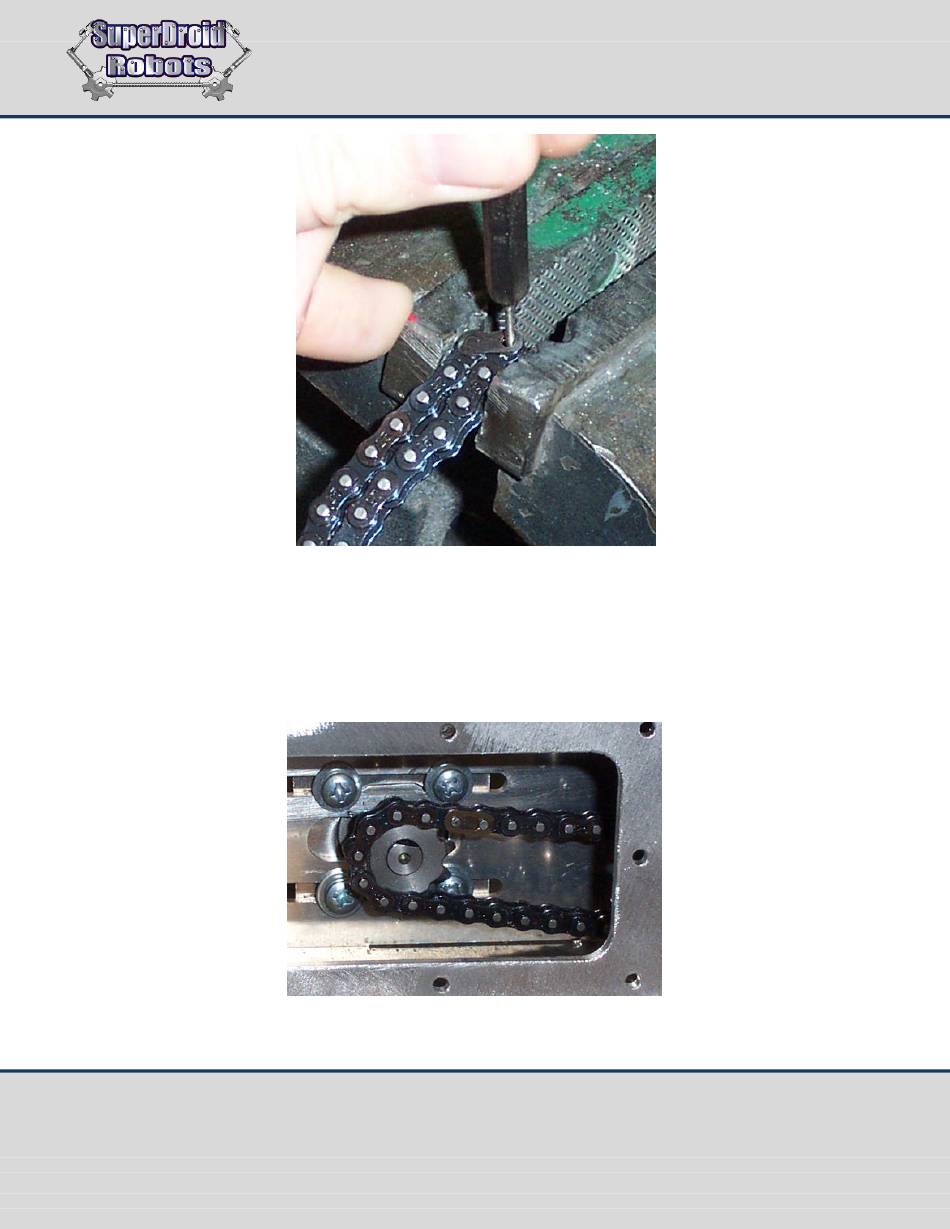

Figure 9: Chain Link removal
Figure 10: Master Link Installation
Contact
(919) 557-9162
SDR@SDRobots.com
Page 8 of 13
