SuperDroid Robots IG52-DB Assembly And Operation Manual page 6

8. The easiest way to cut the chain is with a chain breaker tool, illustrated in Figure 6.
9. Alternatively, clamp the chain in a vise and grind/file the ends of the pins down. Then drive the pin through
the chain. Refer to Figure 7, Figure 8, and Figure 9.
SuperDroid Robots, Inc
224 Technology Park Lane
Fuquay Varina, NC 27526
www.SuperDroidRobots.com
Revised: February 8, 2019
IG52-DB Heavy Duty Enclosed Robot

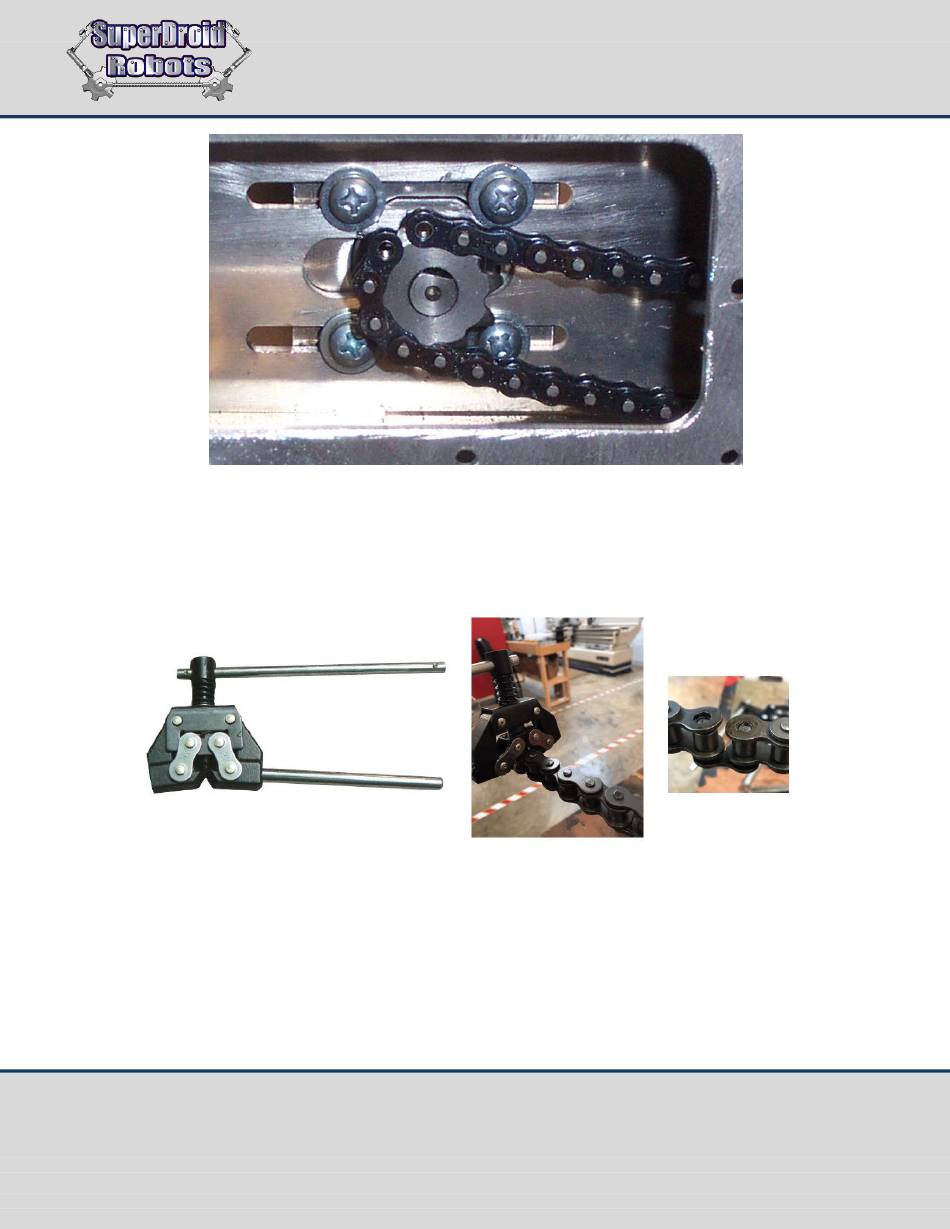

Figure 5: Chain layout
Figure 6: Chain breaker tool
