Amron 2810E-02 User Manual

Single lock chamber communicator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
This manual and the information contained herein are provided for use as an operation and maintenance
guide. No license or rights to manufacture, reproduce, or sell either the manual or articles described
herein are given. Amron International, Inc. reserves the right to change specifications without notice.

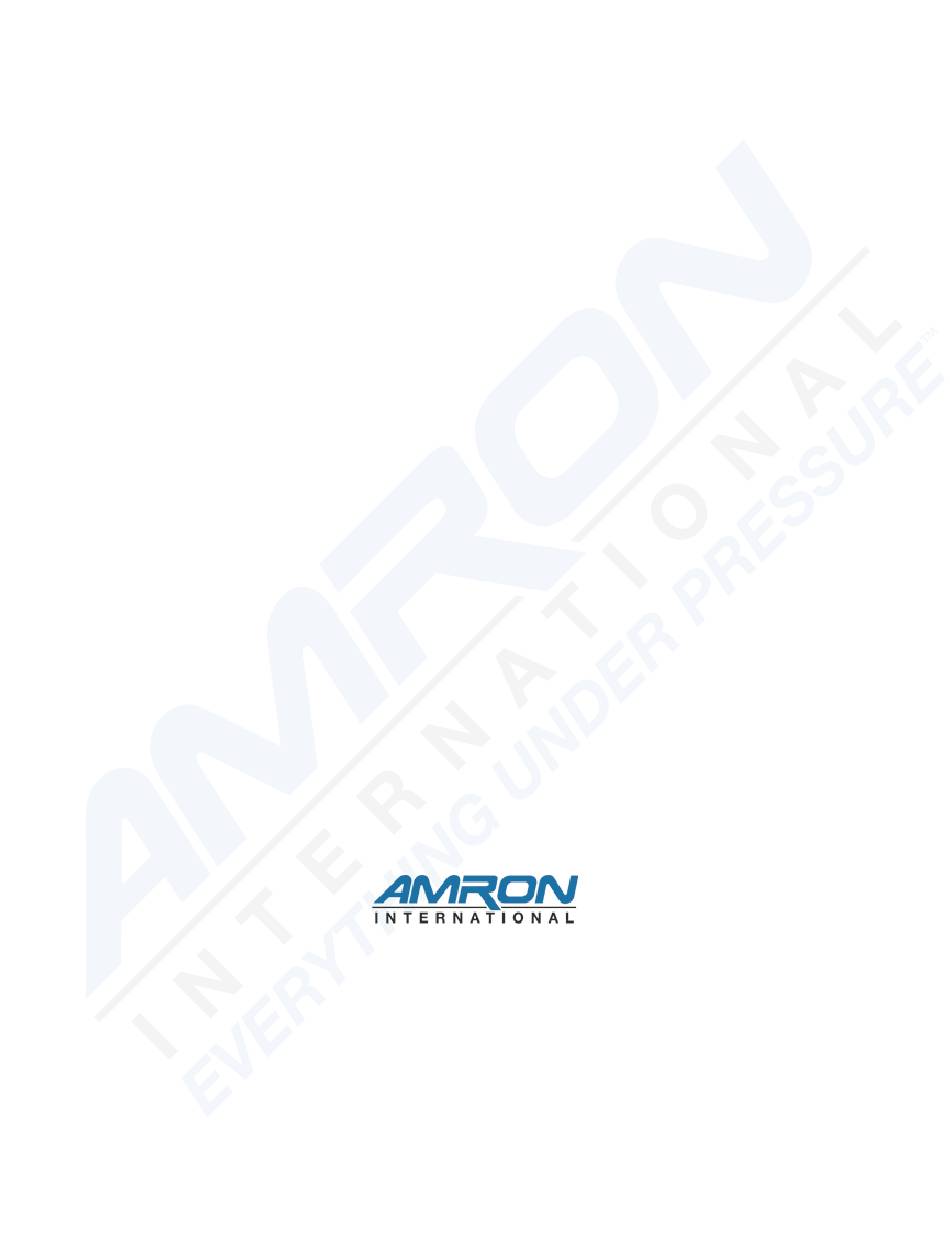

User Manual
For
Amron International, Inc.
Amron Model 2810E-02
Single Lock Chamber Communicator
S/N ____________________
1380 Aspen Way, Vista California 92081-8349
United States of America
Phone: (760) 208-6500
Fax (760) 599-3857
Email:
sales@amronintl.com
Web:
www.amronintl.com
Copyright© 2017 Amron International, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2810E-02 and is the answer not in the manual?

Questions and answers

Related Manuals for Amron 2810E-02

Summary of Contents for Amron 2810E-02

  • Page 1 This manual and the information contained herein are provided for use as an operation and maintenance guide. No license or rights to manufacture, reproduce, or sell either the manual or articles described herein are given. Amron International, Inc. reserves the right to change specifications without notice. Copyright© 2017 Amron International, Inc.

  • Page 3: Table Of Contents

    CHAMBER COMMUNICATOR CHECK PROCEDURES ............. 13 GENERAL MAINTENANCE ......................15 TROUBLESHOOTING........................17 DRAWINGS ............................20 FRONT PANEL PARTS LOCATOR, MODEL 2810E-02 .............. 21 MOUNTING DETAIL, MODEL 2810E-02..................22 PARTS LIST ............................23 MODEL 2810E-02 TOP ASSEMBLY .................... 24 2810A-FS FIELD SPARES KIT ..................... 24 LIMITED WARRANTY AND SERVICE POLICY ................

  • Page 4: Introduction And Specifications

    Please note that this feature is only available for a chamber operating in the 4-Wire mode. These new features allow the AMCOM I 2810E-02 to remain the most advanced single chamber communicator on the market. To enjoy all the features, it is important that the operator read and understand the entire manual including all warnings.

  • Page 5: Mechanical Specifications

    2810E-02 ......................11.5 Lbs. (5.2kg) MODEL 2810E-02 FRONT PANEL All of the controls for the Model 2810E-02 are located on the front panel including the connectors for the operator handheld microphone or headset, tape recorder and auxiliary audio input. The 2810E-02 comes with the Amron Model 2405-28 PUSH-TO-TALK handheld microphone.

  • Page 6: Model 2810E-02 Rear Panel

    (115/230 VAC) battery charger. The battery charger has medical grade electrical isolation for maximum safety to the chamber occupants. ACCESSORIES Amron produces a series of accessories designed to operate with the entire line of AMCOM diving communicators. 1.6.1 Amron Heavy-Duty Headset - Model 2401-28 The Model 2401-28 is a heavy-duty headset with boom microphone.
  • Page 7 The Model 2460-31R features an adjustable boom microphone, vinyl cushioned adjustable ear pads and a spiral cord that can be extended up to 8 feet (2.4 meters). It can be plugged into the headset jacks of most models of Amron Chamber Speakers.
  • Page 8 1.6.11 Amron Inner-Lock Combo Box - Model 3125 The Model 3125 features a talk-back speaker with on/off switch and headset jack that operates in the same manner as the Model 3115. It also includes a sound-...

  • Page 9: Controls And Connections

    MODEL 2810E-02 USER MANUAL CONTROLS AND CONNECTIONS Before using the 2810E-02 chamber communicator, the operator should be familiar with all the controls and connections. While reading this manual, you will find capitalized words such as PANEL SPEAKER. These words are to remind the reader that additional information can be found in this section of the manual.
  • Page 10 LED will turn off and the 2810E-02 will go into shutdown mode to prevent damaging the communicator or rechargeable battery. It is advised that the 2810E-02 be connected to an AC outlet as soon as possible once the BATTERY CONDITION INDICATOR starts blinking. While there...
  • Page 11 If both are used at the same time, the PANEL SPEAKER is active as a microphone. This allows another operation crew member to talk to the occupants using the PANEL SPEAKER even if the operator is away from the 2810E-02 using the Remote Push-to-Talk Module in 2-Wire mode.

  • Page 12: Chamber Connections

    Full Duplex (4-Wire) mode. WARNING! The AUXILIARY AUDIO INPUT is not electrically isolated from the circuitry of the 2810E-02. Any external equipment connected to the input should not be AC powered or connected to the AC mains indirectly through any equipment without the proper isolation. Failure to follow this warning may result in electrocution or death.

  • Page 13: Operation

    90-264 VAC, 50-60 Hz without the user having to make any adjustments. The 2810E-02 internal battery charger is designed to charge the battery in float mode so the charger can be left on indefinitely, without damage, to ensure the battery is fully charged and the unit is ready to use.

  • Page 14: Modes Of Operation

    These spikes can exceed 1kV! Such spikes can be high enough to cause the input fuses on the 2810E-02 internal battery charger to blow and, in extreme cases, actually damage the charger circuitry. Amron has designed this battery charger to isolate such faults to ensure that they will not cause a safety issue for the operator or chamber occupants.
  • Page 15 MODEL 2810E-02 USER MANUAL 3.3.1 2-WIRE Turn power switch to ON, turn speaker switch to ON, and adjust both volume controls to mid-scale. The operator has to depress PUSH-TO-TALK BUTTON in order to talk to chamber occupants. Operator and occupants talk to each other...

  • Page 16: Maintenance

    The following are a series of step-by-step procedures to perform a functional check of your 2810E-02 communicator using only a headset. These steps check all communication functions of the 2810E-02 in both 2-Wire and Full Duplex (4-Wire) mode. If the communicator checks out using these procedures, then any communication problems are probably located somewhere else in the system setup.
  • Page 17 If that does not resolve the problem, then go to the troubleshooting section to determine the cause. Identify the microphone and headset leads. When using an Amron headset, the microphone is the red banana plug and the headset is the black banana plug.

  • Page 18: General Maintenance

    Select a work area where the communicator and wires connecting to it are out of everyone's way so it does not get knocked over. The 2810E-02 rechargeable battery should be recharged after use or as soon as possible when the BATTERY CONDITION INDICATOR starts blinking.
  • Page 19 MODEL 2810E-02 USER MANUAL 19. Perform Power On - Battery Check 20. Plug 2810E-02 into AC power and allow battery to charge for 4 hours (depending of the age of the battery and the surrounding temperature). 4.2.2 RECOMMENDED MAINTENANCE SCHEDULE The following sections outline the recommended scheduled maintenance for the 2810E-02.

  • Page 20: Troubleshooting

    The BATTERY CONDITION INDICATOR indicates the battery level or state-of- charge by monitoring the battery voltage. The voltage has to be 9 Volts or greater for the 2810E-02 communicator to operate. If the BATTERY CONDITION INDICATOR indicates a low (blinking LED) or bad (off LED) after charging, then either the battery is bad and needs to be replaced or the charger has malfunctioned.
  • Page 21 4.3.7 FEEDBACK - FULL DUPLEX (4-WIRE) MODE There are two forms of feedback that can affect the 2810E-02: acoustic feedback and cable crosstalk. Acoustic feedback occurs when an active microphone is close enough to pick up and amplify the signal from a speaker or earphone. The required distance between the microphone and speaker/earphone is dependent on the volume setting and the amount of acoustic isolation.
  • Page 22 Common sources are feedback between the operator's headset microphone and the PANEL SPEAKER of the 2810E-02. If the operator wants to operate with the headset and leave the PANEL SPEAKER on, Amron recommends the operator move away from the 2810E-02 by using the Amron Model 2822-28 Remote Walk-and-Talk Module.

  • Page 23: Drawings

    The corresponding parts lists for each drawing are detailed in the parts lists section, or are included as part of the drawing. All drawings are at their current revision level as of the date of printing. Amron reserves the rights to revise the documentation without notification. 2810E-02-UM...

  • Page 24: Front Panel Parts Locator, Model 2810E-02

    MODEL 2810E-02 USER MANUAL FRONT PANEL PARTS LOCATOR, MODEL 2810E-02 2810E-02-UM REV 2.0...

  • Page 25: Mounting Detail, Model 2810E-02

    MODEL 2810E-02 USER MANUAL MOUNTING DETAIL, MODEL 2810E-02 2810E-02-UM REV 2.0...

  • Page 26: Parts List

    MODEL 2810E-02 USER MANUAL PARTS LIST The parts lists include both mechanical and electrical parts. The following information will be useful in interpreting data that is not self-explanatory. REVISIONS The parts lists in this manual are for the current model of chamber communicator as of the printing date.

  • Page 27: Model 2810E-02 Top Assembly

    MODEL 2810E-02 USER MANUAL MODEL 2810E-02 TOP ASSEMBLY Reference Part Number Description 2001-007 Handle Complete Black 570-1000-05 PCA, Single Chamber Communicator Speaker, 3.5 inch, 8Ω, 16W 100-0000-00 SW-201 Switch, Toggle, DPDT LEDGREEN LED, Green, Bright Potentiometer, 10kΩ, w/knob P16NP-10K PBSWITCH Switch, Pushbutton, Sealed LEDHOLDER-BLK.25...

  • Page 28: Limited Warranty And Service Policy

    Amron’s literature covering this product. Oxygen Treatment Hoods and accessories are excluded and limited to 90 days. Amron’s obligation under this warranty is limited to the repair of or replacement, at Amron’s option, of defective material. This warranty shall not cover defects which are the result of misuse, negligence, accident, repair or alterations.
