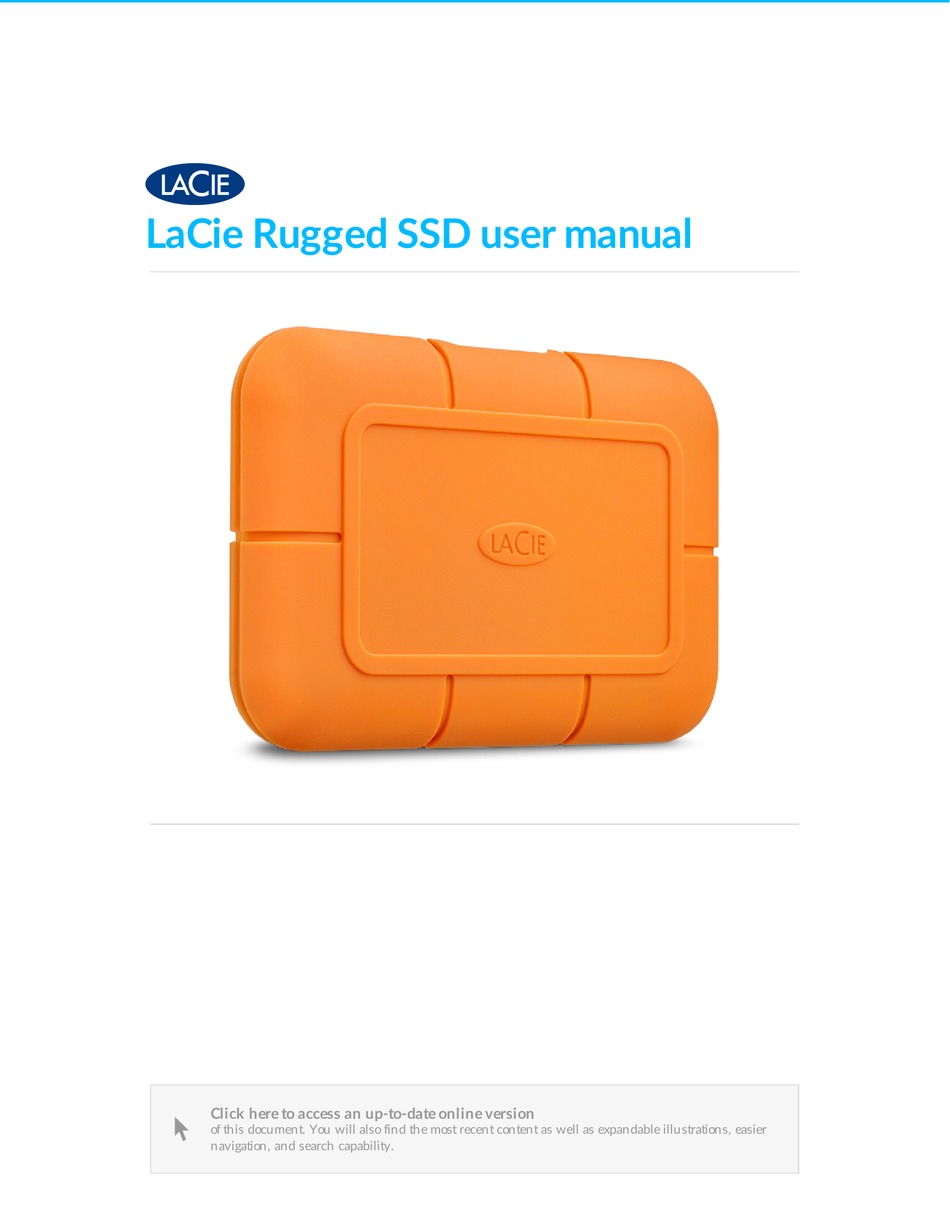

LaCie Rugged SSD user manual Model: Click here to access an up-to-date online version of this document. You will also find the most recent content as well as expandable illustrations, easier navigation, and search capability.
Minimum system requirements Ports You can connect your LaCie device to a computer with a USB-C or USB Type A (USB 3.0) port. Opera ng system Windows® 7 or higher macOS®...
Page 5
7: Immersion up to 1m— Ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of pressure and time (up to 1 m of submersion). Rugged SSD has also been tested for the following: Drop resistance—Dropped from heights up to 3 meters (in non-operating mode).
10Gb/s Thunderbolt 3 transfer rates up to 40Gb/s The USB-C port on the LaCie Rugged SSD is USB 3.1 Gen 2. You can connect your Rugged SSD to any USB-C or USB Type A (USB 3.0) port. Cables Rugged SSD is delivered with two cables for universal compatibility with modern computers.
USB 3.1 (USB-C)–to–USB Type A cable Use the USB 3.1 (USB-C)–to–USB Type A cable to connect Rugged SSD to a computer’s USB Type A (USB 3.0) port. LaCie Rugged SSD user manual 8/13/19...
USB-C to USB-C Use the USB-C to USB-C cable if your computer has a USB-C port. USB-C to USB-A Use the USB-C to USB-A cable if your computer does not have a USB-C port. LaCie Rugged SSD user manual 8/13/19...
Set up LaCie Rugged SSD The setup process lets you: Register your LaCie Rugged SSD Get the most from your drive with easy access to information and support. Install Toolkit Manage mirror folders, backup plans (Windows only), and more. Your computer must be connected to the internet to register your device and install Toolkit.
Start Here Using a file manager such as Finder or File Explorer, open LaCie Rugged SSD and launch Start Here Win. Register your device Register. Enter your information and click Download Toolkit LaCie Rugged SSD user manual 8/13/19...
LaCie Toolkit Installer Open the file. Click on the to launch the application. LaCieToolkit.exe Click on the file to launch the application. Your computer must be connected to the internet to install and run Toolkit. LaCie Rugged SSD user manual 8/13/19...
Toolkit is required in order to enable security for LaCie Rugged SECURE. Be sure to install Toolkit in order to password-protect your device using Seagate Secure 256-bit encryption. Toolkit lets you enter your password whenever you want to lock or unlock the drive, and provides other...
Toolkit provides useful tools that let you easily manage security, set up backup plans and mirror folders, and much more. Enable security Toolkit is required to enable security for LaCie Rugged SSD. Be sure to install Toolkit in order to password- protect your device using Seagate Secure 256-bit encryption. Click here for details on enabling security.
Page 14
LaCie strongly recommends that you back up all data on your storage device before performing the steps below. LaCie is not responsible for any data lost due to formatting, partitioning, or using a LaCie storage device. LaCie Rugged SSD user manual...
APFS (Apple File System)—An Apple file system optimized for solid state drives (SSDs) and flash-based storage systems. While APFS may benefit SSD performance, note the following restrictions: You cannot use an APFS-formatted disk as your Time Machine backup drive. Format LaCie Rugged SSD to HFS+ if you intend to use it with Time Machine.
…you connect the storage device to Mac computers, and you don’t need to allow a Windows computer to read or write to the drive. Do not use APFS if you intend to use LaCie Rugged SSD with Time Machine, or if your computer is not running macOS 10.13 or later.
LaCie highly recommends that you back up all data on your storage device before performing the steps below. LaCie is not responsible for any data lost due to formatting, partitioning, or using a LaCie storage device. macOS version 10.11 and later Applications >...
Page 18
Disk Management. 3. From the list of storage devices in the middle of the Disk Management window, locate your LaCie device. 4. The partition must be available to format. If it is currently formatted, right click on the partition and then choose Delete.
Safely Remove LaCie Rugged SSD From Your Computer Always eject a storage device from your computer before physically disconnecting it. Your computer must perform filing and housekeeping operations on the drive before it is removed. Therefore, if you unplug the drive without using the operating system’s software, your files can become corrupt or damaged.
Page 20
3. In the list of devices, choose the storage device you want to eject. Windows displays a notification when it is safe to remove the device. 4. Disconnect the storage device from the computer. LaCie Rugged SSD user manual 8/13/19...
Frequently Asked Ques ons For help setting up and using LaCie Rugged SSD, review the frequently asked questions below. For additional support resources, go to LaCie customer support. All users Problem: My file transfers are too slow Q: Are both ends of the USB cable firmly attached? A: Review troubleshooting tips for cable connections below: Check both ends of the USB cable and make sure that they are fully seated in their respective ports.
Q: Can I use my storage device with a longer cable? A: Yes, provided it is certified according to USB standards. However, LaCie recommends using the cable shipped with your storage device for the best results. If you use a longer cable and experience problems with detection, transfer rates or disconnection, use the original cable included with your storage device.
Plus (+) icon to view the full list of devices. If you’re uncertain that your storage device is listed, safely unplug it and then reconnect it. The entry that changes is your LaCie device. Q: Is your device listed next to an unusual icon? A: Windows Device Manager usually provides information about failures with peripherals.
Marking for the Restricted Use of Hazardous Substances in Electronic and Electrical Products, SJT 11364-2014. 中国 RoHS 2 是指 2016 年 7 月 1 日起施行的工业和信息化部令第 32 号“电力电子产品限制使用有害物质管理办 法”。为了符合中国 RoHS 2 的要求,我们根据“电子电气产品有害物质限制使用标识”(SJT 11364-2014) 确定本产品 的环保使用期 (EPUP) 为 20 年。 Taiwan RoHS LaCie Rugged SSD user manual 8/13/19...
Page 25
Beginning on January 1, 2018, Seagate products must comply with the “Marking of presence” requirements in Section 5 of CNS 15663. This product is Taiwan RoHS compliant. The following table meets the Section 5 “Marking of presence” requirements. 台灣RoHS是指台灣標準局計量檢驗局(BSMI)對標準CNS15663要求的減排電子電氣設備限用化學物質指引。從2018 年1月1日起,Seagate產品必須符合CNS15663第5節「含有標示」要求。本產品符合台灣RoHS。 下表符合第5節 「含有標示」要求。 LaCie Rugged SSD user manual 8/13/19...
