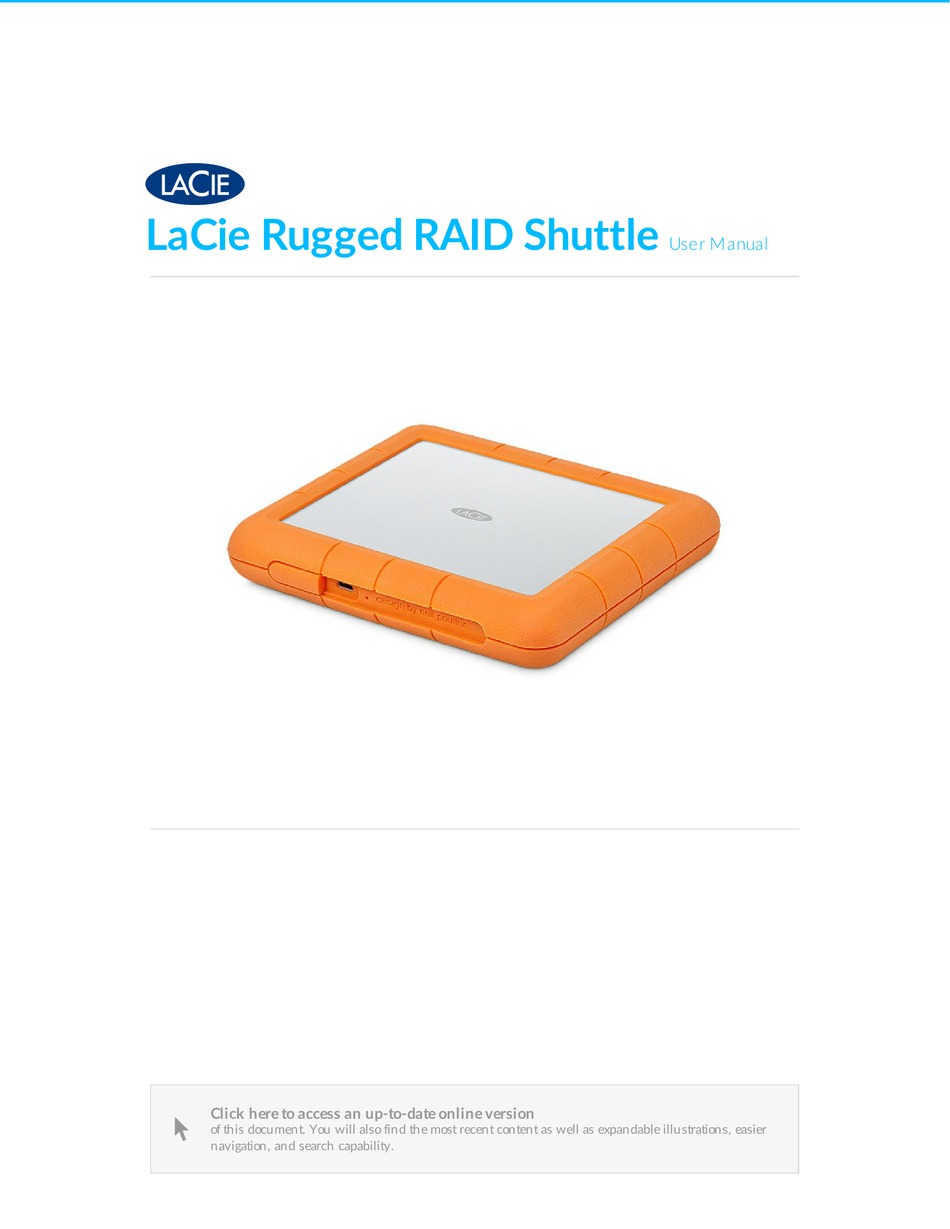

- Page 1 LaCie Rugged RAID Shuttle User Manual Model: Click here to access an up-to-date online version of this document. You will also find the most recent content as well as expandable illustrations, easier navigation, and search capability.
-
Page 2: Table Of Contents
......................... . Set up LaCie Rugged RAID Shuttle . - Page 3 Windo ws 8 Safely Remove Rugged RAID Shuttle From Your Computer ...................
-
Page 4: Box Content
LaCie Rugged RAID Shuttle. This fast, universally-compatible, bus-powered solution is built fittingly flat for gear bags and shipping envelopes, and incredibly tough for whatever terrain your project calls for. This user manual provides instructions on how to set up your Rugged RAID Shuttle. For common questions and answers about your hard drive, see... -
Page 5: Views
2-Bay Devices user manual for details. Views 1. Low power LED—Blinks if Rugged RAID Shuttle is not receiving enough power from the USB connection to your computer, requiring the use of the included power supply. See Activity and Low Power LEDs. -
Page 6: Your Device Might Get Warm
Electrical Power supply output 5.4V 2A Use only the power supply provided with your Rugged RAID Shuttle. Power supplies from third- party devices and other LaCie products can damage your Rugged RAID Shuttle. Your device might get warm Your device might feel warm to the touch when copying or moving a large number of files. These conditions are normal. -
Page 7: Activity And Low Power Leds
Rugged RAID Shuttle to operate, the low power LED behind the protective casing blinks. If the low power LED light is blinking, connect the power cable to Rugged RAID Shuttle and then connect the LaCie Rugged RAID Shuttle... -
Page 8: Power-Saving Mode
Power-saving mode Your Rugged RAID Shuttle can conserve energy by entering power-saving mode. Managed by your computer, power-saving mode can extend the life of the hard drives by sparing them from working during extended periods of inactivity. - Page 9 Note on ejecting the volume and power-saving mode—Rugged RAID Shuttle enters power-saving mode when its volume is ejected and the device remains connected to the computer. To access Rugged RAID Shuttle's volume, unplug the interface cable from the computer and then reconnect it. LaCie Rugged RAID Shuttle...
-
Page 10: Cables And Connectors
Thunderbolt 3 up to 40Gb/s The USB-C port on LaCie Rugged RAID Shuttle is USB 3.1 Gen 1. You can connect your Rugged RAID Shuttle to any USB-C or USB-A port but transfer rates vary. See below for more details. -
Page 11: Usb-C To Usb-A Cable
Rugged RAID Shuttle Computer USB-C to USB-A cable Use the USB-C to USB-A cable to connect Rugged RAID Shuttle to a computer’s USB-A port (USB 3.0 or USB 2.0). Rugged RAID Shuttle Computer Transfer rates with USB-A connections have the potential to reach the following speeds:... - Page 12 LaCie Rugged RAID Shuttle 9/9/19...
-
Page 13: Getting Connected
Confirm the type of USB port on your computer, then choose the appropriate cable to connect your device. USB-C to USB-C Use the USB-C to USB-C cable if your computer has a USB-C port. USB-C to USB-A Use the USB-C to USB-A cable if your computer does not have a USB-C port. LaCie Rugged RAID Shuttle 9/9/19... -
Page 14: Check For Power
Check for power LaCie Rugged RAID Shuttle is designed to operate using power from the USB connection to your computer. If the USB connection isn’t delivering enough power for Rugged RAID Shuttle to operate, the low power LED blinks. If the low power LED is blinking, connect the power cable to Rugged RAID Pro and then connect the power supply to a live power outlet. -
Page 15: Start Here
RAID levels, see Manage RAID. Start here Start Here Using a file manager such as File Explorer or Finder, open LaCie Rugged RAID Shuttle and launch Start Here Win. Register your device Enter your information and click Register. LaCie Rugged RAID Shuttle... -
Page 16: Download Toolkit
Download Toolkit Download Click the button. Install Toolkit Using a file manager such as Finder or File Explorer, go to the folder where you receive downloads. LaCie Rugged RAID Shuttle 9/9/19... - Page 17 Seagate Toolkit Installer Open the file. Click on the to launch the application. SeagateToolkit.exe Click on the file to launch the application. Your computer must be connected to the internet to install and run Toolkit. LaCie Rugged RAID Shuttle 9/9/19...
-
Page 18: Use Toolkit To Set Up Security, Mirror Folders, And More
Toolkit provides useful tools that let you easily manage security, set up mirror folders, and much more. Enable security Toolkit is required to enable security for LaCie Rugged RAID Shuttle. Be sure to install Toolkit in order to password-protect your device using Seagate Secure 256-bit encryption. - Page 19 LaCie strongly recommends that you back up all data on your storage device before performing the steps below. LaCie is not responsible for any data lost due to formatting, partitioning, or using a Seagate storage device. LaCie Rugged RAID Shuttle...
-
Page 20: Manage Raid
The speed at which data is copied. Protection The number of disks that can fail before data is lost. Your LaCie Rugged RAID Shuttle can be configured as RAID 0 or RAID 1. Each RAID level has its own advantages: RAID level... - Page 21 LaCie Rugged RAID Shuttle 9/9/19...
-
Page 22: Optional Formatting And Partitioning
Mac OS Extended (HFS+)—The native hard drive file system for macOS. Windows cannot natively read or write to HFS+ (journaled) volumes. This is the best format if you intend to use LaCie Rugged RAID Shuttle with Time Machine. APFS (Apple File System)—An Apple file system optimized for solid state drives (SSDs) and flash-based storage systems. -
Page 23: How To Choose The File System Format
LaCie strongly recommends that you back up all data on your storage device before performing the steps below. LaCie is not responsible for any data lost due to formatting, partitioning, or using a LaCie storage device. macOS version 10.11 and later... - Page 24 Disk Management. 3. From the list of storage devices in the middle of the Disk Management window, locate your LaCie device. 4. The partition must be available to format. If it is currently formatted, right click on the partition and then choose Delete.
-
Page 25: Mac
Mac. Windows Use the Safely Remove tool to eject a hard drive. 1. Click the Safely Remove icon in your Windows System Tray to view the devices you can eject. Windows 7: LaCie Rugged RAID Shuttle 9/9/19... - Page 26 3. In the list of devices, choose the device you want to eject. Windows displays a notification when it is safe to remove the device. 4. Disconnect the hard drive from the computer. LaCie Rugged RAID Shuttle 9/9/19...
-
Page 27: Frequently Asked Questions
Frequently Asked Ques ons For help setting up and using your LaCie hard drive, review the frequently asked questions below. For additional support resources, go to LaCie customer support. Hard drive icon Why does the hard drive icon not appear on my desktop (Mac)? Is your Finder configured to hide hard drives on the desktop? Preferences >... -
Page 28: File Transfers
If your hard drive is connected to a Hi-Speed 2.0 port or hub, the inferior performance is normal. LaCie Rugged RAID Shuttle performance will improve when it is connected to a USB 3.1 port or a SuperSpeed USB 3.0 port. Otherwise, the device operates at slower USB transfer rates. -
Page 29: Using A Usb Hub For Usb Devices
Some USB hubs are less than efficient with power management, which can be problematic for connected devices. In such a case, you may have to use LaCie Rugged RAID Shuttle’s included power supply or consider substituting a powered USB hub with its own power cable. - Page 30 RAID levels Why doesn't LaCie RAID Manager support JBOD ("just a bunch of disks") as a RAID level for Rugged RAID Shuttle? Rugged RAID Shuttle uses Seagate Secure encryption, which does not support a JBOD configuration. LaCie Rugged RAID Shuttle...
-
Page 31: Stand Accessory
Stand Accessory You can use the included stand accessory to place your Rugged RAID Shuttle in an upright position. Installing the stand Lift the protective bumper on any of the three edges that do not house the ports and LEDs. (Important—Do not attempt to install the stand on the edge with the ports and LEDs.) - Page 32 Gently push the stand at an angle to insert it between the bumper and the drive enclosure. Release when the stand is locked in place. LaCie Rugged RAID Shuttle 9/9/19...
- Page 33 LaCie Rugged RAID Shuttle 9/9/19...
-
Page 34: Regulatory Compliance
Regulatory Compliance Product Name LaCie Rugged RAID Shuttle Regulatory Model Number LRD0SV0 China RoHS China RoHS 2 refers to the Ministry of Industry and Information Technology Order No. 32, effective July 1, 2016, titled Management Methods for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products. -
Page 35: Taiwan Rohs
Beginning on January 1, 2018, Seagate products must comply with the “Marking of presence” requirements in Section 5 of CNS 15663. This product is Taiwan RoHS compliant. The following table meets the Section 5 “Marking of presence” requirements. 台灣RoHS是指台灣標準局計量檢驗局(BSMI)對標準CNS15663要求的減排電子電氣設備限用化學物質指引。從2018 年1月1日起，Seagate產品必須符合CNS15663第5節「含有標示」要求。本產品符合台灣RoHS。 下表符合第5節 「含有標示」要求。 LaCie Rugged RAID Shuttle 9/9/19... - Page 36 LaCie Rugged RAID Shuttle 9/9/19...
