Appendix A. Pcb Layers; Introduction - Microchip Technology EVB-USB4x12 User Manual

A.1

INTRODUCTION

This appendix shows the EVB-USB4x12 Evaluation Board User's Guide PCB Layers. See
Figure A-6.

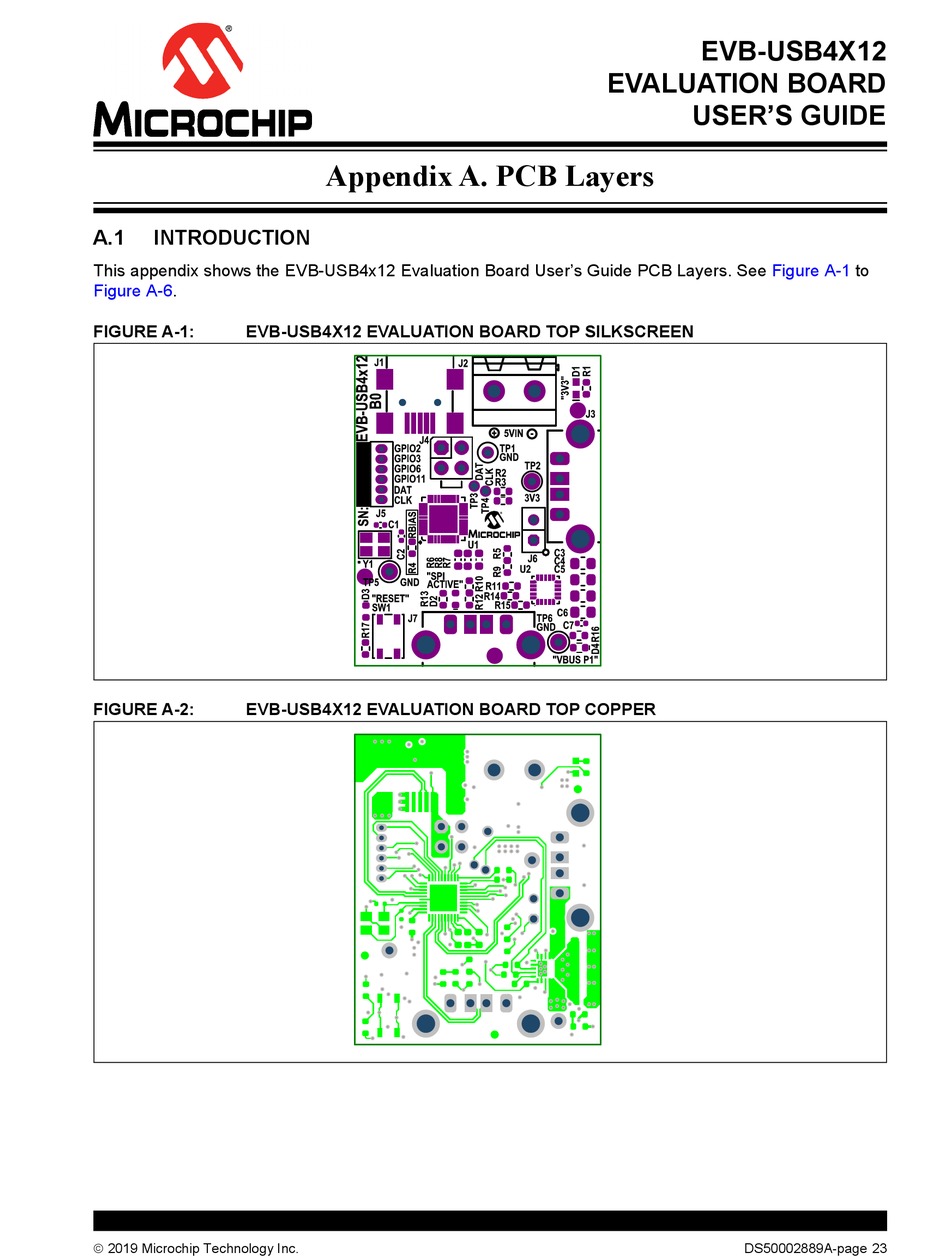

FIGURE A-1: EVB-USB4X12 EVALUATION BOARD TOP SILKSCREEN
FIGURE A-2: EVB-USB4X12 EVALUATION BOARD TOP COPPER
 2019 Microchip Technology Inc.

Appendix A. PCB Layers

EVB-USB4X12
EVALUATION BOARD
USER'S GUIDE
Figure A-1
DS50002889A-page 23
to
