X-NUCLEO-53L0A1 expansion board

It is fundamental to program a micro-controller to control the VL53L0X through the I2C bus

and drive the 4-digit display on board. Application software and examples of C-ANSI source

code are available on www.st.com/VL53L0X.

The X-NUCLEO-53L0A1 expansion board and STM32 Nucleo are connected through

Arduino compatible connectors CN5, CN6, CN8 and CN9 as shown in

Figure 3

and

described in

Table 3

and

Table

The Arduino connectors on STM32 Nucleo board support Arduino Uno Revision 3.

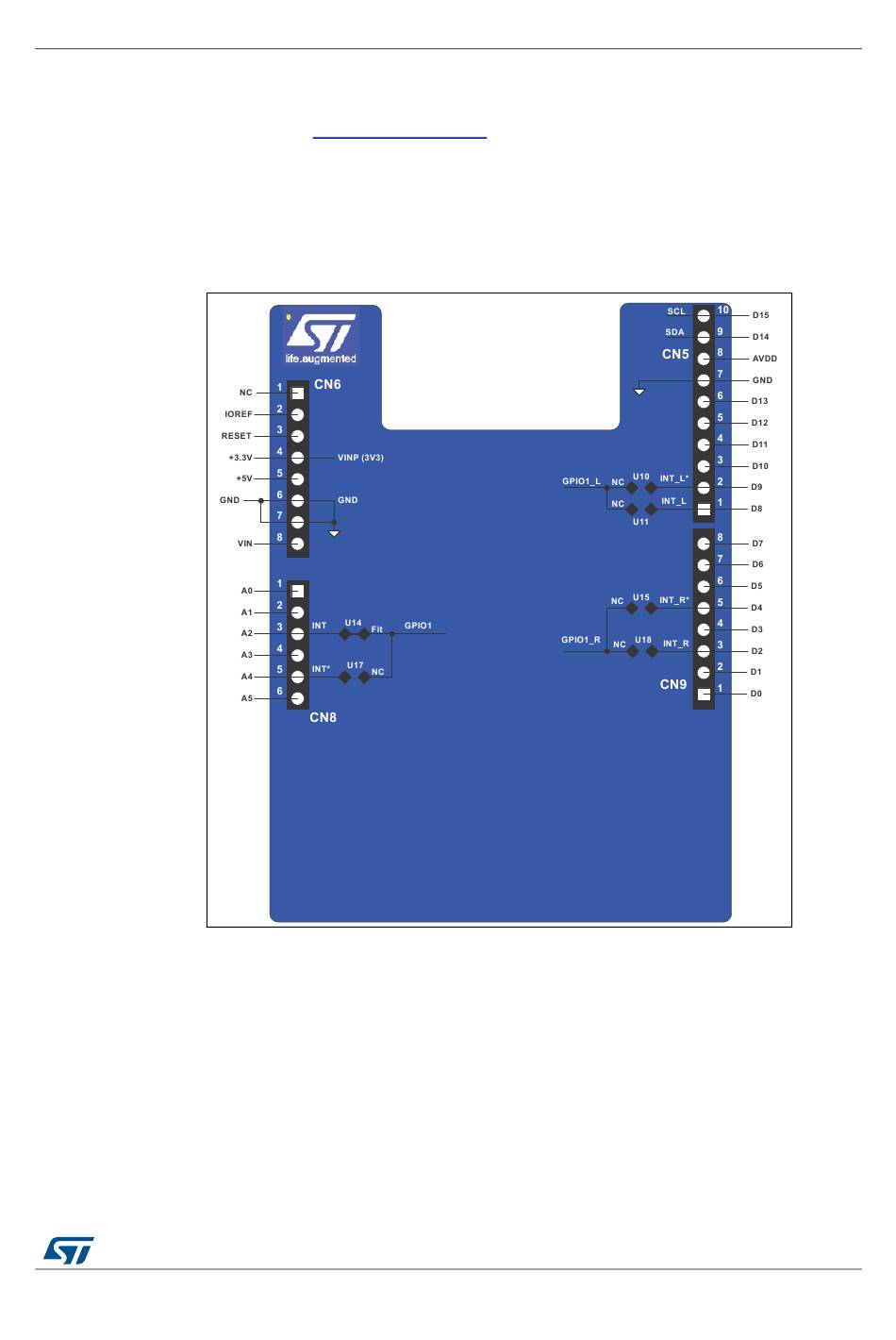

Figure 3. X-NUCLEO-53L0A1 expansion board Arduino connector layout
