X-NUCLEO-53L0A1 expansion board
3 X-NUCLEO-53L0A1 expansion board
This section describes the X-NUCLEO-53L0A1 expansion board features and provides
information which could be useful for understanding the electrical characteristics.
3.1

Overview

The board allows the user to test the VL53L0X functionality, to program it and to understand
how to develop an application using VL53L0X. It integrates:
•
a 2.8V regulator to supply the VL53L0X.
•
level translators to adapt the I/O level to the micro controller main board.
•
a 4-Digit display to render the range value in mm
•
Arduino UNO R3 connectors
•
optional VL53L0X satellite connectors
•
solder drops to allow different configurations of the expansion board
4/16

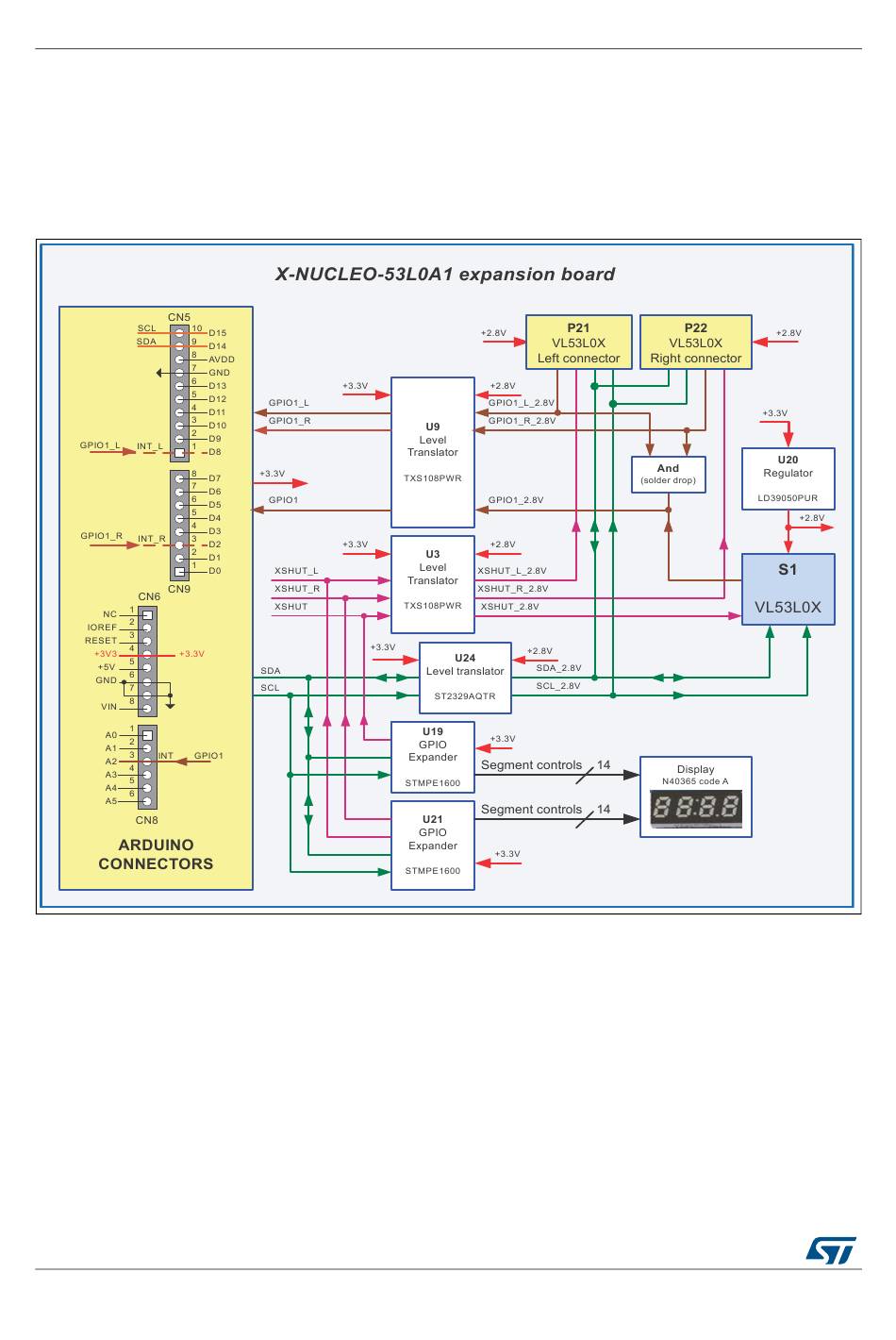

Figure 2. X-NUCLEO-53L0A1 expansion board block diagram
