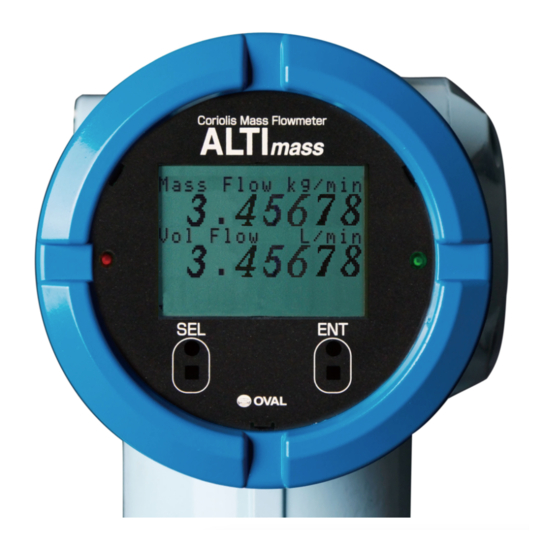

Oval ALTImass CA004 Instruction Manual

Extra-high pressure service coriolis flowmeter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Extra-high pressure service Coriolis flowmeter
ALTI
Every OVAL product is fabricated, tested, and inspected under stringent quality control before it leaves our
factory.
To derive maximum benefit from this product, we recommend you to be well familiar with the information and
instructions given in this manual before you place it in service, and keep this manual handy for quick reference.
mass
Sensor Unit
Transmitter
L-737-3-E
Ins. No.
MODEL : CA00
MODEL : PA0K


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALTImass CA004 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Oval ALTImass CA004

Summary of Contents for Oval ALTImass CA004

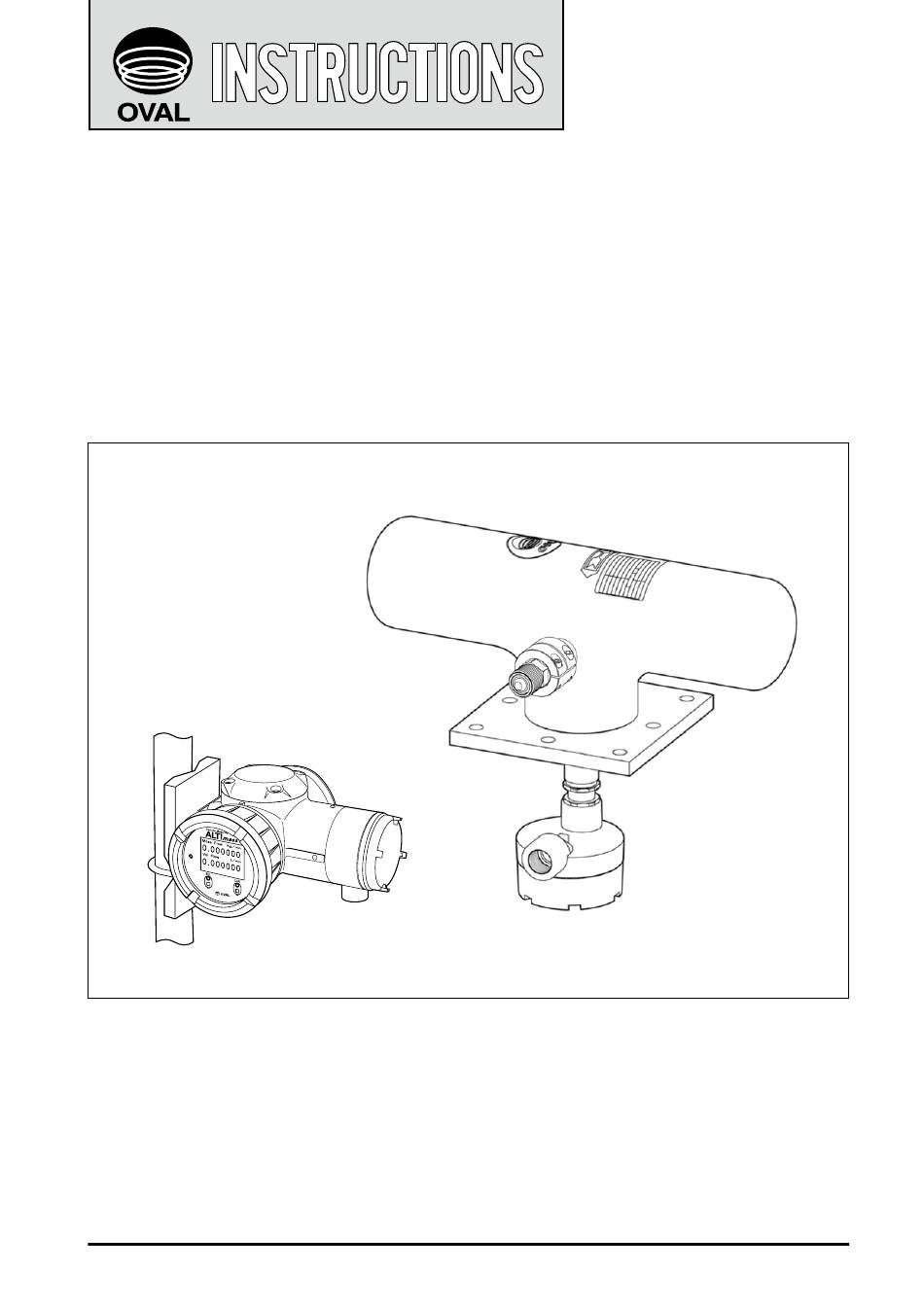

  • Page 1 MODEL : CA00 Transmitter MODEL : PA0K Every OVAL product is fabricated, tested, and inspected under stringent quality control before it leaves our factory. To derive maximum benefit from this product, we recommend you to be well familiar with the information and...
