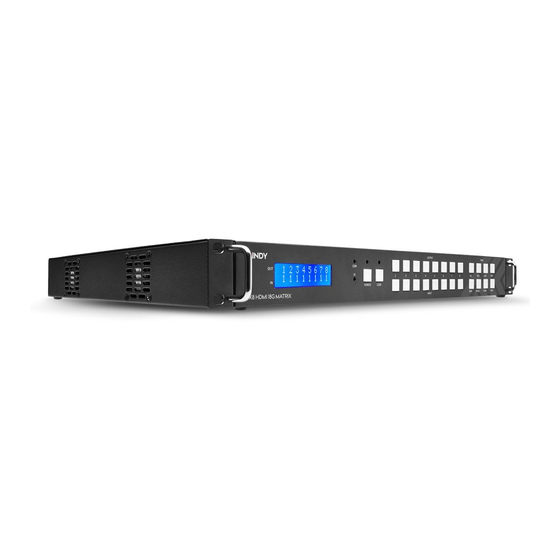

- Page 1 8x8 HDMI 18G Matrix with Video Wall Scaling User Manual Eng lis h No. 38260 lindy.com Tested to comply with FCC Standards For Home and Office Use! © LINDY Group - FIRST EDITION (November 2019)
- Page 3 Thank you for purchasing the 8x8 HDMI 18G Matrix with Video Wall Scaling. This product has been designed to provide trouble free, reliable operation. It benefits from both a LINDY 2-year warranty and free lifetime technical support. To ensure correct use, please read this manual carefully and retain it for future reference.
- Page 4 User Manual English Specification ▪ HDMI 2.0 18Gbps ▪ HDCP 2.2/1.4 ▪ HDMI Audio Pass-through, 2CH Analogue Audio Extraction ▪ IR Support: 20-60kHz ▪ Housing Material: Metal ▪ Operating Temperature: 0°C - 40°C (32°F - 104°F) ▪ Storage Temperature: -20°C - 70°C (-4°F - 158°F) ▪...
- Page 5 User Manual English Rear Panel LAN: Control the unit using TCP/IP Control. RS-232-1: Control the unit using RS-232 Control. RS-232-2: Reserved for future use IR: Control the unit with the included IR extension cable and IR remote Analogue Audio Input Ports 1-8: These correspond with the Input HDMI port of the same number. Embed analogue audio via a 3.5mm connection into HDMI.
- Page 6 User Manual English Control IR Extension & Remote Connect with the IR extension cable and ensure this is in clear line of sight of the IR Remote This can provide basic switching control over each source and display. RS-232 and LAN Control For RS232 Control, the baud rate is 9600 via the DBP Connector RS-232-1 Please see below for the pin layout of the DB9 Connector Index...
- Page 7 User Manual English PC Software Please run the latest version of the software from the Download section of your local Lindy website On entry a password is required: For Administrator access: 111111 For User access: 000000 Master Reset Password if passwords are lost: Lindy19...
- Page 8 User Manual English For direct connection, please follow the instructions below ▪ Connect the matrix and PC using Cat.x cable ▪ Please ensure the matrix and PC are in the same network segment (The default IP address of the matrix is 192.168.0.247, and the default network mask of the matrix is 255.255.255.0. ▪...
- Page 9 User Manual English Matrix Switch Switch UI: The user can select this to change the UI from the default Allset: This provides a shortcut to switch 1 input to all output displays Recall: Recall a specific matrix routing that has been previously saved SaveAs: Save current matrix routing.
- Page 10 User Manual English Signal Setting Audio Select Auto – If an HDMI input signal is provided, HDMI audio will be passthrough. If a DVI Input signal is provided, the matrix will rely on the analogue audio input connection for audio. External –...
- Page 11 User Manual English Advanced Switch This software allows for automatic switching of devices at time intervals. Select the Output port that requires control. Select CTRL and the desired ports to select multiple outputs. Select CTRL and then select the desired input ports. Select the →...
- Page 12 User Manual English Please ensure the desired output ports are ticked. To configure automatic switching Switch Frequency: The default is 2000milliseconds Send all outputs combined: All outputs will be un-ticked by default Un-ticked – Switch all ports one by one Ticked –...
- Page 13 User Manual English Video Wall Select and set the desired layout of a video wall. Creating a video wall Select one of the screens on the software and right click. This will open a menu. Input Select: Select the Input port to display on the video wall (1-8) Output Select: Sync the desired...
- Page 14 User Manual English Bezel Adjustment The user can configure the bezel from all sides of each display within a video wall. The maximum bezel adjustment is 100Pixels. Once set please click Set to confirm. Separate Video Wall layouts This matrix allows for two separate 2x2 video wall layouts.
- Page 15 User Manual English Multi-View Video Wall The user can change a single display to a different source within the video wall Save or Load Layout Once a layout is configured, pleas eclick Save Scene and enter the details. To load a scene select Load Scene and enter the desired details of the scene to be loaded.
- Page 16 User Manual English Troubleshooting If the matrix cannot be found via the Web-Gui or Lan, please follow the solutions below: The IP address of the matrix or PC may have been added automatically but is still connected via Cat.X cable or the matrix has been connected to a non-HDCP network switch. Please set up the IP address type of the device or PC under Static mode or connect to a network switch that supports HDCP.
- Page 17 CE/FCC Statement CE Certification LINDY declares that this equipment complies with the European CE requirements relating to EMC, LVD, ErP and RoHS. CE Konformitätserklärung LINDY erklärt, dass dieses Equipment den europäischen CE-Anforderungen in Bezug auf EMV, LVD, ErP und RoHS entspricht.
-
Page 18: Recycling Information
Geräte müssen den Sammel- und Rückgabesystemen zugeführt werden! Dort werden sie kostenlos entgegen genommen. Die Kosten für den weiteren Recyclingprozess übernehmen die Gerätehersteller. LINDY bietet deutschen Endverbrauchern ein kostenloses Rücknahmesystem an, beachten Sie bitte, dass Batterien und Akkus den Produkten vor der Rückgabe an das Rücknahmesystem entnommen werden müssen und über die Sammel- und Rückgabesysteme für Batterien separat entsorgt werden müssen.
