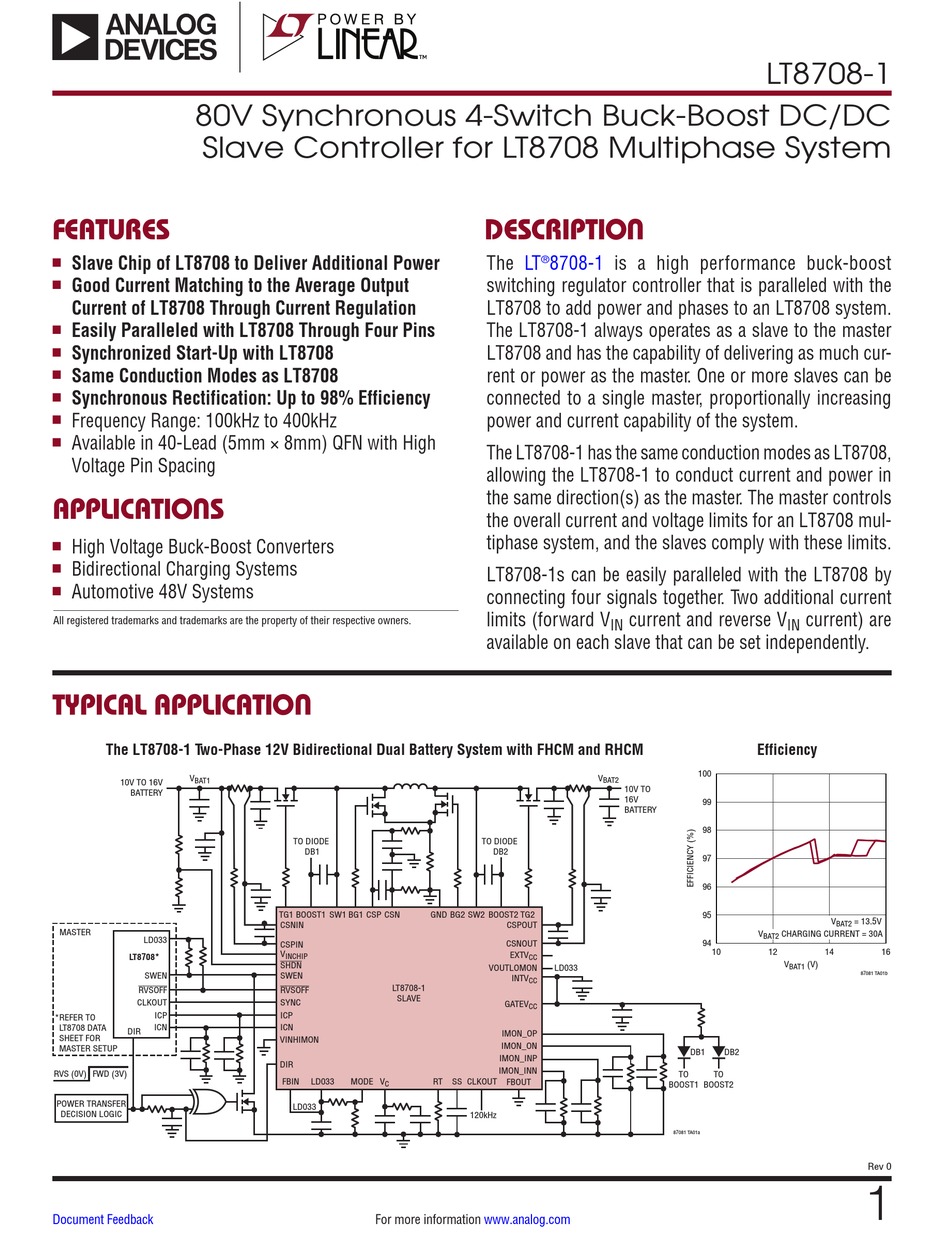

80V Synchronous 4-Switch Buck-Boost DC/DC
Slave Controller for LT8708 Multiphase System
FEATURES
Slave Chip of LT8708 to Deliver Additional Power
n
Good Current Matching to the Average Output
n
Current of LT8708 Through Current Regulation
Easily Paralleled with LT8708 Through Four Pins
n
Synchronized Start-Up with LT8708
n
Same Conduction Modes as LT8708
n
Synchronous Rectification: Up to 98% Efficiency
n
Frequency Range: 100kHz to 400kHz
n
Available in 40-Lead (5mm × 8mm) QFN with High
n
Voltage Pin Spacing
APPLICATIONS
High Voltage Buck-Boost Converters
n
Bidirectional Charging Systems
n
Automotive 48V Systems
n
All registered trademarks and trademarks are the property of their respective owners.
TYPICAL APPLICATION
The LT8708-1 Two-Phase 12V Bidirectional Dual Battery System with FHCM and RHCM
V
BAT1
10V TO 16V
BATTERY
MASTER
LD033
LT8708*
SWEN
RVSOFF
CLKOUT
ICP
*REFER TO
ICN
LT8708 DATA
DIR
SHEET FOR
MASTER SETUP
RVS (0V)
FWD (3V)
POWER TRANSFER
DECISION LOGIC
Document Feedback
TO DIODE
DB1
TG1 BOOST1 SW1 BG1 CSP CSN
GND BG2 SW2 BOOST2 TG2
CSNIN
CSPIN
V
INCHIP
SHDN
SWEN
LT8708-1
RVSOFF
SLAVE
SYNC
ICP
ICN
VINHIMON
DIR
FBIN
LD033
MODE
V
RT
SS
C
LD033
For more information
DESCRIPTION
The
LT
8708-1
is a high performance buck-boost
®
switching regulator controller that is paralleled with the
LT8708 to add power and phases to an LT8708 system.
The LT8708-1 always operates as a slave to the master
LT8708 and has the capability of delivering as much cur-
rent or power as the master. One or more slaves can be
connected to a single master, proportionally increasing
power and current capability of the system.
The LT8708-1 has the same conduction modes as LT8708,
allowing the LT8708-1 to conduct current and power in
the same direction(s) as the master. The master controls
the overall current and voltage limits for an LT8708 mul-
tiphase system, and the slaves comply with these limits.
LT8708-1s can be easily paralleled with the LT8708 by
connecting four signals together. Two additional current
limits (forward V
current and reverse V
IN
available on each slave that can be set independently.
V
BAT2
10V TO
16V
BATTERY
TO DIODE
DB2
CSPOUT
CSNOUT
EXTV
CC
VOUTLOMON
LD033
INTV
CC
GATEV
CC
IMON_OP
IMON_ON
IMON_INP
IMON_INN
CLKOUT
FBOUT
120kHz
www.analog.com
LT8708-1
current) are
IN
Efficiency
Efficiency
100
99
98
97
96
95
V
BAT2
V
CHARGING CURRENT = 30A
BAT2
94
10
12
14
V
(V)
BAT1
DB1
DB2
TO
TO
BOOST1
BOOST2
87081 TA01a
= 13.5V
16
87081 TA01b
Rev 0
1
