Linear Technology Analog Devices LT8607B Datasheet

42v, 750ma synchronous step-down regulator with 2.5ua quiescent current

Advertisement

Quick Links

FEATURES
Wide Input Voltage Range: 3.0V to 42V
Ultralow Quiescent Current Burst Mode
<3µA I
Regulating 12V
n
Q
Output Ripple <10mV
n
High Efficiency 2MHz Synchronous Operation:
>93% Efficiency at 0.5A, 12V
n
750mA Maximum Continuous Output
Fast Minimum Switch-On Time: 35ns
Adjustable and Synchronizable: 200kHz to 2.2MHz
Spread Spectrum Frequency Modulation for Low EMI
Allows Use of Small Inductors
Low Dropout
Peak Current Mode Operation
Accurate 1V Enable Pin Threshold
Internal Compensation
Output Soft-Start and Tracking
Small Thermally Enhanced 10-Lead MSOP Package or
8-Lead 2mm × 2mm DFN Package
APPLICATIONS
General Purpose Step-Down Converter
Low EMI Step Down

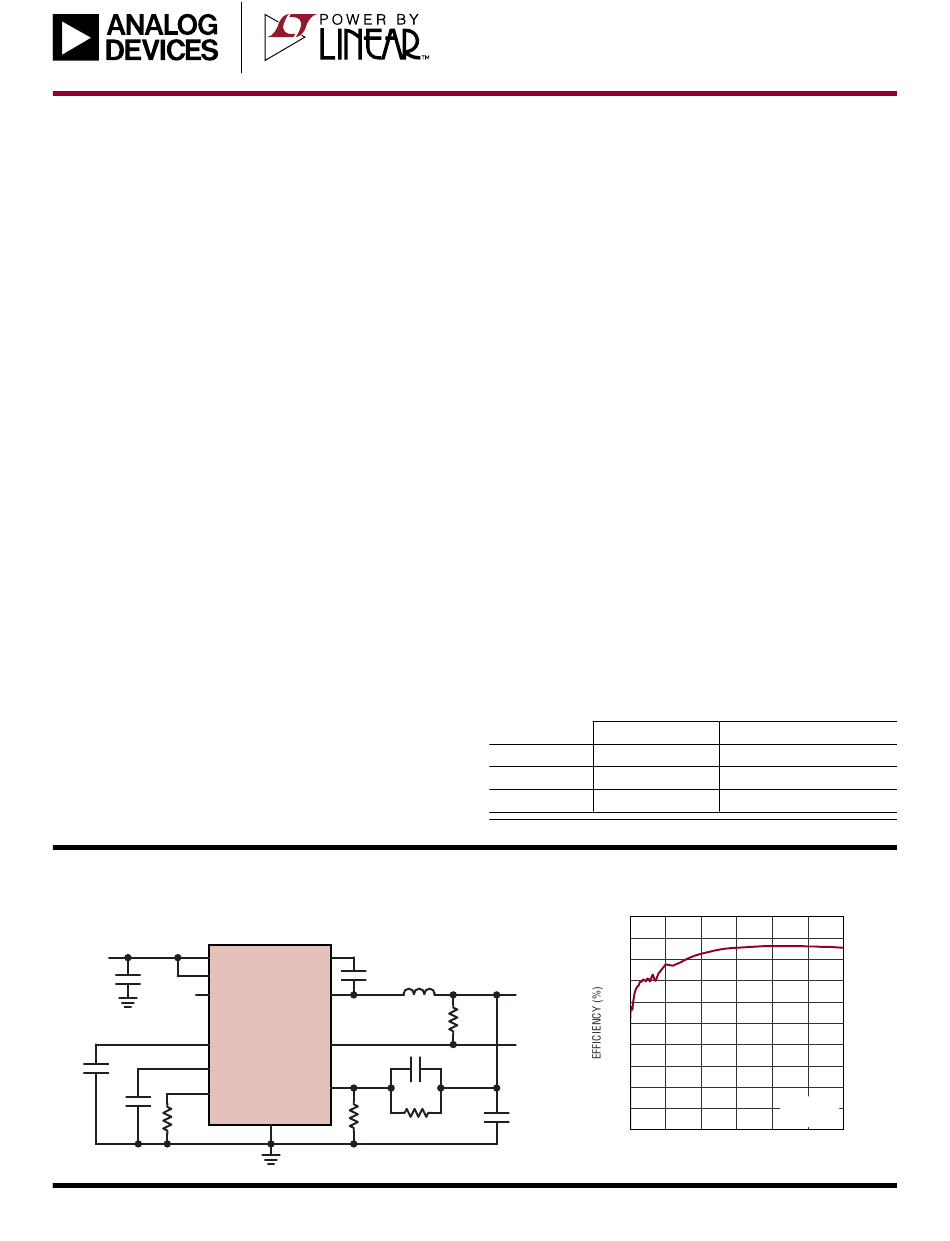

TYPICAL APPLICATION
V
IN
V
IN
5.7V to 42V
EN/UV
4.7µF
SYNC
INTV
1µF
TR/SS
RT
10nF
18.2k
f
= 2MHz
SW
Document Feedback
Operation:
®
to 3.3V
IN
OUT
P-P
to 5V
IN
OUT
5V, 2MHz Step-Down
BST
0.1µF
SW
4.7µH
LT8607
PG
CC
FB
10pF
GND
187k
1M
For more information
42V, 750mA Synchronous
Step-Down Regulator with
2.5µA Quiescent Current
DESCRIPTION
The
LT
8607
is a compact, high efficiency, high speed syn-
®
chronous monolithic step-down switching regulator that
consumes only 1.7µA of non-switching quiescent current.
The LT8607 can deliver 750mA of continuous current.
Low ripple Burst Mode operation enables high efficiency
down to very low output currents while keeping the output
ripple below 10mV
P-P
current mode topology allows the use of small inductors
and results in fast transient response and good loop sta-
bility. The EN/UV pin has an accurate 1V threshold and
can be used to program V
shut down the LT8607 reducing the input supply current
to 1µA. The PG pin signals when V
the programmed output voltage as well as fault conditions.
The MSOP package includes a SYNC pin to synchronize
to an external clock, or to select Burst Mode operation
or pulse-skipping with or without spread spectrum; the
TR/SS pin programs soft-start or tracking. The DFN pack-
age omits these pins and can be purchased in pulse-skip-
ping or Burst Mode operation.
PACKAGE
LT8607MSE
LT8607DFN
LT8607BDFN
All registered trademarks and trademarks are the property of their respective owners.
100
95
90
85
V
OUT
5V
80
750mA
100k
75
POWER
70
GOOD
65
60
22µF
55
X7R
1206
50
0
8607 TA01a
www.analog.com
LT8607/LT8607B
. Internal compensation with peak
undervoltage lockout or to
IN
is within ±8.5% of
OUT
SYNC FUNCTIONALITY
MSE
Programmable
DFN
Burst Mode Operation
DFN
Pulse-Skipping Mode
12V
to 5V
Efficiency
IN
OUT
L = 4.7µH
f
= 2MHz
SW
125
250
375
500
625
I
(mA)
OUT
8607 TA01b
750
Rev. C
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Analog Devices LT8607B and is the answer not in the manual?

Questions and answers

Summary of Contents for Linear Technology Analog Devices LT8607B

  • Page 1 LT8607/LT8607B 42V, 750mA Synchronous Step-Down Regulator with 2.5µA Quiescent Current FEATURES DESCRIPTION Wide Input Voltage Range: 3.0V to 42V 8607 is a compact, high efficiency, high speed syn- ® Ultralow Quiescent Current Burst Mode Operation: chronous monolithic step-down switching regulator that ®...
  • Page 2: Absolute Maximum Ratings

    LT8607/LT8607B ABSOLUTE MAXIMUM RATINGS (Note 1) , EN/UV, PG ............42V Operating Junction Temperature Range (Note 2) FB, TR/SS ..............4V LT8607E ..........–40°C to 125°C SYNC Voltage .............6V LT8607I ..........–40°C to 125°C LT8607H ..........–40°C to 150°C Storage Temperature Range ....–65°C to 150°C PIN CONFIGURATION TOP VIEW TOP VIEW...
  • Page 3 LT8607/LT8607B ELECTRICAL CHARACTERISTICS denotes the specifications which apply over the full operating temperature range, otherwise specifications are at T = 25°C. PARAMETER CONDITIONS UNITS Feedback Reference Voltage MSOP Package = 6V, I = 100mA 0.774 0.778 0.782 LOAD 0.762 0.778 0.798 = 6V, I = 100mA...
  • Page 4: Typical Performance Characteristics

    LT8607/LT8607B TYPICAL PERFORMANCE CHARACTERISTICS = 25°C, unless otherwise noted. Efficiency (5V Output, Burst Mode Efficiency (5V Output, Burst Mode Efficiency (3.3V Output, Operation) Operation) Burst Mode Operation) = 12V = 12V = 12V = 24V = 24V = 24V SYNC = 0V OR LT8607 DFN SYNC = 0V OR LT8607 DFN SYNC = 0V OR LT8607 DFN L = 4.7µH...
  • Page 5 LT8607/LT8607B TYPICAL PERFORMANCE CHARACTERISTICS = 25°C, unless otherwise noted. Top FET Current Limit Top FET Current Limit vs Duty Cycle vs Temperature Switch Drop vs Temperature 1.70 1.70 SWITCH CURRENT = 750mA DUTY CYCLE = 0 1.60 1.65 1.50 1.60 1.40 1.55 1.30...
  • Page 6 LT8607/LT8607B TYPICAL PERFORMANCE CHARACTERISTICS = 25°C, unless otherwise noted. Minimum Load to Full Frequency (SYNC Float to 1.9V) Soft-Start Tracking (MSOP Package) or LT8607B DFN Frequency Foldback (MSOP Package) 2500 SYNC = 0V OR LT8607 DFN L = 2.2µH 2250 = 12V = 3.3V 2000...
  • Page 7 LT8607/LT8607B TYPICAL PERFORMANCE CHARACTERISTICS = 25°C, unless otherwise noted. Switching Waveforms Switching Waveforms Switching Waveforms (Burst Mode) LOAD LOAD 20mV/DIV 200mA/DIV 200mA/DIV LOAD 200mA/DIV 10V/DIV 5V/DIV 10V/DIV 200ns/DIV 200ns/DIV 2µs/DIV TO 5V AT 500mA TO 5V AT 500mA TO 5V AT 7.5mA 8607 G26 8607 G27...
  • Page 8: Pin Functions

    LT8607/LT8607B PIN FUNCTIONS BST: This pin is used to provide a drive voltage, higher TR/SS (MSOP Only): Output Tracking and Soft-Start Pin. than the input voltage, to the topside power switch. Place This pin allows user control of output voltage ramp rate a 0.1µF boost capacitor as close as possible to the IC.
  • Page 9: Block Diagram

    LT8607/LT8607B BLOCK DIAGRAM – INTERNAL 0.778V REF 3.5V EN/UV – SHDN SLOPE COMP INTV ERROR OSCILLATOR ±8.5% 200kHz TO 2.2MHz – SWITCH BURST LOGIC DETECT SHDN ANTI- SHOOT INTV UVLO THROUGH UVLO SHDN 2µA UVLO TR/SS (MSOP ONLY) SYNC (MSOP ONLY) 8607 BD OPERATION The LT8607 is a monolithic constant frequency current...
  • Page 10: Applications Information

    LT8607/LT8607B APPLICATIONS INFORMATION Achieving Ultralow Quiescent Current programmed for Burst Mode operation and cannot enter pulse-skipping mode. The LT8607B DFN is programmed To enhance efficiency at light loads, the LT8607 enters for pulse-skipping mode and cannot enter Burst Mode into low ripple Burst Mode operation, which keeps the operation.
  • Page 11 LT8607/LT8607B APPLICATIONS INFORMATION FB Resistor Network Operating Frequency Selection and Trade-Offs The output voltage is programmed with a resistor divider Selection of the operating frequency is a trade-off between between the output and the FB pin. Choose the resistor efficiency, component size, and input voltage range. The values according to: advantage of high frequency operation is that smaller inductor and capacitor values may be used.
  • Page 12 LT8607/LT8607B APPLICATIONS INFORMATION Inductor Selection and Maximum Output Current The peak-to-peak ripple current in the inductor can be calculated as follows: The LT8607 is designed to minimize solution size by allowing the inductor to be chosen based on the output ⎛...
  • Page 13 LT8607/LT8607B APPLICATIONS INFORMATION significant inductance due to long wires or cables, addi- cause loop instability. See the Typical Applications in this tional bulk capacitance may be necessary. This can be data sheet for suggested capacitor values. provided with a low performance electrolytic capacitor. When choosing a capacitor, special attention should be Step-down regulators draw current from the input sup- given to the data sheet to calculate the effective capaci-...
  • Page 14 LT8607/LT8607B APPLICATIONS INFORMATION supply is current limited, or has a relatively high source can be externally driven by another voltage source. From resistance. A switching regulator draws constant power 0V to 0.778V, the TR/SS voltage will override the internal from the source, so source current increases as source 0.778V reference input to the error amplifier, thus regulat- voltage drops.
  • Page 15 LT8607/LT8607B APPLICATIONS INFORMATION 500kHz. The slope compensation is set by the R value, bottom switch current is monitored such that if inductor while the minimum slope compensation required to avoid current is beyond safe levels switching of the top switch subharmonic oscillations is established by the inductor will be delayed until such time as the inductor current size, input voltage, and output voltage.
  • Page 16 LT8607/LT8607B APPLICATIONS INFORMATION PCB Layout the ground plane as much as possible, and add thermal vias under and near the LT8607 to additional ground For proper operation and minimum EMI, care must be planes within the circuit board and on the bottom side. taken during printed circuit board layout.
  • Page 17: Typical Applications

    LT8607/LT8607B TYPICAL APPLICATIONS 5V, 2MHz Step-Down 5.6V to 42V EN/UV 4.7µF 0.1µF SYNC 1206 750mA 4.7µH LT8607 100k POWER INTV GOOD TR/SS 1µF 10pF 10nF 22µF 187k 18.2k 1206 = 2MHz L1: XFL4020-472ME 8607 TA02 3.3V, 2MHz Step-Down 3.9V to 42V EN/UV 4.7µF 0.1µF...
  • Page 18 LT8607/LT8607B TYPICAL APPLICATIONS 1.8V, 2MHz Step-Down 3.2V to 20V (42V TRANSIENT) EN/UV 0.1µF 4.7µF SYNC 1.8V 750mA 2.2µH LT8607 100k POWER INTV GOOD TR/SS 1µF 10pF 10nF 22µF 768k 18.2k 1206 = 2MHz L1: XFL3012-222ME 8607 TA05 Ultralow EMI, 5V, 1.5A Step-Down BEAD 4.7µH 5.8V to 40V...
  • Page 19: Package Description

    LT8607/LT8607B PACKAGE DESCRIPTION MSE Package 10-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1664 Rev I) BOTTOM VIEW OF EXPOSED PAD OPTION 1.88 1.88 ±0.102 (.074) 0.889 ±0.127 0.29 (.074 ±.004) (.035 ±.005) 1.68 (.066) 0.05 REF 5.10 1.68 ±0.102 3.20 –...
  • Page 20 LT8607/LT8607B PACKAGE DESCRIPTION DC8 Package 8-Lead Plastic DFN (2mm × 2mm) (Reference LTC DWG # 05-08-1939 Rev Ø) Exposed Pad Variation AA 1.8 REF 0.23 0.90 0.85 ±0.05 2.60 ±0.05 PACKAGE OUTLINE 0.335 REF 0.25 ±0.05 0.45 BSC RECOMMENDED SOLDER PAD PITCH AND DIMENSIONS 2.00 SQ ±0.05 APPLY SOLDER MASK TO AREAS THAT ARE NOT SOLDERED 1.8 REF...
  • Page 21: Revision History

    LT8607/LT8607B REVISION HISTORY DATE DESCRIPTION PAGE NUMBER 06/17 Added DFN package option. 1, 2 Clarified electrical parameters for DFN package option. 2, 3 Clarified graphs for MSOP package option. Clarified Pins Functions for DFN package option. Clarified Operation to include DFN option. Clarified Applications last paragraph and Figure 2 to include DFN option.
  • Page 22: Typical Application

    LT8607/LT8607B TYPICAL APPLICATION 5V and 3.3V with Ratio Tracking 5.7V to 42V EN/UV 0.1µF 4.7µF 5.0V SYNC 750mA LT8607 4.7µH 100k POWER (MSOP) INTV GOOD TR/SS 1µF 10pF 10nF 22µF 187k 18.2k = 2MHz L1: XFL4020-472ME EN/UV 0.1µF 4.7µF 3.3V SYNC 750mA LT8607...
