FLIGHT DESIGN CTLS Series Maintenance And Inspection Procedures Manual page 144

Maintenance and Inspection Procedures Manual
Type:
a. Unscrew the bolt by a cross-screwdriver or wrench with header 7 and release the clamp
С9997723 Clamp 40-60 that secures the hose С9993188 (AERODUCT tube CEET-7 1-

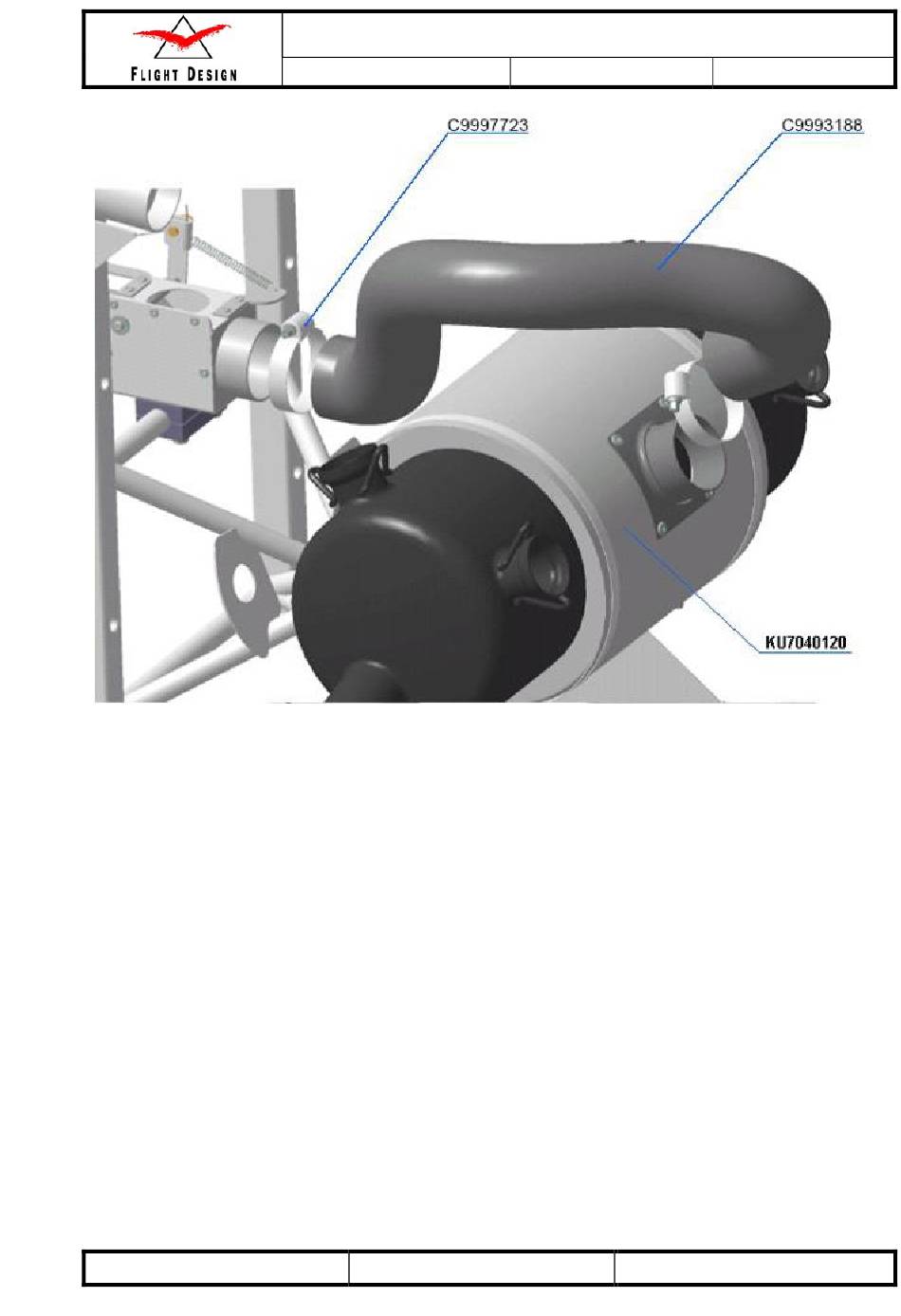

3/4 ID) near the heating Cabin heater choke КА7040200. Fig. 9.
b. Unscrew the bolt С9996053 (Bolt DIN 912 M6x10-8.8) by a hex-nut wrench 5 and
remove the shield КА5030001 (Protection plate, left).
c. Unscrew the bolt С9996053 (Bolt DIN 912 M6x10-8.8) by a hex-nut wrench 5 and
remove the shield КА5030002 (Protection plate, right).
