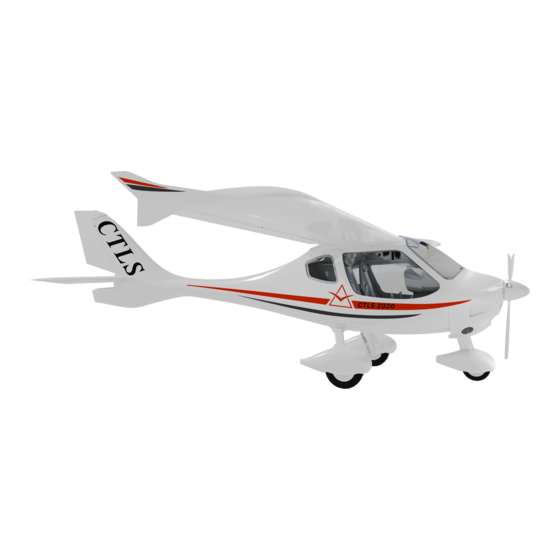

FLIGHT DESIGN CTLS LSA Series Operating Instructions Manual
  1. Manuals
  2. Brands
  3. FLIGHT DESIGN Manuals
  4. Aircrafts
  5. CTLS LSA Series
  6. Operating instructions manual

FLIGHT DESIGN CTLS LSA Series Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CTLS
LSA
SERIAL NUMBER:_______________
Aircraft Operating Instructions (AOI)
THIS DOCUMENT AND THE TECHNICAL DATA HEREON DISCLOSED ARE PROPRIETARY TO FLIGHT DESIGN AND SHALL NOT
BE USED, RELEASED, OR DISCLOSED IN WHOLE OR IN PART WITHOUT EXPRESS WRITTEN PERMISSION FROM FLIGHT
DESIGN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CTLS LSA Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FLIGHT DESIGN CTLS LSA Series

Summary of Contents for FLIGHT DESIGN CTLS LSA Series

  • Page 1 CTLS SERIAL NUMBER:_______________ Aircraft Operating Instructions (AOI) THIS DOCUMENT AND THE TECHNICAL DATA HEREON DISCLOSED ARE PROPRIETARY TO FLIGHT DESIGN AND SHALL NOT BE USED, RELEASED, OR DISCLOSED IN WHOLE OR IN PART WITHOUT EXPRESS WRITTEN PERMISSION FROM FLIGHT DESIGN...
  • Page 2 Aircraft Operating Instructions (AOI) CTLS Page: ii Type: Series: REVISION STATUS Rev Pages Date Chapter completed Jan 08, 2008 OR / TP Mar 03, 2008 7.4.6 Carbon monoxide detector added Vasyl Sys Apr 01, 2008 System of pages numbering changed. Formatting (page breaks) partially changed “All avionics and instruments recommendations in this document is for reference only.”...
  • Page 3 Aircraft Operating Instructions (AOI) CTLS Page: iii Type: Series: REVISION STATUS Rev Pages Date Chapter Completed 4-15 Flap’s position -12° deleted 4-16 Flap’s position -12° deleted 7-16 Flap’s position -12° deleted 7-26 Flap’s position -12° deleted 7-27 Flap’s position -12° deleted Flap’s position -12°...
  • Page 4 Aircraft Operating Instructions (AOI) CTLS Page: iv Type: Series: LIST OF EFFECTIVE PAGES CHAPTER CHAPTER CHAPTER CHAPTER PAGES PAGES PAGES PAGES (cont.) 6-10 (cont.) 4-10 4-11 4-12 4-13 4-14 4-15 4-16 10-1 4-17 11-1 11-2 7-10 11-3 7-11 7-12 7-13 7-14 7-15 7-16...

  • Page 5: Table Of Contents

    Aircraft Operating Instructions (AOI) CTLS Page: v Type: Series: TABLE OF CONTENTS GENERAL ..............................1-1 1.1........................... 1-1 NTRODUCTION 1.2. :..........................1-2 ANUFACTURER 1.3........................1-2 N THE CONTACT 1.4................... 1-3 ONTINUED IRWORTHINESS NSTRUCTIONS 1.5. :...................... 1-5 HREE VIEW MAIN DIMENSIONS 1.6.
  • Page 6 Aircraft Operating Instructions (AOI) CTLS Page: vi Type: Series: 5.4................5-6 NGINE PERFORMANCE SUBJECT TO ALTITUDE 5.5................... 5-7 ALCULATING THE TAKE OFF DISTANCE 5.6....................5-10 ALCULATING CLIMB PERFORMANCE 5.7......................5-11 LIDING CHARACTERISTICS WEIGHT AND BALANCE, EQUIPMENT.................... 6-1 6.1.

  • Page 7: General

    Aircraft Operating Instructions (AOI) CTLS Page: 1-1 Type: Series: 1. GENERAL 1.1. Introduction Every pilot must familiarize him/herself with the specific characteristics of each Light Sport aircraft. This Aircraft Operating Handbook (AOI-POH) must be studied in detail before the first flight is undertaken with the aircraft. The same applies to the operating handbooks and manuals of the ballistic recovery system, the engine and all other equipment installed in the aircraft, such as the Dynon EFIS / EMS, etc.

  • Page 8: Manufacturer

    Aircraft Operating Instructions (AOI) CTLS Page: 1-2 Type: Series: 1.2. Manufacturer: Flight Design GmbH Sielminger Str. 51 70771 L.-Echterdingen Germany 1.3. In the USA contact Flight Design USA P.O. Box 325 South Woodstock, CT. 06267 860-963-7272 airworthiness@flightdesignUSA.com AU 010 11000 Revision No.

  • Page 9: Continued Airworthiness Instructions

    Owner/Operator supplemental notification bulletins. At the time of delivery, the Owner/Operator will provide the contact information to Flight Design USA or its representative. Contact information may be updated at any time by: Writing to: Flight Design USA P.O. Box 325, South Woodstock, CT 06267 AU 010 11000 Revision No.
  • Page 10 Aircraft Operating Instructions (AOI) CTLS Page: 1-4 Type: Series: Or email: airworthiness@flightdesignusa.com C. Notify the Manufacturer of any Safety of Flight issue or any significant Service Difficulty issue upon discovery. Safety of Flight report forms and Service Difficulty report forms can be found in the aircraft manuals and on the Operational Safety Monitoring page of the Flightdesignusa.com website D.

  • Page 11: Three View, Main Dimensions

    Aircraft Operating Instructions (AOI) CTLS Page: 1-5 Type: Series: 1.5. Three view, main dimensions: Main Dimensions: Wing span 8.60 m (28 ft 2 in.) Length 6.61 m (21 ft 8 in.) Wing area 9.98 sq. m (107.4 sq-ft) AU 010 11000 Revision No.

  • Page 12: Engine

    Aircraft Operating Instructions (AOI) CTLS Page: 1-6 Type: Series: 1.6. Engine The CTLS is only available with the Rotax 912 ULS with 100 rated BHP. More detailed information on the engine is available from Rotax for your specific engine serial number. Engine type: horizontally opposed, four cylinder, four stroke engine...

  • Page 13: Minimum Equipment

    Aircraft Operating Instructions (AOI) CTLS Page: 1-7 Type: Series: 1.8. Minimum equipment Airspeed indicator up to at least 350 km/h (200 knots) Altimeter with Barometric window Safety harness four-point, one for each seat Magnetic compass with calibration card Engine instruments CHT, Oil Temp, Oil press, RPM.

  • Page 14: Limitations

    Aircraft Operating Instructions (AOI) CTLS Page: 2-1 Type: Series: 2. LIMITATIONS 2.1. Airspeed limitations Stall speed flaps -6° 81 km/h 44 kts CAS** flaps 0° 75 km/h 42 kts CAS flaps 35° v 65 km/h 39 kts CAS Maneuvering speed 184 km/h 98 kts CAS Maximum flap extended speed flaps...

  • Page 15: Flight Load Factor Limits

    Aircraft Operating Instructions (AOI) CTLS Page: 2-2 Type: Series: 2.2. Flight load factor limits Maximum flight load factor up to VA + 4g/ -2g up to VNE + 4g/ -1.5g Warning: Up to v = 184 km/h (99 kts) (maneuvering speed) full control movements may be made.

  • Page 16: Power Plant Limitations

    Aircraft Operating Instructions (AOI) CTLS Page: 2-3 Type: Series: 2.5. Power plant limitations Maximum take-off power 73.5 kW (100 HP) at 5800 rpm (max 5 min) Maximum continuous power 69 kW (95 HP) at 5500 rpm Minimum take-off engine speed (fixed pitch propeller) 4800 Maximum continuous engine speed 5500...

  • Page 17: Other Limitations

    Aircraft Operating Instructions (AOI) CTLS Page: 2-4 Type: Series: Warning: When using AVGAS particular attention must be paid to type of oil used. For details refer to the valid version of the ROTAX engine manual. Warning: The engine data given here is not complete. For complete information refer to the current version of the relevant engine manual from the Rotax company.

  • Page 18: Emergency Procedures

    Aircraft Operating Instructions (AOI) CTLS Page: 3-1 Type: Series: 3. EMERGENCY PROCEDURES 3.1. Emergency procedures checklists Emergency procedures are initially presented in the form of checklists. Amplified emergency procedures follow later in the chapter. Even experienced pilots are strongly recommended to work with the checklists in the cockpit.
  • Page 19 Aircraft Operating Instructions (AOI) CTLS Page: 3-2 Type: Series: Engine fire Failure of flap control Fuel shutoff valve Alternator Throttle full Master switch Ignition Master switch after 3 seconds to on Ignition key remove Alternator Flight attitude slip away from flames If everything okay end of procedure Landing...

  • Page 20: Stalls

    Aircraft Operating Instructions (AOI) CTLS Page: 3-3 Type: Series: 3.2. Stalls The stall characteristics in level flight are docile. Normal flight attitude can be recovered by pushing the stick forward, increasing speed and then smoothly pulling the aircraft up again. Maximum loss of altitude during stall recovery is 50m (165 ft).

  • Page 21: Emergency Landing

    Aircraft Operating Instructions (AOI) CTLS Page: 3-4 Type: Series: 3.4. Emergency landing An emergency landing may be necessary for several different reasons. In addition to the loss of lubricants or the failure of aircraft systems, ominous weather conditions may also lead to an emergency landing. In order to carry out an emergency landing, a suitable landing site must be found.

  • Page 22: After Overturn On Landing

    Aircraft Operating Instructions (AOI) CTLS Page: 3-5 Type: Series: 3.5. After overturn on landing Due to its design, the CTLS offers good occupant protection during an overturn. Should you find yourself in this situation, brace yourself with your legs against the windshield.

  • Page 23: Deploying The Ballistic Recovery System

    Aircraft Operating Instructions (AOI) CTLS Page: 3-6 Type: Series: 3.6. Deploying the ballistic recovery system Refer to the operating handbook published by the manufacturer of the recovery system for operating details. The recovery system can be deployed in relatively low altitudes.

  • Page 24: Engine Failure

    Aircraft Operating Instructions (AOI) CTLS Page: 3-7 Type: Series: 3.7. Engine failure Warning: Do not attempt to restart the engine at altitudes below 100 m (300 ft) Warning: Do not attempt to return to the airfield if engine failure occurs immediately after take-off below an altitude of 250 m (750 ft).

  • Page 25: Carburetor Or Engine Fire

    Aircraft Operating Instructions (AOI) CTLS Page: 3-8 Type: Series: 3.8. Carburetor or engine fire If a fire breaks out in the engine compartment, the fuel shutoff valve must be turned off immediately. Throttle to full open to allow the engine to use up the fuel in the system quickly.

  • Page 26: Loss Of Coolant

    Aircraft Operating Instructions (AOI) CTLS Page: 3-9 Type: Series: 3.9. Loss of coolant A loss of engine coolant does not mean that a forced landing must be carried out immediately. The coolant is used solely to cool the cylinder heads. The cylinders are air-cooled. As coolant temperature is only indirectly indicated via the cylinder head temperature of the hottest cylinder, engine temperature monitoring is still possible even after a total loss of coolant.

  • Page 27: Failure Of Flap Control

    Aircraft Operating Instructions (AOI) CTLS Page: 3-10 Type: Series: 3.11. Failure of flap control The flap motor is activated by a controller which allows the preselection of the desired flap position. The flap position is indicated digitally. In principle, the CTLS can be landed irrespective of flap position. However, with negative flaps, the stall speed is higher and the resulting landing distance longer.

  • Page 28: Dynon Ems Failure (If Installed)

    Aircraft Operating Instructions (AOI) CTLS Page: 3-11 Type: Series: 3.12. Dynon EMS failure (if installed) Dynon EMS failure (if installed) does not automatically adversely affect flight safety. However, should the Dynon EMS fail completely, engine parameters can no longer be monitored by the pilot. In order to reduce the risk of damage to a minimum, the flight may be continued but engine speed should be kept moderate (185 km/h –...

  • Page 29: Normal Procedures

    Aircraft Operating Instructions (AOI) CTLS Page: 4-1 Type: Series: 4. NORMAL PROCEDURES 4.1. Normal procedures checklists Normal procedures are initially presented in the form of checklists. Amplified normal procedures follow later in the chapter. All pilots are strongly recommended to work with the checklists in the cockpit. It is the only way to ensure that in the distractions that may arise during flight important points are not overlooked.
  • Page 30 Aircraft Operating Instructions (AOI) CTLS Page: 4-2 Type: Series: PREFLIGHT INSPECTION PREFLIGHT INSPECTION A. Cabin B. Left side of aircraft 1 Aircraft documents on board 13 Main landing gear, tire 2 Control surfaces free and correct Landing gear fairing check 3 Main pins inserted, caps in place 14 Baggage compartment...
  • Page 31 Aircraft Operating Instructions (AOI) CTLS Page: 4-3 Type: Series: STARTING THE ENGINE BEFORE TAKE-OFF Parking brake Preflight inspection complete Safety harnesses lap tight, shoulders snug Parking brake Doors shut Carburetor heat Control surfaces free Circuit breakers all in Altimeter set to field elevation Avionics Transponder on, standby...
  • Page 32 Aircraft Operating Instructions (AOI) CTLS Page: 4-4 Type: Series: NORMAL LANDING SHUTTING DOWN THE ENGINE Approach airspeed 100 km/h (54 kts) Parking brake Flaps in finals 15° or 30° as required Avionics Airspeed on final 100 km/h (54 kts) Electrical equipment Flare smoothly, nose not too Alternator...

  • Page 33: Preflight Inspection

    Aircraft Operating Instructions (AOI) CTLS Page: 4-5 Type: Series: 4.2. Preflight inspection Even if the CTLS was operated within the last 24 hours, it is essential that the aircraft be thoroughly inspected before the first flight of each day. This also means removing the engine cowling.

  • Page 34: Passenger Briefing

    Aircraft Operating Instructions (AOI) CTLS Page: 4-6 Type: Series: they must be secured so that they cannot shift even if the aircraft experiences strong vertical gusts and accelerations. 4.3. Passenger briefing Before take-off, passengers should be briefed on the emergency procedures. This ensures that in an emergency passengers will act properly and not become a further problem for the pilot.

  • Page 35: Starting The Engine

    Aircraft Operating Instructions (AOI) CTLS Page: 4-7 Type: Series: 4.4. Starting the engine The fuel shutoff valve is positioned so that it impedes the turning of the ignition key so that it is virtually impossible to forget it completely. However, before starting the engine one should make sure that the valve is completely open as only then is the supply of sufficient fuel to the engine guaranteed.

  • Page 36: Before Take-Off

    Aircraft Operating Instructions (AOI) CTLS Page: 4-8 Type: Series: For more details regarding the Autopilot operation please take the time to look at the Autopilot manual. Warning: Do not mistaken the autopilot button on the control stick with the Radio Transmit button.
  • Page 37 Aircraft Operating Instructions (AOI) CTLS Page: 4-9 Type: Series: AU 010 11000 Revision No. 6 Date: 05 Feb 2009...
  • Page 38 Aircraft Operating Instructions (AOI) CTLS Page: 4-10 Type: Series: AU 010 11000 Revision No. 6 Date: 05 Feb 2009...

  • Page 39: Take-Off And Climb

    Aircraft Operating Instructions (AOI) CTLS Page: 4-11 Type: Series: 4.8. Take-off and climb The airfoil of the CTLS offers good climb characteristics, even in the cruise-optimized flap position. Normally on short runways, the flaps are set to 15° for take-off. On hard surface runways, however, take-off is more efficient with the flaps set to 0°.
  • Page 40 Aircraft Operating Instructions (AOI) CTLS Page: 4-12 Type: Series: should be brought to mind when taking off from a short runway with obstacles. Wing flap settings may be adjusted once a safe altitude of 50 m (150 ft) has been reached.

  • Page 41: Cruise

    Aircraft Operating Instructions (AOI) CTLS Page: 4-13 Type: Series: 4.9. Cruise Normal cruise is performed with the flaps set at -6°. The airfoil offers the lowest drag in this setting and fuselage airflow is the most favorable. This is immediately apparent when the flaps are adjusted to this setting - the aircraft accelerates markedly.

  • Page 42: Turns

    Aircraft Operating Instructions (AOI) CTLS Page: 4-14 Type: Series: Warning: The tanks in the CTLS have return flow flapper valves on the fuel tank anti-sloshing rib (refer to Chapter 7 Systems description). They prevent fuel from quickly flowing into the outer tank area during side slipping where it could not be fed into the engine.

  • Page 43: Stall

    Aircraft Operating Instructions (AOI) CTLS Page: 4-15 Type: Series: 4.11. Stall Stalling speed for the CTLS with a weight of 600 kg (1320 lbs) is 72 km/h (39 kcas) with the flaps set at 35°, 77 km/h (42 kcas) with the flaps set at 0° and 81 km/h (44 kcas) with flaps set at -6°.
  • Page 44 Aircraft Operating Instructions (AOI) CTLS Page: 4-16 Type: Series: example, hangars are often found at right angles to the touch-down point, causing dangerous leeward turbulence which cannot be avoided. Warning: The aircraft can be landed with ease and safely with flaps set at 15°. A landing with flaps set at 0°...

  • Page 45: Shutting Down The Engine

    Aircraft Operating Instructions (AOI) CTLS Page: 4-17 Type: Series: 4.13. Shutting down the engine Under normal conditions, the engine cools sufficiently during descent and taxiing that it may be shut down by switching off the ignition. All electrical equipment along with the alternator should be switched off before the engine is shut down in order to protect the equipment from damage caused by a voltage spike.

  • Page 46: Performance

    Aircraft Operating Instructions (AOI) CTLS Page: 5-1 Type: Series: 5. PERFORMANCE Performance data is based on an aircraft in good condition and correct settings. Even the smallest adjustments to the controls or the omission of a small piece of fairing can adversely affect aircraft performance.

  • Page 47: Flight Altitude And Density Altitude

    Aircraft Operating Instructions (AOI) CTLS Page: 5-2 Type: Series: 5.2. Flight altitude and density altitude In order to determine exactly the aircraft performance available for a particular flight, the density altitude must be calculated. The CTLS is equipped with a carbureted engine, the performance of which varies according to ambient temperature and pressure.
  • Page 48 Aircraft Operating Instructions (AOI) CTLS Page: 5-3 Type: Series: An example is given in this diagram. Outside air temperature is -10°C (14° F.) and the altimeter shows a (pressure) altitude of 8000ft. Warning: pressure altitude can be obtained with the reference pressure of the altimeter set to standard atmosphere = 1013.25 hPa (=29.92 in Hg) only.

  • Page 49: Significance Of The Wind Component

    Aircraft Operating Instructions (AOI) CTLS Page: 5-4 Type: Series: 5.3. Significance of the wind component Wind directly affects the flight path and thus aircraft performance. Two diagrams are presented below which show the significance of the wind component. 5.3.1. Wind influence on take-off roll and landing To determine whether the aircraft can take-off safely, it is necessary to determine the prevailing crosswind component.
  • Page 50 Aircraft Operating Instructions (AOI) CTLS Page: 5-5 Type: Series: 5.3.2. Wind influence on cruise Wind also has a noticeable influence on the forward progress of the aircraft over ground in cruise. The relevant components can be easily calculated from the graph. Calculation procedures are analogous to those used to determine take-off procedures, the only difference being the possible inclusion of a tailwind component.

  • Page 51: Engine Performance Subject To Altitude

    Aircraft Operating Instructions (AOI) CTLS Page: 5-6 Type: Series: 5.4. Engine performance subject to altitude Engine performance decreases with increasing (density) altitude. The following data may be used to determine available engine performance. Engine Power at Altitude and Power Setting 2 .

  • Page 52: Calculating The Take-Off Distance

    Aircraft Operating Instructions (AOI) CTLS Page: 5-7 Type: Series: 5.5. Calculating the take-off distance Takeoff distances in the following charts have been analyzed for varying conditions and takeoff weights using FAA approved analysis methods. Warning: Important for the usage of these charts is again the correct density altitude.
  • Page 53 Aircraft Operating Instructions (AOI) CTLS Page: 5-8 Type: Series: 5.5.1. Take-off distance charts The take-off roll distance defines the distance between the begin of the take-off roll and the point where the aircraft leaves the ground. This distance is given for short mown grass on a hard and dry level soil, without wind influence.
  • Page 54 Aircraft Operating Instructions (AOI) CTLS Page: 5-9 Type: Series: 5.5.2. Influences to take-off distance Take-off performance for conditions different to the ones named before can be estimated by using the following rules of thumb. Again the basis is an aircraft in good condition and a well trained pilot.

  • Page 55: Calculating Climb Performance

    Aircraft Operating Instructions (AOI) CTLS Page: 5-10 Type: Series: 5.6. Calculating climb performance The aircraft is nearly always operated under different conditions than ISA standard atmosphere. Aircraft climb performance under different conditions can be estimated according to the following tables. The basis for these values is an aircraft in good conditions.

  • Page 56: Gliding Characteristics

    Aircraft Operating Instructions (AOI) CTLS Page: 5-11 Type: Series: 5.7. Gliding characteristics The following chart shows the distances the aircraft can glide, dependent upon altitude, assuming smooth air, no wind and no vertical air currents. Flaps -6° / 140 km/h Flaps -6°...

  • Page 57: Weight And Balance, Equipment

    Aircraft Operating Instructions (AOI) CTLS Page: 6-1 Type: Series: 6. WEIGHT AND BALANCE, EQUIPMENT 6.1. Weight Limits The following limits ensure the safe operation of the aircraft: Maximum take-off weight (MTOM) 450 kg … 600 kg ( 992 lbs -1320 lbs) according to national laws and certification requirements Minimum crew weight...
  • Page 58 Aircraft Operating Instructions (AOI) CTLS Page: 6-2 Type: Series: Weight and Balance of LSA Aircraft XXXX Type: Model: CTLS datum datum point point Production Number: xx-xx-xx Engine Number: yyyyyyy Equipment list dd-mm-yyyy with date: Grey fields require inputs Datum Point: Wing leading edge Datum Plane: Tunnel roof in cabin horizontal...
  • Page 59 Aircraft Operating Instructions (AOI) CTLS Page: 6-3 Type: Series: standard equipment installation. The MTOW as defined by the certification regulations and the maximum weight of the aircraft as defined for structural proofs are used to calculate the maximum permissible payload and the maximum payload in the fuselage.

  • Page 60: Flight Mass And Center Of Gravity

    Aircraft Operating Instructions (AOI) CTLS Page: 6-4 Type: Series: 6.3. Flight Mass and Center of Gravity The flight mass and the connected center of gravity in flight must be determined prior to each flight. The following table and charts provide you with all necessary information to perform this part of your flight preparation.
  • Page 61 Aircraft Operating Instructions (AOI) CTLS Page: 6-5 Type: Series: The table above provides you with the calculation scheme for the aircraft center of gravity for your flight. You have the possibility to calculate the moments analytically, or to read them from the following diagrams. Both methods will lead to the same result.
  • Page 62 Aircraft Operating Instructions (AOI) CTLS Page: 6-6 Type: Series: The example shown in this diagram represents the determination of the mass moment value as by the example shown in the analysis table. The pilot mass of 85 kg (190 lb) is selected at the vertical axis. Intersection with the line „Seats“ leads to a mass moment of 44,2 kg*m (3895 in*lb).
  • Page 63 Aircraft Operating Instructions (AOI) CTLS Page: 6-7 Type: Series: The example shown in this diagram represents the verification of the mass and mass moment values achieved as by the example shown in the analysis table. The aircraft with no fuel is represented by the values 415 kg (916 lb) and 165 kg*m (14.338 in*lb). The aircraft takeoff fuel is represented by the values 458 kg (1.011 lb) and 174 kg*m (15.127 in*lb).
  • Page 64 Aircraft Operating Instructions (AOI) CTLS Page: 6-8 Type: Series: The example shown in this diagram represents the verification of the mass and cg position values achieved as by the example shown in the analysis table. The aircraft with no fuel is represented by the values 415 kg (916 lb) and 380 mm (15,0 in). The aircraft takeoff fuel is represented by the values 458 kg (1.011 lb) and 0,398 m (15.6 in).

  • Page 65: Equipment

    Aircraft Operating Instructions (AOI) CTLS Page: 6-9 Type: Series: 6.4. Equipment An example of an equipment list is given below. Each aircraft is delivered with an initial equipment list as part of this handbook. A new equipment list must be compiled and added to aircraft logbook and to this manual when there is any change to the equipment.
  • Page 66 Aircraft Operating Instructions (AOI) CTLS Page: 6-10 Type: Series: AU 010 11000 Revision No. 6 Date: 05 Feb 2009...

  • Page 67: Airplane And Systems Description

    Aircraft Operating Instructions (AOI) CTLS Page: 7-1 Type: Series: AIRPLANE AND SYSTEMS DESCRIPTION 7.1. Airframe The CTLS is a conventional high-wing aircraft. The wings can be easily removed but should only be removed after appropriate instruction as important control elements and the fuel system must be properly attached on remounting.
  • Page 68 Aircraft Operating Instructions (AOI) CTLS Page: 7-2 Type: Series: 7.1.2. Materials used for the airframe The airframe is made of high-quality composite materials which permit excellent aerodynamic characteristics to be achieved at an efficient structural weight. Due to the strict weight regulations for light sport aircraft, reinforced carbon and aramide fiber materials are used in the more advanced designs.
  • Page 69 Aircraft Operating Instructions (AOI) CTLS Page: 7-3 Type: Series: 7.1.3. Baggage compartments The aircraft has three different baggage compartments: 1) a baggage compartment behind the pilots’ seats 2) a hat or jacket rack at the main frame, behind the seats 3) storage locker in the floor in front of the seats Warning: Baggage must be carefully stored in all of the compartments.

  • Page 70: Systems

    Aircraft Operating Instructions (AOI) CTLS Page: 7-4 Type: Series: 7.2. Systems 7.2.1. Engine The engine of the CTLS is a standard Rotax 912 ULS engine. It is a horizontally opposed, four cylinder, four stroke engine with central camshaft-push rod-OHV, liquid-cooled cylinder heads and a dry sump, pump-fed lubrication system. The propeller is attached to the engine by an integrated gearbox (2.43:1 reduction) with a mechanical vibration damper.
  • Page 71 Aircraft Operating Instructions (AOI) CTLS Page: 7-5 Type: Series: 7.2.2. Propeller The CTLS may be equipped with various propellers. The operating handbook and the maintenance manual of the relevant propeller published by the propeller manufacturer are delivered with the aircraft and must be studied in detail. The following propellers are certified for the CTLS: Neuform CR3-65-47-101.6 3 blade, composite...
  • Page 72 Aircraft Operating Instructions (AOI) CTLS Page: 7-6 Type: Series: 7.2.3. Fuel system A fuel tank with a capacity of 65 l (17 gal) is integrated into each wing. The fuel tanks are each divided into two sections by an anti-sloshing rib. Fuel is filled into the outer section via a fuel filler opening on the upper side of each wing.
  • Page 73 Aircraft Operating Instructions (AOI) CTLS Page: 7-7 Type: Series: Filler cap Filler cap Filler cap Sloshing rib Sloshing rib Sloshing rib Sloshing rib Sloshing rib Sloshing rib Filler cap Filler cap Filler cap NACA nozzle NACA nozzle NACA nozzle Tank ventilation Tank ventilation Tank ventilation Tank ventilation...
  • Page 74 Should more detailed schematic diagrams be required for maintenance purposes, these can be requested from Flight Design. AU 010 11000 Revision No. 4...
  • Page 75 Aircraft Operating Instructions (AOI) CTLS Page: 7-9 Type: Series: Block diagram - power supply AU 010 11000 Revision No. 4 Date: 29 Apr 2008...
  • Page 76 Aircraft Operating Instructions (AOI) CTLS Page: 7-10 Type: Series: Block diagram - avionics installation without VOR / HS34 Block diagram - avionics installation with VOR / HS34 AU 010 11000 Revision No. 4 Date: 29 Apr 2008...
  • Page 77 Due to the special kinematics the tension of the rudder cables and thus the force gradient of the rudder will also be affected. Please contact a Flight Design service station. The nose gear has an aerodynamically optimal composite fairing. This fairing can only be removed completely after the nose gear fork has been removed.

  • Page 78: Flight Controls

    Warning: We advise against making adjustments to the rudder steering. Due to the mechanical interlinking, this can adversely affect cable tension and/or wheel alignment. Please contact a Flight Design service station. AU 010 11000 Revision No. 4 Date:...
  • Page 79 Aircraft Operating Instructions (AOI) CTLS Page: 7-13 Type: Series: 7.3.3. Stabilator The CTLS has a drag-optimized stabilator with an anti-servo tab. It is attached to a fuselage-mounted stabilator pivot bearing. An individually matched counter-weight with which the stabilator is completely mass-balanced is also attached to this bearing. The anti-servo tab on the trailing edge of the horizontal tail covers 75% of the stabilizer span.
  • Page 80 Aircraft Operating Instructions (AOI) CTLS Page: 7-14 Type: Series: 7.3.4. Stabilizer trim Stabilizer trim is adjusted via the trim wheel adjacent to the throttle. The trim indicator is located directly adjacent to the wheel. The aircraft becomes nose heavy when the wheel is rotated forward and tail heavy when it is turned backward.
  • Page 81 Aircraft Operating Instructions (AOI) CTLS Page: 7-15 Type: Series: 7.3.5. Ailerons The ailerons are activated via push rods which run from the control stick through the tunnel to the mixer in the baggage compartment behind the main frame. In the mixer the ailerons are coupled with the flap controls as the ailerons are deflected when the flaps are set.
  • Page 82 If the flaps then extend, the internal load-limiting device was in operation. If extension speed is below the maximum speed for flap extension as given in the handbook, the flap system may be out of adjustment. The nearest Flight Design service station should be contacted.
  • Page 83 Aircraft Operating Instructions (AOI) CTLS Page: 7-17 Type: Series: 7.3.8. Rudder trim Rudder trim is activated via the trim wheel on the top of the tunnel near the aileron trim. In front of the recovery system release lever. Turning the trim wheel to the right steers the aircraft nose to the right - turning the wheel to the left steers the aircraft nose to the left.
  • Page 84 Aircraft Operating Instructions (AOI) CTLS Page: 7-18 Type: Series: wheel and engine / engine mount first. Deformation of the metal structure will absorb much of the impact energy before the airframe itself is affected. In non-deployed condition the belts are covered by the fuselage roof and stored behind the main bulkhead.
  • Page 85 Aircraft Operating Instructions (AOI) CTLS Page: 7-19 Type: Series: AU 010 11000 Revision No. 7 Date: 07 May 2009...

  • Page 86: Cockpit

    Aircraft Operating Instructions (AOI) CTLS Page: 7-20 Type: Series: 7.4. Cockpit 7.4.1. Instrument panel The instrument panel for the CTLS is available in various layouts. The large mushroom-shaped panel is usually standard. It has four sections - upper left, upper center, upper right and lower.
  • Page 87 Aircraft Operating Instructions (AOI) CTLS Page: 7-21 Type: Series: 7.4.2. Upper panel Panel with Glass cockpit, without NAV radio: Panel with Glass Cockpit, with NAV radio: AU 010 11000 Revision No. 4 Date: 29 Apr 2008...
  • Page 88 Aircraft Operating Instructions (AOI) CTLS Page: 7-22 Type: Series: 7.4.3. Circuit Breakers All circuit breakers – except the circuit bearker for the flap controller, which is located directly next to the flap controller – are located in the lower part of the upper right panel.
  • Page 89 Aircraft Operating Instructions (AOI) CTLS Page: 7-23 Type: Series: 7.4.4. Lower panel The equipment in the lower panel varies only slightly. If no avionics are installed, there is no intercom. Otherwise, the controls and switches are always configured as shown below. Switches panel Intercom Selector XM or AUX music...
  • Page 90 Aircraft Operating Instructions (AOI) CTLS Page: 7-24 Type: Series: 7.4.5. Throttle quadrant The throttle quadrant is located in the middle console/tunnel, in front of the lower instrument panel. It can be easily operated from both seats, although it is primarily designed to be operated from the left seat, by the pilot-in-command.
  • Page 91 Aircraft Operating Instructions (AOI) CTLS Page: 7-25 Type: Series: 7.4.6. Carbon monoxide detector Every CTLS aircraft (starting S/N: 07-11-15) is equipped with Carbon Monoxide (CO) Detector. The owner (pilot) is responsible to watch the date on the detector and when necessary – replace it.

  • Page 92: Placards And Markings

    248 F (120°C) water temperature indicator Aircraft on the airframe inside the Type CTLS engine compartment or the Metal identification plate Flight Design GmbH left side rear fuselage near s/n 07-11-12 the stabilator Date Manufactured 16.Oct.07 Calibration card after calibration...
  • Page 93 Aircraft Operating Instructions (AOI) CTLS Page: 7-27 Type: Series: adjacent to trim wheel adjacent to brake lever Flap position -6°, 0°, 15°,30°, 35° flap selection lever inspection flap Oil grade and amount engine cowling Main circuit breakers according Circuit breakers instrument panel to function Master switch...

  • Page 94: Handling, Service, Maintenance

    Aircraft Operating Instructions (AOI) CTLS Page: 8-1 Type: Series: 8. HANDLING, SERVICE, MAINTENANCE Warning: Attention must be paid to the proper securing of the recovery system during any servicing or repair work to ensure that it is not inadvertently activated (ensure that the activation handle is secured with the safety pin inserted).

  • Page 95: Securing The Aircraft For Road Transportation

    Aircraft Operating Instructions (AOI) CTLS Page: 8-2 Type: Series: 8.2. Securing the aircraft for road transportation Road transport is only allowed by qualified mechanics. Necessary procedures for assembly and disassembly are given in the separate CTLS LSA maintenance manual. 8.3. Parachute recovery system maintenance The parachute recovery system requires no maintenance, except observance of the pack intervals for the parachute and the exchange intervals for the rocket.

  • Page 96: Cleaning And Care

    (up and down or from side to side). This prevents the occurrence of the disturbing halo effect caused by circular scratches. Light scratching can usually be polished out by your Flight Design service station. Make sure that you never leave solvent-soaked cleaning cloths under the windshield or near the windows.
  • Page 97 Aircraft Operating Instructions (AOI) CTLS Page: 8-4 Type: Series: 8.4.3. Power plant The Rotax 912 operating handbook recommends the use of a standard degreaser. Please follow the instructions given in the operating handbook and make sure that the degreaser does not come in contact with the airframe. Warning: If a moisture-based cleaning agent is used on the engine, the electronics must be protected from getting damp.

  • Page 98: Mandatory Aircraft Inspections

    The CTLS is a modern and somewhat complex machine which requires specific training for proper maintenance. We, therefore recommend that the 100 h inspections be carried out at Flight Design approved repair station if possible. Besides that for all maintenance steps the minimum qualification requirements for the repairman are defined.

  • Page 99: Repairs To The Airframe

    Flight Design authorized aviation workshop. Original materials only should be used for repair work. Should you discover structural damage, please contact a Flight Design service station or a workshop qualified to undertake such repair work. Should this not be possible, please contact Flight Design at the valid service mail address listed on the website.

  • Page 100: Control Surface Deflections

    The aileron-flap mixer system is highly sensitive to adjustments in the control elements. Modifying the adjustment of a bellcrank may change the mixing function. All adjustments to the control system must be done according to Flight Design specifications. We therefore recommend strongly that this type of work only be done by Flight Design approved service stations.

  • Page 101: Sailplane Tow

    Even when the towing hook is already installed to the aircraft, towing of sailplanes is not permitted with the CTLS LSA. Your local Flight Design Dealer can inform you when the system is ready tested and released for use. This requires replacement of this chapter of the AOI against the...

  • Page 102: Banner Tow

    Even when the towing hook is already installed to the aircraft, towing of banners is not permitted with the CTLS LSA. Your local Flight Design Dealer can inform you when the system is ready tested and released for use. This requires replacement of this chapter of the AOI against the...

  • Page 103: Appendices

    Aircraft Operating Instructions (AOI) CTLS Page: 11-1 Type: Series: 11. APPENDICES 11.1. CURRENT WEIGHING REPORT The current weighing report should be inserted here. Old weighing reports should be kept so that the history of the aircraft is properly documented. They should be marked by hand with the word “INVALID”.

  • Page 104: Current Equipment List

    Aircraft Operating Instructions (AOI) CTLS Page: 11-2 Type: Series: 11.2. CURRENT EQUIPMENT LIST The current equipment list should be inserted here. Old equipment lists should be kept so that the history of the aircraft is properly documented. They should be marked by hand with the word “INVALID”.

  • Page 105: Safety Of Flight Report Form

    Aircraft Operating Instructions (AOI) CTLS Page: 11-3 Type: Series: 11.3. SAFETY OF FLIGHT REPORT FORM AU 010 11000 Revision No. 4 Date: 29 Apr 2008...
