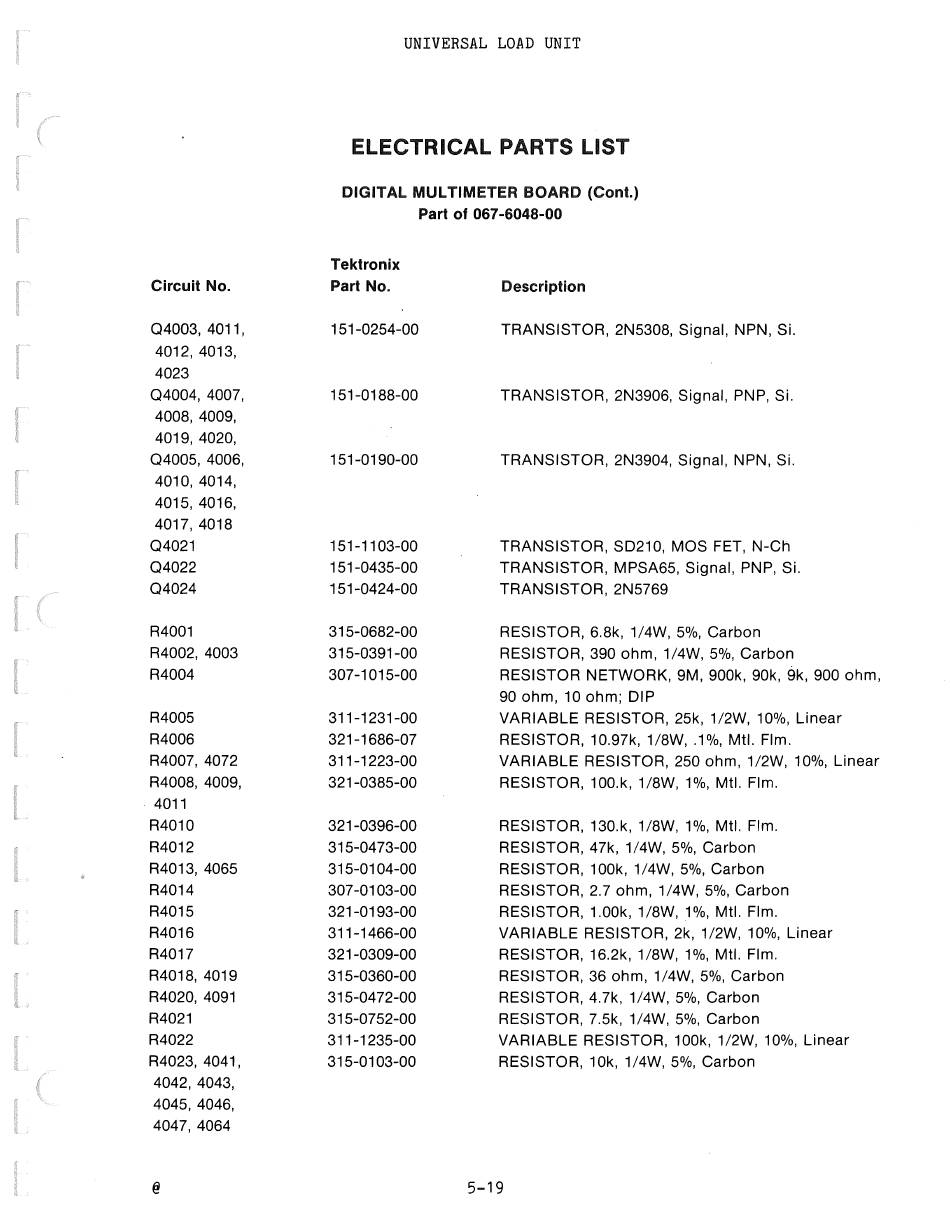

Tektronix 067-0883-99 Instruction Manual page 57

Circuit No.
04003, 4011,
4012, 4013,
4023
04004, 4007,
4008, 4009,
4019, 4020,
04005, 4006,
4010, 4014,
4015, 4016,
4017, 4018
04021
04022
04024
R4001
R4002, 4003
R4004
R4005
R4006
R4007, 4072
R4008, 4009,
. 4011
R4010
R4012
R4013, 4065
R4014
R4015
R4016
R4017
R4018, 4019
R4020, 4091
R4021
R4022
R4023, 4041,
4042, 4043,
4045, 4046,
4047, 4064
UNIVERSAL LOAD UNIT
ELECTRICAL PARTS LIST
DIGITAL MUl TIMETER BOARD (Cont.)
Part of 067-6048-00
Tektronix
Part No.
151-0254-00
151-0188-00
151-0190-00
151-1103-00
151-0435-00
151-0424-00
315-0682-00
315-0391-00
307-1015-00
311-1231-00
321-1686-07
311-1223-00
321-0385-00
321-0396-00
315-04 73-00
315-0104-00
307-01 03-00
321-0193-00
311-1466-00
321-0309-00
315-0360-00
315-04 72-00
315-0752-00
311-1235-00
315-01 03-00
Description
TRANSISTOR, 2N5308, Signal, NPN, Si.
TRANSISTOR, 2N3906, Signal, PNP, Si.
TRANSISTOR, 2N3904, Signal, NPN, Si.
TRANSISTOR, SD210, MOS FET, N-Ch
TRANSISTOR, MPSA65, Signal, PNP, Si.
TRANSISTOR, 2N5769
RESISTOR, 6.8k, 1/4W, 5%, Carbon
RESISTOR, 390 ohm, 1/4W, 5%, Carbon
RESISTOR NETWORK, 9M, 900k, 90k, 9k, 900 ohm,
90 ohm, 10 ohm; DIP
VARIABLE RESISTOR, 25k, 1/2W, 10%, Linear
RESISTOR, 10.97k, 1/8W, .1%, Mtl. Flm.
VARIABLE RESISTOR, 250 ohm, 1/2W, 10%, Linear
RESISTOR, 100.k, 1/8W, 1%, Mtl. Flm.
RESISTOR, 130.k, 1 /8W, 1 %, Mtl. Flm.
RESISTOR, 47k, 1/4W, 5%, Carbon
RESISTOR, 100k, 1/4W, 5%, Carbon
RESISTOR, 2.7 ohm, 1/4W, 5%, Carbon
RESISTOR, 1.00k, 1 /8W, 1 %, Mtl. Flm.
VARIABLE RESISTOR, 2k, 1/2W, 10%, Linear
RESISTOR, 16.2k, 1/8W, 1%, Mtl. Flm.
RESISTOR, 36 ohm, 1/4W, 5%, Carbon
RESISTOR, 4.7k, 1/4W, 5%, Carbon
RESISTOR, 7.5k, 1/4W, 5%, Carbon
VARIABLE RESISTOR, 100k, 1/2W, 10%, Linear
RESISTOR, 10k, 1/4W, 5%, Carbon
5-19
