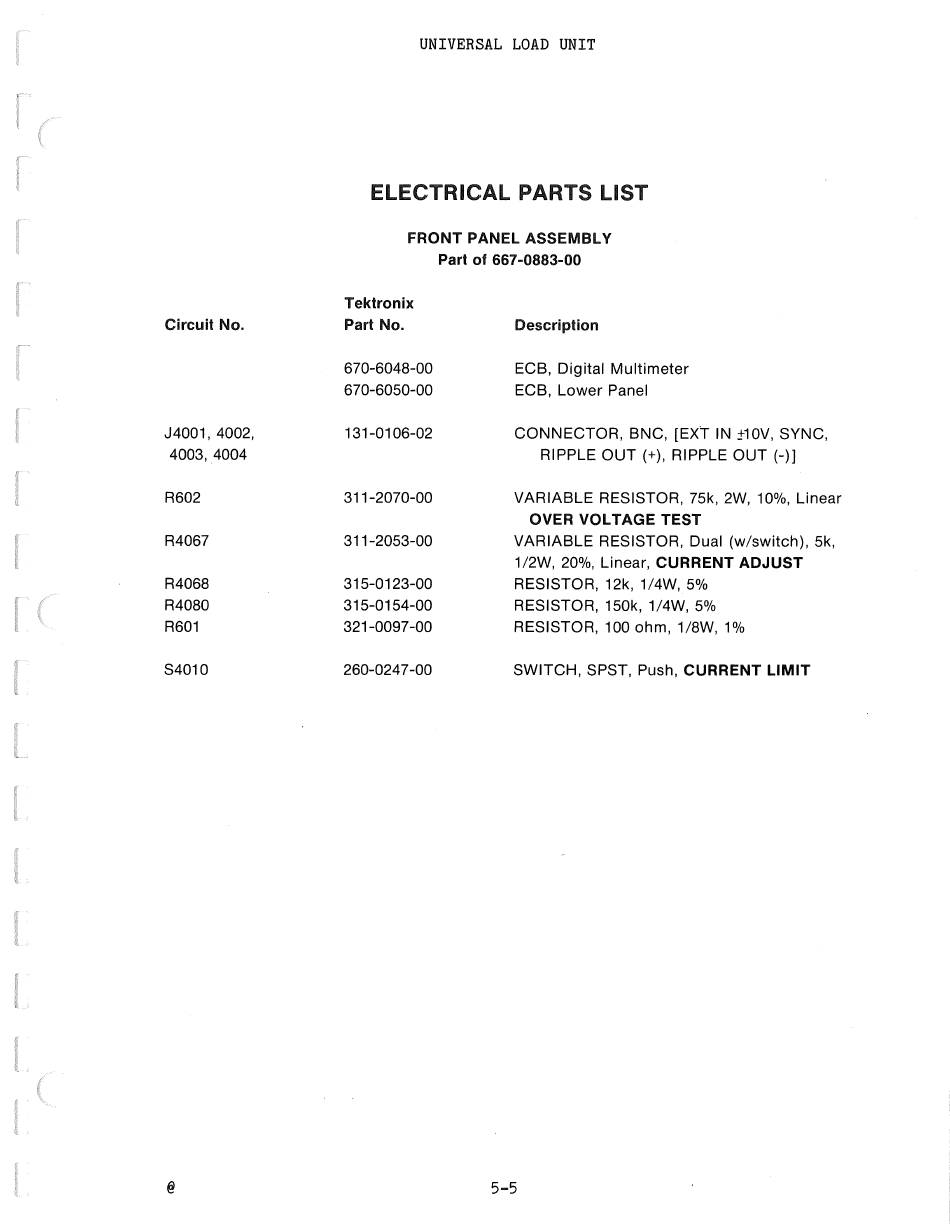

Tektronix 067-0883-99 Instruction Manual page 43

Circuit No.
J4001, 4002,
4003, 4004
R602
R4067
R4068
R4080
R601
S4010
@
UNIVERSAL LOAD UNIT
ELECTRICAL PARTS LIST
FRONT PANEL ASSEMBLY
Part of 667-0883-00
Tektronix
Part No.
670-6048-00
670-6050-00
131-0106-02
311-2070-00
311-2053-00
315-0123-00
315-0154-00
321-0097-00
260-0247-00
Description
ECB, Digital Multimeter
ECB, Lower Panel
CONNECTOR, BNC, [EXT IN :!-1 OV, SYNC,
RIPPLE OUT(+), RIPPLE OUT(-)]
VARIABLE RESISTOR, 75k, 2W, 10%, Linear
OVER VOLTAGE TEST
VARIABLE RESISTOR, Dual (w/switch), 5k,
1 /2W, 20%, Linear, CURRENT ADJUST
RESISTOR, 12k, 1/4W, 5%
RESISTOR, 150k, 1/4W, 5%
RESISTOR, 100 ohm, 1 /8W, 1 %
SWITCH, SPST, Push, CURRENT LIMIT
5-5
