Tektronix 067-0883-99 Instruction Manual page 54

Circuit No.
U11, 12, 21,
22, 71, 72,
81, 82
U31, 41, 51,
61, 91, 101,
111, 121
VR101, 201,
701, 801
VR102, 202,
702, 802
VR103, 203,
703, 803
VR301, 401,
502, 602,
901, 1001,
1101, 1201
VR302, 402,
902, 1002
VR303, 403,
903, 1003
VR306, 406,
505, 605,
906, 1006,
1105, 1205
VR501, 601,
1102, 1202
VR503, 603,
1103, 1203

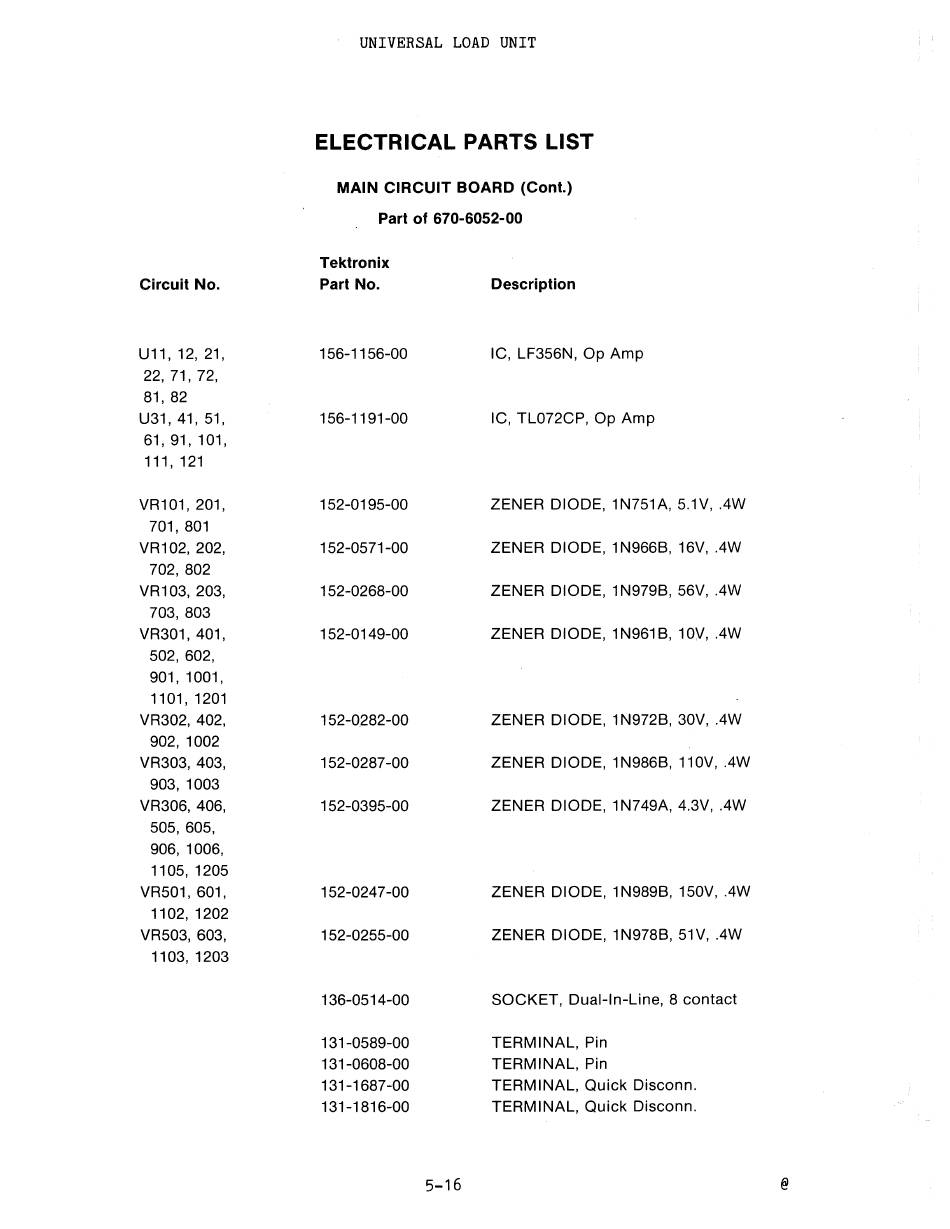

UNIVERSAL LOAD UNIT
ELECTRICAL PARTS LIST
MAIN CIRCUIT BOARD {Cont.)
Part of 670-6052-00
Tektronix
Part No.
156-1156-00
156-1191-00
152-0195-00
152-0571-00
152-0268-00
152-0149-00
152-0282-00
152-0287-00
152-0395-00
152-024 7 -00
152-0255-00
136-0514-00
131-0589-00
131-0608-00
131-1687-00
131-1816-00
5-16
Description
IC, LF356N, Op Amp
IC, TL072CP, Op Amp
ZENER DIODE, 1N751A, 5.1V, .4W
ZENER DIODE, 1N966B, 16V, .4W
ZENER DIODE, 1 N979B, 56V, .4W
ZENER DIODE, 1 N961 B, 10V, .4W
ZENER DIODE, 1 N972B, 30V, .4W
ZENER DIODE, 1 N986B, 110V, .4W
ZENER DIODE, 1N749A, 4.3V, .4W
ZENER DIODE, 1 N989B, 150V, .4W
ZENER DIODE, 1 N978B, 51 V, .4W
SOCKET, Dual-In-Line, 8 contact
TERMINAL, Pin
TERMINAL, Pin
TERMINAL, Quick Disconn.
TERMINAL, Quick Disconn.
@
