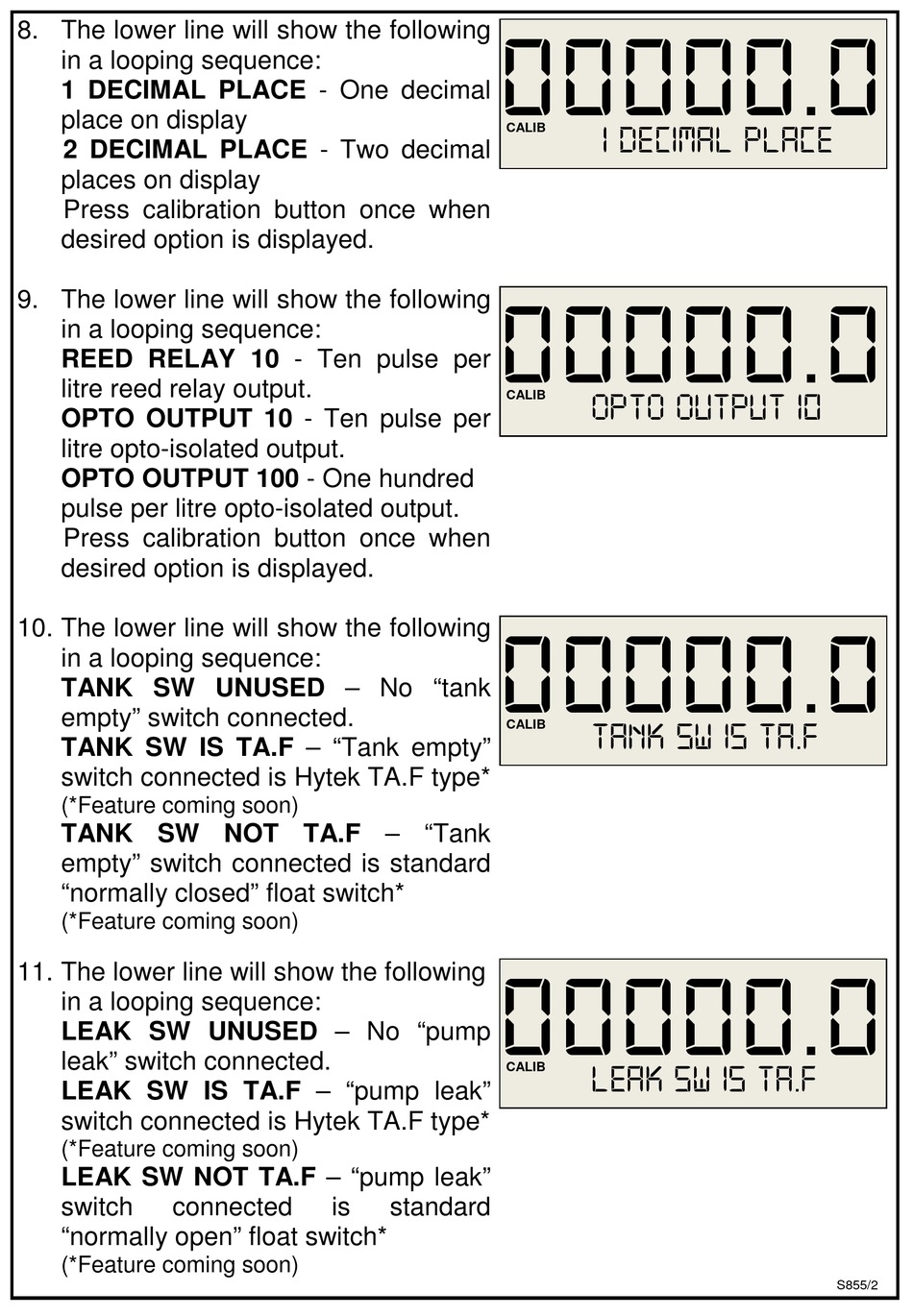

Hytek ALPHA Series Technical Data Manual page 16

8. The lower line will show the following
in a looping sequence:
1 DECIMAL PLACE - One decimal
place on display
2 DECIMAL PLACE - Two decimal
places on display
Press calibration button once when
desired option is displayed.
9. The lower line will show the following
in a looping sequence:
REED RELAY 10 - Ten pulse per
litre reed relay output.
OPTO OUTPUT 10 - Ten pulse per
litre opto-isolated output.
OPTO OUTPUT 100 - One hundred
pulse per litre opto-isolated output.
Press calibration button once when
desired option is displayed.
10. The lower line will show the following
in a looping sequence:
TANK SW UNUSED – No "tank
empty" switch connected.
TANK SW IS TA.F – "Tank empty"
switch connected is Hytek TA.F type*
(*Feature coming soon)
TANK SW NOT TA.F – "Tank
empty" switch connected is standard
"normally closed" float switch*
(*Feature coming soon)
11. The lower line will show the following
in a looping sequence:
LEAK SW UNUSED – No "pump
leak" switch connected.
LEAK SW IS TA.F – "pump leak"
switch connected is Hytek TA.F type*
(*Feature coming soon)
LEAK SW NOT TA.F – "pump leak"
switch connected
"normally open" float switch*
(*Feature coming soon)
00000.0
00000.0
00000.0
00000.0
is standard
CALIB
1 DECIMAL PLACE
CALIB
OPTO OUTPUT 10
CALIB
TANK SW IS TA.F
CALIB
LEAK SW IS TA.F
S855/2
