Technical Data

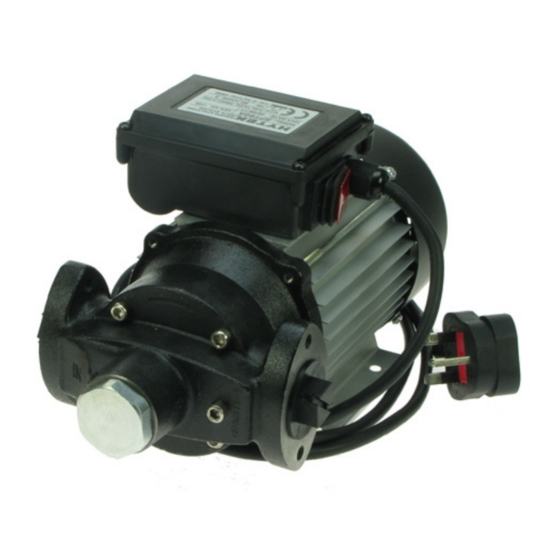

SPT80A
DIRECT DRIVE PUMP UNIT
230v - 80 LPM
Please read carefully before commencing installation
Registered Office: HYTEK (GB) LIMITED, Delta House, Green Street, Elsenham, Bishop's Stortford
CM22 6DS UK. Registered in England No. 1915382
Tel: +44 (0) 1279 815 600 Fax: +44 (0) 1279 812 978 email: info@hytekgb.com
Web: www.hytekgb.com
S559/5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hytek SPT80A
Summary of Contents for Hytek SPT80A
- Page 1 230v - 80 LPM Please read carefully before commencing installation Registered Office: HYTEK (GB) LIMITED, Delta House, Green Street, Elsenham, Bishop’s Stortford CM22 6DS UK. Registered in England No. 1915382 Tel: +44 (0) 1279 815 600 Fax: +44 (0) 1279 812 978 email: info@hytekgb.com Web: www.hytekgb.com...
- Page 2 ENVIRONMENTAL INFORMATION European Directives 2002/96/EC and 2003/108/EC require that the equipment bearing this symbol on the product an/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product must be disposed of separately from regular household waste streams.
- Page 3 INSTALLATION 1. If no wall-mounting bracket is supplied, mount on a horizontal surface using the holes provided in the pump feet, or use a tank/barrel mount adaptor if provided. 2. Fit the supplied strainer to the pump inlet. 3. Connect the pipe from the tank to the suction inlet of the pump. If the pump is more than 2m from the tank the pipe should be 1½...
- Page 4 INSTRUCTIONS FOR USE 1. Switch on pump. 2. Place nozzle spout in the fuel tank. 3. Squeeze nozzle trigger to dispense fuel. 4. On completion of delivery, release nozzle trigger and remove nozzle from fuel tank. OPERATION WARNING FAILURE OBSERVE WARNINGS BELOW MAY LEAD TO THE PUMP UNIT BEING DAMAGED: 1.
- Page 5 DIMENSIONS S559/5...
- Page 6 PARTS DIAGRAM PARTS LIST DIAGRAM No. PART NUMBER DESCRIPTION SPT80A.1 ROTOR SPT80A.2 VANE SPT80A.3 SHAFT KEY SPT80A.4 ON/OFF SWITCH SPT80A.5 PUMP HOUSING SPT80A.6 PUMP HOUSING O-RING SPT80A.7 SHAFT SEAL SPT80A.17 JUNCTION BOX S559/5...
- Page 7 NOTES S559/5...
- Page 8 E.C. DECLARATION OF CONFORMITY Date of Issue: 23/12/09 Equipment Details: SPT80A Pump Unit And Motor Applicable standards: EN61000-6-3:2007 EN61000-3-2:2006 EN61000-3-3:2008 Emissions EN61000-6-1:2007 Immunity 2006/95/EC Electrical Equipment (Low Voltage) Machinery Directive 2006/42/EC The Pressure Equipment Regulations 1999 S.I. 1999/2001 Entry Into Force:- 29 November 1999 Amended to S.I.
