AMQ ACTIV DT Riser Installation Manual

Hide thumbs Also See for ACTIV DT Riser:

Download this manual

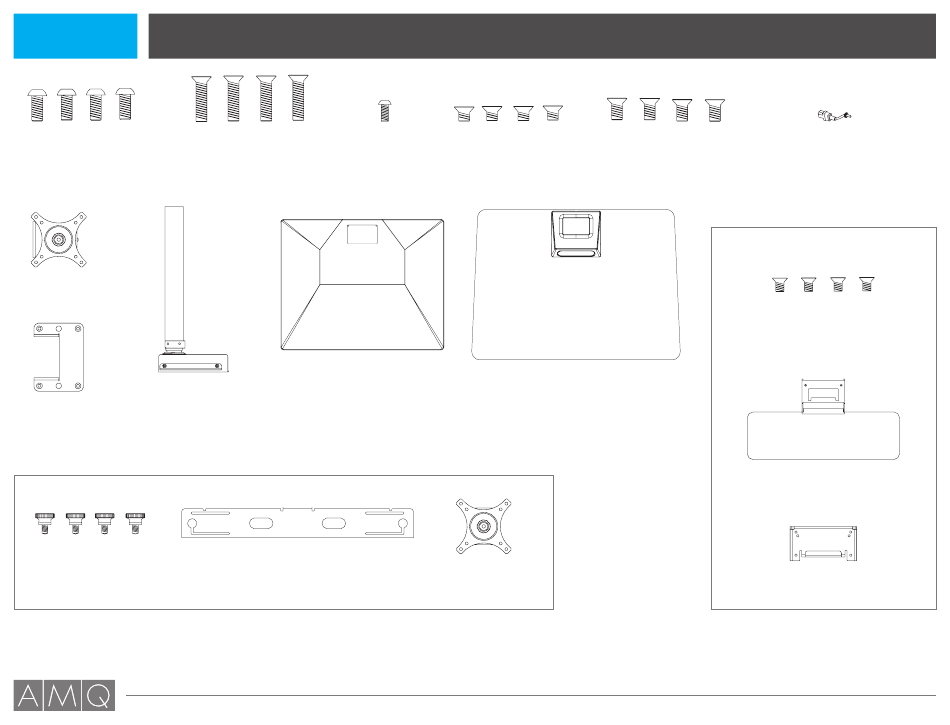

Components

ACTIV DT Riser Installation Guide

M6X14

M6X25

M4X10

M6X8

M6X12

Power Cord

Keyboard Tray (Optional)

Monitor Holder

M6X12

Column/Control Box

Base

Primary Worksurface & Handset

Support Plate

Dual Monitor (Optional)

Keyboard Tray Assembly

M6X10 Hand Screw

Dual Monitor Mount

Monitor Holder

Keyboard Bracket

Please contact

cc@amqsolutions.com

if you are missing any parts, have difficulty with assembly, or have any product related questions.

Page 1 Components ACTIV DT Riser Installation Guide ACTIV DT Riser Installation Guide M6X14 M6X25 M4X10 M6X8 M6X12 Power Cord Keyboard Tray (Optional) Monitor Holder M6X12 Column/Control Box Base Primary Worksurface & Handset Support Plate Dual Monitor (Optional) Keyboard Tray Assembly M6X10 Hand Screw...
Page 2 Steps 1-5 ACTIV DT Riser Installation Guide Step 1 Step 2 Step 3 Use M6X14 screws (x4) to assemble base to Use M6X8 screws (x4) to assemble the support plate Slide the primary worksurface over the column column. Wire the column to the control box.
Page 3: Keyboard Tray
Optional ACTIV DT Riser Installation Guide Keyboard Tray Step 1 Using the M6x12 screws (x4), attach the keyboard bracket to primary worksurface via the predrilled holes on the bottom of primary worksurface. M6X12 Step 2 Insert Keyboard Tray Assembly into the Keyboard Bracket until the pin releases and keyboard tray is firmly secured.
Page 4 Optional ACTIV DT Riser Installation Guide Dual Monitor Mount M6X10 M6X12 hand screw Step 1 Step 2 Step 3 Use M6X12 screws (x4) to Prior to installing the monitors to Use the M6x10 hand screws attach the dual monitor mount...
Page 5 Diagram ACTIV DT Riser Installation Guide Bottom Wiring Please contact cc@amqsolutions.com if you are missing any parts, have difficulty with assembly, or have any product related questions.
