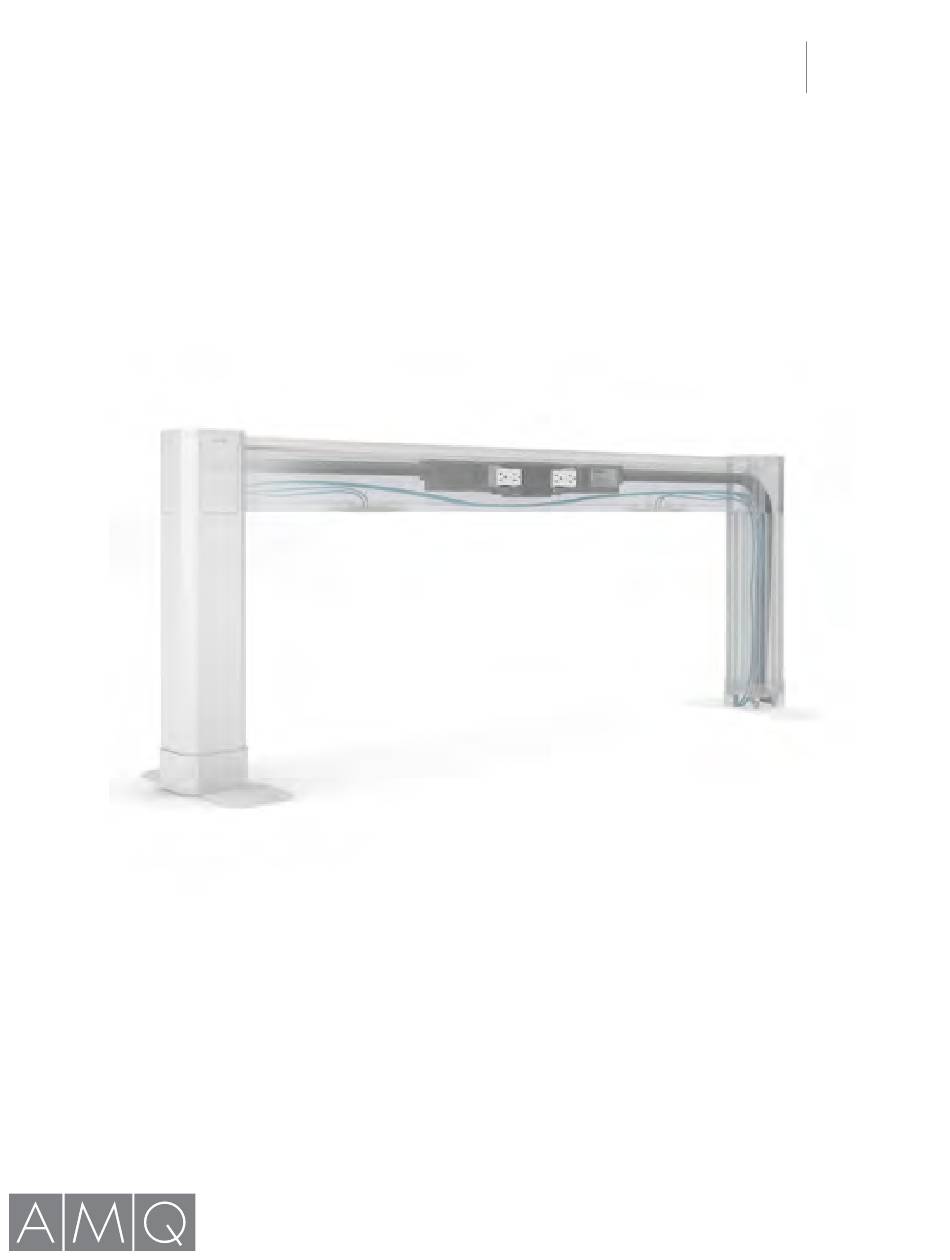

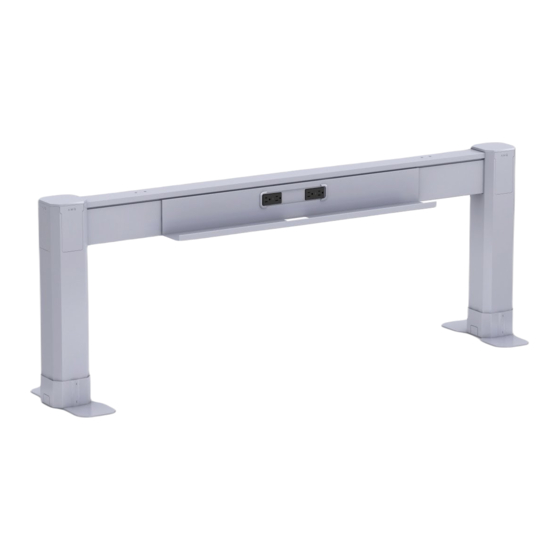

- Page 1 ILINE installation guide April 2020 update...
-
Page 2: Table Of Contents
CONTENTS ILINE 120° (3-WAY) ASSEMBLY ....3 ILINE 90°/180° (4-WAY) ASSEMBLY ... 17 Components ......4 Components . -
Page 3: Iline 120° (3-Way) Assembly
ILINE 120° (3-WAY) -
Page 4: Components
Top Cap Base Plate Post Side Cover Glide, OEM Nuts 120° Vertical Post Beam Horizontal Beam Face Plate Cover Receptacle Data Face Plate Cover Junction Bracket Junction Bracket Bottom Beam Plate (3 circuit) (4 circuit) amqsolutions.com ILINE INSTALLATION GUIDE | 4... - Page 5 COMPONENTS ILINE 120° (3-WAY) 4-Way Post Post Side Cover Post Sleeve Hex Nuts Vertical Post Top Cap Base Plate Kit Foot SRE Foot SRC Foot DRE Foot DRC amqsolutions.com ILINE INSTALLATION GUIDE | 5...
-
Page 6: Post, Beam Plate And Feet Assembly
PHASE 1 | Post, Beam Plate and Feet Assembly ILINE 120° (3-WAY) Step 1 Step 2 amqsolutions.com ILINE INSTALLATION GUIDE | 6... -
Page 7: Beam Assembly (3-Circuit)
Step 3 Clip on the receptacles to the junction block through the beam cutout. Beam Cut-Out Side amqsolutions.com ILINE INSTALLATION GUIDE | 7... - Page 8 ILINE 120° (3-WAY) Step 4 Take three ILINE junction block (3 circuit) supporting brackets and position them as shown in the diagram. Push it down until it can go no further. Assemble the four screws and the junction block supporting brackets onto beam as shown in these diagrams.
-
Page 9: Beam Assembly (4-Circuit)
Mount two receptacles on one side of the junction block. Insert the junction block slightly tilted like in the diagram with the junction block without the receptacles facing the beam cut-out. Step 3 Clip on the receptacles to the junction block through the beam cutout. Beam Cut-Out Side amqsolutions.com ILINE INSTALLATION GUIDE | 9... - Page 10 ILINE 120° (3-WAY) Step 4 Take three ILINE junction block (4 circuit) supporting brackets and position them as shown in the diagram below. Push it down until it can go no further. Assemble the four screws and the junction block supporting brackets onto beam as shown in these diagrams.
-
Page 11: Footer And Base Plate Assembly
Screw the foot assembly to the foot plate nuts. 4” x 3/4” Coupling Nut (5/16” x 18) Step 5 Foot Plate Nut Repeat Steps 1-4 for the all foot and base plates. Foot Plate amqsolutions.com ILINE INSTALLATION GUIDE | 11... -
Page 12: Post And Beam Assembly
Step 1 Assemble the base plate, glide and post together. Step 2 Slide the beam assembly into the open slots in the center of vertical post. Fasten the beams using two screws on each end. amqsolutions.com ILINE INSTALLATION GUIDE | 12... -
Page 13: Entering Electric Base Feed
Plug the power entry plug to the junction block. Depending on the floor plan, you may access the base feed through any of the posts in the assembly. NOTE: Adjustable Wrench Use 1/4”-20 hex nut to tight down posts on the footer-assemblies amqsolutions.com ILINE INSTALLATION GUIDE | 13... -
Page 14: Cover And Trim Assembly
Attach top cover to the center vertical post. Step 3 Take two data face plates/bottom beam plates and snap them onto each end of the underside of the beam assembly. Snap on data face plates. amqsolutions.com ILINE INSTALLATION GUIDE | 14... -
Page 15: Installing Caps And Covers - Post Sleeve
Align the Post Sleeve on both sides and apply pressure until pieces snap into place. Step 3 Installed Post Sleeve. onto each end of the underside of the beam assembly. Snap on data face plates. : After installing electrical, level for best aesthetic appearance. NOTE Attached Post Sleeve amqsolutions.com ILINE INSTALLATION GUIDE | 15... -
Page 16: Extending The Configuration
Feed the jumper through the beam canal and into the vertical post opening into the next beam assembly. Step 4 Connect the jumper to each junction block. Re-attach the top cover onto the vertical post. amqsolutions.com ILINE INSTALLATION GUIDE | 16... -
Page 17: Iline 90°/180° (4-Way) Assembly
ILINE 90°/180° (4-WAY) -
Page 18: Components
COMPONENTS ILINE 90°/180° (4-WAY) 4-Way Post Post Side Cover Post Sleeve Hex Nuts Vertical Post Top Cap Base Plate Kit Foot SRE Foot SRC Foot DRE Foot DRC amqsolutions.com ILINE INSTALLATION GUIDE | 18... - Page 19 COMPONENTS ILINE 90°/180° (4-WAY) Beam Horizontal Beam Face Plate Cover Receptacle Data Face Plate Cover Junction Bracket Junction Bracket Bottom Beam Plate (3 circuit) (4 circuit) amqsolutions.com ILINE INSTALLATION GUIDE | 19...
-
Page 20: Footer And Base Plate Assembly
Screw the foot assembly to the foot plate nuts. 4” x 3/4” Coupling Nut (5/16” x 18) Step 5 Foot Plate Nut Repeat Steps 1-4 for the all foot and base plates. Foot Plate amqsolutions.com ILINE INSTALLATION GUIDE | 20... -
Page 21: Beam Assembly (3-Circuit)
Step 3 Clip on the receptacles to the junction block through the beam cutout. Beam Cut-Out Side amqsolutions.com ILINE INSTALLATION GUIDE | 21... - Page 22 ILINE 90°/180° (4-WAY) Step 4 Take three ILINE junction block (3 circuit) supporting brackets and position them as shown in the diagram. Push it down until it can go no further. Assemble the four screws and the junction block supporting brackets onto beam as shown in these diagrams.
-
Page 23: Beam Assembly (4-Circuit)
Mount two receptacles on one side of the junction block. Insert the junction block slightly tilted like in the diagram with the junction block without the receptacles facing the beam cut-out. Step 3 Clip on the receptacles to the junction block through the beam cutout. Beam Cut-Out Side amqsolutions.com ILINE INSTALLATION GUIDE | 23... - Page 24 ILINE 90°/180° (4-WAY) Step 4 Take three ILINE junction block (4 circuit) supporting brackets and position them as shown in the diagram below. Push it down until it can go no further. Assemble the four screws and the junction block supporting brackets onto beam as shown in these diagrams.
-
Page 25: Post, Beam Plate And Feet Assembly
Step 5 Secure the post to the footer assembly using an adjustable wrench. Use torx head screw to mount beams on vertical posts. amqsolutions.com ILINE INSTALLATION GUIDE | 25... -
Page 26: Installing Jumpers
Connect the jumper to each junction block. Step 4 Repeat Steps 1-3 until the last jumper is connected the last junction block. The remaining installation of electrical must be installed by STOP a professional electrician. amqsolutions.com ILINE INSTALLATION GUIDE | 26... -
Page 27: Installing Caps And Covers
Take two data face plates/bottom beam plates and snap them onto each end of the underside of the beam assembly. Snap on data face plates. Step 4 Repeat Steps 1-4 for all beam assemblies. amqsolutions.com ILINE INSTALLATION GUIDE | 27... -
Page 28: Installing Caps And Covers - Post Sleve
Align the Post Sleeve on both sides and apply pressure until pieces snap into place. Step 3 Installed Post Sleeve onto each end of the underside of the beam assembly. Snap on data face plates. : After installing electrical, level for best aesthetic appearance. NOTE Attached Post Sleeve amqsolutions.com ILINE INSTALLATION GUIDE | 28... -
Page 29: Installing Screens
Insert screen clip into position. Slide screen clip into position to secure it, then tighten screw fully. Step 3 Position screen in the middle and drop it into clip. Do not tighten fully, leave 4mm gap amqsolutions.com ILINE INSTALLATION GUIDE | 29... -
Page 30: Final Adjustments
: Use a leveling guide for accuracy. NOTE H o r i z o n t a l a l i g e n t Adjust height of each coupling-nuts to level the base plate of each post. Completed ILINE amqsolutions.com ILINE INSTALLATION GUIDE | 30... -
Page 31: Power Pole Retrofit
Anchor down the post with two screws into the vertical post. Step 4 Adjust glide in the bottom plate to the floor level. Step 5 Provide anchoring to the sealing using the sealing trim. amqsolutions.com ILINE INSTALLATION GUIDE | 31... - Page 32 Please contact cc@amqsolutions.com if you are missing any parts, have difficulty with assembly, or have any product related questions.
