Amobi Desk installation guide

Advertisement

Table of Contents
loading

Related Manuals for AMQ Amobi

Summary of Contents for AMQ Amobi

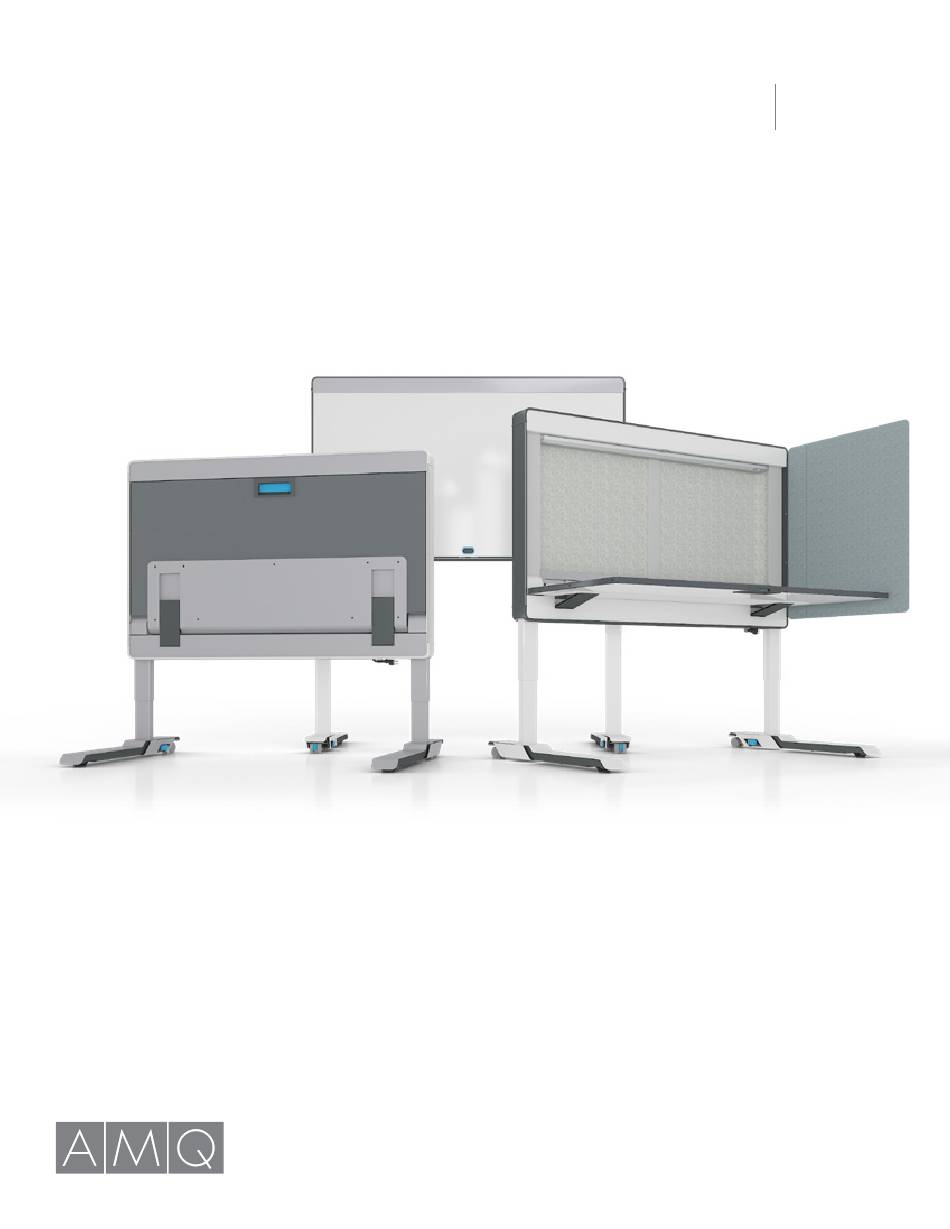

  • Page 1 Amobi Desk installation guide...

  • Page 2: Table Of Contents

    FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Attaching Led Task Light To Amobi Desk . . . . . . . 5 LED Task Light control buttons .

  • Page 3: Led Task Light

    LED TASK LIGHT COMPONENTS LED Task Light 54" : 47"(L) x 2"(W) x 1"(H) 60" : 53"(L) x 2"(W) x 1"(H) amqsolutions.com AMOBI DESK INSTALLATION GUIDE | 3...

  • Page 4: Fcc Statement

    . Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense . Important: Changes or modifications to this product not authorized by AMQ could void your authority to operate the product.

  • Page 5: Attaching Led Task Light To Amobi Desk

    Magnets facing upwards Step 2 Align the LED Task Light magnets and connectors to the magnet and connector locators on the Amobi Desk . Lift the LED Task Light upwards until a “click” is felt . Connector Locators Magnet Locators Step 3 ON/OFF button controls can be found on the LED Task Light itself and on the front handset controls .

  • Page 6: Led Task Light Control Buttons

    . Using LED Task Light controls on Amobi Desk front handset 1 . Press the ON/OFF button on the front handset once to either switch the LED light on or off .

  • Page 7: Amobi Desk

    HOW TO REMOVE THE LED TASK LIGHT FROM AMOBI DESK Step 1 Remove the LED Task Light by applying even force downwards with both hands . Please use care when pulling down the LED Task Light, ensuring not to use too much force .

  • Page 8: Amobi Desk Led Task Light Specifications

    AMOBI DESK LED TASK LIGHT SPECIFICATIONS LED Illumination 200-800LUX LED Color Temperature 2700k LED Efficacy 120lm/W Input Voltage DC33V LED Wattage 54": 9W / 60": 12W LED Lifespan 35,000 hours PIR Automatic Induction Effective Range 0 - 8.2 ft Dimmer Setting...

  • Page 9: Magnetic Side Panels

    MAGNETIC SIDE PANELS COMPONENTS Magnetic Side Panels (Left & Right) x 1 set 28"(L) x 33.22"(H) amqsolutions.com AMOBI DESK INSTALLATION GUIDE | 9...
  • Page 10 MAGNETIC SIDE PANELS Step 1 Remove Whiteboard or Felt Tackboard (Refer to Amobi Desk User Guide on how to remove the boards) to access the screws . To avoid damage please use two people while installing the whiteboard or felt tackboard .
  • Page 11 Trim Filler while pulling the 2 sides outwards simultaneously . Remove all 4 Trim Filler Covers on both sides . Step 4 Remove Side Trim by sliding it forward . Cross Section View amqsolutions.com AMOBI DESK INSTALLATION GUIDE | 11...
  • Page 12 3 . Discard Side Trim Clamp Spacer . Step 6 The Magnetic Side Panels has Left and Right directions . Labels are attached on the Panels to indicate which direction . Lettering must be facing upright and outwards . amqsolutions.com AMOBI DESK INSTALLATION GUIDE | 12...
  • Page 13 Side Trim Filler Magnetic Side Panels 4 . Adjust the position of Side Trim Filler . 5 . Adjust the distance between side trim and side trim filler to about 1 inch . amqsolutions.com AMOBI DESK INSTALLATION GUIDE | 13...
  • Page 14 Trim Trim Filler Side Trim Filler Bottom Trim First put the Side Trim Filler inside the Bottom Trim . Cross Section View Slide Side Trim in . Ensure that hook is engaged . amqsolutions.com AMOBI DESK INSTALLATION GUIDE | 14...
  • Page 15 Step 8 Move the Side Trim upwards to install the bottom Trim Filler to Amobi Desk first, then move the Side Trim downwards to install the top Trim Filler one . When installing both bottom & top Trim Covers, the direction of the arrow on the Trim Fillers should point to the Magnetic Side Panel .
  • Page 16 Whiteboard or Felt Tackboard . Remove sticker After the Magnetic Side Panels installation is completed, install back the Whiteboard or Felt Tackboard (Refer to Amobi Desk User Guide on how to install the boards) and then remove the sticker on the screen . amqsolutions.com...

  • Page 17: Modesty Panel

    MODESTY PANEL COMPONENTS Modesty Panel 54’’Modesty Panel 44 .8’’(L) x 13’’(H) 60’’Modesty Panel 50 .8’’(L) x 13’’(H) amqsolutions.com AMOBI DESK INSTALLATION GUIDE | 17...

  • Page 18: Installing Modesty Panel To Amobi Desk

    Ensure that there is at least 15 inches (38 .1 cm) clearance from the ground . 15” Step 2 Align the Modesty Panel Stud to the Key-Hole under the Amobi Desk using both handles simultaneously . Stud Handles Step 3 Pull the Modesty Panel towards you until a “click”...
  • Page 19 INSTALLING MODESTY PANEL TO AMOBI DESK Step 4 Test if the Stud is engaged into the Internal Catch properly by gently moving the Modesty Panel at the mounting point back and forth . It should be firm . Internal Catch Step 5 Installation complete .

  • Page 20: Removing Modesty Panel From Amobi Desk

    REMOVING MODESTY PANEL FROM AMOBI DESK Step 1 Step 2 Using both handles simultaneously, push the Pull down Modesty Panel from Amobi Desk . Modesty Panel towards the back of the Amobi Desk until both Studs dismount from the internal catch .

  • Page 21: Monitor Arm

    (4 pcs) (4 pcs) (8 pcs) (1 pc) 1 . Quick Connect VESA Plate (1pc) 2 . Upper Arm Cover (1pc) 3 . Lower Arm Cover (1pc) 4 . Plastic Cable Ties (6pcs) amqsolutions.com AMOBI DESK INSTALLATION GUIDE | 21...

  • Page 22: Important Safety Instructions

    This product is intended for indoor use only . Use of this product outdoors could lead to product failure or personal injury . To ensure the sealing performance of the gas spring, NOTICE: we suggest adjusting the upper arm one or more times per month . amqsolutions.com AMOBI DESK INSTALLATION GUIDE | 22...

  • Page 23: Removing The Monitor Arm Cover

    REMOVING THE MONITOR ARM COVER Step 1 Use flat head screwdriver to gently pry open the Monitor Arm Cover at the notched recesses . Monitor Arm Cover notched recess Step 2 Remove Monitor Arm Covers . amqsolutions.com AMOBI DESK INSTALLATION GUIDE | 23...

  • Page 24: Installing The Monitor Arm

    • Maximum size 27” (measured diagonally) • VESA pattern: 75x75mm or 100x100mm Step 2 Remove the original fixed base of monitor, taking care not to scratch the screen . max 27" 100x100mm 75x75mm amqsolutions.com AMOBI DESK INSTALLATION GUIDE | 24...
  • Page 25 2 . Mount Monitor Display onto Monitor Arm and the lock is fastened . A click will be by slotting in from the top downwards . heard when it is properly fastened . Quick Connect VESA Plate Lock Connection Plate amqsolutions.com AMOBI DESK INSTALLATION GUIDE | 25...

  • Page 26: Adjusting The Monitor Arm

    Monitor Display cables . Reattach the Lower Arm Cover and secure it with the screw . Make sure all cables and cover are properly secured . Cables Step 4 Monitor Arm installation is complete . amqsolutions.com AMOBI DESK INSTALLATION GUIDE | 26...

  • Page 27: Removing The Monitor Display For Stowing

    VESA Plate from the Monitor Arm . Quick Release Lever Step 2 Quick Connect VESA Plate and Monitor Display must be removed before closing the worksurface, NOTE: or damage to the Desk may occur . amqsolutions.com AMOBI DESK INSTALLATION GUIDE | 27...

  • Page 28: Control Box Replacement

    CONTROL BOX REPLACEMENT COMPONENTS Control Box amqsolutions.com AMOBI DESK INSTALLATION GUIDE | 28...

  • Page 29: Replacing The Control Box

    Please unplug / disconnect power supply before replacing the Control Box . Step 1 Remove Whiteboard or Felt Tackboard (Refer to Amobi Desk User Guide on how to remove the boards) to access the Control Box . To avoid damage please...
  • Page 30 Mark the wire connectors, then unplug the wires and replace the Control Box . Replace the damaged Control Box . SWAP Step 6 Reconnect the wire connectors according to the marked positions . amqsolutions.com AMOBI DESK INSTALLATION GUIDE | 30...
  • Page 31 REPLACING THE CONTROL BOX Step 7 Insert the Control Box into the Amobi Desk by inclining from flat position to upright position . Widen the opening slightly by pulling the Bottom Trim downward to facilitate the Control Box installation .
  • Page 32 Box functions properly before reinstalling back the Whiteboard or Felt Tackboard . Step 11 Install back the Whiteboard or Felt Tackboard (Refer to Amobi Desk User Guide on how to install the boards) . To avoid damage please use two people NOTICE: while installing the Whiteboard or Felt Tackboard .
  • Page 33 Please contact cc@amqsolutions .com if you are missing any parts, have difficulty with assembly, or have any product related questions .
