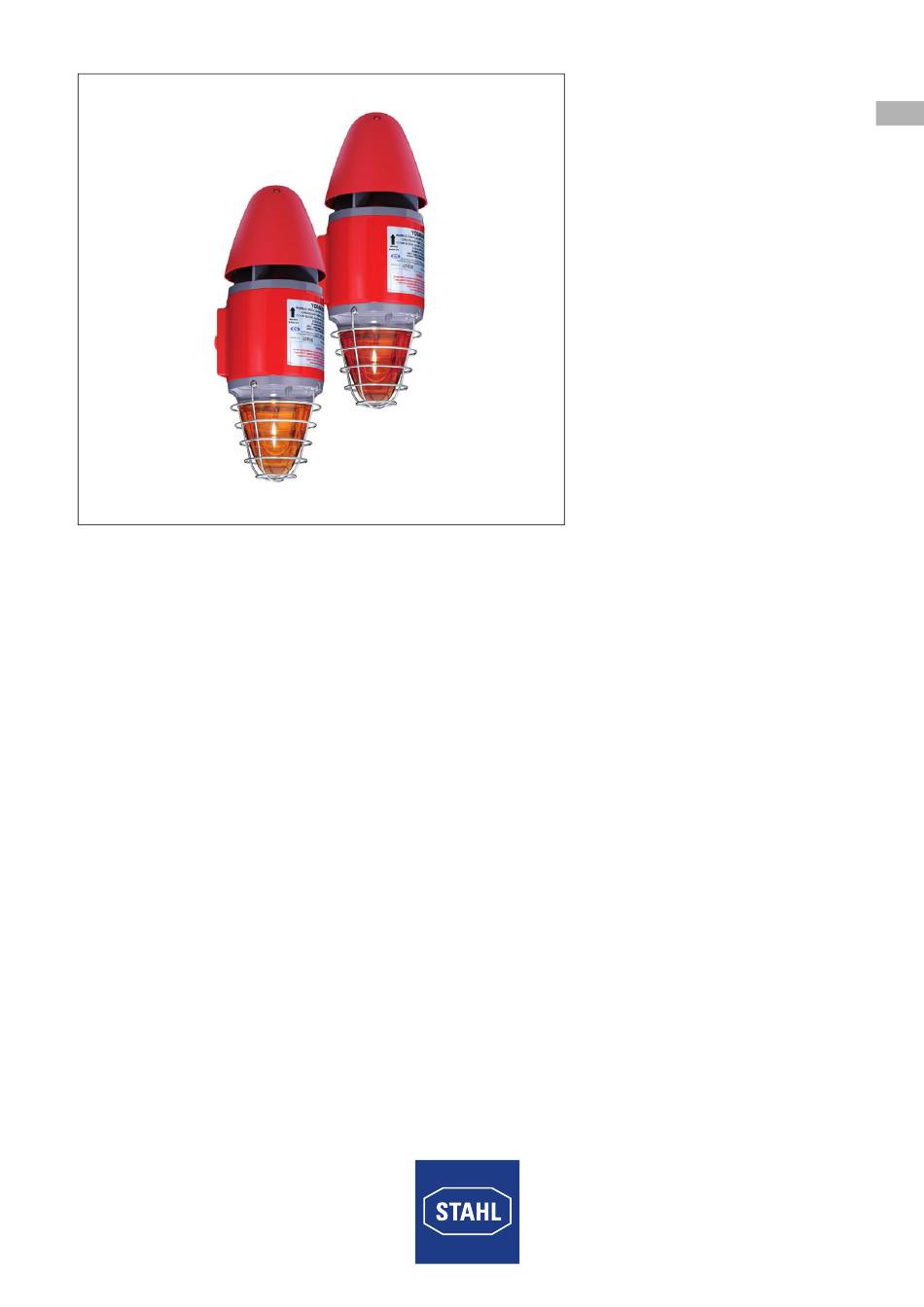

- Page 1 Operating instructions Additional languages www.r-stahl.com Explosion Proof Combination Signal - 110 dB (A) / 5 Joule Series YL60...
-
Page 2: Table Of Contents
10.2 Repair .......................23 10.3 Returning the device ..................24 Cleaning ......................24 Disposal ......................24 Accessories and spare parts ................24 General information Manufacturer R. STAHL Schaltgeräte GmbH R. STAHL Schaltgeräte GmbH Business Unit Lighting & Signalling Nordstr. 10 Am Bahnhof 30 99427 Weimar 74638 Waldenburg... -
Page 3: Information Regarding The Operating Instructions
• Data sheet For documents in additional languages, see www.r-stahl.com. Conformity with standards and regulations See certificates and EU Declaration of Conformity: www.r-stahl.com. The device has IECEx approval. For certificate please refer to the IECEx homepage: http://iecex.iec.ch/ Explanation of the symbols... -
Page 4: En 2.2 Warning Notes
Explanation of the symbols = Strobe = Sounder = Earth = Sounder Tone = Telephone initiate Warning notes Warnings must be observed under all circumstances, in order to minimize the risk due to construction and operation. The warning notes have the following structure: •... -
Page 5: Symbols On The Device
Safety notes Symbols on the device Symbol Meaning CE marking according to the current applicable directive. 05594E00 According to marking, device certified for hazardous areas. 02198E00 Input 15649E00 Output 15648E00 Safety notes Operating instructions storage • Read the operating instructions carefully and store them at the mounting location of the device. -
Page 6: Function And Device Design
Function and device design Function and device design DANGER Explosion hazard due to improper use! Non-compliance results in severe or fatal injuries. • Use the device only according to the operating conditions described in these operating instructions. Function The explosion proof combination signal series YL60 is an audible and visual signal. It provides an audible and/or visual signal intended to alert, warn or draw attention to an event. -
Page 7: En Technical Data
Technical data Technical data Explosion Protection Global (IECEx) Gas and dust IIB+H2 IECEx BAS 05.0087X IECEx BAS 05.0086X IIB+H2, IIB IEC 60079-0: 2011 / IEC 60079-1: 2007-04 / IEC 60079-31: 2008 IIB+H2 Ex d IIB+H2 T4 Gb (Ta = -20 … +60°C) Ex tb IIIC T135°C Db IP 66 (Ta = -20 …... - Page 8 Technical data Explosion Protection Certifications and certificates Certificates IECEx, ATEX, Brazil (INMETRO), India (PESO), Kazakhstan (TR), Russia (TR), Taiwan (ITRI), USA & Canada (cULus), Belarus (TR) Technical Data Technical data Product weight 6 kg Electrical data Rated operational 24 V DC, 48 V DC, 115 V AC and 230 V AC operational parameters + or -10 % voltage Rated operational 24 V DC...
-
Page 9: En 6 Transport And Storage
9.3 lumens Clear lens Flash energy Flash rate 60 FPM For further technical data, see www.r-stahl.com. Transport and storage • Transport and store the device only in the original packaging. • Store the device in a dry place (no condensation) and vibration-free. -
Page 10: En En
Mounting and installation Mounting and installation Dimensions / fastening dimensions Dimensional Drawings (All Dimensions in mm [inches]) – Subject to Alterations 18380E00 Explosion Proof Combination Signal - 222936 / YL6060300020 110 dB (A) / 5 Joule 2018-04-13·BA00·III·en·01 Series YL60... -
Page 11: Mounting / Dismounting, Operating Position
Mounting and installation Mounting / dismounting, operating position DANGER Risk of explosion! Risk of injuries and material damage! • Terminal sleeves are fitted, they must be gas-tight and applied with a suitable tool. DANGER Explosion hazard! Risk of injuries and material damage! •... - Page 12 Mounting and installation 7.2.2 Access to the PCB 1 Screws ST 4,2 x 13 2 Horn cover 3 Cheese-head screws M5 x 16 4 Sounder flange 5 PCB 6 Enclosure 15256E00 • Remove the 3 screwST 4,2 x 13 • Lift horn cover •...
- Page 13 Mounting and installation 7.2.3 Reassembly of enclosure Inserting the PCB For correct positioning of the PCB there are 2 grooves in the enclosure. Depending on the version, insert the PCB in the corresponding groove! 18814E00 18813E00 • YL60/./D50/./.. • YL60/./L50/./.. •...
- Page 14 Mounting and installation 7.2.4 Electrical connection Key Components 15257E00 15258E00 Key components YL60 DC Key components YL60 AC Legend 7 = Terminal blocks 8 = Connector for sounder 9 = Tone selection switch (ton table) 10 = Link for combined function (DC-version only) Link connected: •...
- Page 15 Mounting and installation Interconnection of devices parallel Up to 10 devices with common supplies may be connected as a single system loop. Circuit diagrams Line monitoring for devices with DC • Through reverse polarity • By connecting an EOL resistor between 0 V and +V. The resistance value is defined by the system developer.
- Page 16 Mounting and installation Connection to a 2-wire conductor - second tone by reverse polarity Tone 1 Tone 2 18404E00 18403E00 Independent function of sounder and strobe Connection to a 4-wire conductor Remove jumper from LK1 and LK2 15266E00 Connection: • Strobe TB1 •...
- Page 17 Mounting and installation AC version Combined function of sounder and strobe with one signal tone Connection to a 2-wire conductor Bridge TB1 and TB2 using a conductor. 18414E00 Combined function of sounder and strobe with two signal tones Connection to a 3-wire conductor Tone 1 Tone 2 18407E00...
- Page 18 Mounting and installation Combined function of sounder and strobe - activation by telephone signal Sounder and strobe are activated by a telephone signal. The function is retained as long as the telephone signal is available. The strobe can flash up to four times after deactivating the telephone signal.
- Page 19 Mounting and installation 7.2.6 Sound tone selection • For signal tone selection and its switch positions refer to the table below. • Check if the correct switch positions of the selected signal tones have been selected. Tone table Sound Repeti- Tone Version Frequency...
- Page 20 Mounting and installation Tone table Tone Interrupted tone 00110 6/12 Important message, Sweden Tone Interrupted tone 1000 11010 Tone Interrupted tone 01010 Air-raid alarm, Sweden Tone Interrupted tone 10010 0.25 Local warning, Sweden Tone Interrupted tone 00010 0.7/0.3 Industrial alarm, Germany Tone Interrupted, fast, 1400...
-
Page 21: Installation
Commissioning Installation WARNING Danger of electric shock due to energised parts! Non-compliance can result in severe or fatal injuries. • All connections and wiring must be disconnected from the power supply. • Secure the connections against unauthorized switching. DANGER Explosion hazard! Risk of injuries and material damage! •... -
Page 22: En Operation
If an error occurs please re-visit the earlier sections of this document. If the error cannot be eliminated using the mentioned procedures: • Contact R. STAHL Schaltgeräte GmbH. For fast processing, have the following information ready: • Type and serial number •... -
Page 23: En 10.1 Maintenance
DANGER Explosion hazard due to improper repair! Non-compliance results in severe or fatal injuries. • Repair work on the devices must be performed only by R. STAHL Schaltgeräte GmbH. 222936 / YL6060300020 Explosion Proof Combination Signal - 2018-04-13·BA00·III·en·01 110 dB (A) / 5 Joule... -
Page 24: 10.3 Returning The Device
• Only return or package the devices after consulting R. STAHL! Contact the responsible representative from R. STAHL. R. STAHL's customer service is available to handle returns if repair or service is required. • Contact customer service personally. • Go to the www.r-stahl.com website.
