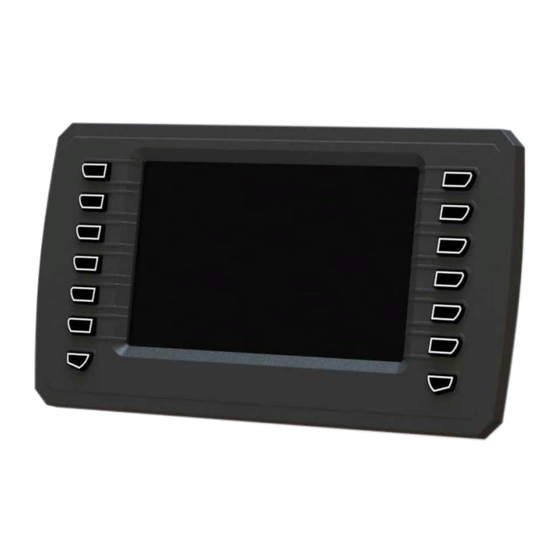

- Page 1 Eaton VFX Product Family Installation and Operation Manual VFX Product Line...
- Page 2 A limited warranty is given with these Eaton products. since the potential for error exists, we can provide no assurance of the Please see our website for details. absolute accuracy of its contents. http://www.eaton.com/Eaton/ProductsServices/Hydraulics/ WarrantyTermsConditions/PCT_612027 EATON VFX Product Family Installation and Operation Manual E-ELCL-II003-E1 October 2014...
-
Page 3: Table Of Contents
Input Modes 14.3 Analog Configuration 14.4 Sample Rate And Count 14.5 Frequency Configuration 14.6 CAN & SAE J1939 15.0 APPENDIX 15.1 Supported & Unsupported CODESYS Features 16.0 DEVICE COMMUNICATION TROUBLESHOOTING EATON VFX Product Family Installation and Operation Manual E-ELCL-II003-E1 November 2014... - Page 4 (THIS PAGE INTENTIONALLY LEFT BLANK) EATON VFX Product Family Installation and Operation Manual E-ELCL-II003-E1 October 2014...
-
Page 5: Introduction
They are intended as displays for mobile and industrial applications, as well as being the centerpiece to a complete control solution, including other CAN-based devices. EATON VFX Product Family Installation and Operation Manual E-ELCL-II003-E1 November 2014... -
Page 6: Technical Specifications
LED, 500-650 cd/m2 (30,000 hr lifetime) Sunlight Viewability Direct sunlight Touch Interface (Optional Feature) Touch Screen Technology (VFX70m only) Projected capacitive Video Interface (Optional Feature) Video Type 2 NTSC/PAL EATON VFX Product Family Installation and Operation Manual E-ELCL-II003-E1 October 2014... - Page 7 Digital Output – 500 mA Type Low Side Amperage 500 mA Max Diagnostics Open/Short circuit protection Mating Connector – 4 x 6 pin Manufacturer Deutsch Model DT06-6S Contact Surface Nickel plated EATON VFX Product Family Installation and Operation Manual E-ELCL-II003-E1 November 2014...
-
Page 8: Vfx70M
TYP. ~ 9 sec. to logo, 17 sec. to first screen Wake (ignition switched) TYP. ~1 sec. CAN Interface 1 CAN Specification 2.0 A, 2.0 B Baud Rates Configurable 125 KBPS, 250 KBPS, 500 KBPS or 1 MBPS EATON VFX Product Family Installation and Operation Manual E-ELCL-II003-E1 October 2014... - Page 9 Type Square wave Duty Cycle 50%, non-adjustable Frequency Range 2 Hz to 3 kHz Mating Connector – (2) 23 pin Manufacturer AMPSEAL Model AMP770680-1, AMP770680-4 Contact Surface Nickel plated EATON VFX Product Family Installation and Operation Manual E-ELCL-II003-E1 November 2014...
-
Page 10: Key Features
Please note: These displays require the installation of appropriate firmware and a hardware-specific description file and libraries 1 Analog Input • before initial use in the application environment. Video – Optional • EATON VFX Product Family Installation and Operation Manual E-ELCL-II003-E1 October 2014... -
Page 11: Software Description
Control Package Manager. Once it is installed, any of the VFX devices can be used within Pro-FX Control. Gateway file: Gateway.cfg defines how Pro-FX • Control connects to the VFX device. EATON VFX Product Family Installation and Operation Manual E-ELCL-II003-E1 November 2014... -
Page 12: Install Pro-Fx Control
8.4.2 Click the “Install…” button. page is displayed. 8.4.3 Highlight the VFX package file and select Open. 8.4.4 Follow the prompts to finish the installation. Close the Package Manager. EATON VFX Product Family Installation and Operation Manual E-ELCL-II003-E1 October 2014... -
Page 13: Software Update With Usb Drive (Firmware, Application, Logo)
10.1.6 For each option (Firmware, Application, Logo) present on the USB drive, the display will prompt the user to press the bottom left button to update that option. Each prompt will time out after 5 seconds. EATON VFX Product Family Installation and Operation Manual E-ELCL-II003-E1 November 2014... -
Page 14: Functionality And Basic Operation
IEC program execution. Status • 11.3 Watchdog Operation This watchdog monitors the specific task. The time is user configurable via the ‘Task Configuration/ MainTask’ tab – see screen below. EATON VFX Product Family Installation and Operation Manual E-ELCL-II003-E1 October 2014... -
Page 15: Remanent Variables
Reset cold flat surface with connector facing down. Use four <application> standard threaded fasteners (6-32) to secure the Reset origin display to the surface. <application> Download <application> VFX40m Dimensional data EATON VFX Product Family Installation and Operation Manual E-ELCL-II003-E1 November 2014... -
Page 16: Recommended Wiring Practices
! Warning: Prior to Welding In order to avoid damaging the HFX controller ensure that all electrical connectors are fully disconnected from the HFX controller prior to welding on the machine. EATON VFX Product Family Installation and Operation Manual E-ELCL-II003-E1 October 2014... -
Page 17: Electrical Connection Information
CAN1 H Video Ground 2 (*Not Connected) CAN1 L Not Connected Open-Drain Battery Output Not Connected Ignition Input Video Input 2 (*Not Connected) Ground Video Input 1 (*Not Connected) EATON VFX Product Family Installation and Operation Manual E-ELCL-II003-E1 November 2014... -
Page 18: Wiring Pin Out Vfx70M
USB D+ CAN2 L USB 5 V CAN2 H USB Ground Digital Input 4 USB Shield Digital Input 5 Not Connected Digital Output Not Connected Not Connected Not Connected EATON VFX Product Family Installation and Operation Manual E-ELCL-II003-E1 October 2014... -
Page 19: Configuration
Note: The variable radio button “Always update variables” should be checked. If this is deselected, only variables used by the IEC application will be updated. EATON VFX Product Family Installation and Operation Manual E-ELCL-II003-E1 November 2014... -
Page 20: Analog Configuration
Digital value after debounce and • rising/falling voltage thresholds are applied. Above is the Analog Inputs Configuration tab. EATON VFX Product Family Installation and Operation Manual E-ELCL-II003-E1 October 2014... -
Page 21: Sample Rate And Count
For Digital, the following Configuration screen will appear: The Sample Rate can be set or changed in the Value column. Double click the value and change if desired. EATON VFX Product Family Installation and Operation Manual E-ELCL-II003-E1 November 2014... - Page 22 The Digital Inputs/Outputs I/O Mapping screen will appear as follows: For Analog, the following Configuration screen will appear: The Sample Rate can be set or changed in the Value column. Double click the value and change if desired. EATON VFX Product Family Installation and Operation Manual E-ELCL-II003-E1 October 2014...
-
Page 23: Frequency Configuration
The tab displays the following: the Mapping, Channel, Address, Type, Unit and Description for Frequency In and Frequency Out. Above is the Frequency Inputs/Output Configuration tab. This tab allows the user to configure the frequency I/O channels Sample Rate and Avg Count. EATON VFX Product Family Installation and Operation Manual E-ELCL-II003-E1 November 2014... -
Page 24: Can & Sae J1939
(i.e. from your code). Cyclic is the more traditional J1939 method and better for testing. EATON VFX Product Family Installation and Operation Manual E-ELCL-II003-E1 October 2014... -
Page 25: Appendix
9. Text editor 10. Write values 10. Path3D 11. Create boot application 11. Cam displayer 12. Visualization 12. Task timing – external event 13. Task monitor EATON VFX Product Family Installation and Operation Manual E-ELCL-II003-E1 November 2014... -
Page 26: Device Communication Troubleshooting
PC. 5. Stop and start the gateway. Plug and unplug the USB port. 6. Restart Pro-FX Control. 7 . Restart your PC. EATON VFX Product Family Installation and Operation Manual E-ELCL-II003-E1 October 2014... - Page 27 Tel: +41 (0) 21 811 4600 Shanghai 200335 Fax: 952-294-7722 Fax: +41 (0) 21 811 4601 China www.eaton.com/hydraulics Tel: (+86 21) 5200 0099 Fax: (+86 21) 2230 7240 © 2014 Eaton All Rights Reserved Printed in USA Document No. E-ELCL -II003-E1 November 2014...
