4. Electrical connection
A maximum length of 300 m cable between sensor and transmitter should not be exceeded.

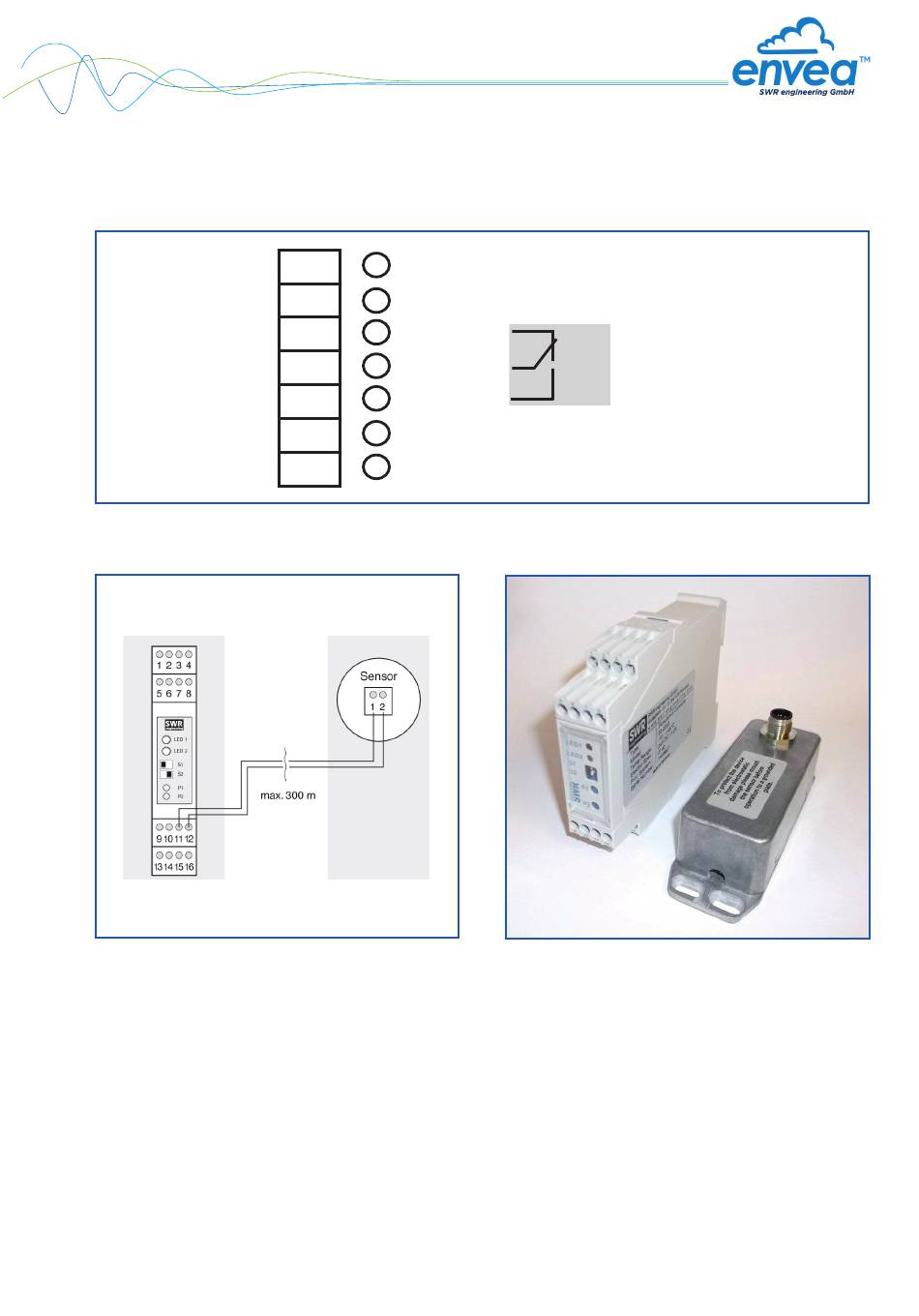

Fig. 3: Wiring diagram for DIN Rail electronic
Fig. 4: Wiring of sensor and DIN Rail electronic
−
3
+
4
6
Relay NC
7
Relay COM
8
Relay NO
11
Sensor power suppy GND
12
Sensor power suppy + 12 V
Power supply 0 VDC
Power supply 24 VDC
Relay
Fig. 5: FlowJam A and DIN Rail electronic
6
