1. Function

The radar flow detector FlowJam A indicates the flow of bulk materials
which moves through the detection range at a minimal
required speed of 0.1 m/s.
The detection is executed by evaluating
the Doppler' s effect, thus independent
of the flow direction.
The material flow is indicated by relays.
The sensor distinguishes between
two conditions:
material flow
•
material jam or standstill.
•
The Flowjam A is suitable for hose
diameters between 2 and 10 mm
(hoses with with metal inlay or liners cannot be used)

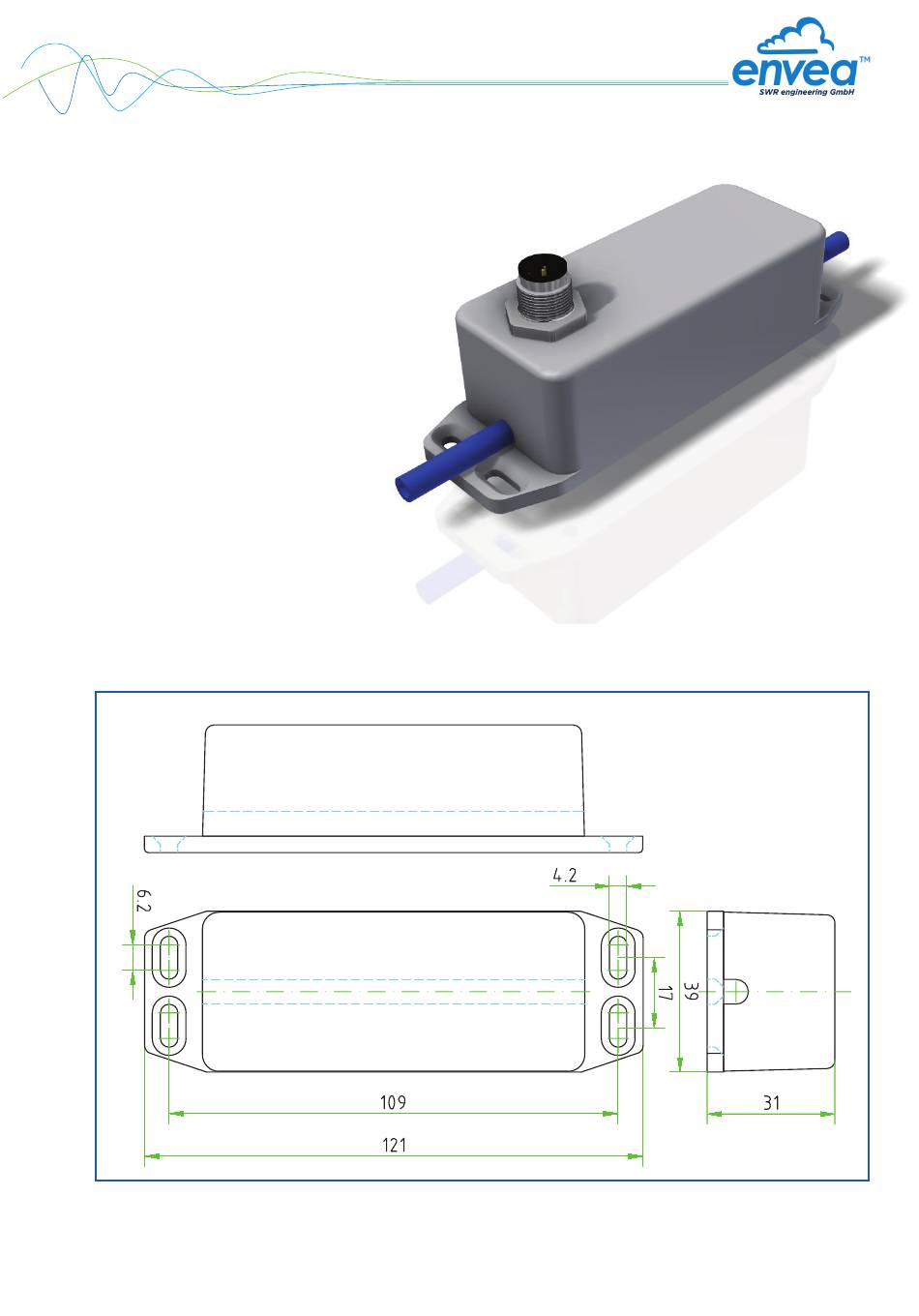

Fig. 1: Dimensional drawing
