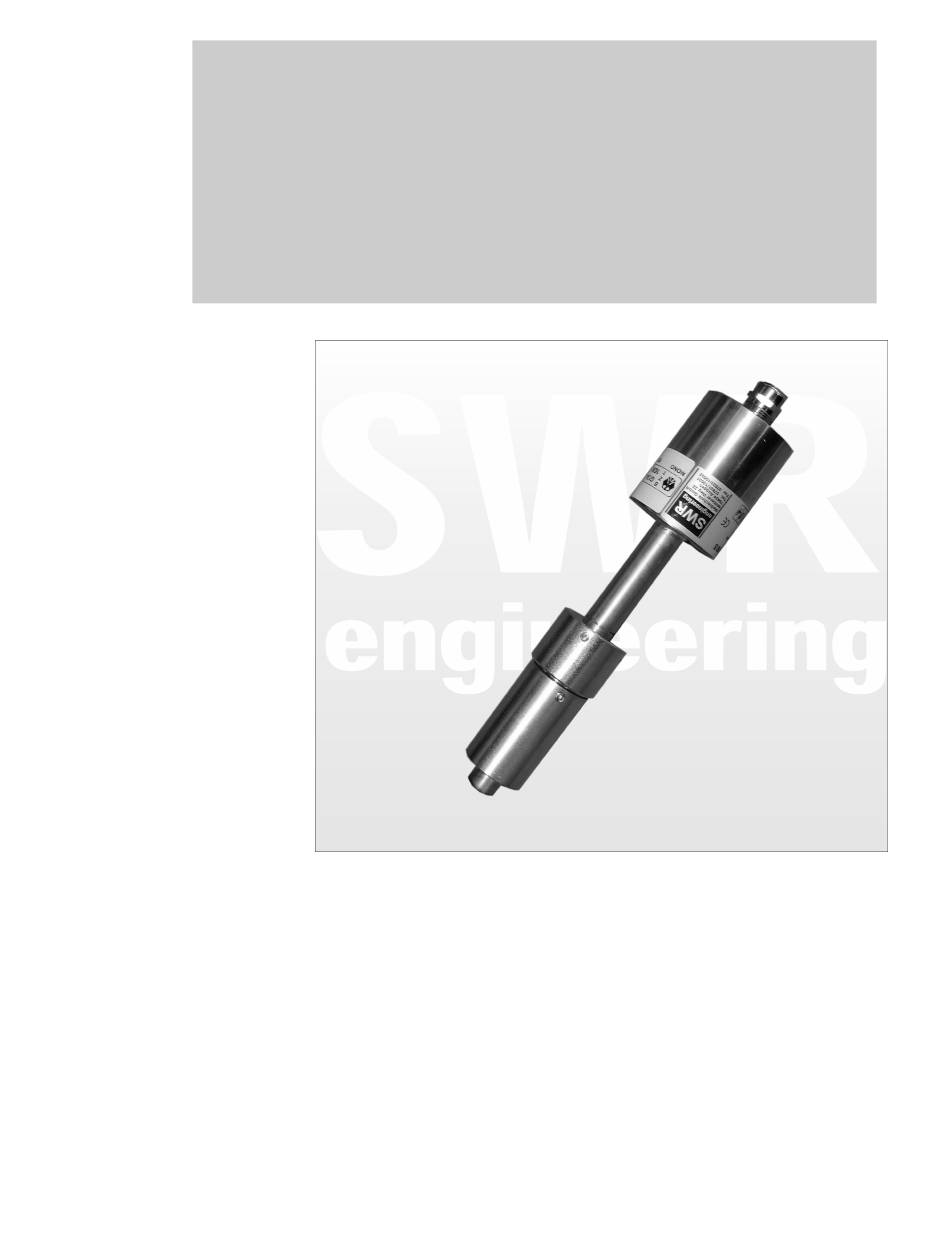

- Page 1 Operating Instructions SOLIDFLOW SWR engineering Messtechnik GmbH Mittlerer Weg 22 D - 79424 Auggen Germany +49 7631 10501 +49 7631 10502 eMail info@swr-engineering.com BA-0003-e-03/02...
-
Page 2: Table Of Contents
System overview 1. SYSTEM OVERVIEW 2. FUNCTION 3. SAFETY 3.1 Regular use 3.2 Identification of dangers 3.3 Operational safety 3.4 Technical progress 4. MOUNTING AND INSTALLATION 4.1 Delivery range 4.2 Auxiliary 4.3 Mounting of the sensor 4.4 Mounting of the transmitter unit 5. - Page 3 System overview 11. TECHNICAL DATA Page 3...
-
Page 4: System Overview
System overview 1. System overview Overview of the measuring system separated version ← Max. 1.5 m → ← up to 1000 m → sensor pre-amplifier evaluation unit Overview of the measuring system compact version ← Max. 1.5 m → sensor evaluation unit Page 4... -
Page 5: Function
Function 2. Function SolidFlow is a measuring system especially developed for measuring the flow rate of pneumatically conveyed solids in metallic ducts. The microwave energy is being back scattered by the solid particles and received by the sensor. These signals are evaluated in frequency and amplitude. Because of the selective frequency evaluation only moving particles are measured. -
Page 6: Safety
Safety 3. Safety The measuring system SolidFlow was designed, built and tested to be safe and was shipped in safe condition. Nevertheless persons or objects may be endangered by components of the system if these are operated in an inexpert manner. Therefore the operational instructions must be read completely and the safety notes must be followed. -
Page 7: Mounting And Installation
Mounting and installation 4. Mounting and installation 4.1 Delivery range • Evaluation unit, version as ordered. • Weld on sensor accommodation. • Hook wrench for the union nut. • Sensor, prepared to the wall thickness (union nut, distance washers, seal-ring). •... - Page 8 Mounting and installation • Weld the sensor accommodation on to the duct. • Drill the Ø 20 mm hole into the duct. Please use your own drill as there are different shafts available. Take care that the hole is in line and rectangular to the surface to avoid trouble by inserting the sensor.
- Page 9 Mounting and installation • Now the sensor is put into the sensor accommodation and screwed with the union nut according to figure 6a. union nut circlip for shafts distance washer(s) 1mm O-ring type sealing ring not applicable sensor accommodation sensor headless screw 3 mm guide washer 1mm Fig.
-
Page 10: Mounting Of The Transmitter Unit
Mounting and installation 4.4 Mounting of the transmitter unit The transmitter unit is available in two versions: As compact version: All the electronic equipment (power supply, pre-amplifier and evaluation unit in one field housing) can be installed at a maximum distance of 1.5 m from the sensor. The housing is prepared for wall mounting.
