Water Pump - BMW N62 Series Service Training

New Generation N62 Engine

- Water pump

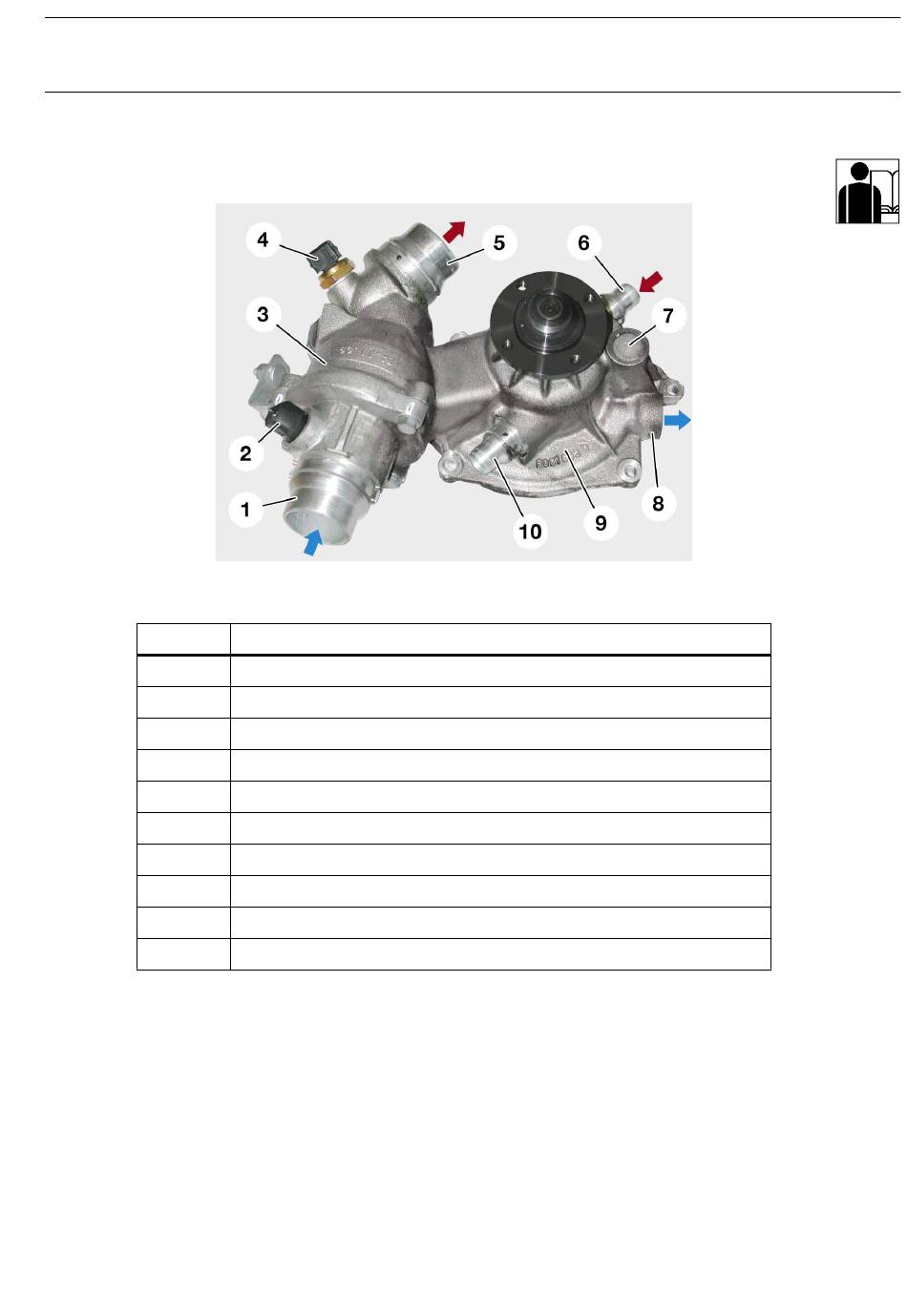

Fig. 48: Water pump
Index
1
2
3
4
5
6
7
8
9
10
The water pump is combined with the thermostat housing and is
screwed to the timing case lower section.
© BMW AG, Service Training
Description
Map-controlled thermostat (radiator return flow)
Electrical connection for map-controlled thermostat heating element
Thermostat mixing chamber (in water pump)
Temperature sensor (engine outlet temperature)
Radiator in-flow
Heat exchanger transmission oil return flow
Leakage chamber (evaporation space)
Alternator in-flow
Water pump
Expansion tank connection
