BMW N13 Technical Training Manual
  1. Manuals
  2. Brands
  3. BMW Manuals
  4. Engine
  5. N13
  6. Technical training manual

BMW N13 Technical Training Manual

Hide thumbs

Advertisement

Quick Links

Technical￿training.
Product￿information.
N13￿Engine.
BMW￿Service

Advertisement

loading
Need help?

Need help?

Do you have a question about the N13 and is the answer not in the manual?

Questions and answers

Related Manuals for BMW N13

Summary of Contents for BMW N13

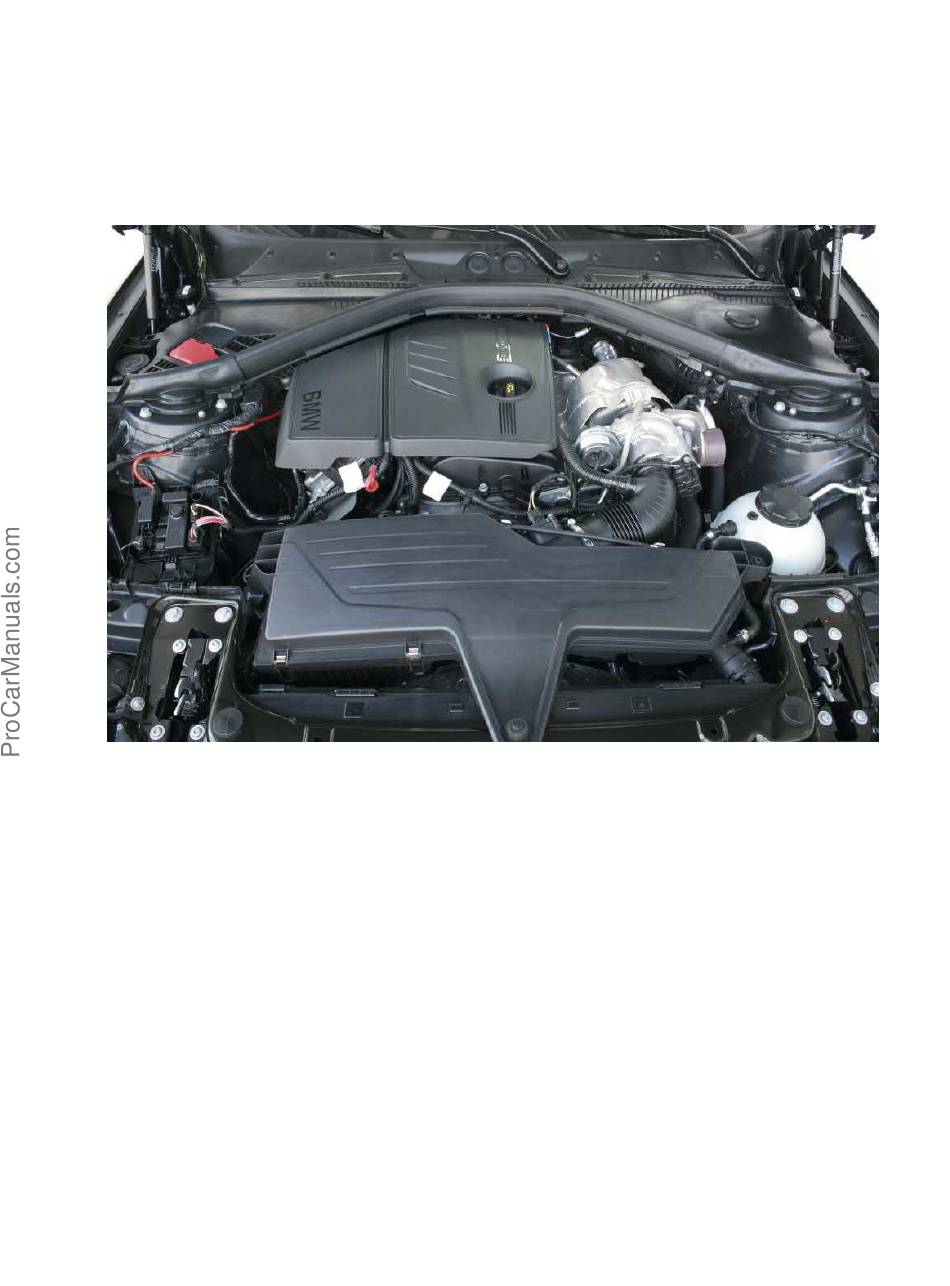

  • Page 1 Technical￿training. Product￿information. N13￿Engine. BMW￿Service...
  • Page 2 General￿information Symbols￿used The￿following￿symbol￿is￿used￿in￿this￿document￿to￿facilitate￿better￿comprehension￿or￿to￿draw￿attention to￿very￿important￿information: Contains￿important￿safety￿information￿and￿information￿that￿needs￿to￿be￿observed￿strictly￿in￿order￿to guarantee￿the￿smooth￿operation￿of￿the￿system. Information￿status￿and￿national-market￿versions BMW￿Group￿vehicles￿meet￿the￿requirements￿of￿the￿highest￿safety￿and￿quality￿standards.￿Changes in￿requirements￿for￿environmental￿protection,￿customer￿benefits￿and￿design￿render￿necessary continuous￿development￿of￿systems￿and￿components.￿Consequently,￿there￿may￿be￿discrepancies between￿the￿contents￿of￿this￿document￿and￿the￿vehicles￿available￿in￿the￿training￿course. This￿document￿basically￿relates￿to￿the￿European￿version￿of￿left￿hand￿drive￿vehicles.￿Some￿operating elements￿or￿components￿are￿arranged￿differently￿in￿right-hand￿drive￿vehicles￿than￿shown￿in￿the graphics￿in￿this￿document.￿Further￿differences￿may￿arise￿as￿the￿result￿of￿the￿equipment￿specification￿in specific￿markets￿or￿countries. Additional￿sources￿of￿information Further￿information￿on￿the￿individual￿topics￿can￿be￿found￿in￿the￿following: • Owner's￿Handbook • Integrated￿Service￿Technical￿Application. Contact:￿conceptinfo@bmw.de ©2011￿BMW￿AG,￿Munich,￿Germany Reprints￿of￿this￿publication￿or￿its￿parts￿require￿the￿written￿approval￿of￿BMW￿AG,￿Munich The￿information￿contained￿in￿this￿document￿forms￿an￿integral￿part￿of￿the￿technical￿training￿of￿the BMW￿Group￿and￿is￿intended￿for￿the￿trainer￿and￿participants￿in￿the￿seminar.￿Refer￿to￿the￿latest￿relevant information￿systems￿of￿the￿BMW￿Group￿for￿any￿changes/additions￿to￿the￿technical￿data. Contact Gernot￿Nehmeyer Telephone￿+49￿(0)￿89￿382￿34059 gernot.nehmeyer@bmw.de Information￿status:￿June￿2011...
  • Page 3 N13￿Engine. Contents. Introduction................................................1.1. Models ..............................................1.2. Technical￿data ..........................................1.2.1. BMW￿116i ......................................1.2.2. BMW￿118i ......................................1.3. New￿features/changes ....................................1.3.1. Overview ......................................1.4. Engine￿identification ..................................... 1.4.1. Engine￿designation ............................... 1.4.2. Engine￿identification ..............................Engine￿Mechanics..........................................2.1. Engine￿housing ........................................2.1.1. Engine￿block .................................... 2.1.2.

  • Page 4: Table Of Contents

    N13￿Engine. Contents. 3.5. Oil￿spray￿nozzles ......................................... 3.5.1. Piston￿crown￿cooling ..............................3.5.2. Timing￿chain￿lubrication ............................Cooling..................................................4.1. Overview ............................................4.2. Heat￿management ......................................4.2.1. Friction￿gear￿servodrive ............................4.2.2. Map￿thermostat .................................. 4.2.3. Heat￿management￿function ..........................Air￿Intake/Exhaust￿Emission￿Syst................................5.1. Overview ............................................5.2. Air￿intake￿system ........................................ 5.2.1. Hot￿film￿air￿mass￿meter ............................5.2.2.
  • Page 5 N13￿Engine. 1.￿Introduction. With￿the￿N13￿engine￿Turbo-Valvetronic￿Direct￿Injection￿(TVDI)￿technology￿is￿making￿its￿first appearance￿in￿BMW's￿small￿4-cylinder￿petrol￿engines.￿The￿N13￿engine￿is￿gradually￿replacing￿the N46￿and￿N43￿4-cylinder￿engines￿in￿the￿performance￿classes￿below￿the￿x20i.￿A￿TwinScroll￿exhaust turbocharger￿optimises￿the￿response￿characteristics￿and￿delivers￿power￿already￿at￿low￿engine￿speeds. The￿N13￿engine￿is￿closely￿related￿to￿the￿N18￿engine,￿which￿drives￿the￿MINI￿COOPER￿S.￿The￿basic engine￿is￿essentially￿the￿same￿-￿with￿just￿minor￿modifications.￿The￿peripherals￿have￿been￿adapted￿to longitudinal￿installation￿in￿BMW￿models.￿A￿special￿feature￿for￿BMW￿is￿the￿switching￿of￿the￿intake￿and exhaust￿sides￿in￿the￿vehicle.￿Thus,￿for￿the￿first￿time￿in￿a￿BMW￿vehicle,￿the￿exhaust￿side￿is￿on￿the￿left side￿when￿viewed￿in￿the￿direction￿of￿travel. This￿document￿only￿describes￿the￿two￿versions￿as￿are￿used￿as￿at￿September￿2011￿in￿the￿BMW￿1 Series,￿F20. 1.1.￿Models Model￿designation Engine￿designation Series￿introduction BMW￿116i N13B16U0 09/2011 BMW￿118i N13B16M0 09/2011 1.2.￿Technical￿data 1.2.1.￿BMW￿116i Unit N13B16U0 N45B16O2 N43B16O0 N43B20K0 Series Model￿designation 116i 116i 116i 116i Design Displacement [cm³] 1596...
  • Page 6 N13￿Engine. 1.￿Introduction. Unit N13B16U0 N45B16O2 N43B16O0 N43B20K0 Fuel￿consumption [l/100 complying￿with￿EU ￿emissions [g/km] Digital￿Engine￿Electronics MSD81.2 MSD81.2 MEVD17.2.5 Exhaust￿emissions EURO￿5 EURO￿5 EURO￿5 EURO￿5 legislation Maximum￿speed [km/h] Acceleration￿0–100 km/h 10.9 10.2 Vehicle￿kerb￿weight￿DIN/ [kg] 1255/1330 1255/1330 1255/1330 1290/1365 *￿In￿all￿non-ACEA￿markets￿(Association￿des￿Constructeurs￿Européens￿d’Automobiles) **￿Only￿in￿ACEA￿markets ***￿From￿March￿2009￿in￿some￿ACEA￿markets...
  • Page 7 N13￿Engine. 1.￿Introduction. Full￿load￿diagram￿N13/N45￿engine Full￿load￿diagram￿comparing￿N13B16U0￿engine￿with￿N45B16O2￿engine...
  • Page 8 N13￿Engine. 1.￿Introduction. Full￿load￿diagram￿N13/N43￿engine Full￿load￿diagram￿comparing￿N13B16U0￿engine￿with￿N43B20K0￿engine 1.2.2.￿BMW￿118i Unit N46B20U2* N43B20O0** N13B16M0 Series Model￿designation 118i 118i 118i Design Displacement [cm³] 1995 1995 1598 Bore/stroke [mm] 84/90 84/90 77/85.8 Power￿output [kW￿(HP)] 100￿(136) 125￿(170) 125￿(170) at￿engine￿speed [rpm] 5750 6700 4800...
  • Page 9 N13￿Engine. 1.￿Introduction. Unit N46B20U2* N43B20O0** N13B16M0 Power￿output￿per￿litre [kW/l] 50.1 62.66 78.2 Torque [Nm] at￿engine￿speed [rpm] 4300 4250 1500￿–￿4500 Compression￿ratio [ε] 10.5￿:￿1 12.0￿:￿1 10.5￿:￿1 Valves￿per￿cylinder Fuel￿consumption￿complying [l/100￿km] with￿EU ￿emissions [g/km] Digital￿Engine￿Electronics MEV17 MSD81.2 MEVD17.2.5 Exhaust￿emissions￿legislation EURO￿5 EURO￿5 EURO￿5 Maximum￿speed [km/h] Acceleration￿0–100 km/h Vehicle￿kerb￿weight￿DIN/EU...
  • Page 10 N13￿Engine. 1.￿Introduction. Full￿load￿diagram￿N13/N46￿engine Full￿load￿diagram￿comparing￿N13B16M0￿engine￿with￿N46B20U2￿engine...
  • Page 11 N13￿Engine. 1.￿Introduction. Full￿load￿diagram￿N13/N43￿engine Full￿load￿diagram￿comparing￿N13B16M0￿engine￿with￿N43B20O0￿engine...
  • Page 12 N13￿Engine. 1.￿Introduction. 1.3.￿New￿features/changes 1.3.1.￿Overview System Comment Engine￿mechanics • Aluminium￿crankcase￿with￿cast-in￿grey￿cast￿iron￿liners • Open-deck￿design • Use￿of￿the￿TVDI￿process • 3rd￿generation￿Valvetronic • Built-up￿camshafts • Two-part￿crankcase￿ventilation • Forged￿crankshaft Oil￿supply • Map-controlled￿oil￿pump • External￿gear￿pump • Raw￿oil￿cooling￿(N13B16M0￿engine￿only) • Oil￿pressure￿sensor. Cooling • Cutting-in￿coolant￿pump • Established￿heat￿management. Air￿intake￿and￿exhaust • TwinScroll￿exhaust￿turbocharger emission￿systems •...
  • Page 13 N13￿Engine. 1.￿Introduction. In￿the￿technical￿documentation,￿the￿engine￿designation￿is￿used￿to￿ensure￿unambiguous￿identification of￿the￿engine. The￿technical￿documentation￿also￿contains￿the￿short￿form￿of￿the￿engine￿designation￿N13,￿which￿only indicates￿the￿engine￿type. Breakdown￿of￿N13￿engine￿designation Index Explanation BMW￿Group￿Development 4-cylinder￿in-line￿engine Engine￿with￿exhaust￿turbocharger,￿Valvetronic￿and￿direct￿fuel￿injection (TVDI) Petrol￿engine,￿longitudinally￿installed 1.6￿litres￿displacement Lower/middle￿performance￿class New￿development 1.4.2.￿Engine￿identification The￿engines￿have￿an￿identification￿mark￿on￿the￿crankcase￿to￿ensure￿unambiguous￿identification￿and classification.￿This￿engine￿identification￿is￿also￿necessary￿for￿approval￿by￿government￿authorities.￿The first￿six￿positions￿of￿the￿engine￿identification￿correspond￿to￿the￿engine￿designation. With￿the￿N55￿engine,￿this￿identification￿was￿subject￿to￿a￿further￿development,￿with￿the￿previous eight￿positions￿being￿reduced￿to￿seven.￿The￿engine￿number￿can￿be￿found￿on￿the￿engine￿below￿the engine￿identification.￿This￿consecutive￿number,￿in￿conjunction￿with￿the￿engine￿identification,￿permits unambiguous￿identification￿of￿each￿individual￿engine.
  • Page 14 N13￿Engine. 1.￿Introduction. N13￿engine,￿engine￿identification￿and￿engine￿number Index Explanation A4241912 Individual￿consecutive￿engine￿number BMW￿Group￿Development 4-cylinder￿in-line￿engine Engine￿with￿exhaust￿turbocharger,￿Valvetronic￿and￿direct￿fuel￿injection￿(TVDI) Petrol￿engine,￿longitudinally￿installed 1.6￿litres￿displacement Type￿test￿concerns,￿standard...
  • Page 15 N13￿Engine. 2.￿Engine￿Mechanics. 2.1.￿Engine￿housing The￿engine￿housing￿comprises￿the￿engine￿block￿(crankcase￿and￿bedplate),￿the￿cylinder￿head,￿the cylinder￿head￿cover,￿the￿oil￿sump￿and￿the￿gaskets. N13￿engine,￿structure￿of￿engine￿housing Index Explanation Cylinder￿head￿cover Cylinder￿head￿cover￿gasket Cylinder￿head Cylinder￿head￿gasket...
  • Page 16 N13￿Engine. 2.￿Engine￿Mechanics. Index Explanation Crankcase Sealant Bedplate Sealant Oil￿sump 2.1.1.￿Engine￿block The￿engine￿block￿is￿made￿from￿diecast￿aluminium￿AlSi9Cu3￿and￿comprises￿the￿crankcase￿and the￿bedplate.￿The￿same￿material￿has￿already￿been￿used￿in￿the￿established￿4-cylinder￿engines￿with aluminium￿crankcases. Oil￿ducts N13￿engine,￿oil￿ducts Index Explanation Clean￿oil￿duct Oil￿return￿ducts Blow-by￿ducts Clean￿oil￿duct Oil￿return￿(filter￿renewal) Raw￿oil￿duct The￿oil￿flowing￿back￿through￿the￿oil￿return￿ducts￿(2)￿is￿routed￿directly￿into￿the￿oil￿sump￿and￿therefore cannot￿come￿into￿contact￿with￿the￿crankshaft.￿The￿blow-by￿channels￿(3)￿already￿end￿before￿the crankshaft￿and￿facilitate￿a￿good￿gas￿exchange￿to￿the￿cylinder￿head￿cover.
  • Page 17 N13￿Engine. 2.￿Engine￿Mechanics. Coolant￿ducts The￿engine￿block￿is￿an￿open-deck￿design.￿The￿coolant￿flows￿from￿the￿coolant￿pump￿to￿the￿right￿side of￿the￿engine￿block.￿The￿take-off￿from￿the￿cooling￿jacket￿to￿the￿oil-to-water￿heat￿exchanger￿is￿located on￿the￿fourth￿cylinder.￿The￿oil￿heated￿by￿the￿oil-to-water￿heat￿exchanger￿is￿routed￿via￿a￿duct￿from￿the crankcase￿into￿the￿cylinder￿head￿next￿to￿the￿coolant￿outlet. N13￿engine,￿cooling￿jacket￿and￿coolant￿ducts Index Explanation Cooling￿jacket 2￿+￿3 Coolant￿duct￿from￿coolant￿heat￿exchanger￿to￿cooling￿jacket￿in￿cylinder￿head Coolant￿duct￿from￿cooling￿jacket￿to￿coolant￿heat￿exchanger Compensation￿openings The￿crankcase￿features￿large￿longitudinal￿ventilation￿openings￿which￿are￿both￿cast￿in￿and￿milled. These￿ventilation￿openings￿improve￿the￿pressure￿compensation￿of￿the￿oscillating￿air￿columns￿created by￿the￿up-￿and￿down-strokes￿of￿the￿pistons.
  • Page 18 N13￿Engine. 2.￿Engine￿Mechanics. N13￿engine,￿compensation￿openings￿in￿the￿bearing￿seat Index Explanation 1,￿2,￿3,￿6,￿8,￿9,￿10 Apertures 4,￿5,￿7 Ventilation￿holes Cylinder Cast-in￿dry￿cylinder￿liners￿are￿used￿in￿the￿N13￿engine.￿The￿grey￿cast￿iron￿liners￿terminate￿at￿the￿top￿at the￿cylinder￿head￿gasket￿level. 2.1.2.￿Cylinder￿head￿gasket A￿four-layer￿spring￿steel￿gasket￿is￿used￿for￿the￿cylinder￿head￿gasket.￿A￿stopper￿plate￿(2)￿is￿flanged in￿the￿area￿of￿the￿cylinder￿bores￿in￿order￿to￿achieve￿sufficient￿contact￿pressure￿for￿sealing.￿All￿the layers￿are￿coated,￿the￿contact￿surfaces￿with￿the￿cylinder￿head￿and￿the￿engine￿block￿having￿a￿partial fluorocaoutchouc￿coating￿with￿anti-stick￿coating.
  • Page 19 N13￿Engine. 2.￿Engine￿Mechanics. N13￿engine,￿cylinder￿head￿gasket Index Explanation Top￿spring￿steel￿layer￿with￿anti-stick￿coating￿on￿both￿sides Spring￿steel￿layer,￿stopper￿plate Middle￿spring￿steel￿layer￿with￿coating￿on￿top￿side Bottom￿spring￿steel￿layer￿with￿anti-stick￿coating￿on￿both￿sides 2.1.3.￿Cylinder￿head The￿cylinder￿head￿of￿the￿N13￿engine￿is￿a￿derivation￿of￿the￿cylinder￿head￿of￿the￿N18￿engine￿in￿the￿MINI. 3rd￿generation￿Valvetronic￿is￿also￿used￿in￿the￿N13￿engine,￿as￿is￿already￿familiar￿from￿the￿N55￿engine and￿the￿N18￿engine. The￿combination￿of￿exhaust￿turbocharger,￿Valvetronic￿and￿direct￿fuel￿injection￿is￿known￿as Turbo-Valvtronic￿Direct￿Injection￿(TVDI).
  • Page 20 N13￿Engine. 2.￿Engine￿Mechanics. N13￿engine,￿cylinder￿head Index Explanation VANOS￿solenoid￿valve,￿exhaust￿side VANOS,￿exhaust￿side VANOS,￿intake￿side VANOS￿solenoid￿valve,￿intake￿side Spring Gate Intermediate￿lever Partial￿ring￿gear,￿eccentric￿shaft Valvetronic￿servomotor High-pressure￿pump Minimum￿and￿maximum￿stop,￿eccentric￿shaft...
  • Page 21 N13￿Engine. 2.￿Engine￿Mechanics. 2.1.4.￿Cylinder￿head￿cover Design All￿the￿components￿for￿crankcase￿ventilation￿and￿the￿blow-by￿ducts￿are￿integrated￿in￿the￿cylinder￿head cover.￿A￿pressure￿control￿valve￿prevents￿an￿excessive￿vacuum￿from￿being￿generated￿in￿the￿crankcase. Because￿the￿engine￿is￿turbocharged,￿crankcase￿ventilation￿takes￿two￿different￿forms.￿Thus,￿ventilation is￿performed￿via￿different￿ducts￿depending￿on￿whether￿the￿engine￿is￿running￿in￿turbocharged￿or￿normal mode. Pressure￿regulation￿is￿performed￿by￿the￿pressure￿control￿valve￿in￿both￿cases.￿The￿pressure￿control valve￿brings￿about￿a￿pressure￿reduction￿of￿approx.￿38￿mbar￿in￿the￿crankcase. N13￿engine,￿cylinder￿head￿cover￿with￿crankcase￿ventilation Index Explanation Duct￿to￿cylinder￿head￿into￿intake￿port,￿cylinder￿1 Cyclone￿flexible￿tongue￿separator Side￿opening￿in￿cyclone￿separator Flexible￿tongue Duct￿to￿cylinder￿head￿into￿intake￿ports,￿cylinders￿2￿and￿3...
  • Page 22 N13￿Engine. 2.￿Engine￿Mechanics. Index Explanation Duct￿to￿cylinder￿head￿into￿intake￿port,￿cylinder￿4 Cylinder￿head￿cover Non-return￿valve￿in￿duct￿to￿intake￿ports Opening￿to￿cylinder￿head Oil￿return￿duct Pressure￿control￿bore￿in￿pressure￿control￿valve Non-return￿valve￿in￿duct￿to￿charge-air￿suction￿line The￿blow-by￿gases￿go￿via￿the￿central￿opening￿between￿cylinder￿two￿and￿three￿and￿a￿channel￿to￿the cyclone￿flexible￿tongue￿separator.￿The￿oil￿stuck￿to￿the￿blow-by￿gas￿is￿intercepted￿by￿the￿cyclone flexible￿tongue￿and￿flows￿back￿downwards￿along￿the￿walls￿via￿a￿non-return￿valve￿in￿the￿cylinder￿head. The￿blow-by￿gas￿cleaned￿by￿the￿oil￿now￿gets￿to￿the￿air￿intake￿system￿via￿the￿pressure￿control￿valve, depending￿on￿the￿operating￿condition. Function The￿standard￿function￿can￿only￿be￿utilised￿while￿the￿non-return￿valve￿in￿the￿intake￿plenum￿is￿opened￿by vacuum￿pressure,￿i.e.￿in￿naturally￿aspirated￿mode. In￿naturally￿aspirated￿mode,￿the￿non-return￿valve￿in￿the￿blow-by￿duct￿of￿the￿cylinder￿head￿cover￿is opened￿by￿the￿vacuum￿pressure￿in￿the￿intake￿plenum￿and￿the￿blow-by￿gases￿are￿drawn￿off￿via￿the pressure￿control￿valve.￿The￿vacuum￿pressure￿simultaneously￿closes￿the￿second￿non-return￿valve￿in￿the duct￿to￿charge-air￿suction￿line. The￿blow-by￿gases￿are￿routed￿via￿the￿rail￿integrated￿in￿the￿cylinder￿head￿cover￿directly￿into￿the￿cylinder head￿intake￿ports. A￿purge￿air￿line,￿which￿is￿connected￿to￿the￿clean￿air￿pipe￿ahead￿of￿the￿exhaust￿turbocharger￿and￿to the￿crankcase,￿routes￿fresh￿air￿via￿a￿non-return￿valve￿and￿the￿oil￿dipstick￿into￿the￿crank￿chamber.￿The greater￿the￿vacuum￿in￿the￿crank￿chamber,￿the￿higher￿the￿air￿mass￿introduced￿into￿the￿crankcase.￿This purging￿reduces￿the￿entry￿of￿fuel￿and￿water,￿which￿in￿turn￿improves￿the￿oil￿quality.
  • Page 23 N13￿Engine. 2.￿Engine￿Mechanics. N13￿engine,￿purge￿air￿line Index Explanation Oil￿dipstick￿guide￿tube Oil￿dipstick Non-return￿valve Purge￿air￿line Clean￿air￿pipe...
  • Page 24 N13￿Engine. 2.￿Engine￿Mechanics. N13￿engine,￿crankcase￿ventilation,￿naturally￿aspirated￿mode Index Explanation Ambient￿pressure Vacuum Exhaust￿gas Blow-by￿gas Air￿filter Intake￿plenum...
  • Page 25 N13￿Engine. 2.￿Engine￿Mechanics. Index Explanation Cyclone￿flexible￿tongue￿separator Duct￿in￿cylinder￿head￿and￿cylinder￿head￿cover Blow-by￿duct Purge￿air￿line Non-return￿valve Crank￿chamber Oil￿sump Oil￿return￿duct Exhaust￿turbocharger Non-return￿valve,￿oil￿return Charge-air￿suction￿line Duct￿to￿charge-air￿suction￿line Non-return￿valve￿with￿restrictor Throttle￿valve Pressure￿control￿valve Non-return￿valve￿with￿restrictor Once￿the￿pressure￿in￿the￿intake￿plenum￿rises,￿it￿is￿no￿longer￿possible￿for￿the￿blow-by￿gases￿to be￿introduced￿via￿this￿route.￿This￿would￿otherwise￿create￿the￿risk￿of￿the￿charging￿pressure￿being introduced￿into￿the￿crankcase.￿A￿non-return￿valve￿in￿the￿blow-by￿duct￿of￿the￿cylinder￿head￿cover￿closes the￿duct￿to￿the￿intake￿plenum￿and￿thereby￿protects￿the￿crankcase￿against￿excess￿pressure. The￿now￿greater￿fresh-air￿demand￿generates￿a￿vacuum￿in￿the￿clean￿air￿pipe￿between￿the￿exhaust turbocharger￿and￿the￿intake￿silencer.￿This￿vacuum￿is￿sufficient￿to￿open￿the￿non-return￿valve￿and￿via￿the connection￿on￿the￿cylinder￿head￿cover￿to￿draw￿off￿the￿blow-by￿gases￿via￿the￿pressure￿control￿valve.
  • Page 26 N13￿Engine. 2.￿Engine￿Mechanics. N13￿engine,￿crankcase￿ventilation,￿turbocharged￿mode Index Explanation Charging￿pressure Vacuum Exhaust￿gas Blow-by￿gas Air￿filter Intake￿plenum...
  • Page 27 N13￿Engine. 2.￿Engine￿Mechanics. Index Explanation Cyclone￿flexible￿tongue￿separator Duct￿in￿cylinder￿head￿and￿cylinder￿head￿cover Blow-by￿duct Purge￿air￿line Non-return￿valve Crank￿chamber Oil￿sump Oil￿return￿duct Exhaust￿turbocharger Non-return￿valve,￿oil￿return Charge-air￿suction￿line Duct￿to￿charge-air￿suction￿line Non-return￿valve￿with￿restrictor Throttle￿valve Pressure￿control￿valve Non-return￿valve￿with￿restrictor 2.1.5.￿Oil￿sump The￿oil￿sump￿of￿the￿N13￿engine￿is￿made￿from￿single-layer￿sheet￿steel.￿The￿oil￿sump￿is￿sealed￿in production￿with￿a￿sealing￿compound￿in￿relation￿to￿the￿bedplate.￿In￿other￿BMW￿models￿the￿oil￿sump￿can be￿made￿from￿other￿materials;￿this￿is￿always￿dependent￿on￿the￿application.￿These￿different￿materials will￿not￿be￿discussed￿further￿here. A￿rubber-metal￿gasket￿is￿used￿in￿service￿applications.￿The￿repair￿instructions￿must￿be￿followed.￿The adhesive￿sealing￿bead￿on￿the￿oil￿sump￿must￿not￿be￿removed￿...
  • Page 28 N13￿Engine. 2.￿Engine￿Mechanics. N13￿engine,￿from￿below￿without￿oil￿sump Index Explanation Oil￿deflector Oil￿return￿duct Intake￿snorkel Oil￿pressure￿control￿valve Cable￿duct,￿crankcase Oil￿pump Cover,￿oil￿pump￿sprocket...
  • Page 29 N13￿Engine. 2.￿Engine￿Mechanics. 2.2.￿Crankshaft￿drive 2.2.1.￿Crankshaft￿with￿bearings Crankshaft The￿crankshaft￿of￿the￿N13￿engine￿has￿a￿stroke￿of￿85.8 mm￿and￿is￿made￿of￿the￿material￿38MSV5.￿It￿is￿a forged￿crankshaft￿with￿four￿large￿and￿four￿small￿balance￿weights. N13￿engine,￿crankshaft Crankshaft￿bearings The￿crankshaft￿is￿supported￿by￿five￿bearings.￿The￿thrust￿bearing￿is￿located￿in￿the￿middle￿at￿the￿third bearing￿position.￿The￿thrust￿bearing￿is￿only￿designed￿for￿180°￿and￿is￿located￿in￿the￿bearing￿seat.￿The bearing￿in￿the￿bearing￿cap￿does￿not￿assume￿any￿axial￿guidance.￿Lead-free￿two-material￿bearings￿are used.￿Steel￿is￿used￿as￿the￿carrier￿layer.￿The￿aluminium￿liner￿is￿applied￿to￿the￿carrier￿layer;￿this￿liner￿is approx.￿150 μm￿thick. N13￿engine,￿crankshaft￿bearings...
  • Page 30 N13￿Engine. 2.￿Engine￿Mechanics. Index Explanation Upper￿bearing￿shell￿with￿groove￿and￿oil￿hole Thrust￿bearing,￿bottom Thrust￿washer￿for￿thrust￿bearing The￿identifications￿for￿the￿bearings￿are￿engraved￿into￿the￿crankcase￿and￿into￿the￿crankshaft.￿Refer￿to the￿repair￿instructions￿if￿the￿crankshaft￿is￿to￿be￿fitted￿with￿new￿bearings. Note:￿The￿designation￿of￿the￿bearing￿positions￿in￿the￿repair￿instructions￿may￿differ￿from￿the￿standard (bearing￿position￿1￿is￿always￿seated￿opposite￿the￿output￿end)￿ This￿product￿information￿bulletin￿is￿based￿on￿the￿standard￿for￿the￿purpose￿of￿bearing￿designation. N13￿engine,￿bearing￿identification,￿crankshaft Index Explanation Bearing￿5￿(clutch￿end) Bearing￿4 Bearing￿3 Bearing￿2 Bearing￿1...
  • Page 31 N13￿Engine. 2.￿Engine￿Mechanics. N13￿engine,￿bearing￿identification,￿crankcase Index Explanation Bearing￿5￿(clutch￿end) Bearing￿4 Bearing￿3 Bearing￿2 Bearing￿1 The￿bearing￿opposite￿the￿flywheel￿is￿classified￿differently,￿as￿the￿bearing￿position￿of￿the￿crankshaft is￿expanded￿when￿the￿central￿bolt￿is￿tightened.￿The￿installation￿clearance￿at￿this￿bearing￿position￿is therefore￿altered￿by￿the￿tightening￿of￿the￿central￿bolt￿and￿then￿has￿the￿designated￿clearance. Bearing￿classification￿on￿the￿N13￿engine￿differs￿from￿that￿for￿the￿established￿BMW￿engines.￿Thus, the￿relevant￿bearing￿colours￿are￿determined￿from￿tables￿in￿the￿repair￿instructions￿on￿the￿basis￿of￿the identification￿on￿the￿crankshaft￿and￿the￿engine￿block.￿A￿feature￿of￿note￿is￿that￿bearing￿1￿is￿determined from￿a￿different￿table.￿This￿process￿requires￿a￿specific￿procedure￿and￿appropriate￿care.
  • Page 32 N13￿Engine. 2.￿Engine￿Mechanics. 2.2.2.￿Connecting￿rod￿with￿bearing Connecting￿rod The￿connecting￿rod￿of￿the￿N13￿engine￿has￿an￿inside￿diameter￿of￿138.54.￿A￿feature￿of￿note￿is￿the grooves￿machined￿into￿the￿small￿connecting￿rod￿eye￿which￿serve￿to￿optimise￿the￿oil￿supply.￿This connecting￿rod￿design￿has￿already￿been￿used￿in￿the￿N18￿engine. N13￿engine,￿connecting￿rod Bearings The￿connecting￿rod￿bearing￿shells￿are￿lead-free￿in￿design.￿There￿is￿only￿one￿bearing￿shell￿which￿is used￿at￿the￿rod￿end￿and￿the￿cap￿end. The￿bearing￿shells￿are￿common￿parts￿of￿the￿N18￿and￿N16￿engines.
  • Page 33 N13￿Engine. 2.￿Engine￿Mechanics. 2.2.3.￿Piston￿with￿piston￿rings A￿full￿slipper￿skirt￿piston￿manufactured￿by￿the￿company￿Mahle￿is￿used.￿The￿piston￿diameter￿is￿77 mm. The￿first￿piston￿ring￿is￿a￿steel-nitrided￿plain￿compression￿ring.￿The￿second￿piston￿ring￿is￿a￿stepped compression￿ring.￿The￿oil￿scraper￿ring￿is￿a￿steel￿band￿ring￿with￿spring,￿which￿is￿also￿known￿as￿a￿U-Flex ring. The￿gudgeon￿pin￿axis￿is￿positively￿offset￿to￿the￿major￿thrust￿face￿by￿0.8 mm. The￿piston￿is￿designed￿for￿all￿BMW￿models￿with￿a￿compression￿ratio￿of￿10.5￿:￿1. The￿installation￿position￿of￿the￿piston￿can￿be￿easily￿identified￿by￿means￿of￿the￿asymmetrical￿layout￿of the￿piston￿recess.￿An￿installation￿position￿arrow￿is￿featured￿on￿the￿piston.￿This￿arrow￿always￿points on￿installation￿in￿the￿engine￿longitudinal￿direction￿forwards￿to￿the￿belt￿drive.￿It￿is￿necessary￿to￿install the￿piston￿in￿the￿correct￿position,￿since￿otherwise￿valve￿damage￿or￿slipper￿wall￿breakage￿may￿quickly ensue.￿The￿result￿would￿be￿total￿loss. N13￿engine,￿piston...
  • Page 34 N13￿Engine. 2.￿Engine￿Mechanics. N13￿engine,￿piston￿rings Index Explanation Plain￿compression￿ring Stepped￿compression￿ring U-Flex￿ring Piston 2.3.￿Camshaft￿drive The￿camshaft￿drive￿has￿an￿established￿design.￿The￿oil￿pump￿is￿driven￿via￿the￿secondary￿chain.
  • Page 35 N13￿Engine. 2.￿Engine￿Mechanics. N13￿engine,￿camshaft￿drive Index Explanation Chain￿guide￿rail VANOS￿exhaust￿camshaft Chain￿guide￿rail Crankshaft￿sprocket Secondary￿chain Oil￿pump￿sprocket Primary￿chain Tensioning￿rail Chain￿tensioner VANOS￿intake￿camshaft...
  • Page 36 N13￿Engine. 2.￿Engine￿Mechanics. 2.4.￿Valve￿gear 2.4.1.￿Design N13￿engine,￿valve￿gear Index Explanation VANOS,￿exhaust￿side Exhaust￿camshaft VANOS,￿intake￿side Intake￿camshaft Roller￿cam￿follower Intermediate￿lever Gate Torsion￿spring Eccentric￿shaft Valvetronic￿servomotor...
  • Page 37 N13￿Engine. 2.￿Engine￿Mechanics. Index Explanation Valve￿spring Intake￿valve Hydraulic￿valve￿clearance￿compensating￿element Exhaust￿valve Valve￿spring Hydraulic￿valve￿clearance￿compensating￿element Roller￿cam￿follower The￿roller￿cam￿followers￿on￿the￿intake￿side￿are￿made￿from￿sheet￿metal￿and￿subdivided￿into￿five classes,￿Class￿“1”￿to￿Class￿“5”.￿The￿intermediate￿levers￿are￿now￿likewise￿made￿from￿sheet￿metal￿and subdivided￿into￿six￿classes,￿Class￿“00”￿to￿Class￿“05”. Camshafts The￿N13￿engine￿is￿fitted￿with￿the￿built-up￿camshafts￿familiar￿from￿the￿MINI￿N12/N14￿and￿N16/N18 engines.￿The￿camshafts￿are￿manufactured￿in￿the￿so-called￿Presta￿process. N13￿engine,￿built-up￿camshafts...
  • Page 38 N13￿Engine. 2.￿Engine￿Mechanics. Index Explanation Flange￿for￿VANOS￿unit,￿intake Pipe Square Camshaft￿sensor￿wheel￿with￿toothing￿for￿high-pressure￿pump￿drive Flange￿for￿VANOS￿unit,￿exhaust Pipe Square Camshaft￿sensor￿wheel￿with￿toothing￿for￿vacuum￿pump￿drive Timing N13￿engine,￿timing￿diagram N43B20O0 N55B30M0 N13B16M0 Intake￿valve￿dia./stem￿dia. [mm] 31.4/6 32/5 29.7/5 Exhaust￿valve￿dia./stem￿dia. [mm] 28/6 28/6 26.2/5 Maximum￿valve￿lift,￿intake/exhaust [mm] 9.9/9.7 9.9/9.7 9.0/9.0 valve VANOS￿adjustment￿range,￿intake [crankshaft degrees] VANOS￿adjustment￿range,￿exhaust [crankshaft degrees]...
  • Page 39 N13￿Engine. 2.￿Engine￿Mechanics. Spread,￿intake￿camshaft [crankshaft 125￿–￿80 120￿–￿50 120￿–￿50 degrees] Spread,￿exhaust￿camshaft [crankshaft 125￿–￿80 115￿–￿60 122￿–￿62 degrees] Opening￿period,￿intake￿camshaft [crankshaft degrees] Opening￿period,￿exhaust￿camshaft [crankshaft degrees] Intake￿valves The￿intake￿valves￿are￿carry-over￿parts￿from￿the￿MINI￿N18￿engine￿and￿are￿of￿identical￿construction.￿The intake￿valves￿have￿a￿stem￿diameter￿of￿5 mm￿and￿are￿made￿from￿solid￿material.￿The￿intake￿valve￿seat￿is induction-hardened. Exhaust￿valves The￿exhaust￿valves￿are￿carry-over￿parts￿from￿the￿MINI￿N14/N18￿engine￿and￿are￿of￿identical construction.￿The￿have￿a￿stem￿diameter￿of￿5 mm,￿are￿hollow-drilled￿and￿filled￿with￿sodium.￿The exhaust￿valve￿seat￿is￿armoured￿(harder￿material). Valve￿springs The￿springs￿for￿the￿intake￿and￿exhaust￿valves￿are￿identical￿and￿have￿already￿been￿used￿in￿the￿MINI N14/N18￿engine. 2.4.2.￿Valvetronic The￿Valvetronic￿comprises￿fully￿variable￿valve￿lift￿control￿and￿variable￿camshaft￿control￿(double VANOS),￿which￿makes￿the￿closing￿time￿of￿the￿intake￿valves￿freely￿selectable. Valve￿lift￿control￿is￿performed￿on￿the￿intake￿side,￿while￿camshaft￿control￿is￿performed￿on￿both￿the intake￿and￿exhaust￿sides. Throttle-free￿load￿control￿is￿only￿possible￿if: • the￿lift￿of￿the￿intake￿valve •...
  • Page 40 N13￿Engine. 2.￿Engine￿Mechanics. N13￿engine,￿VANOS￿solenoid￿valve￿and￿non-return￿valve Index Explanation VANOS￿solenoid￿valve,￿intake￿side Non-return￿valve...
  • Page 41 N13￿Engine. 2.￿Engine￿Mechanics. N13￿engine,￿VANOS￿solenoid￿valve￿and￿non-return￿valve Index Explanation VANOS￿solenoid￿valve,￿exhaust￿side Non-return￿valve Valve￿lift￿control As￿can￿been￿seen￿from￿the￿following￿graphic,￿valve￿lift￿control￿with￿the￿Valvetronic￿servomotor￿is identical￿in￿terms￿of￿design￿to￿that￿of￿the￿MINI￿N18￿engine.￿The￿eccentric￿shaft￿sensor￿is￿integrated￿in the￿Valvetronic￿servomotor. The￿system￿used￿is￿Valvetronic￿III,￿which￿already￿features￿in￿the￿MINI￿N18￿and￿the￿BMW￿N20￿and￿BMW N55￿engines.
  • Page 42 N13￿Engine. 2.￿Engine￿Mechanics. N13￿engine,￿cylinder￿head Index Explanation VANOS￿solenoid￿valve,￿exhaust￿side VANOS,￿exhaust￿side VANOS,￿intake￿side VANOS￿solenoid￿valve,￿intake￿side Spring Gate Intermediate￿lever Partial￿ring￿gear,￿eccentric￿shaft Valvetronic￿servomotor High-pressure￿pump Minimum￿and￿maximum￿stop,￿eccentric￿shaft 2.5.￿Belt￿drive The￿belt￿drive￿consists￿of￿a￿main￿belt￿drive￿with￿alternator￿and￿A/C￿compressor￿and￿a￿friction￿gear auxiliary￿belt￿drive￿with￿the￿coolant￿pump.￿The￿main￿belt￿drive￿is￿equipped￿with￿a￿belt￿tensioner;￿the friction￿gear￿auxiliary￿belt￿drive,￿on￿account￿of￿its￿design,￿does￿not￿require￿a￿belt￿tensioner.
  • Page 43 N13￿Engine. 2.￿Engine￿Mechanics. N13￿engine,￿belt￿drive Index Explanation Belt￿pulley,￿crankshaft Belt Belt￿tensioner Belt￿pulley,￿alternator Belt￿pulley,￿A/C￿compressor Friction￿gear￿drive Coolant￿pump The￿coolant￿pump￿of￿the￿N13￿engine￿is￿driven￿by￿a￿friction￿gear.￿When￿the￿friction￿gear￿servodrive￿is at￿zero￿current,￿the￿friction￿gear￿is￿pressed￿by￿a￿spring￿in￿the￿direction￿of￿the￿crankshaft￿belt￿pulley and￿the￿coolant￿pump.￿For￿drive￿purposes￿the￿coolant￿pump￿has￿a￿friction￿gear￿which￿looks￿like￿a￿belt pulley￿with￿an￿attached￿belt. The￿back￿of￿the￿belt￿on￿the￿crankshaft￿belt￿pulley￿drives￿the￿friction￿gear.￿The￿friction￿gear￿in￿turn￿drives the￿coolant￿pump.￿This￿design￿means￿that￿there￿is￿no￿need￿for￿a￿second￿belt￿drive.￿The￿space￿can￿be better￿utilised￿and￿therefore￿kept￿short￿and￿compact.￿Because￿of￿the￿lower￿lateral￿forces￿acting￿on￿the coolant￿pump￿shaft,￿the￿housing￿of￿the￿coolant￿pump￿can￿be￿made￿entirely￿from￿plastic.￿The￿design￿of the￿plastic￿housing￿has￿a￿positive￿effect￿on￿the￿flow￿performance￿and￿the￿delivery￿rate￿of￿the￿coolant pump.
  • Page 44 N13￿Engine. 3.￿Oil￿Supply. The￿oil￿supply￿in￿the￿N13￿engine￿is￿similar￿to￿that￿in￿the￿N55￿engine.￿However,￿very￿different components￿are￿used￿to￿implement￿the￿oil￿supply.￿One￿of￿the￿biggest￿differences￿is￿the￿oil￿pump.￿A map-controlled￿gear-type￿oil￿pump￿is￿used￿in￿the￿N13￿engine. The￿special￿features￿of￿the￿oil￿supply￿in￿the￿N13￿engine￿are: • Map-controlled￿gear-type￿oil￿pump • Raw￿oil￿cooling￿(in￿the￿N13B16M0￿engine￿only) • Oil￿pressure￿sensor￿(familiar￿from￿the￿N52TU￿engine). 3.1.￿Overview The￿following￿graphics￿provide￿an￿overview￿of￿the￿oil￿supply￿and￿show￿the￿hydraulic￿circuit￿diagram and￿the￿design￿of￿the￿oil￿pump.
  • Page 45 N13￿Engine. 3.￿Oil￿Supply. 3.1.1.￿Hydraulic￿circuit￿diagram N13￿engine,￿hydraulic￿circuit￿diagram...
  • Page 46 N13￿Engine. 3.￿Oil￿Supply. Index Explanation Oil￿pump￿with￿oil￿sump Crankcase Cylinder￿head Oil￿filter￿module VANOS￿solenoid￿valve,￿exhaust￿camshaft VANOS￿solenoid￿valve,￿intake￿camshaft Strainer Oil￿pump Pressure-limiting￿valve￿(cold￿start￿valve) Non-return￿valve Discharge￿valve Permanent￿bypass Engine￿oil-to-coolant￿heat￿exchanger Oil￿filter Filter￿bypass￿valve Oil￿pressure￿sensor Oil￿spray￿nozzles￿for￿piston￿crown￿cooling Lubrication￿points,￿crankshaft￿and￿connecting￿rods Lubrication￿point,￿exhaust￿turbocharger Oil￿pressure￿control￿valve Non-return￿valve Filter VANOS￿solenoid￿valve VANOS￿unit,￿intake￿camshaft VANOS￿unit,￿exhaust￿camshaft Hydraulic￿valve￿clearance￿compensation￿(HVCC),￿exhaust￿side Lubrication￿points,￿bearings,￿exhaust￿camshaft Lubrication￿point,￿vacuum￿pump Lubrication￿point,￿high-pressure￿pump Lubrication￿point,￿bearing,￿intake￿camshaft Hydraulic￿valve￿clearance￿compensation￿(HVCC),￿intake￿side Chain￿tensioner,￿timing￿chain Many￿of￿the￿components￿such￿as￿the￿intermediate￿levers,￿roller￿cam￿followers,￿eccentric￿shaft￿and the￿Valvetronic￿servomotor￿are￿lubricated￿by￿oil￿spray￿in￿the￿cylinder￿head￿coming￿from￿the￿camshaft bearings.￿There￿are￿therefore￿no￿oil￿spray￿lines￿in￿the￿cylinder￿head.
  • Page 47 N13￿Engine. 3.￿Oil￿Supply. 3.2.￿Oil￿pump￿and￿pressure￿control Control￿of￿the￿delivery￿rate￿of￿all￿the￿pumps,￿also￿those￿in￿the￿oil￿supply,￿plays￿a￿crucial￿role￿above￿all with￿the￿BMW￿EfficientDynamics￿strategy.￿Essentially,￿engineers￿attempt￿to￿dimension￿a￿pump￿with regard￿to￿its￿power￿input￿as￿small￿as￿possible￿in￿order￿to￿keep￿engine￿losses￿as￿low￿as￿possible.￿On the￿other￿hand,￿however,￿the￿pump￿must￿also￿be￿designed￿in￿such￿a￿way￿as￿to￿deliver￿the￿relevant medium￿at￿sufficient￿volume￿and￿pressure￿under￿all￿conceivable￿circumstances.￿A￿conventional,￿non- variable￿pump￿would￿therefore￿have￿to￿be￿designed￿in￿accordance￿with￿the￿second￿standpoint,￿i.e. large￿enough￿to￿be￿able￿to￿deliver￿sufficient￿amounts￿of￿the￿medium￿at￿all￿times.￿However,￿this￿means that￿the￿pump￿may￿deliver￿far￿too￿much￿medium￿over￿a￿large￿proportion￿of￿its￿service￿life￿and￿thereby draw￿more￿energy￿than￿necessary￿from￿the￿powertrain.￿For￿this￿reason,￿more￿and￿more￿pumps￿are now￿variable￿in￿design￿and￿their￿control￿is￿becoming￿increasingly￿more￿fine-tuned.￿In￿the￿case￿of￿the oil￿supply,￿the￿conventional￿oil￿pump￿was￿followed￿by￿volumetric￿flow￿control,￿which￿was￿subsequently extended￿to￿include￿map￿control. The￿oil￿pump￿of￿the￿N13￿engine￿is￿derived￿from￿the￿gear-type￿oil￿pump.￿This￿volume-flow-controlled oil￿pump￿was￿used￿for￿the￿first￿time￿in￿the￿N12￿and￿N14￿engines￿of￿the￿MINI.￿It￿was￿expanded￿into￿the map-controlled￿oil￿pump￿in￿the￿N16￿and￿N18￿engines￿of￿the￿MINI.￿The￿N13￿engine￿adopts￿this￿concept of￿the￿map-controlled￿oil￿pump,￿but￿is￿a￿new￿development￿adapted￿to￿the￿complete￿system. 3.2.1.￿Oil￿pump The￿oil￿pump￿is￿driven￿via￿a￿chain￿by￿the￿crankshaft.￿The￿gear￿ratio￿of￿the￿oil￿pump￿to￿the￿crankshaft is￿dependent￿on￿the￿number￿of￿teeth￿on￿the￿respective￿sprockets.￿The￿crankshaft￿has￿a￿gear￿with￿20 teeth￿for￿driving￿the￿secondary￿chain,￿the￿sprocket￿on￿the￿oil￿pump￿shaft￿has￿18￿teeth.￿The￿gear￿ratio￿is therefore￿20￿:￿18,￿i.e.￿1.11￿:￿1.￿The￿oil￿pump￿therefore￿rotates￿1.11￿times￿with￿each￿crankshaft￿rotation. From￿the￿intake￿snorkel￿(8)￿the￿oil￿is￿routed￿via￿the￿gears￿(3￿+￿4)￿from￿the￿oil￿pump￿into￿the￿raw￿oil￿duct (5)￿in￿the￿engine￿block￿and￿to￿the￿oil￿filter. The￿non-driven￿oil￿pump￿gear￿(4)￿can￿be￿axially￿shifted￿in￿this￿pump,￿thereby￿varying￿the￿delivery￿rate. Axial￿shifting￿is￿effected￿by￿the￿oil￿pressure￿from￿the￿clean￿oil￿duct￿from￿the￿main￿oil￿duct,￿which￿can￿be varied￿by￿means￿of￿an￿oil￿pressure￿control￿valve.￿The￿operating￿principle￿of￿the￿oil￿pump￿ensures￿that the￿required￿oil￿quantity￿in￿each￿case￿and￿the￿oil￿pressure￿are￿supplied.
  • Page 48 N13￿Engine. 3.￿Oil￿Supply. N13￿engine,￿oil￿pump Index Explanation Sprocket Control￿plunger Gear,￿oil￿pump Gear,￿oil￿pump Raw￿oil￿duct Compression￿spring...
  • Page 49 N13￿Engine. 3.￿Oil￿Supply. Index Explanation Raw￿oil￿duct￿to￿bedplate Intake￿snorkel Oil￿pressure￿control￿valve Steel￿ball Compression￿spring Opening Maximum￿delivery N13￿engine,￿oil￿pump￿maximum￿delivery...
  • Page 50 N13￿Engine. 3.￿Oil￿Supply. Index Explanation Gear,￿oil￿pump Clean￿oil￿duct,￿coming￿from￿main￿oil￿duct Clean￿oil￿duct Pressure-limiting￿valve Oil￿duct￿to￿rear￿end￿of￿control￿plunger Oil￿duct￿to￿front￿end￿of￿control￿plunger The￿oil￿pump￿is￿held￿in￿its￿basic￿setting￿by￿the￿compression￿spring￿in￿the￿maximum￿delivery￿position. This￿position￿can￿also￿be￿approached￿via￿the￿oil￿pressure￿control￿valve￿from￿the￿minimum￿delivery active￿position.￿For￿this￿purpose￿the￿oil￿pressure￿control￿valve￿is￿switched￿in￿such￿a￿way￿that￿the￿oil￿can flow￿off￿via￿the￿oil￿duct￿to￿the￿front￿end￿of￿the￿control￿plunger￿(6)￿through￿the￿oil￿pressure￿control￿valve into￿the￿oil￿sump.￿With￿the￿oil￿pressure￿control￿valve￿in￿this￿position,￿the￿oil￿pressure￿is￿simultaneously routed￿from￿the￿clean￿oil￿ducts￿(2￿+￿3)￿via￿the￿pressure￿control￿valve￿and￿via￿the￿oil￿duct￿to￿the￿rear￿end of￿the￿control￿plunger￿(5).￿This￿oil￿pressure￿now￿supports￿the￿spring￿and￿forces￿the￿control￿plunger￿into the￿maximum￿delivery￿position. Minimum￿delivery If￿the￿oil￿pressure￿is￿routed￿via￿the￿oil￿pressure￿control￿valve￿from￿the￿clean￿oil￿ducts￿(2￿+￿3)￿to￿the￿oil duct￿to￿the￿front￿end￿of￿the￿control￿plunger￿(6),￿the￿oil￿forces￿the￿control￿plunger￿against￿the￿spring and￿moves￿it￿in￿the￿minimum￿delivery￿direction.￿The￿oil￿pressure￿control￿valve￿simultaneously￿opens￿a connection￿from￿the￿rear￿end￿of￿the￿control￿plunger￿to￿drain￿the￿oil￿into￿the￿oil￿sump. N13￿engine,￿oil￿pump￿minimum￿delivery...
  • Page 51 N13￿Engine. 3.￿Oil￿Supply. 3.2.2.￿Pressure￿control Map￿control The￿oil￿pressure￿control￿valve￿enables￿the￿oil￿pressure￿to￿be￿controlled￿to￿suit￿the￿situation.￿The￿oil delivery￿quantity￿can￿be￿influenced￿accordingly￿by￿the￿Digital￿Engine￿Electronics￿(DME)￿through actuation￿of￿the￿oil￿pressure￿control￿valve. The￿oil￿pressure￿control￿valve￿is￿located￿on￿the￿oil￿pump￿on￿the￿left￿side￿of￿the￿engine￿and￿engages￿the oil￿ducts￿in￿the￿oil￿pump￿to￿increase￿or￿reduce￿the￿oil￿delivery￿quantity. An￿oil￿pressure￿sensor,￿familiar￿from￿the￿N52TU￿engine,￿senses￿this￿and￿transmits￿the￿data￿to￿the DME.￿The￿DME￿can￿thus￿set￿any￿oil￿delivery￿quantity￿with￿the￿oil￿pressure￿control￿valve,￿sense￿with￿the oil￿pressure￿sensor,￿and￿adjust￿in￿accordance￿with￿the￿characteristic￿map￿stored￿in￿the￿DME. The￿delivery￿quantity￿is￿dependent￿on￿the￿engine￿speed￿and￿the￿position￿of￿the￿oil￿pressure￿control valve. Operating￿state Oil￿pressure Engine￿at￿operating￿temperature￿and￿idle min.￿0.7￿bar Engine￿at￿operating￿temperature,￿control￿pressure￿at￿3000 rpm 1.15￿–￿6.45 bar Explanation Delivery￿quantity Engine￿at￿idle￿at￿700 rpm,￿110°C approx.￿6￿–￿11￿l/min Engine￿at￿maximum￿speed￿6500 rpm,￿110 °C approx.￿23￿–￿33 l/min Explanation Data Supply￿voltage 12￿V Activation￿signal 200￿–￿256 Hz Resistance 10.5 Ω￿±￿10 % N13￿engine,￿oil￿pressure￿control￿valve The￿control￿plunger￿in￿the￿oil￿pressure￿control￿valve￿is￿shaped￿in￿such￿a￿way￿as￿to￿integrate￿an￿limp- home-mode￿function.￿If￿the￿cable￿is￿damaged￿or￿cut￿through,￿oil￿pressure￿control￿continues￿to￿function subject￿to￿limitations.￿The￿execution￿of￿this￿function￿is￿shown￿in￿the￿following￿graphics.￿The￿arrows represent￿the￿direction￿of￿the￿oil￿flow.
  • Page 52 N13￿Engine. 3.￿Oil￿Supply. The￿control￿plunger￿in￿the￿oil￿pressure￿control￿valve￿has￿a￿larger￿diameter￿at￿the￿spring￿end￿than￿at￿the solenoid￿valve￿end.￿As￿the￿oil￿pressure￿increases,￿so￿too￿the￿force￿acting￿against￿the￿spring￿increases to￿force￿the￿control￿plunger￿in￿the￿valve￿against￿the￿spring.￿The￿oil￿duct￿from￿the￿clean￿oil￿duct￿to the￿front￿end￿of￿the￿oil￿pump￿control￿plunger￿is￿opened￿to￿allow￿the￿oil￿to￿move￿the￿oil￿pump￿control plunger￿in￿the￿minimum￿delivery￿direction.￿At￿the￿same￿time￿the￿control￿plunger￿in￿the￿oil￿pressure control￿valve￿opens￿the￿oil￿duct￿from￿the￿rear￿end￿of￿the￿control￿plunger￿to￿the￿oil￿sump.￿The￿oil￿at￿the rear￿end￿of￿the￿control￿plunger￿can￿now￿flow￿back￿to￿the￿oil￿sump. N13￿engine,￿oil￿pressure￿control￿valve Index Explanation Reduce￿delivery￿quantity Hold￿delivery￿quantity Increase￿delivery￿quantity Oil￿duct￿to￿rear￿end￿of￿control￿plunger￿in￿oil￿pump...
  • Page 53 N13￿Engine. 3.￿Oil￿Supply. Index Explanation Clean￿oil￿duct Oil￿duct￿to￿front￿end￿of￿control￿plunger￿in￿oil￿pump Control￿plunger,￿oil￿pressure￿control￿valve Housing,￿oil￿pressure￿control￿valve 3.2.3.￿Pressure-limiting￿valve Additionally￿available￿to￿control￿the￿oil￿pump￿is￿a￿pressure-limiting￿valve,￿which￿is￿often￿also￿known￿as￿a cold-start￿valve. The￿pressure-limiting￿valve￿is￿located￿as￿the￿first￿component￿after￿the￿pump￿in￿the￿oil￿pump￿housing and￿in￿the￿oil￿circuit.￿It￿opens￿at￿a￿pressure￿of￿roughly￿10￿to￿13 bar￿and￿discharges￿the￿oil￿directly￿into the￿oil￿sump.￿This￿is￿necessary￿above￿all￿at￿low￿temperatures￿and￿when￿the￿oil￿is￿viscous.￿In￿these situations￿the￿pressure-limiting￿valve￿prevents￿damage￿to￿components,￿in￿particular￿to￿the￿oil￿filter module￿and￿its￿seals.￿This￿is￿relevant￿above￿all￿at￿temperatures￿of￿below￿-20 °C,￿since￿map￿control￿is already￿active￿above￿this￿temperature. The￿pressure￿in￿the￿raw￿oil￿duct￿(5)￿forces￿the￿steel￿ball￿(10)￿against￿the￿spring￿(11).￿If￿the￿pressure rises￿above￿10￿to￿13￿bar,￿the￿steel￿ball￿is￿lifted￿off￿its￿seat￿and￿the￿oil￿can￿flows￿through￿the￿opening (12)￿directly￿into￿the￿oil￿sump.
  • Page 54 N13￿Engine. 3.￿Oil￿Supply. N13￿engine,￿oil￿pump Index Explanation Sprocket Control￿plunger Gear,￿oil￿pump Gear,￿oil￿pump Raw￿oil￿duct Compression￿spring...
  • Page 55 N13￿Engine. 3.￿Oil￿Supply. Index Explanation Raw￿oil￿duct￿to￿bedplate Intake￿snorkel Oil￿pressure￿control￿valve Steel￿ball Compression￿spring Opening 3.3.￿Cooling￿and￿filtering The￿N13￿engine￿has￿an￿aluminium￿oil￿filter￿housing,￿to￿which￿the￿engine￿oil-to-coolant￿heat￿exchanger is￿directly￿mounted.￿This￿entire￿unit￿is￿known￿as￿the￿oil￿filter￿module. N13￿engine,￿oil￿filter￿module...
  • Page 56 N13￿Engine. 3.￿Oil￿Supply. Index Explanation Oil￿filter￿cover￿with￿oil￿filter￿bypass￿valve Oil￿filter￿housing Engine￿oil-to-coolant￿heat￿exchanger Coolant￿supply￿to￿oil￿filter￿module Oil￿return￿from￿exhaust￿turbocharger Coolant￿discharge￿from￿oil￿filter￿module Oil￿return￿(filter￿renewal) Clean￿oil￿duct Raw￿oil￿duct￿from￿oil￿pump 3.3.1.￿Cooling In￿the￿N13B16M0￿engine￿the￿engine￿oil-to-coolant￿heat￿exchanger￿is￿located￿in￿the￿oil￿circuit￿ahead￿of the￿oil￿filter.￿This￿arrangement￿is￿known￿as￿raw￿oil￿cooling￿and￿has￿its￿roots￿in￿the￿lead-free￿crankshaft and￿connecting￿rod￿bearings.￿Because￿these￿are￿extremely￿sensitive￿to￿dirt￿particles,￿this￿arrangement brings￿the￿oil￿filter￿even￿closer￿to￿just￿before￿the￿bearing￿positions.￿There￿is￿no￿engine￿oil-to-coolant heat￿exchanger￿in￿the￿N13B16U0￿engine. Permanent￿bypass The￿N13￿engine￿does￿not￿have￿a￿heat￿exchanger￿bypass￿valve.￿Instead,￿like￿the￿N55￿engine,￿it￿has￿a so-called￿permanent￿bypass.￿This￿is￿a￿permanently￿open￿bypass￿around￿the￿engine￿oil-to-coolant￿heat exchanger.￿The￿bypass￿incorporates￿a￿flow￿restrictor￿to￿ensure￿that￿the￿majority￿of￿the￿oil￿nevertheless flows￿through￿the￿engine￿oil-to-coolant￿heat￿exchanger. 3.3.2.￿Filtering A￿paper￿oil￿filter￿element￿is￿used.￿The￿design￿is￿familiar￿from￿the￿BMW￿engines. A￿non-return￿valve￿is￿integrated￿in￿the￿raw￿oil￿duct￿of￿the￿oil￿filter￿housing￿to￿prevent￿the￿oil￿filter housing￿from￿running￿dry￿when￿the￿engine￿is￿switched￿off.￿This￿non-return￿valve￿opens￿at￿an￿oil pressure￿of￿max.￿0.15 bar. Naturally￿the￿N13￿engine￿has￿a￿filter￿bypass￿valve￿which￿can￿open￿a￿bypass￿round￿the￿filter￿if,￿for example,￿the￿engine￿oil￿is￿cold￿and￿viscous.￿This￿arises￿if￿the￿pressure￿difference￿before￿and￿after￿the filter￿exceeds￿2.5￿± 0.5 bar.￿The￿permissible￿pressure￿difference￿has￿been￿increased￿from￿2.0￿to￿2.5 bar in￿order￿to￿protect￿the￿lead-free￿crankshaft￿and￿connecting￿rod￿bearings.￿This￿ensures￿that￿the￿filter￿is bypassed￿much￿less￿frequently￿and￿any￿dirt￿particles￿are￿reliably￿filtered￿out. The￿familiar￿system￿is￿also￿used￿for￿filter￿renewal.￿Thus,￿a￿piston￿rod￿is￿pulled￿upwards￿during￿filter renewal,￿opening￿a￿connecting￿between￿the￿raw￿oil￿duct,￿the￿clean￿oil￿duct￿and￿the￿oil￿return￿duct,￿and allowing￿the￿engine￿oil￿to￿flow￿from￿the￿filter￿housing￿back￿into￿the￿oil￿sump.
  • Page 57 N13￿Engine. 3.￿Oil￿Supply. 3.4.￿Monitoring 3.4.1.￿Oil￿pressure￿sensor N13￿engine,￿oil￿pressure￿sensor The￿oil￿pressure￿sensor￿familiar￿from￿the￿N52TU￿engine￿and￿the￿N55￿engine￿is￿used.￿The￿pressure signal￿is￿required￿for￿map￿control￿of￿the￿oil￿pump. The￿sensor￿is￿seated￿on￿the￿oil￿filter￿housing￿in￿the￿oil￿duct￿after￿the￿oil￿filter￿(main￿oil￿duct)￿and￿is subjected￿to￿the￿prevailing￿oil￿pressure￿there.￿The￿sensor￿is￿supplied￿by￿the￿DME￿with￿ground￿(earth) and￿a￿voltage￿of￿5 V.￿A￿voltage￿signal￿is￿sent￿via￿a￿data￿line￿to￿the￿DME,￿which￿in￿turn￿evaluates￿the signal.￿The￿oil￿pressure￿sensor￿can￿sense￿an￿oil￿pressure￿of￿50￿kPa￿(0.5￿bar)￿to￿1050￿kPa￿(10.5￿bar).￿At 50￿kPa￿the￿output￿voltage￿is￿approx.￿0.5￿V,￿at￿1050￿kPa￿approx.￿4.6￿V. 3.4.2.￿Oil￿level￿monitoring Permanent￿oil￿level￿monitoring￿is￿not￿used.￿The￿engine￿oil￿level￿can￿only￿be￿checked￿using￿the￿oil dipstick.￿For￿further￿information,￿please￿refer￿to￿the￿Owner's￿Handbook. 3.5.￿Oil￿spray￿nozzles In￿the￿N13￿engine￿too,￿some￿components￿which￿cannot￿be￿reached￿directly￿by￿an￿oil￿duct￿are lubricated￿and/or￿cooled￿by￿oil￿spray￿nozzles. 3.5.1.￿Piston￿crown￿cooling The￿oil￿spray￿nozzles￿for￿piston￿crown￿cooling,￿as￿used￿in￿the￿N13￿engine,￿are￿in￿principle￿familiar￿from the￿MINI￿N14￿engine.￿They￿incorporate￿a￿non-return￿valve￿to￿enable￿them￿to￿open￿and￿close￿only￿from a￿specific￿oil￿pressure. As￿well￿as￿cooling￿the￿piston￿crowns,￿they￿are￿also￿responsible￿for￿lubricating￿the￿gudgeon￿pins,￿which is￿why￿it￿is￿very￿important￿for￿them￿to￿be￿aligned.￿For￿this￿reason￿the￿oil￿spray￿nozzles￿are￿positioned￿in the￿crankcase￿in￿such￿a￿way￿that￿they￿are￿aligned￿automatically￿and￿without￿the￿need￿for￿special￿tools. A￿milled￿chamfer￿on￿the￿crankcase￿facilitates￿this￿alignment. Opening￿pressure 2.2￿–￿2.8 bar Closing￿pressure 2.0 bar...
  • Page 58 N13￿Engine. 3.￿Oil￿Supply. 3.5.2.￿Timing￿chain￿lubrication The￿timing￿chain￿is￿lubricated￿by￿an￿oil￿spray￿nozzle￿located￿in￿the￿chain￿tensioner.￿There￿is￿an￿opening in￿the￿tensioning￿rail￿through￿which￿the￿oil￿can￿be￿sprayed￿for￿this￿purpose. N13￿engine,￿chain￿tensioner￿with￿oil￿spray￿nozzle￿for￿timing￿chain...

  • Page 59: Cooling

    N13￿Engine. 4.￿Cooling. In￿the￿N13B16M0￿engine￿an￿engine￿oil-to-coolant￿heat￿exchanger￿is￿used￿to￿cool￿the￿engine￿oil.￿The N13B16U0￿engine￿does￿not￿have￿an￿engine￿oil-to-coolant￿heat￿exchanger.￿The￿cooling￿system￿is controlled￿(e.g.￿friction￿gear￿servodrive,￿map￿thermostat￿and￿electric￿fan)￿by￿the￿heat￿management coordinator￿in￿the￿DME. The￿cooling￿module￿itself￿only￿comes￿in￿one￿variant.￿The￿electric￿fan￿has￿a￿nominal￿power￿of￿300 W. 4.1.￿Overview N13￿engine,￿cooling￿circuit...
  • Page 60 N13￿Engine. 4.￿Cooling. Index Explanation Radiator Radiator,￿low￿temperature￿range Electric￿fan Auxiliary￿water￿pump Heater￿for￿map￿thermostat Map￿thermostat Coolant￿pump Coolant￿temperature￿sensor Heat￿exchanger Engine￿oil-to-coolant￿heat￿exchanger Exhaust￿turbocharger Expansion￿tank Tank￿ventilation￿line Transmission￿oil-to-coolant￿heat￿exchanger Thermostat￿for￿transmission￿oil The￿following￿graphics￿show￿the￿installation￿locations￿and￿layout￿of￿the￿components.
  • Page 61 N13￿Engine. 4.￿Cooling. N13￿engine,￿cooling￿system￿components￿from￿rear￿(here￿BMW￿F20￿118i￿with￿manual￿gearbox) Index Explanation Heat￿exchanger Return,￿heater￿matrix Feed,￿heater￿matrix Feed,￿exhaust￿turbocharger￿cooling Return,￿exhaust￿turbocharger￿cooling Connection,￿return,￿heater￿matrix Expansion￿tank Tank￿ventilation￿line...
  • Page 62 N13￿Engine. 4.￿Cooling. Index Explanation Radiator Connection￿for￿coolant-to-gearbox￿oil￿heat￿exchanger Electric￿auxiliary￿water￿pump Coolant￿pump Map￿thermostat Coolant￿temperature￿sensor N13￿engine,￿cooling￿system￿components￿on￿engine￿from￿front￿(here￿BMW￿F20￿118i￿with￿manual￿gearbox) Index Explanation Heat￿exchanger Return,￿heater￿matrix Feed,￿heater￿matrix Feed,￿exhaust￿turbocharger￿cooling Return,￿exhaust￿turbocharger￿cooling Connection,￿return,￿heater￿matrix Expansion￿tank Tank￿ventilation￿line...
  • Page 63 N13￿Engine. 4.￿Cooling. Index Explanation Radiator Connection￿for￿gearbox￿oil-to-coolant￿heat￿exchanger Electric￿auxiliary￿water￿pump Coolant￿pump Map￿thermostat Coolant￿temperature￿sensor 4.2.￿Heat￿management The￿N13￿engine￿features￿a￿heat￿management￿function￿in￿the￿DME.￿The￿heat￿management￿function has￿been￿newly￿developed￿in￿its￿entirety￿for￿the￿N13￿and￿differs￿significantly￿from￿the￿established function.￿This￿comprises￿independent￿control￿of￿the￿electric￿cooling￿components￿of￿electric￿fan,￿map thermostat￿and￿(with￿limitations)￿coolant￿pump.￿What￿is￿new￿to￿this￿function￿is￿that￿the￿auxiliary￿water pump,￿which￿is￿required￿to￿cool￿the￿exhaust￿turbocharger,￿alone￿ensures￿that￿cooling￿is￿maintained￿in certain￿operating￿ranges. 4.2.1.￿Friction￿gear￿servodrive In￿the￿N13￿engine￿the￿coolant￿pump￿is￿driven￿by￿a￿friction￿gear.
  • Page 64 N13￿Engine. 4.￿Cooling. N13￿engine,￿friction￿gear￿servodrive￿-￿exploded￿view Index Explanation Mounting￿bolt Housing￿shell Service￿handle Service￿band Spring Eccentric￿element Pull￿arm Housing￿shell Electric￿motor Contact￿with￿plug￿connection...
  • Page 65 N13￿Engine. 4.￿Cooling. N13￿engine,￿friction￿gear￿servodrive￿-￿exploded￿view To￿remove￿the￿belt,￿the￿user￿pulls￿on￿the￿service￿handle￿and￿hangs￿the￿tab￿on￿the￿housing￿shell￿from￿a designated￿hook. 4.2.2.￿Map￿thermostat The￿N13￿engine￿is￿fitted￿with￿a￿conventional￿map￿thermostat￿which￿has￿the￿following￿technical￿data￿in non-electrically￿controlled￿mode: Setting￿of￿map￿thermostat Coolant￿temperature Starts￿to￿open 97 ± 2 °C Fully￿open 109 °C In￿addition,￿an￿electric￿heater￿in￿the￿map￿thermostat￿can￿be￿used￿to￿make￿the￿thermostat￿open￿already at￿a￿lower￿coolant￿temperature. 4.2.3.￿Heat￿management￿function The￿heat￿management￿determines￿the￿current￿cooling￿requirement￿and￿controls￿the￿cooling￿system accordingly.￿In￿certain￿operating￿states￿the￿coolant￿pump￿is￿shut￿down￿entirely,￿for￿example￿in￿order￿to heat￿the￿coolant￿more￿quickly￿in￿the￿warm-up￿phase.￿The￿auxiliary￿water￿pump,￿which￿is￿responsible for￿cooling￿the￿exhaust￿turbocharger,￿can￿also￿be￿switched￿on￿and￿off.￿The￿cooling￿output￿can therefore￿be￿requested￿independently￿of￿the￿engine￿speed.￿The￿heat￿management￿function￿is￿able to￿activate￿and￿deactivate￿both￿the￿mechanical￿coolant￿pump￿and￿the￿electric￿auxiliary￿water￿pump￿to suit￿demand,￿and￿to￿regulate￿the￿map￿thermostat￿accordingly.￿The￿engine￿management￿is￿thus￿able to￿adapt￿the￿coolant￿temperature￿to￿the￿driving￿situation.￿A￿further￿reduction￿in￿consumption￿has￿been achieved￿by￿the￿implementation￿of￿these￿measures.
  • Page 66 N13￿Engine. 4.￿Cooling. The￿following￿temperature￿ranges￿are￿adjusted￿by￿the￿engine￿management: • 109 °C￿=￿Economy￿operation • 106 °C￿=￿Normal￿operation • 80 °C￿=￿High￿operation￿and￿current￿supply￿to￿the￿map￿thermostat. If￿the￿engine￿control￿unit￿identifies￿the￿”Economy”￿operating￿range￿on￿the￿basis￿of￿running performance,￿the￿engine￿management￿adjusts￿to￿a￿higher￿temperature￿(109￿°C).￿In￿this￿temperature range￿the￿engine￿is￿to￿be￿operated￿with￿a￿relatively￿low￿fuel￿requirement.￿Internal￿engine￿friction is￿reduced￿at￿higher￿temperature.￿The￿temperature￿increase￿therefore￿favours￿the￿lower￿fuel consumption￿in￿the￿low￿load￿range.￿In￿”High￿and￿current￿supply￿to￿the￿map￿thermostat”￿operation the￿driver￿would￿like￿to￿utilise￿the￿engine's￿optimum￿power￿development.￿The￿temperature￿in￿the cylinder￿head￿is￿reduced￿to￿80￿°C￿for￿this￿purpose.￿This￿reduction￿improves￿volumetric￿efficiency, which￿results￿in￿an￿engine￿torque￿increase.￿The￿engine￿control￿unit￿can￿now,￿adapted￿to￿the￿relevant driving￿situation,￿adjust￿a￿specific￿operating￿range.￿It￿is￿therefore￿possible￿to￿influence￿consumption and￿power￿output￿via￿the￿cooling￿system. System￿protection If￿the￿coolant￿or￿engine￿oil￿is￿subject￿to￿excessive￿temperatures￿during￿engine￿operation,￿certain functions￿in￿the￿vehicle￿are￿influenced￿in￿such￿a￿way￿that￿more￿energy￿is￿made￿available￿for￿engine cooling. The￿measures￿are￿split￿into￿two￿operating￿modes: • Component￿protection Coolant￿temperature￿from￿117￿°C Engine￿oil￿temperature￿from￿143￿°C￿at￿the￿oil￿pressure￿and￿oil￿temperature￿sensor￿in￿the main￿oil￿duct Measure:￿e.g.￿power￿reduction￿of￿passenger￿compartment￿climate￿control￿and￿of￿engine • Emergency Coolant￿temperature￿from￿122￿°C Engine￿oil￿temperature￿from￿151￿°C￿at￿the￿oil￿pressure￿and￿oil￿temperature￿sensor￿in￿the main￿oil￿duct Measure:￿e.g.￿power￿reduction￿of￿engine￿(up￿to￿approx.￿90￿%). Example No￿coolant￿pump￿is￿running￿when￿the￿engine￿is￿started￿at￿20 °C.￿The￿auxiliary￿water￿pump￿is￿switched on￿when￿the￿engine￿reaches￿a￿temperature￿of￿30 °C.￿It￿is￿only￿necessary￿to￿activate￿the￿coolant￿pump from￿a￿coolant￿temperature￿of￿approx.￿90 °C.￿The￿heat￿management￿monitors￿the￿engine￿coolant temperature￿and￿power￿requirement￿and￿activates￿the￿components￿accordingly.￿It￿is￿therefore￿not...
  • Page 67 N13￿Engine. 4.￿Cooling. • Coolant￿pump￿off • Auxiliary￿water￿pump￿on. N13￿engine,￿cooling￿circuit￿in￿the￿warm-up￿phase Index Explanation Radiator Radiator,￿low￿temperature￿range Electric￿fan Auxiliary￿water￿pump Heater￿for￿map￿thermostat Map￿thermostat Coolant￿pump Coolant￿temperature￿sensor...
  • Page 68 N13￿Engine. 4.￿Cooling. Index Explanation Heat￿exchanger Engine￿oil-to-coolant￿heat￿exchanger Exhaust￿turbocharger Expansion￿tank Tank￿ventilation￿line Transmission￿oil-to-coolant￿heat￿exchanger Thermostat￿for￿transmission￿oil At￿operating￿temperature Considering￿the￿cooling￿circuit￿at￿operating￿temperature,￿coolant￿temperature￿>￿105 °C • Coolant￿pump￿on • Auxiliary￿water￿pump￿off.
  • Page 69 N13￿Engine. 4.￿Cooling. N13￿engine,￿cooling￿circuit￿in￿the￿warm-up￿phase Index Explanation Radiator Radiator,￿low￿temperature￿range Electric￿fan Auxiliary￿water￿pump Heater￿for￿map￿thermostat Map￿thermostat Coolant￿pump Coolant￿temperature￿sensor Heat￿exchanger Engine￿oil-to-coolant￿heat￿exchanger...
  • Page 70 N13￿Engine. 4.￿Cooling. Index Explanation Exhaust￿turbocharger Expansion￿tank Tank￿ventilation￿line Transmission￿oil-to-coolant￿heat￿exchanger Thermostat￿for￿transmission￿oil...

  • Page 71: Overview

    N13￿Engine. 5.￿Air￿Intake/Exhaust￿Emission￿Syst. The￿air￿intake￿and￿exhaust￿emission￿systems￿are￿in￿principle￿comparable￿with￿those￿in￿the￿N55￿engine. The￿list￿below￿itemises￿the￿most￿important￿features￿of￿the￿air￿intake￿and￿exhaust￿emission￿systems: • Permanently￿attached￿intake￿silencer • Hot￿film￿air￿mass￿meter￿7￿in￿all￿engine￿versions • TwinScroll￿exhaust￿turbocharger￿with￿integrated￿wastegate￿and￿blow-off￿valves • Three￿connections￿for￿crankcase￿ventilation • Connection￿for￿tank￿ventilation. 5.1.￿Overview N13￿engine,￿air￿intake￿and￿exhaust￿emission￿systems Index Explanation Charge￿air￿cooler Blow-off￿valve Intake￿silencer Hot￿film￿air￿mass￿meter...
  • Page 72 N13￿Engine. 5.￿Air￿Intake/Exhaust￿Emission￿Syst. Index Explanation Exhaust￿turbocharger Wastegate￿valve Oxygen￿sensor￿before￿catalytic￿converter￿(control￿sensor) Catalytic￿converter Oxygen￿sensor￿after￿catalytic￿converter￿(monitoring￿sensor) Intake￿manifold￿pressure￿sensor Throttle￿valve Charge-air￿temperature￿and￿charge-air￿pressure￿sensor Tank￿vent￿valve...
  • Page 73 N13￿Engine. 5.￿Air￿Intake/Exhaust￿Emission￿Syst. 5.2.￿Air￿intake￿system N13￿engine,￿air￿intake￿system Index Explanation Resonator￿on￿hot￿film￿air￿mass￿meter￿housing Resonator￿on￿air￿filter￿housing Unfiltered￿air￿intake Intake￿silencer Hot￿film￿air￿mass￿meter Crankcase￿ventilation￿(turbocharged￿mode) Purge￿air￿line Exhaust￿turbocharger...
  • Page 74 N13￿Engine. 5.￿Air￿Intake/Exhaust￿Emission￿Syst. Index Explanation Blow-off￿valve Charge￿air￿pipe Charge￿air￿cooler Charge￿air￿pipe Charge-air￿temperature￿and￿charge-air￿pressure￿sensor Throttle￿valve Intake￿manifold￿pressure￿sensor Intake￿manifold 5.2.1.￿Hot￿film￿air￿mass￿meter The￿N13￿engine￿is￿fitted￿with￿the￿hot￿film￿air￿mass￿meter￿7,￿which￿is￿very￿similar￿to￿the￿one￿in￿the N74￿engine.￿The￿N13￿engine￿has￿a￿hot￿film￿air￿mass￿meter￿in￿all￿its￿versions,￿as￿is￿state-of-the-art technology￿in￿TVDI￿engines. It￿can￿generally￿be￿said￿that￿the￿quality￿of￿air￿mass￿determination￿by￿measurement￿using￿a￿hot￿film￿air mass￿meter￿and￿by￿calculation￿of￿the￿substitute￿value￿(of￿intake￿air￿temperature,￿charging￿pressure, engine￿speed,￿etc.)￿is￿to￿be￿considered￿as￿equal￿in￿the￿current￿state￿of￿development.￿The￿calculated substitute￿value￿is￿nevertheless￿used￿for￿engine￿load￿control.￿This￿value￿is￿however￿regularly￿adjusted with￿the￿value￿of￿the￿hot￿film￿air￿mass￿meter￿in￿order￿to￿compensate￿for￿tolerances￿which￿arise￿on account￿of￿the￿complex￿flow￿mechanics￿conditions￿in￿the￿air￿intake￿system.￿The￿more￿sophisticate￿the mixture￿preparation￿method￿(Turbo-Valvetronic￿Direct￿fuel￿Injection￿-￿TVDI),￿the￿more￿important￿it￿is￿to adjust￿the￿substitute￿value￿with￿the￿hot￿film￿air￿mass￿meter.￿TVDI￿is￿currently￿the￿most￿sophisticated mixture￿preparation￿method.￿For￿this￿reason,￿all￿TVDI￿engines￿are￿also￿equipped￿with￿a￿hot￿film￿air mass￿meter. The￿use￿of￿a￿hot-film￿air￿mass￿meter￿also￿offers￿the￿opportunity￿of￿extended￿diagnoses,￿e.g.￿for￿tank￿or crankcase￿ventilation,￿as￿these￿systems￿create￿a￿deviation￿in￿the￿air￿mass.￿This￿is￿particularly￿important for￿the￿US￿version,￿as￿it￿is￿required￿by￿US￿exhaust￿emissions￿legislation. Failure￿or￿disconnection￿of￿the￿hot￿film￿air￿mass￿meter￿does￿not￿immediately￿result￿in￿emergency engine￿operation.￿However,￿impaired￿mixture￿preparation￿and￿therefore￿poorer￿emission￿values￿are possible,￿which￿is￿why￿the￿emissions￿warning￿lamp￿lights￿up. 5.2.2.￿Intake￿manifold The￿intake￿manifold￿is￿very￿simple￿in￿design￿(on￿account￿of￿the￿turbocharging￿arrangement)￿and￿is largely￿comparable￿to￿that￿of￿the￿N20￿engine.
  • Page 75 N13￿Engine. 5.￿Air￿Intake/Exhaust￿Emission￿Syst. N13￿engine,￿intake￿manifold￿with￿throttle￿valve Index Explanation Intake￿manifold Throttle￿valve Intake￿manifold￿pressure￿sensor Tank￿ventilation￿connection Not￿in￿use Crankcase￿ventilation￿connection￿in￿naturally￿aspirated￿mode Intake￿manifold￿pressure￿sensor Located￿directly￿after￿the￿throttle￿valve,￿at￿the￿entry￿to￿the￿intake￿manifold,￿is￿the￿intake￿manifold pressure￿sensor.￿The￿sensor￿can￿sense￿pressures￿ranging￿between￿0￿kPa￿and￿250￿kPa￿(0￿bar￿and￿2.5 bar).￿The￿sensor￿has￿three￿connections￿and￿is￿supplied￿by￿the￿DME￿with￿ground￿(earth)￿and￿a￿voltage of￿5 V.￿A￿voltage￿signal￿is￿output￿via￿the￿third￿connection￿and￿a￿data￿line￿to￿the￿DME.￿0.5￿V￿corresponds to￿20￿kPa￿(0.2￿bar)￿and￿4.5￿V￿to￿250￿kPa￿(2.5￿bar). Charge-air￿temperature￿and￿charge-air￿pressure￿sensor The￿charge-air￿temperature￿and￿charge-air￿pressure￿sensor￿is￿located￿in￿the￿charge￿air￿pipe￿ahead of￿the￿throttle￿valve.￿The￿sensor￿has￿four￿connections￿and￿like￿the￿intake￿manifold￿pressure￿sensor is￿supplied￿by￿the￿DME￿with￿ground￿(earth)￿and￿a￿voltage￿of￿5 V.￿The￿pressure￿and￿the￿temperature...
  • Page 76 N13￿Engine. 5.￿Air￿Intake/Exhaust￿Emission￿Syst. of￿the￿intake￿air￿are￿transmitted￿via￿a￿connection￿and￿a￿further￿connection￿respectively￿to￿the￿DME. The￿pressure￿signal￿is￿transmitted￿in￿the￿same￿way￿as￿in￿the￿intake￿manifold￿pressure￿sensor.￿The temperature￿signal￿is￿transmitted￿in￿the￿same￿way.￿An￿NTC￿thermistor￿alters￿the￿voltage￿signal,￿by means￿of￿which￿the￿DME￿senses￿the￿charge-air￿temperature.￿At￿an￿air￿temperature￿of￿25￿°C￿the resistance￿is￿approx.￿2063￿Ω,￿at￿100￿°C￿approx.￿186￿Ω. 5.3.￿Exhaust￿turbocharger The￿N13￿engine￿features￿an￿exhaust￿turbocharger￿with￿TwinScroll￿technology.￿It￿includes￿at￿the turbine￿inlet￿two￿separate￿ducts￿in￿which￿the￿exhaust￿gas￿is￿routed￿from￿two￿cylinders￿to￿the￿turbine vanes. N13￿engine,￿exhaust￿turbocharger Index Explanation Inlet￿from￿intake￿silencer Blow-off￿valve Coolant￿feed Coolant￿return Oil￿return...
  • Page 77 N13￿Engine. 5.￿Air￿Intake/Exhaust￿Emission￿Syst. Index Explanation Turbine￿housing Outlet￿to￿catalytic￿converter Wastegate￿valve Exhaust￿ports,￿cylinders￿2￿and￿3 Exhaust￿ports,￿cylinders￿1￿and￿4 Vacuum￿unit￿for￿wastegate￿valve Outlet￿to￿charge￿air￿cooler The￿exhaust￿turbocharger￿has￿a￿familiar￿design￿with￿an￿electric￿blow-off￿valve￿and￿a￿vacuum-controlled wastegate￿valve. 5.4.￿Exhaust￿emission￿system 5.4.1.￿Exhaust￿manifold The￿exhaust￿manifold￿of￿the￿N13￿has￿a￿unitary￿design.￿The￿exhaust￿manifold￿in￿the￿N13￿engine￿is￿a four-into-two￿type,￿which￿is￿necessary￿for￿the￿special￿function￿of￿the￿TwinScroll￿turbocharger.￿Here￿the exhaust￿ports￿of￿cylinders￿1￿and￿4￿and￿2￿and￿3￿are￿brought￿together￿in￿each￿case￿into￿one￿port. It￿consists￿of￿three￿individual￿units￿which￿are￿welded￿to￿each￿other.￿The￿middle￿unit￿forms￿one￿part￿of all￿four￿exhaust￿ports,￿one￿outer￿unit￿forms￿the￿other￿part￿of￿exhaust￿ports￿2￿and￿3,￿and￿the￿other￿outer unit￿forms￿one￿part￿of￿exhaust￿ports￿1￿and￿4. N13￿engine,￿unitary-design￿exhaust￿manifold 5.4.2.￿Catalytic￿converter The￿N13￿engine￿has￿an￿upstream￿single-scroll￿catalytic￿converter￿with￿two￿ceramic￿monoliths.
  • Page 78 N13￿Engine. 5.￿Air￿Intake/Exhaust￿Emission￿Syst. N13￿engine￿in￿BMW￿118i,￿sectional￿view￿of￿catalytic￿converter Index Explanation Connection,￿exhaust￿turbocharger Control￿sensor Ceramic￿monolith￿1 Ceramic￿monolith￿2 Monitoring￿sensor Decoupling￿element Connection￿to￿exhaust￿system Volume Diameter Number￿of￿cells in￿[litres] in￿[mm] in￿[cells/inch] Ceramic￿monolith￿1 0.80 Ceramic￿monolith￿2 0.86 Oxygen￿sensors The￿established￿Bosch￿oxygen￿sensors￿are￿used: • Control￿sensor:￿LSU￿ADV • Monitoring￿sensor:￿LSF4.2.
  • Page 79 N13￿Engine. 5.￿Air￿Intake/Exhaust￿Emission￿Syst. The￿control￿sensor￿is￿located￿ahead￿of￿the￿primary￿catalytic￿converter,￿as￿close￿as￿possible￿to￿the turbine￿outlet.￿Its￿position￿has￿been￿chosen￿so￿that￿all￿the￿cylinders￿can￿be￿recorded￿separately.￿The monitoring￿sensor￿is￿positioned￿after￿the￿second￿ceramic￿monolith.
  • Page 80 N13￿Engine. 6.￿Vacuum￿System. The￿vacuum￿system￿of￿the￿N13￿engine￿is￿comparable￿with￿that￿of￿the￿N55￿engine.￿As￿well￿as￿supplying the￿brake￿servo,￿it￿is￿needed￿primarily￿to￿activate￿the￿wastegate￿valve￿on￿the￿exhaust￿turbocharger. N13￿engine,￿vacuum￿system Index Explanation Connection,￿brake￿servo Vacuum￿line Vacuum￿reservoir Vacuum￿unit,￿wastegate￿valve Electropneumatic￿pressure￿converter￿for￿wastegate￿valve Non-return￿valve Vacuum￿pump The￿vacuum￿pump￿as￿usual￿is￿designed￿to￿have￿two￿stages￿so￿that￿the￿majority￿of￿the￿generated vacuum￿is￿made￿available￿to￿the￿brake￿servo.￿A￿vacuum￿reservoir￿is￿used￿to￿provide￿sufficient￿vacuum for￿actuating￿the￿wastegate￿valve.￿This￿reservoir￿is￿permanently￿attached￿to￿the￿engine￿cover. Disconnect￿the￿vacuum￿line￿before￿removing￿the￿engine￿cover,￿as￿otherwise￿there￿is￿a￿risk￿of￿damage.

  • Page 81: Overview

    N13￿Engine. 7.￿Fuel￿Preparation. The￿N13￿engine￿makes￿use￿of￿high-pressure￿injection,￿which￿was￿introduced￿in￿the￿N55￿engine.￿It differs￿from￿high-precision￿injection￿(HPI)￿in￿that￿it￿uses￿solenoid￿valve￿injectors￿with￿multihole￿nozzles. High-pressure￿injection￿is￿similar￿to￿the￿N74￿engine￿and￿is￿operated￿in￿wide￿ranges￿in￿the￿N13￿engine with￿120 bar￿injection￿pressure. 7.1.￿Overview The￿following￿overview￿shows￿the￿fuel￿preparation￿system￿of￿the￿N13￿engine.￿It￿essentially corresponds￿to￿the￿systems￿with￿direct￿fuel￿injection￿familiar￿in￿BMW￿models. N13￿engine,￿fuel￿preparation Index Explanation High-pressure￿pump Connection,￿low-pressure￿line Connection,￿quantity￿control￿valve High-pressure￿line,￿high-pressure￿pump￿-￿rail Rail Rail￿pressure￿sensor Solenoid￿valve￿injector Bosch￿high-pressure￿fuel￿injectors￿with￿the￿designation￿HDEV5.1￿are￿used.￿These￿fuel￿injectors￿are a￿further￿development￿of￿the￿fuel￿injectors￿already￿familiar￿from￿the￿N73￿engine.￿The￿N14￿and￿N18 engines￿in￿the￿MINI￿also￿have￿these￿fuel￿injectors.￿The￿high-pressure￿pump￿is￿already￿known￿from￿the 4-,￿8-￿and￿12-cylinder￿engines.

  • Page 82: Injectors

    N13￿Engine. 7.￿Fuel￿Preparation. Another￿feature￿of￿note￿when￿compared￿with￿established￿BMW￿systems￿is￿the￿omission￿of￿the￿fuel low-pressure￿sensor. Work￿on￿the￿fuel￿system￿is￿only￿permitted￿after￿the￿engine￿has￿cooled￿down￿and￿the￿battery￿has￿been disconnected.￿The￿coolant￿temperature￿must￿not￿exceed￿40￿°C.￿This￿stipulation￿must￿be￿observed without￿fail,￿as￿otherwise￿there￿is￿a￿risk￿of￿fuel￿being￿sprayed￿back￿on￿account￿of￿the￿residual￿pressure in￿the￿high-pressure￿fuel￿system.￿A￿full￿face￿guard￿and￿protective￿gloves￿must￿be￿worn￿for￿protection purposes. When￿working￿on￿the￿high-pressure￿fuel￿system,￿it￿is￿essential￿to￿adhere￿to￿conditions￿of￿absolute cleanliness￿and￿to￿observe￿the￿work￿sequences￿described￿in￿the￿repair￿instructions.￿Even￿the￿slightest contamination￿and￿damage￿to￿the￿screwed￿fittings￿of￿the￿high-pressure￿lines￿can￿cause￿leaks. • No￿dirt￿particles￿or￿foreign￿bodies￿are￿allowed￿to￿get￿into￿the￿system • Remove￿all￿dirt￿contamination￿before￿removing￿lines￿and￿separate￿components • Use￿only￿fluff-free￿cloths • Seal￿off￿all￿fuel￿system￿openings￿with￿protective￿caps￿and￿plugs. 7.2.￿Fuel￿pump￿control As￿already￿mentioned,￿there￿is￿no￿fuel￿low-pressure￿sensor￿in￿the￿N13￿engine.￿The￿fuel￿pump￿is supplied￿with￿voltage￿by￿a￿relay￿and￿always￿runs￿during￿operation￿at￿maximum￿delivery.￿There￿is￿no￿fuel quantity￿control. 7.3.￿High-pressure￿pump The￿Bosch￿high-pressure￿pump,￿already￿familiar￿from￿the￿N43,￿N63￿and￿N74￿engines,￿is￿used.￿This￿is￿a single-plunger￿pump￿which￿is￿driven￿from￿the￿intake￿camshaft￿via￿a￿triple￿cam. For￿further￿information￿on￿the￿high-pressure￿pump,￿please￿refer￿to￿the￿“N74￿Engine”￿product information￿bulletin. 7.4.￿Injectors The￿Bosch￿HDEV5.1￿solenoid￿valve￿injector￿is￿an￿inward-opening￿multihole￿valve￿–￿unlike￿the￿outward- opening￿piezo￿injector￿used￿in￿HPI￿engines.￿The￿HDEV5.1￿too￿is￿characterised￿by￿high￿variability￿with regard￿to￿spray￿angle￿and￿spray￿shape,￿and￿is￿configured￿for￿a￿system￿pressure￿of￿up￿to￿200￿bar.
  • Page 83 N13￿Engine. 7.￿Fuel￿Preparation. N13￿engine,￿injector Index Explanation Sealing￿ring Fine-mesh￿strainer Electrical￿connection Spring Solenoid￿coil Housing Nozzle￿needle￿with￿armature Teflon￿ring Valve￿seat Valve￿outlet￿bores...
  • Page 84 N13￿Engine. 7.￿Fuel￿Preparation. The￿injector￿is￿located￿on￿the￿side￿of￿the￿cylinder￿and￿projects￿into￿the￿combustion￿chamber.￿In￿the course￿of￿fully￿sequential￿fuel￿injection￿each￿injector￿is￿activated￿by￿the￿DME￿via￿its￿own￿output￿stage. Here,￿the￿moment￿of￿injection￿of￿the￿respective￿cylinder￿is￿adapted￿to￿the￿operating￿state￿(engine speed,￿load￿and￿engine￿temperature). The￿higher￿pressures￿are￿necessary,￿as￿the￿fuel￿quantity￿required￿for￿combustion￿must￿be￿injected￿in￿a much￿shorter￿period￿of￿time. The￿solenoid￿coil￿(5),￿through￿which￿current￿passes,￿generates￿a￿magnetic￿field.￿This￿lifts￿the￿nozzle needle￿with￿armature￿(7)￿against￿the￿pressure￿of￿the￿spring￿(4)￿off￿the￿valve￿seat￿(9)￿and￿opens￿the valve￿outlet￿bores￿(10).￿Fuel￿is￿now￿forced￿into￿the￿combustion￿chamber￿as￿a￿result￿of￿the￿pressure difference￿between￿rail￿pressure￿and￿combustion￿chamber￿pressure.￿When￿the￿current￿is￿switched￿off, the￿nozzle￿needle￿is￿pressed￿by￿the￿spring￿(4)￿into￿the￿valve￿seat￿and￿interrupts￿the￿fuel￿flow. The￿injected￿fuel￿quantity￿is￿thus￿dependent￿on￿the￿rail￿pressure,￿the￿counterpressure￿in￿the combustion￿chamber￿and￿the￿opening￿period￿of￿the￿injector.￿The￿fuel￿is￿injected￿faster,￿more￿accurately and￿with￿a￿better￿fuel￿spray￿shape￿than￿is￿the￿case￿with￿manifold￿(intake￿pipe)￿injection. The￿incoming￿vehicle￿voltage￿is￿transformed￿upwards￿to￿85￿to￿100 V￿by￿the￿use￿of￿a￿clocked￿output stage￿with￿high-power￿capacitors. A￿current￿flows￿in￿the￿output￿stage￿up￿to￿a￿specific￿cutoff￿value.￿The￿cutoff￿generates￿an￿induction voltage,￿e.g.￿85 V,￿which￿then￿charges￿the￿high-power￿capacitors￿(booster￿function). The￿injectors￿are￿supplied￿by￿the￿capacitor￿current￿with￿a￿current￿level￿of￿2.8 to￿16 A.￿The￿DME activates￿the￿injectors￿at￿the￿ground￿(earth)￿end.
  • Page 85 N13￿Engine. 8.￿Fuel￿Supply. The￿fuel￿supply￿is￿vehicle-specific.￿Hardly￿any￿changes￿have￿been￿made￿to￿the￿already￿existing models.￿Therefore￿only￿the￿tank￿ventilation￿system￿on￿the￿engine￿will￿be￿described￿in￿greater￿detail here.￿For￿the￿layout￿of￿the￿fuel￿supply,￿please￿refer￿to￿the￿“F20￿Powertrain”￿product￿information bulletin. 8.1.￿Tank￿ventilation The￿tank￿ventilation￿system￿in￿the￿N13￿engine￿has￿a￿familiar￿design.￿It￿features￿an￿electrical￿tank￿vent valve￿and￿a￿connection￿for￿the￿purge￿air￿line￿to￿the￿intake￿manifold,￿directly￿after￿the￿throttle￿valve. N13￿engine,￿tank￿ventilation Index Explanation Intake￿manifold Tank￿vent￿valve Line￿from￿carbon￿canister￿of￿tank￿ventilation￿system Connection￿of￿tank￿ventilation￿after￿throttle￿valve Throttle￿valve...

  • Page 86: Overview

    N13￿Engine. 9.￿Engine￿Electrical￿System. 9.1.￿Overview N13￿engine,￿system￿wiring￿diagram￿MEVD17.2.5...
  • Page 87 N13￿Engine. 9.￿Engine￿Electrical￿System. Index Explanation Engine￿electronics￿Valvetronic￿direct￿injection￿MEVD17.2.5 Ambient￿pressure￿sensor Temperature￿sensor Dynamic￿Stability￿Control￿(DSC) Integrated￿Chassis￿Management￿(ICM) Front￿Electronic￿Module￿(FEM) Intelligent￿battery￿sensor￿(IBS) Crash￿Safety￿Module￿(ACSM) Air￿conditioning￿compressor Refrigerant￿pressure￿sensor Brake￿light￿switch Starter￿motor Clutch￿module Relay,￿Valvetronic Relay,￿terminal￿30B,￿power￿distribution￿box,￿rear Relay,￿terminal￿30B,￿power￿distribution￿box,￿front DME￿main￿relay Relay,￿ignition￿and￿injectors Relay￿for￿electric￿fan Electric￿fan Relay,￿electric￿fuel￿pump Electric￿fuel￿pump Map￿thermostat Blow-off￿valve Tank￿vent￿valve VANOS￿solenoid￿actuator,￿intake￿camshaft VANOS￿solenoid￿actuator,￿exhaust￿camshaft Friction￿gear￿servodrive Auxiliary￿water￿pump Oil￿pressure￿control￿valve Electropneumatic￿pressure￿converter￿for￿wastegate￿valve Quantity￿control￿valve 33￿–￿36 Injectors 37￿–￿40 Ignition￿coils...
  • Page 88 N13￿Engine. 9.￿Engine￿Electrical￿System. Index Explanation Brake￿vacuum￿sensor￿(only￿for￿automatic￿engine￿start-stop￿with￿manual gearbox) Zero-gear￿sensor￿(only￿for￿automatic￿engine￿start-stop￿with￿manual￿gearbox) Diagnostic￿socket￿(speed￿signal) Oxygen￿sensor￿after￿catalytic￿converter￿(monitoring￿sensor,￿LSF￿4.2) Oxygen￿sensor￿before￿catalytic￿converter￿(control￿sensor,￿LSU￿ADV) Intake￿manifold￿pressure￿sensor Rail￿pressure￿sensor Charge-air￿temperature￿and￿charge-air￿pressure￿sensor Knock￿sensor Hot￿film￿air￿mass￿meter Camshaft￿sensor,￿intake￿camshaft Camshaft￿sensor,￿exhaust￿camshaft Crankshaft￿sensor Accelerator￿pedal￿module Throttle￿valve Coolant￿temperature￿sensor Oil￿pressure￿sensor Valvetronic￿servomotor DC/DC￿converter Alternator 9.2.￿Engine￿control￿unit The￿N13￿engine￿has￿a￿Bosch￿DME￿with￿the￿designation￿MEVD17.2.4.￿It￿is￿closely￿related￿to￿the￿DME of￿the￿N55￿engine￿(MEVD17.2)￿and￿is￿likewise￿engine-mounted￿on￿the￿intake￿manifold. Do￿not￿attempt￿any￿trial￿replacement￿of￿control￿units. Because￿of￿the￿electronic￿immobiliser,￿a￿trial￿replacement￿of￿control￿units￿from￿other￿vehicles￿must￿not be￿attempted￿under￿any￿circumstances.￿An￿immobiliser￿adjustment￿cannot￿be￿reversed. The￿N13￿engine￿DME￿(MEVD17.2.4)￿is￿designed￿in￿such￿a￿way￿that￿it￿can￿be￿attached￿on￿an intermediate￿plate￿to￿the￿intake￿manifold. The￿N13￿engine￿will￿be￿offered￿as￿from￿September￿2011￿in￿the￿F20;￿the￿layout￿for￿the￿vehicle￿electrical system￿2020￿is￿therefore￿shown￿here.
  • Page 89 N13￿Engine. 9.￿Engine￿Electrical￿System. The￿plug￿concept￿is￿identical￿to￿the￿MEVD17.2￿in￿the￿N55￿engine.￿There￿is￿a￿logical￿division￿into￿six modules. N13￿engine,￿connections￿MEVD17.2.4 Index Explanation Engine￿control￿unit Module￿600,￿fuel￿injection￿and￿ignition,￿24￿pins Module￿500,￿DME￿supply,￿12￿pins Module￿400,￿Valvetronic￿servomotor,￿11￿pins Module￿100,￿vehicle￿connection,￿48￿pins Module￿200,￿sensors￿and￿actuators￿1,￿58￿pins Module￿300,￿sensors￿and￿actuators￿2,￿58￿pins Intake￿manifold￿cover Intake￿manifold 9.2.1.￿Overall￿function The￿DME￿is￿the￿computing￿and￿switching￿centre￿of￿the￿engine￿management￿system.￿Sensors￿on￿the engine￿and￿the￿vehicle￿deliver￿the￿input￿signals.￿The￿signals￿for￿activating￿the￿actuators￿are￿calculated from￿the￿input￿signals,￿the￿nominal￿values￿calculated￿using￿a￿computing￿model￿in￿the￿DME￿control￿unit and￿the￿stored￿program￿maps.￿The￿DME￿control￿unit￿activates￿the￿actuators￿directly￿or￿via￿relays.
  • Page 90 N13￿Engine. 9.￿Engine￿Electrical￿System. The￿DME￿control￿unit￿is￿woken￿up￿via￿the￿wake-up￿line￿(terminal￿15￿Wake￿up)￿by￿the￿Front￿Electronic Module￿(FEM). The￿after-run￿starts￿after￿terminal￿15￿OFF.￿The￿adaptation￿values￿are￿stored￿during￿the￿after-run.￿The DME￿control￿unit￿uses￿a￿bus￿signal￿to￿signal￿its￿readiness￿to￿“go￿to￿sleep”.￿When￿all￿the￿participating control￿units￿have￿signalled￿their￿readiness￿to￿“go￿to￿sleep”,￿the￿bus￿master￿outputs￿a￿bus￿signal￿and the￿control￿units￿terminate￿communication￿five￿seconds￿later. The￿board￿in￿the￿DME￿control￿unit￿accommodates￿two￿sensors:￿a￿temperature￿sensor￿and￿an￿ambient pressure￿sensor.￿The￿temperature￿sensor￿is￿used￿to￿monitor￿the￿temperature￿of￿the￿components￿in￿the DME￿control￿unit.￿The￿ambient￿pressure￿is￿required￿for￿calculating￿the￿mixture￿composition.
  • Page 92 Bayerische￿Motorenwerke￿Aktiengesellschaft Händlerqualifizierung￿und￿Training Röntgenstraße￿7 85716￿Unterschleißheim,￿Germany...
