SI B11 16 14
Engine
This Service Information bulletin and attachment supersedes SI B11 16 14 dated May 2015.
designates changes to this revision
SUBJECT

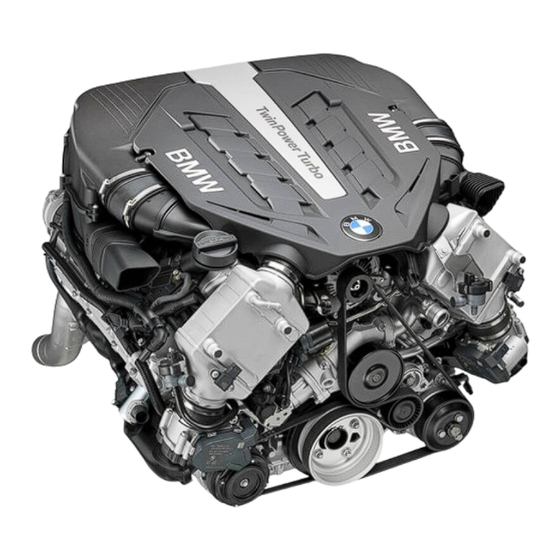

N63 Engine: Check the Timing Chain
MODEL
F01 and F02 (7 Series Sedan) produced from 9/2008 to 6/2012
F04 (ActiveHybrid 7) produced from 4/2010 to 6/2012
F07 (Gran Turismo) produced from 9/2009 to 6/2012
F10 (5 Series Sedan) produced from3/2010 to 7/2013
F12 (6 Series Convertible) produced from 3/2011 to 7/2012
F13 (6 Series Coupe) produced from 7/2011 to 7/2012
E70 (X5) produced from 3/2010 to 6/2013
E71 (X6) produced from 7/2008 to 6/2014
E72 (ActiveHybrid X6) produced from 9/2009 to 9/2011
INFORMATION
This bulletin outlines the procedure for checking the engine timing chains for wear, and should be completed
in conjunction with
SI B11 06
The N63CCP and N63 Engine Check the Timing Chain are NOT mandatory Technical Campaigns or Recalls.
They should be completed only based on parts availability, workshop capacity, and the customer's
schedule.
Performing the test plans identified in the procedure below will detect wear at an early stage and, if necessary,
provide a repair solution. To avoid future valvetrain wear, the vehicle must be reprogrammed and a shorter oil
service interval must be retrofitted via ISTA/P.
Finally, drain and replace the engine's oil and filter.
After completing all necessary repairs included in the N63 Customer Care Package and the Timing
Chain Check, the vehicle must be test driven for up to 30 minutes to ensure that the repairs were
performed to the highest standard.
AFFECTED VEHICLES
This Service Action applies to E70, E71, E72, F01, F02, F04, F07, F10, F12, and F13 vehicles with the N63
engines corresponding to the production dates listed above.
PROCEDURE
https://www.bmwtis.net/tiscode/cgi-bin/bulletin.aspx?sie_path=/tsb/bulletins/htm_store/235...
SB-10057338-1890
14, "N63 Customer Care Package."
Page 1 of 17
May 2015
Technical Service
6/4/2015
Advertisement
Table of Contents
Related Manuals for BMW N63
Summary of Contents for BMW N63
- Page 1 Chain Check, the vehicle must be test driven for up to 30 minutes to ensure that the repairs were performed to the highest standard. AFFECTED VEHICLES This Service Action applies to E70, E71, E72, F01, F02, F04, F07, F10, F12, and F13 vehicles with the N63 engines corresponding to the production dates listed above. PROCEDURE https://www.bmwtis.net/tiscode/cgi-bin/bulletin.aspx?sie_path=/tsb/bulletins/htm_store/235...
- Page 2 Page 2 of 17 1. Perform a vehicle test. If the vehicle already has faults stored for the VANOS or camshaft position, perform the recommended test plans for the faults stored before checking the timing chain. A defective component (VANOS actuator or solenoid) can affect the outcome of the timing chain check. 2.
- Page 3 Page 3 of 17 Do not discard the replaced parts. These parts will be requested by the Warranty Parts Return Center (WPRC).When the defective timing chains are removed from the engine label them with cylinder head bank (1 or 2) they were removed from. Important Note: The current ISTA repair manual RA11 31 052 “Replacing both timing chains \...
- Page 4 Page 4 of 17 Important note: For F01, F02, F04, and F07 vehicles, check the operation of the trunk release with the remote. If the trunk does not open with the remote, refer to the special procedure in SI B66 04 15. Leave the ICOM connected to the vehicle.
- Page 5 Page 5 of 17 Important Note: The current ISTA repair manual RA11 31 052 “Replacing both timing chains \ PREMIUM” instructs to release tension on four bearing bolts (indicated as #1 for cylinders 5 to 8; and #2 for cylinders 1 to 4) on the engine block. IT IS NOT NECESSARY TO DO THIS.
- Page 6 The following parts are blocked and will need manual release via the Parts Consultant Group. Copy and paste the parts table below into the N63 CCP Timing Chain case. https://www.bmwtis.net/tiscode/cgi-bin/bulletin.aspx?sie_path=/tsb/bulletins/htm_store/235...
- Page 7 Page 7 of 17 Part Number Description Quantity 11 31 8 655 427 Timing chain with tensioner rail 11 36 8 655 424 VANOS adjustment unit, inlet camshaft 11 36 8 655 423 VANOS adjustment unit, outlet camshaft 11 31 7 565 242 Slide rail 11 21 8 655 426 Sprocket gear...
- Page 8 Page 8 of 17 (programming/encoding, all and E7x without CAS) Performed with labor operations 00 62 111 to 00 62 118: Check the timing chain (no replacement necessary), 00 62 915 Refer to KSD2 change engine oil and filter and modify the oil service interval (programming/encoding, E7x with CAS only)
- Page 9 Page 9 of 17 Performed with labor operation 00 62 111: Check and replace the timing chain (includes removing and installing cylinder head), change engine oil and filter and modify the oil service interval (programming/encoding, E7x with CAS only) In conjuction with Labor Operation 00 62 112 (SI B11 06 14) Labor Operation: Labor Allowance: Description:...
- Page 10 Page 10 of 17 modify the oil service interval (programming/encoding, E7x with CAS only) In conjuction with Labor Operation 00 62 113 (SI B11 06 14) Labor Operation: Labor Allowance: Description: Performed with labor operation 00 62 113: Check and replace the timing chain (includes removing and installing cylinder head), change...
- Page 11 Page 11 of 17 Labor Operation: Labor Allowance: Description: Performed with labor operation 00 62 114: Check and replace the timing chain (includes removing and installing cylinder head), change engine oil and filter. 00 62 956 Refer to KSD2 Modifying the oil service interval programming/encoding is reimbursed via a different...
- Page 12 Page 12 of 17 engine oil and filter. Modifying the oil service interval programming/encoding is reimbursed via a different Technical Campaign or repair during the same workshop visit (all) Labor Operation: Labor Allowance: Description: Performed with labor operation 00 62 115: Check and replace the timing chain (includes removing and installing...
- Page 13 Page 13 of 17 reimbursed via a different Technical Campaign or repair during the same workshop visit (all) Performed with labor operation 00 62 116: Check and replace the timing chain (includes removing and installing cylinder head), change 00 62 965 Refer to KSD2 engine oil and filter and modify the oil service...
- Page 14 Page 14 of 17 Performed with labor operation 00 62 117: Check and replace the timing chain (includes removing and installing cylinder head), change engine oil and filter and modify the oil service interval (programming/encoding, all and E7x without CAS) Performed with labor operation 00 62 117: Check and replace the...
- Page 15 Sublet calculation: Reimbursement for used quantities of required operating fluids, including engine oil (applicable BMW part numbers) at dealer net plus handling. Enter the material cost in sublet and itemize the amount in the claim comment section.
- Page 16 Previous Customer-pay Repairs BMW of North America, LLC will provide reimbursement for “qualifying customer-pay” timing chain repairs” that were performed on an eligible vehicle prior to the release of the N63 Engine Timing Chain Inspection Measure. Customer-pay repairs, when they were performed, are subject to the applicable New Vehicle/SAV Limited Warranty’s exclusions and limitations, in addition to the vehicle and coverage eligibility requirements.
- Page 17 Page 17 of 17 Alternatively, he or she may mail or fax his or her request and documentation directly to the BMW Customer Reimbursement Center. For more information, please refer to the PDF attachment: “B110614_Customer_CP_Reimbursement Procedure” that is included in SI B11 06 14. A copy of this attachment can be provided to the customer.
