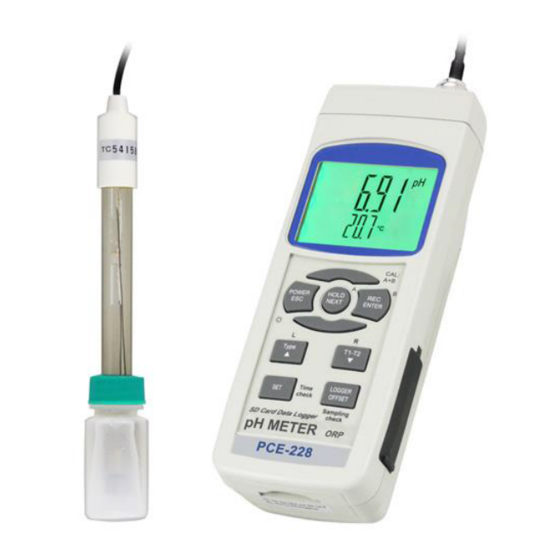

PCE Instruments PCE-228 Manual

Redox meter
Hide thumbs Also See for PCE-228:
Table of Contents

Advertisement

Quick Links

Download this manual
PCE Americas Inc.
PCE Instruments UK Ltd.
711 Commerce Way
Units 12/13
Suite 8
Southpoint Business Park
Jupiter
Ensign way
FL-33458
Hampshire / Southampton
USA
United Kingdom, SO31 4RF
From outside US: +1
From outside UK: +44
Tel: (561) 320-9162
Tel: (0) 2380 98703 0
Fax: (561) 320-9176
Fax: (0) 2380 98703 9
info@pce-americas.com
info@industrial-needs.com
www.pce-instruments.com/english
www.pce-instruments.com

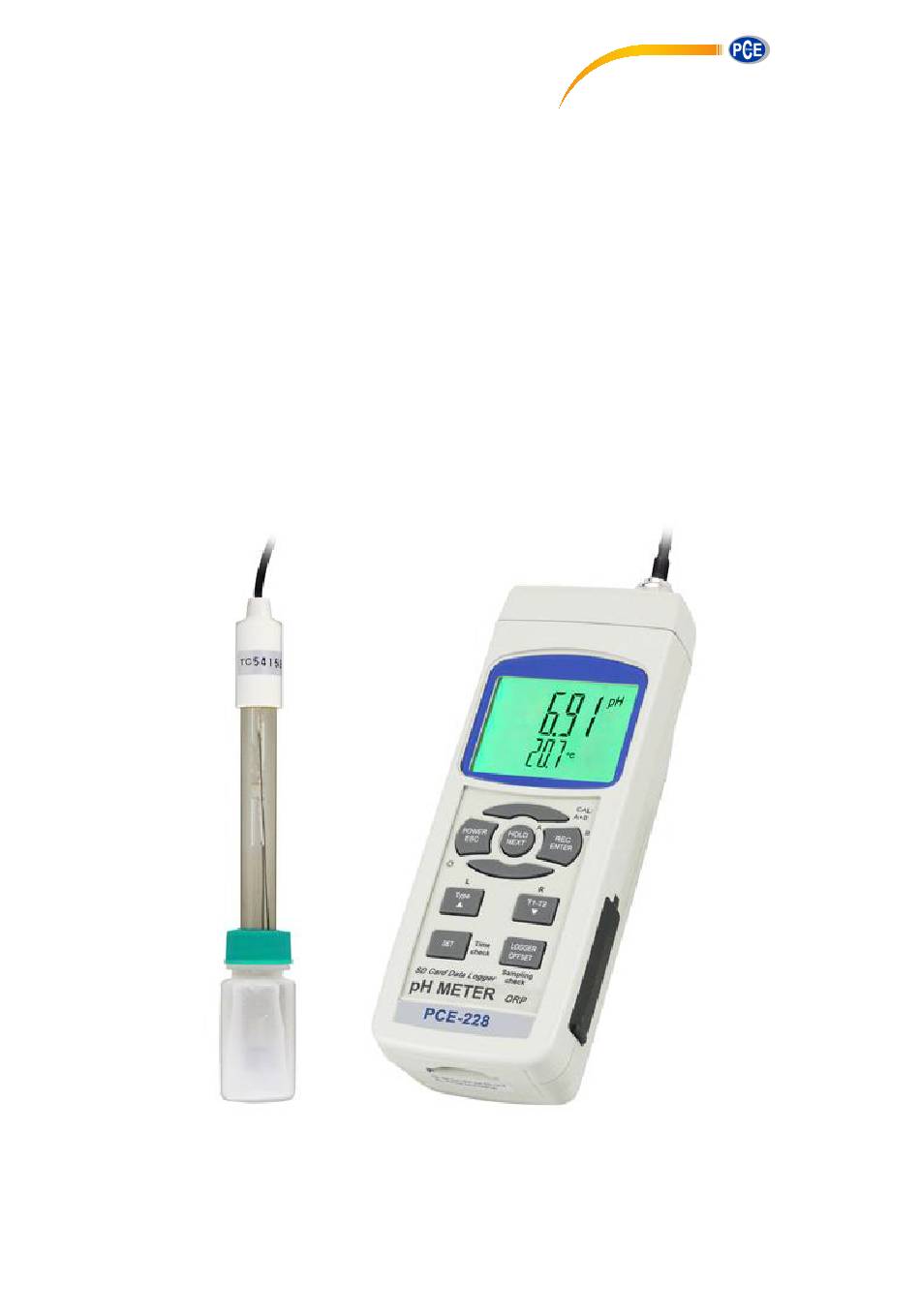

Manual
Redox Meter PCE-228
Version 1.0
Date of creation: 22.01.2016
Date of last change: 22.01.2016

Advertisement

Table of Contents
loading

Related Manuals for PCE Instruments PCE-228

Summary of Contents for PCE Instruments PCE-228

  • Page 1 PCE Americas Inc. PCE Instruments UK Ltd. 711 Commerce Way Units 12/13 Suite 8 Southpoint Business Park Jupiter Ensign way FL-33458 Hampshire / Southampton United Kingdom, SO31 4RF From outside US: +1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0...

  • Page 2: Table Of Contents

    10 Power supply from optional mains adaptor ..............15 11 Battery replacement ......................15 12 System reset ........................15 13 RS-232 PC serial interface ....................15 14 Disposal ........................... 17 15 Contact ..........................17 15.1 PCE Instruments UK ..........................17 15.2 PCE Americas ............................17...

  • Page 3: Introduction

    Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by PCE Instruments personnel. There is no warranty of damages or injuries caused by non-observance of the manual.

  • Page 4: Specifications

    Manual Specifications General Measurement range 0.00 to 14.00 pH -1,999 to 0 to 1,999 mV (only with the optional Redox electrode) 0.0...65.0 °C (only the temperature sensor) Resolution 0.01 pH 1 mV 0.1°C Accuracy (at 20°C) ± (0.02 pH + 2 digits) ±...

  • Page 5: System Description

    Manual System description 3-1 Display 3-2 Power Button ( Backlight Button ) 3-3 Hold Button ( ESC Button ) 3-4 REC Button ( Enter Button ) 3-5 ▲ Button 3-6 ▼ Button ( Function Button ) 3-7 Time Button 3-8 Logger Button ( SET Button, Sampling check ) 3-9 Stand 3-10 Battery Compartment/Cover 3-11 Battery Cover Screw...

  • Page 6: Ph / Mv Measurement And Calibration Procedure

    Manual pH / mV measurement and calibration procedure The meter default functions are: * The display unit is set to pH. * The temperature unit is set to ℃. * Manual ATC ( without connect the ATC probe ) * Auto power off. * The sampling time of data logger function is 2 seconds.

  • Page 7: Ph Measurement (Manual Temperature Compensation)

    Manual pH measurement (manual temperature compensation) 1) Power on the meter by pressing " Power Button " (3-2) once. 2) Prepare the pH Electrode ( optional ), install the " Probe Plug " (4-1) into the " pH Socket/BNC Socket " (3-14).
  • Page 8 Manual 5) Use the two fingers to press the " REC Button " (3-4) and " HOLD Button " (3-3) at the same time. Until Display will show the following screen then release the both fingers. 6) Press the " ▲ Button " (3-5) or " ▼ Button "(3-6) once in sequence to select the following screen. For pH 4.00 calibration For pH 7.00 calibration For pH 10.00 calibration...

  • Page 9: Other Functions

    Manual Other functions Data Hold During the measurement, press the " Hold Button " (3-3) once will hold the measured value & the LCD will display a " HOLD " symbol. Press the " Hold Button " once again will release the data hold function. Data record (MAX / MIN reading) 1) The data record function records the maximum and minimum readings.

  • Page 10: Manual Datalogger (Set Sampling Time = 0 Second)

    Manual Note: If you press the " Logger Button " (3-8) once again will execute the Datalogger again, the bottom text " DATALOOGER " will flash. c. Finish the Datalogger During pause the Datalogger, press the " REC Button " (3-4) continuously at least two seconds, the "REC "...

  • Page 11: Sd Card Data Structure

    Manual SD card data structure 1) When the SD card is used into the meter for the first time, the SD card will generate a route: PHA01 2) If the first time to execute the Datalogger, under the route PHA01\, will generate a new file name PHA01001.XLS.

  • Page 12: Advanced Settings

    Manual EXCEL data screen (example 2) EXCEL data screen (example 3) Advanced settings Under do not execute the Datalogger function, press the " SET Button " (3-8) continuously at least two seconds will enter the " Advanced Setting " mode. Then press the " SET Button " (3-8) once a while in sequence to select the eight main function, the display will show: Sd F..

  • Page 13: Sd Memory Card Format

    Manual SD memory card format When the lower display shows " Sd F " 1)Use the " ▲ Button " (3-5) or " ▼ Button " (3-6) to select the upper value to " yES " or " no ". yES - Intend to format the SD memory card no - Not execute the SD memory card format 2) If select the upper to "...

  • Page 14: Set Beeper Sound On/Off

    Manual Set beeper sound on/off When the lower display show " bEEP " 1) Use the " Button " (3-5) or " ▼ Button " (3-6) to select the upper value to " yES " or " no ". yES - Meter's beep sound will be ON with default. no - Meter's beep sound will be OFF with default.

  • Page 15: Power Supply From Optional Mains Adaptor

    Manual 10 Power supply from optional mains adaptor The meter also can supply the power supply from the DC 9V Power Adapter ( optional ). Insert the plug of Power Adapter into " DC 9V Power Adapter Input Socket " (3-15). The meter will permanent power ON when use the DC ADAPTER power supply ( The power Button function is disabled ).
  • Page 16 Manual Each digit indicates the following status: Start Word When send the upper display data = 1 When send the lower display data = 2 D12, D11 Annunciator for Display PH = 05 mV = 18 Polarity 0 = Positive 1 = Negative Decimal Point(DP), position from right to the left 0 = No DP, 1= 1 DP, 2 = 2 DP, 3 = 3 DP...

  • Page 17: Disposal

    In order to comply with the EU directive 2012/19/EU we take our devices back. We either re-use them or give them to a recycling company which disposes of the devices in line with law. If you have any questions, please contact PCE Instruments. 15 Contact If you have any questions about our range of products or measuring instruments please contact PCE Instruments.
