TVU One optional components

Optional Components for the TVU Transmitter include the fol-
lowing:
SIM cards
•
AC car adapter
•
Universal adaptor
•
External modems
•

TVU transmitter controls and operations

TVU transmitter is the central component of the TVU One sys-
tem. The transmitter handles video capturing, video encoding
and transmission, modem management and dialing, and status/
monitoring of the system.

Front panel LCD display and power indicator

Simply press the power button on the front panel to turn on
the transmitter. The button turns green when transmitter is
powered on. The LCD screen displays configuration and status
information for connected modems as well as video input and
transmission. When a video input is connected, an input pre-
view is displayed on the LCD.
LCD display and power indicator

TVU One transmitter side panel overviews

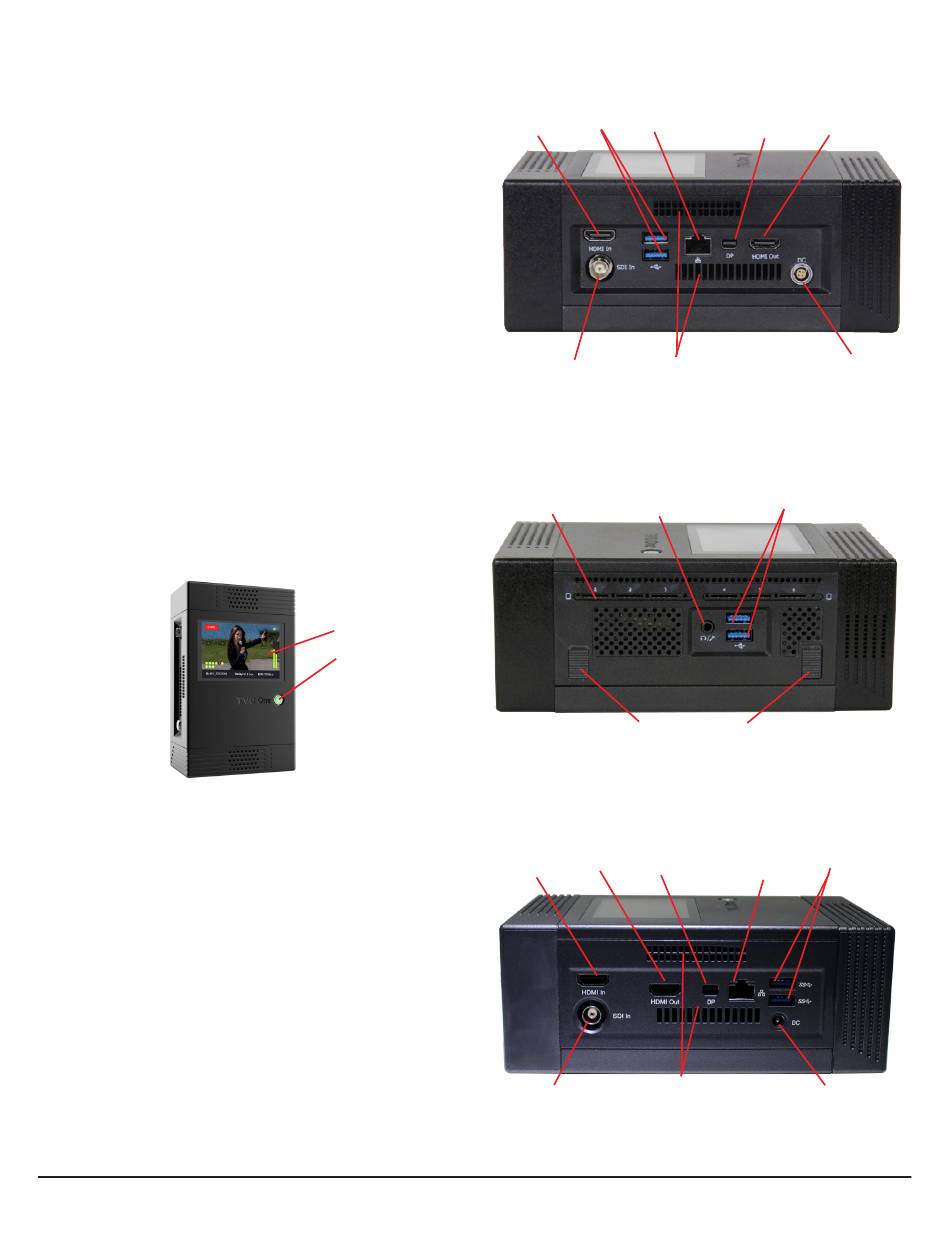

The TVU One transmitter model TM1000 v1 left-side panel fea-
tures the following input/output connections and controls.
TVU One Hardware User Guide
Document part number: TVUOne UG Rev A EN 04-2019
HDMI In
SDI IN
TVU One model TM1000 v1 transmitter left-side panel
The TVU One transmitter model TM1000 right-side panel fea-
tures the following input/output connections and controls.
LCD display
Power button
TVU One model TM1000 v1 transmitter right-side panel
The TVU One transmitter model TM1000 v2 left-side panel fea-
tures the following input/output connections and controls.
HDMI In
SDI input
TVU One model TM1000 v2 transmitter left-side panel
USB Ports
(spare)
Ethernet port
Vents
(Do not obstruct)
Embedded
modems (6X) Audio input
Battery release tabs
HDMI Out
Display port
Vents
(Do not obstruct)
TVU Networks® Corporation, © Copyright 2019
Display port
out
HDMI Out
DC Input
USB ports (spare)
Ethernet
USB ports
port
DC Input
