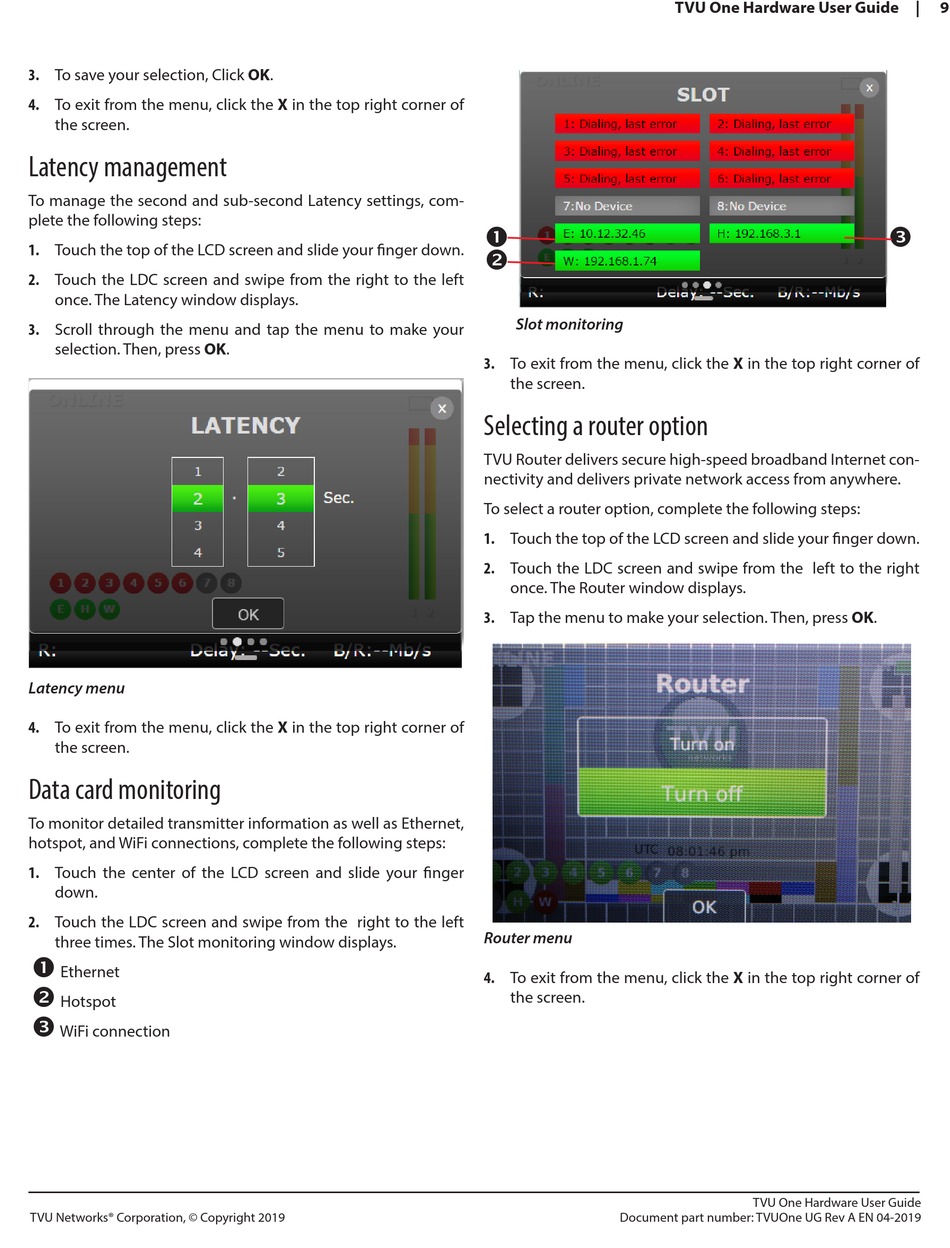

Latency Management; Data Card Monitoring - TVU networks TVU One Hardware User's Manual

3. To save your selection, Click OK.
4. To exit from the menu, click the X in the top right corner of
the screen.

Latency management

To manage the second and sub-second Latency settings, com-
plete the following steps:
1. Touch the top of the LCD screen and slide your finger down.
2. Touch the LDC screen and swipe from the right to the left
once. The Latency window displays.
3. Scroll through the menu and tap the menu to make your
selection. Then, press OK.
Latency menu
4. To exit from the menu, click the X in the top right corner of
the screen.

Data card monitoring

To monitor detailed transmitter information as well as Ethernet,
hotspot, and WiFi connections, complete the following steps:
1. Touch the center of the LCD screen and slide your finger
down.
2. Touch the LDC screen and swipe from the right to the left
three times. The Slot monitoring window displays.

Ethernet

Hotspot

WiFi connection
TVU Networks® Corporation, © Copyright 2019


Slot monitoring
3. To exit from the menu, click the X in the top right corner of
the screen.
Selecting a router option
TVU Router delivers secure high-speed broadband Internet con-
nectivity and delivers private network access from anywhere.
To select a router option, complete the following steps:
1. Touch the top of the LCD screen and slide your finger down.
2. Touch the LDC screen and swipe from the left to the right
once. The Router window displays.
3. Tap the menu to make your selection. Then, press OK.
Router menu
4. To exit from the menu, click the X in the top right corner of
the screen.
Document part number: TVUOne UG Rev A EN 04-2019
TVU One Hardware User Guide |
TVU One Hardware User Guide
9

