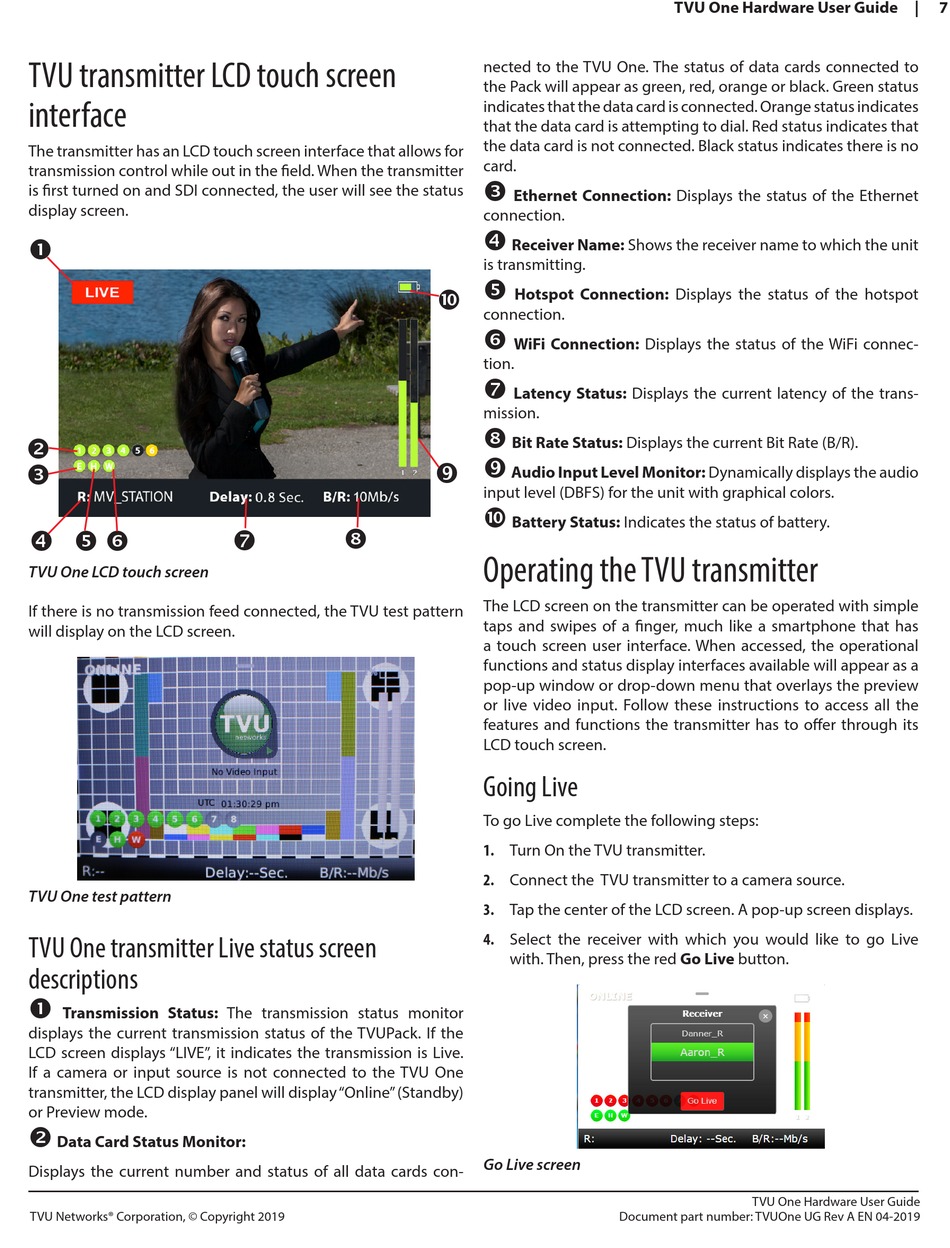

TVU transmitter LCD touch screen

interface

The transmitter has an LCD touch screen interface that allows for
transmission control while out in the field. When the transmitter
is first turned on and SDI connected, the user will see the status
display screen.



  
TVU One LCD touch screen
If there is no transmission feed connected, the TVU test pattern
will display on the LCD screen.
TVU One test pattern
TVU One transmitter Live status screen
descriptions

Transmission Status: The transmission status monitor
displays the current transmission status of the TVUPack. If the
LCD screen displays "LIVE", it indicates the transmission is Live.
If a camera or input source is not connected to the TVU One
transmitter, the LCD display panel will display "Online" (Standby)
or Preview mode.

Data Card Status Monitor:
Displays the current number and status of all data cards con-
TVU Networks® Corporation, © Copyright 2019


nected to the TVU One. The status of data cards connected to
the Pack will appear as green, red, orange or black. Green status
indicates that the data card is connected. Orange status indicates
that the data card is attempting to dial. Red status indicates that
the data card is not connected. Black status indicates there is no
card.

Ethernet Connection: Displays the status of the Ethernet
connection.

Receiver Name: Shows the receiver name to which the unit
is transmitting.

Hotspot Connection: Displays the status of the hotspot

connection.

WiFi Connection: Displays the status of the WiFi connec-
tion.

Latency Status: Displays the current latency of the trans-
mission.

Bit Rate Status: Displays the current Bit Rate (B/R).


Audio Input Level Monitor: Dynamically displays the audio
input level (DBFS) for the unit with graphical colors.

Battery Status: Indicates the status of battery.

Operating the TVU transmitter

The LCD screen on the transmitter can be operated with simple
taps and swipes of a finger, much like a smartphone that has
a touch screen user interface. When accessed, the operational
functions and status display interfaces available will appear as a
pop-up window or drop-down menu that overlays the preview
or live video input. Follow these instructions to access all the
features and functions the transmitter has to offer through its
LCD touch screen.

Going Live

To go Live complete the following steps:
1. Turn On the TVU transmitter.
2. Connect the TVU transmitter to a camera source.
3. Tap the center of the LCD screen. A pop-up screen displays.
4. Select the receiver with which you would like to go Live
with. Then, press the red Go Live button.
Go Live screen
