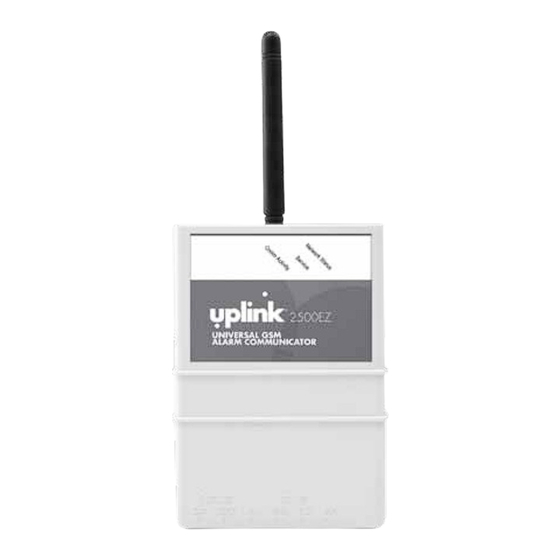

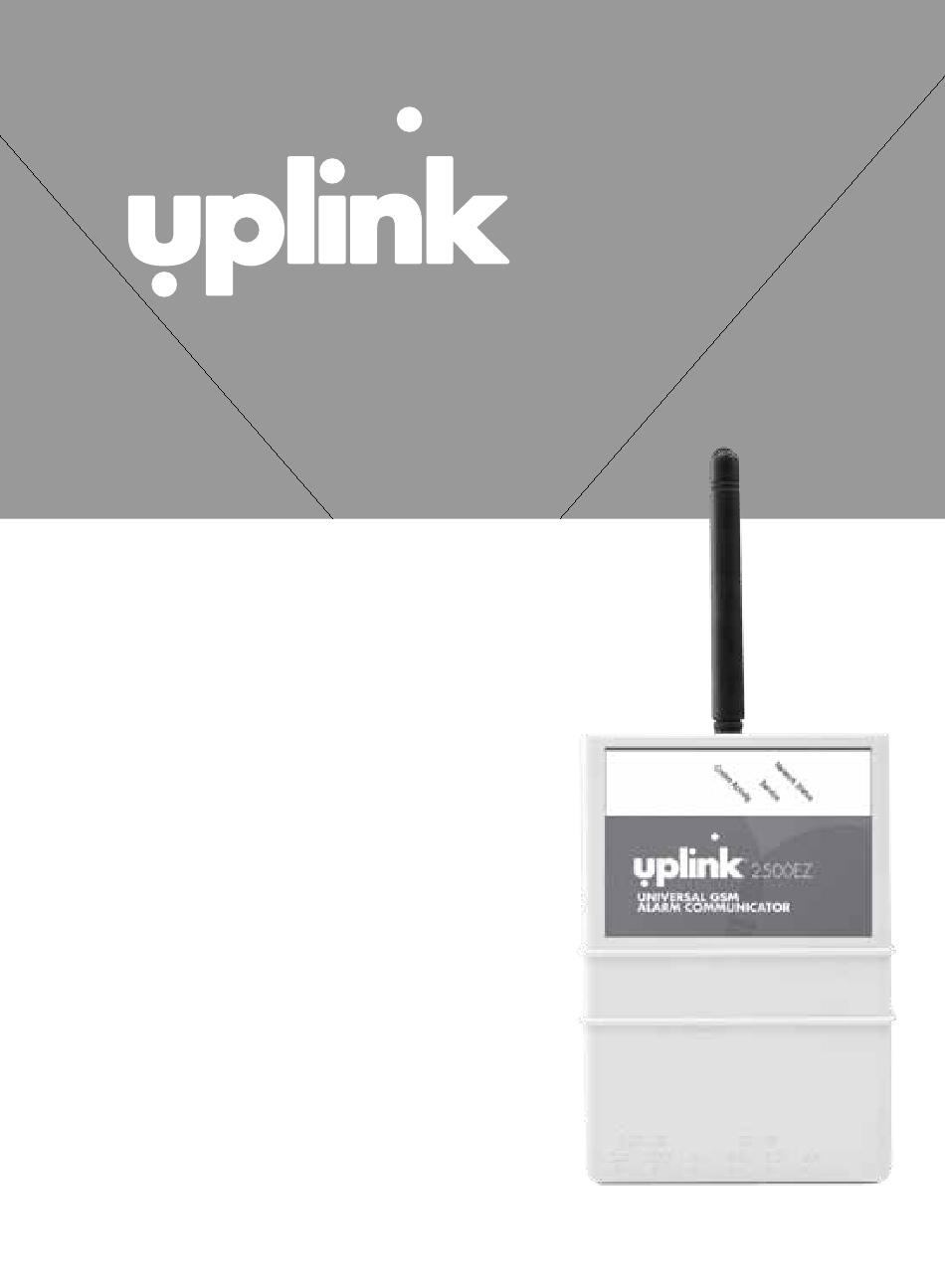

- Page 1 ® 2500EZ UNIVERSAL GSM ALARM COMMUNICATOR INSTALLATION & USER’S GUIDE...
- Page 2 The material in this manual is subject to change without notice. Uplink reserves the right to make changes to any software or product to improve reliability, function or design. Uplink is a trademark of Uplink Security, LLC. All rights reserved. Other products’...
-
Page 3: Table Of Contents
UNIVERSAL GSM ALARM COMMUNICATOR TABLE OF CONTENTS Table of Contents ............1 Warranty Information & Liability Waiver ......2 Technical Support ............3 Description ..............4 Installation ..............5-7 Unit Wiring ..............8-10 Antenna Specifications ..........10 FCC & Industry Canada Regulatory Compliance ..11 FCC RF Exposure Information ........ -
Page 4: Warranty Information & Liability Waiver
12 month warranty period, Uplink will, at its sole option and at no charge to the distributor, repair or replace it or arrange for its repair or replacement. Uplink’s agreement to repair (using... -
Page 5: Technical Support
To be able to help you, Technical Support will need you to provide: • Login name • Password • Serial number of the unit UPLINK Technical Support 1600 Parkwood Circle, Suite 500 Atlanta, GA 30339 1-(888) 9-UPLINK, 1-(888)-987-5465 Fax 1-(888)-542-9105 Log in: https://login.uplink.com For Customer Support, call 1-888-9-UPLINK, or visit www.uplink.com... -
Page 6: Description
The 2500EZ can be connected to an alarm system using up to four inputs on the 2500EZ. Each of these inputs can be set up to send a selected signal to the monitoring station. Contact ID, SIA, Modem IIe/IIIa and Pulse 4/2 (:20 PPS) formats are supported. -
Page 7: Installation
Before beginning installation: If you are not yet an Uplink dealer, register by visiting www.uplink.com and click on the “new dealer account” tab. Step 1. Activate the system. The Uplink 2500EZ operates “out of the box” with most commercial panels. No additional programming or equipment is required. To activate with default functions, go to www.uplink.com (or ex.uplink.com for web-... - Page 8 Step 5. Disconnect the unit from the power supply before wiring. The standard configuration for the Uplink 2500EZ is to leave DIP switches S3 and S4 set to “OFF” (Input 1 triggered by 9V DC to 12V DC or an open collector). For detailed wiring instructions and alternative configurations, see pages 8-9.
- Page 9 Step 7. When you have finished wiring and configuring the unit, wait at least two minutes then test the connection to the central station by creating an alarm from the panel. FIGURE 2: MODEL 2500EZ DIP Switch Status LEDs Terminal Block...
-
Page 10: Unit Wiring
Input 4 (DIP switch S8 ON) A trigger of INPUT 4 from high-to-low and back- to-high causes the 2500EZ to reset. The high-to-low-to-high must be held for at-least 100 msec. (UNIT WIRING continued next page) - Page 11 UNIVERSAL GSM ALARM COMMUNICATOR UNIT WIRING (cont.) *Inputs 2, 3, and 4 (and Input 1 if Standard Type) FIGURE 4: Wiring example for voltage trip Voltage Trip - Inputs 2, 3, and 4 (and 1 if set for standard input) can be tripped by applying 12 V to the + input and 0 V to the - input.
-
Page 12: Antenna Specifications
® 2500EZ Power Supply - The customer-supplied 12 V DC power supply/battery charger should be capbable of supplying 500 mA peak for brief high current demands of the radio during transmission. ANTENNA SPECIFICATION The following types of antennas should be used with this unit: Antenna type: External Dual Band ¼... -
Page 13: Fcc & Industry Canada Regulatory Compliance
• Consult the dealer or an experienced technician for help. CE0889, 0682 R&TTE The Uplink 2500EZ Universal GSM Alarm Communicator has been fully tested and complies with the requirements of EN301 489-1 V1.8.1:2008, EN301 489-7 V1.3.1:2005, EN60950-1:2006+A11:2009, EN62311:2008, and EN50130-4:1995. -
Page 14: Fcc Rf Exposure Information
® 2500EZ FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. - Page 15 UNIVERSAL GSM ALARM COMMUNICATOR UPLINK 2500EZ UNIVERSAL GSM ALARM COMMUNICATOR INSTALLATION, OPERATION AND PROGRAMMING GUIDE © 2012 Uplink Security LLC. All rights reserved. Uplink is a trademark of Uplink Security LLC. GUIDE 00-25580-042 REV A ® 1600 PARKWOOD CIRCLE, SUITE 500, ATLANTA, GA 30339 888-987-5465 (888-9-UPLINK) WWW.UPLINK.COM...
- Page 16 ® FOR SALES, PRODUCT INFORMATION & TECHNICAL SUPPORT Uplink 1600 Parkwood Circle Suite 500 Atlanta, GA 30339 1-(888) 9-UPLINK, 1-(888)-987-5465 Fax 1-(888)-542-9105 sales@uplink.com www.uplink.com...
