Summary of Contents for Uplink CDMAEX

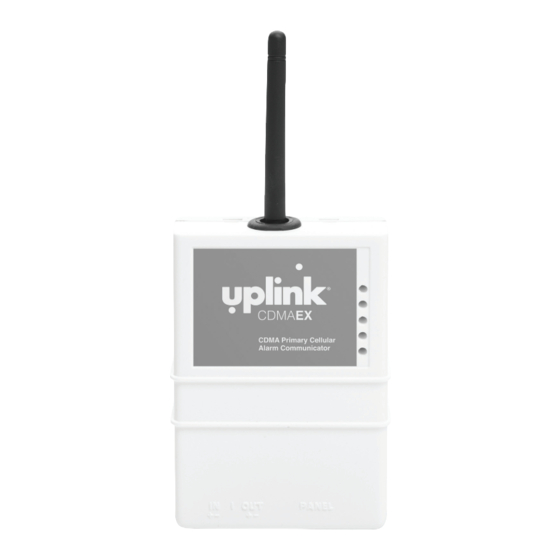

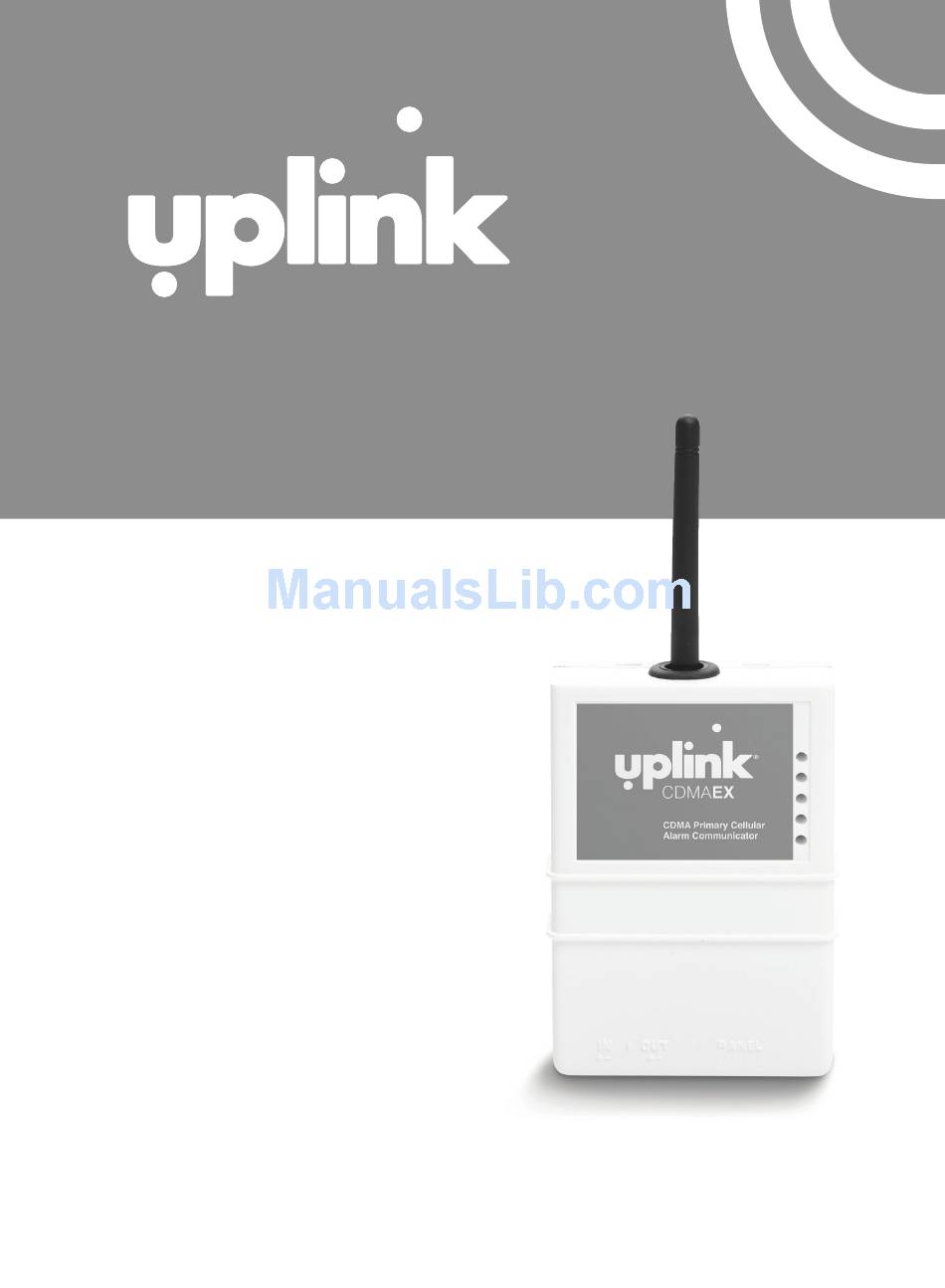

- Page 1 ® ® CDMAEX CDMA Primary Cellular Alarm Communicator INSTALLATION & USER’S GUIDE...
- Page 2 ® CDMAEX Alarm Communicator © 2015 Uplink Security, LLC. All rights reserved. Uplink is a trademark of Uplink Security, LLC. No part of this publication may be reproduced or used in any form without permission in writing from Uplink. This includes electronic or mechanical means, such as photocopying, recording, or information storage and retrieval systems.
-
Page 3: Table Of Contents
B. DIP Switch Settings ................. 11 C. LEDs ....................12-13 D. Locating and Installing the CDMAEX ..........14-15 E. Connecting the CDMAEX to the Alarm Panel ......... 16-17 F. Configuring Input 1 ................18-19 G. Activating the CDMAEX ..............20 H. -
Page 4: Introduction
Once the CDMAEX completes a communications session with the alarm panel, it will transmit the alarm information using the local CDMA cellular communications network. -
Page 5: Key Features
C. Panel to CDMAEX Cable Supervision. Can be configured to Monitor continuity of the cable connecting the panel’s telephone dialer to the CDMAEX. This feature is activated through the website www.uplink.com or by calling Uplink Customer Service: 1-888-9-UPLINK (1-888-987-5465) D. -
Page 6: Key Features
10.2V DC. It will report Low input Voltage Restoral at 11.4V DC. H. Automated Testing. The CDMAEX can be programmed to send an automated test signal to the central station on a monthly, weekly (Default Configuration) or daily interval. -
Page 7: Warranty & Limitation Of Liability
Uplink. Uplink’s warranty does not extend to end user consumers of Uplink products or to other parties not in privity of contract with Uplink and, to the maximum extend permissible under applicable law, Uplink expressly... -
Page 8: Warranty & Limitation Of Liability
IN NO EVENT SHALL UPLINK’S AGGREGATE LIABILITY TO ANY END USER CONSUMER OF AN UPLINK PRODUCT AND/OR SERVICE OR OTHER PARTY NOT IN PRIVITY OF CONTRACT WITH UPLINK ARISING OUT OF OR RELATED TO AN UPLINK PRODUCT AND/OR SERVICE, WHETHER ARISING OUT OF OR RELATED... -
Page 9: Fcc And Regulatory Compliance & Part 15
CDMA Primary Cellular ® CDMAEX Alarm Communicator FCC & INDUSTRY CANADA REGULATORY COMPLIANCE Part 15 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 10: Fcc Rf Exposure Information
CDMA Primary Cellular ® CDMAEX Alarm Communicator FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. -
Page 11: Technical Support
Before calling technical support please ensure you have read the installation guide completely. Technical support requires the caller to provide: • Login name • Password • Serial number of the CDMAEX Uplink Security, LLC. 3330 Cumberland Blvd. Suite 700... -
Page 12: Installation
S4 and move the unit to a location that gives him the best signal strength.) b. Proximity to the alarm panel and where to route the CDMAEX’s relay output that connects to an alarm panel input. B. DIP Switch Settings The CDMAEX has a four-position dipswitch. -
Page 13: Leds
CDMA Primary Cellular ® CDMAEX Alarm Communicator INSTALLATION (cont.) C. LEDs Normal Mode: Upon initial power up, the 5 LEDs on the CDMAEX will begin to function as follows:... - Page 14 CDMA Primary Cellular ® CDMAEX Alarm Communicator INSTALLATION (cont.) RSSI Mode: When the CDMAEX is placed in Received Signal Strength Indicator (RSSI) Mode by turning Dipswitch S4 to ON, the five LEDs indicate the follow signal strength information: RECEIVED SIGNAL FLASH...
-
Page 15: Locating And Installing The Cdmaex
INSTALLATION (cont.) D. Locating and Installing the CDMAEX The CDMAEX is housed in a plastic enclosure. The installer needs to supply DC power from the panel via the AUX output, or battery, via a separate DC power source. Input DC current is listed on page 25. - Page 16 CDMA Primary Cellular ® CDMAEX Alarm Communicator INSTALLATION (cont.) STATUS LEDS DIP SWITCH FIGURE 1: Model CDMAEX PC Board Details INPUT OUTPUT RJ 45 DC TERMINAL BLOCK CAUTION: Incorrect Connections May Result in Damage to the Unit (INSTALLATION continued next page)
-
Page 17: Connecting The Cdmaex To The Alarm Panel
Output #1 Terminals: OUT1+ and OUT1- The default state for this Output is as follows: OUTPUT DEFAULT STATE DEFAULT DEFINITION Configurable - normally no mapping open See Figure 2 as an example of how to connect the CDMAEX to the alarm panel. - Page 18 CDMAEX, connect the Orange wire (#2) to the Blue wire (#7) and enable Panel Cable Supervision Host Panel/DC Out Host Panel/DC In event reporting on the website. FIGURE 2: Connections between the CDMAEX and the Alarm Panel (INSTALLATION continued next page)
-
Page 19: Configuring Input 1
F. Configuring Input 1 (Via Over the Air programming) Input 1 can be configured to perform one of four functions and is programmable Over-The-Air via the Uplink Dealer web site. 1. Standard Input - This mode configures the unit to be tripped from a DC voltage ranging from 9 V DC to 12 V DC or an open collector. - Page 20 CDMA Primary Cellular ® CDMAEX Alarm Communicator INSTALLATION (cont.) Input 1 if Standard Type FIGURE 3: Wiring example for voltage trip Voltage Trip - Input 1 if set for standard input can be tripped by applying 12 V to the + input and 0 V to the - input.
-
Page 21: Activating The Cdmaex
CDMAEX Alarm Communicator INSTALLATION (cont.) G. Activating the CDMAEX The CDMAEX is programmed OTA (Over-the-Air) by using the Uplink Installer app or accessing the Uplink Dealer website or by calling Uplink Customer Service at 1-888-9UPLINK (1-888-987-5465). New Dealer Enrollment: For new dealers/customers, you must first establish an account with Uplink by visiting the Uplink website (www.uplink.com). -
Page 22: Programming And Central Station Reporting
The normal state of the Output Relay can be changed from the dealer website. 4. Output Relay 1 Mapping (Default = #1 Unmapped) There are 8 trouble states that can be declared by the CDMAEX, and each of these states can be programmed from the dealer website to activate the Output Relay. -
Page 23: Default Event/Email Messages
If using the Output Relay on the CDMAEX go back to the dealer website and use the Switch Output Relay command to test the relay. Make sure the premises alarm panel properly detects the relay’s change of state and that... -
Page 24: Specifications
CDMA Primary Cellular ® CDMAEX Alarm Communicator SPECIFICATIONS DIGITAL DIALER INTERFACE Format Compatibility Contact ID, SIA, DMP , Modem IIe/IIIa 4/2 (:10, :20, or :40 PPS) Connector RJ45 and screw terminals Simulated telco line voltage 48 V DC On-Hook Dial tone 350 + 440 Hz +/- 0.2%... -
Page 25: Specifications
CDMA Primary Cellular ® CDMAEX Alarm Communicator SPECIFICATIONS (CONT.) RADIO Frequencies 850/1900 MHz Sensitivity -106 dB (typical) ENVIRONMENTAL Temperature Range -30° to +70° C Humidity 0 to 95% non-condensing PHYSICAL Height 2.5 inches Width 5.4 inches Depth 10.5 inches... -
Page 26: Appendix A: Contact Id, Sia, Modem Iie/Iiia Event Codes
CONTACT ID, SIA EVENT, AND MODEM II /III CODES Following is a list of event codes that can be sent to the central station receiver for events generated by the CDMAEX: EVENT DESCRIPTION CONTACT ID EVENT SIA DC-03 MODEM IIe/llla... - Page 27 CDMA Primary Cellular ® CDMAEX Alarm Communicator APPENDIX A: CONTACT ID, SIA EVENT, AND MODEM IIe/IIIa CODES (cont.) EVENT DESCRIPTION CONTACT ID EVENT SIA DC-03 MODEM IIe/llla CODE EVENT CODE Low Temperature Restoral R159 Medical Alarm E100 Medical Restoral R100...
-
Page 28: Appendix B: Cdmaex Default Event Codes
Alarm Communicator APPENDIX B: CDMAEX DEFAULT EVENT CODES The CDMAEX is defaulted to send both the Alarm/Trouble condition and the Restoral condition for all of the events listed below. Reporting of individual events can be controlled from the Dealer Website. - Page 29 CDMAEX Alarm Communicator UPLINK CDMAEX 4G PRIMARY ALARM COMMUNICATOR INSTALLATION, OPERATION AND PROGRAMMING GUIDE © 2015 Uplink Security, LLC. All rights reserved. Uplink is a trademark of Uplink Security, LLC. ® UPLINK SECURITY, LLC. 3330 CUMBERLAND BLVD., SUITE 700, ATLANTA, GA 30339 888-987-5465 (888-9-UPLINK) WWW.UPLINK.COM...
- Page 30 ® FOR SALES, PRODUCT INFORMATION & TECHNICAL SUPPORT Uplink Security, LLC. 3330 Cumberland Blvd. Suite 700 Atlanta, GA 30339 1-(888) 9-UPLINK, 1-(888)-987-5465 Fax 1-(888)-542-9105 sales@uplink.com www.uplink.com...
