- Page 1 HC40 Advanced User manual LINAK.COM/HOMELINE Page 1 of 40...
-
Page 2: Table Of Contents
Time & Day ............................31 Language ............................32 Child lock ............................33 Torch ............................. 34 Notifications ........................... 35 Disposal of LINAK’s products ...................... 36 Main groups of disposal ....................... 36 Disposal of batteries ........................36 Labels ............................. 37 Drawings ............................38 Addresses ............................ -
Page 3: Preface
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety information from this manual is passed on to the end-user. -
Page 4: Valid For
Valid for: This User Manual is valid for the following products: Controls: HC40 FRAME Advanced and HC40 TWIST Advanced Page 4 of 40... -
Page 5: Important Information
Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. - Page 6 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation •...
- Page 7 - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and the receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/ TV technician for help. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).
-
Page 8: Only For Eu Markets
Only for EU markets This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 9: Informations Importantes
Informations importantes Les informations importantes sur les produits LINAK peuvent être trouvées dans ® les rubriques suivantes: Attention! Le non respect de ces instructions peut entraîner des accidents impliquant des blessures graves. Ne pas suivre ces instructions peut entraîner l´endommagement ou destruction du produit. -
Page 10: Seulement Pour Les Marchés Au Sein De L´ue
Seulement pour les marchés au sein de l´UE: Cet appareil peut-être utilisé par des enfants âgés de 8 ans et plus, ainsi que les personnes dont les capacités physiques, sensorielles ou mentales sont réduites ou ayant un manque d´expérience et de connaissance si elles ont bénéficié... -
Page 11: Repairs
Repairs In order to avoid the risk of malfunction, all HOMELINE repairs must only be carried out by authorised LINAK workshops or ® ® repairers, as special tools must be used and special gaskets must be fitted. Lifting units under warranty must also be returned to authorised LINAK workshops. -
Page 12: Misc. On The Homeline ® System
There is a 36 months’ warranty on the HC40 products against manufacturing faults calculated from the production date of the individual products (see label). The LINAK warranty is only valid in so far as the equipment has been used and maintained correctly and has not been tampered with. -
Page 13: Etl-Marking
ETL-marking Due to space limitations, the complete ETL-marking demands are not represented on the marking plates. The full ETL Recognized Component markings are shown here. C/N 120690 Conforms to UL962 Cert. to CSA Std. C22.2 No. 68-09 ETL Recognized Component mark for Canada and United States C/N 9901916 Conforms to UL962... -
Page 14: Getting Started
Getting started Batteries and how to change for the HC40 FRAME Advanced The hand control needs 2 x AAA batteries. 1. Press the button located inside the oval arch at the bottom of the hand control. Take off the battery lid. 2. -
Page 15: Batteries And How To Change For The Hc40 Twist
Batteries and how to change for the HC40 TWIST Advanced The hand control needs 2 x AAA batteries. 1. Open the battery lid on the front of the HC40, by pressing and sliding it in the opposite direction of the keypad. 2. -
Page 16: Navigation
Navigation The HC40 has 10 buttons. The picture below explains the functionality of the buttons: Screen elements Menu colours: White References Blue Favourite positions Green Massage control Orange My bed menu Page 16 of 40... -
Page 17: Setting Time And Day
Setting time and day 1. Press button 1 to switch between 24H and AM/PM. 2. Adjust the time by using the ‘up’ and ‘down’ buttons on the keypad. Once the hours and minutes are adjusted, “SAVE” appears in the display. Press the ‘select’... -
Page 18: Screen Saver
Screen saver After 10 seconds of inactivity the HC40 dims the light in the display. After another 10 seconds in dimmed light, the display turns off. The next time the hand control is picked up, the screensaver (time and day) or a notification shows. Page 18 of 40... -
Page 19: Motion Sensor
Motion sensor After setting the time and day in the HC40, the motion sensor is enabled. The screen now reacts on any movement of the hand control. E.g. the screen turns on, when the user picks up the hand control. As the motion sensor may cause the batteries to empty during bumpy transportation before the hand control reaches its destination, we recommend the bed producer not to complete the time and day registration in the HC40 if the hand control is delivered to the end user with batteries in. - Page 20 Figure 2: HC40 not paired HC40 paired For customers pairing the HC40 to the actuator system on the production line when producing the bed, it is possible to pair the system already after the start-up logo is gone. No need to enter time and day before making the pairing procedure. How to run references The menu structure can contain up to four references: back, leg, neck and foot.
-
Page 21: Favourite Positions
Favourite positions Save favourite positions The HC40 allows for storing up to four favourite positions. 1. Drive the bed to the desired position. 2. Loop to the “SAVE FAVOURITE” screen using the ‘left’ and ‘right’ buttons. 3. When the screen is reached, press button 3 “SAVE”. 4. - Page 22 From the screen with the favourite position, there are three options: A. Drive to the favourite position 1. Press and hold button 3 ”GO TO” or the ‘select’ button. 2. The system now drives towards the position while the name flashes in the display B.
-
Page 23: Massage
Massage Controlling massage The HC40 FRAME™ Advanced can control up to two massage references. The two standard options are called “MASSAGE BACK” and “MASSAGE LEG”. Loop in the menu to find the massage screens. From the massage screen it is possible to: •... - Page 24 Changing massage mode 1. Press button 2 “MODE” to change massage mode. 2. A green circle appears, and the massage mode is now changed. 3. Repeat to toggle between more available modes. Note: The number of massage modes depends on the configuration in the actuator system.
-
Page 25: My Bed Menu
My bed menu The “MY BED” menu is accessed by looping the menu with the ‘left’ or ‘right’ button, or via button 3 “MENU” on the main screen. Once “MY BED” appears, press the ‘select’ button to access the “MY BED” menu. The items in the “MY BED”... -
Page 26: About
About The “ABOUT” section contains information about the product: the item number, the software number and version, and whether the control has been reconfigured. The item and software numbers also appear on the product label underneath the battery lid. The about section contains the CE symbol and WEEE garbage can for approval reasons. - Page 27 In the “ME” section it is possible to enter a name. By entering a name, the notifications get personalised, meaning “HAVE A NICE DAY” is now followed by the entered name. 1. Highlight the “ME” bar in the “MY BED” menu and press the ‘select’ button. 2.
-
Page 28: Alarms
Alarms The alarm menu is accessible for systems including massage. When the alarm goes off, the massage motors start, providing a soundless wake-up. Highlight the “ALARMS” bar in the “MY BED” menu and press the ‘select’ button to access the alarm menu, which contains three alarms. -
Page 29: Sleep Timer
Sleep timer The sleep timer functionality is a timer for the bed to return to flat position or a predefined favourite position, e.g. a sleeping position with the head a little raised. A typical use scenario could be a user wanting to fall asleep watching TV. He has the back of the bed raised and he sets the timer to 30 minutes on the HC40. -
Page 30: Shortcuts
Shortcuts It is possible to set shortcuts on the HC40. The shortcuts are meant for the user to put in his/her most used features, so they are only one click away from the main screen. This way the hand control can be personalised to the needs of the individual user. The shortcut buttons are the top row of buttons referring to the text in the display. -
Page 31: Time & Day
Time & Day It is possible to adjust the time set during set-up of the hand control in the “TIME&DAY” menu in the “MY BED” menu. 1. Highlight the “TIME&DAY” bar in the “MY BED” menu and press the ‘select’ button to access. 2. -
Page 32: Language
Language The HC40 comes in seven different languages: English (British), French, Spanish, German, Swedish, Danish and Korean. 1. Highlight the “LANGUAGE” bar in the “MY BED” menu and press the ‘select’ button to access the menu. 2. Use the ‘up’ and ‘down’ buttons to scroll through the languages. 3. -
Page 33: Child Lock
Child lock It is possible to set a child lock on the HC40, meaning a specific button combination must be pressed to unlock the hand control before it is possible to run the bed. Enabling the child lock 1. Highlight the “CHILD LOCK” bar in the “MY BED” menu 2. -
Page 34: Torch
Torch On the backside of the hand control is a torch. Turning the torch on/off 1. Highlight the “TORCH” bar in the “MY BED” menu. 2. Press the ‘select’ button to enable the torch. 3. The first five times a tip on how to turn on/off the torch by shaking the hand control shows. Press the ‘select’ button or button 3 “OK”. -
Page 35: Notifications
Notifications The HC40 sends notifications to the user to give a personal experience. When a name is typed in, the notification will adapt to that. The standard notification “HAVE A NICE DAY [name]” appears when the hand control is picked up in the time slot from 05.00 to 11.00 every third Saturday. -
Page 36: Disposal Of Linak's Products
Disposal of LINAK’s products As LINAK’s customers often ask us how our products can be disposed of or scrapped we have prepared this guidance that enables a classification to different waste fractions for recycling or combustion. Guidance We recommend that our products be disassembled as much as possible and divided into different waste groups for recycling or combustion. -
Page 37: Labels
LINAK customer using any LINAK product. LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question. -
Page 38: Drawings
DRAWING APPENDIX HC40 FRAME Advanced Page 38 of 40... - Page 39 HC40 TWIST Advanced Page 39 of 40...
-
Page 40: Addresses
While LINAK uses its best efforts to fulfil orders, LINAK cannot, for the same reasons as mentioned above, guarantee the availability of any particular product. Therefore, LINAK reserves the right to discontinue the sale of any product displayed on its website or listed in its catalogues or other written material drawn up by LINAK.
Need help?
Do you have a question about the Homeline HC40 Advanced Series and is the answer not in the manual?
Questions and answers

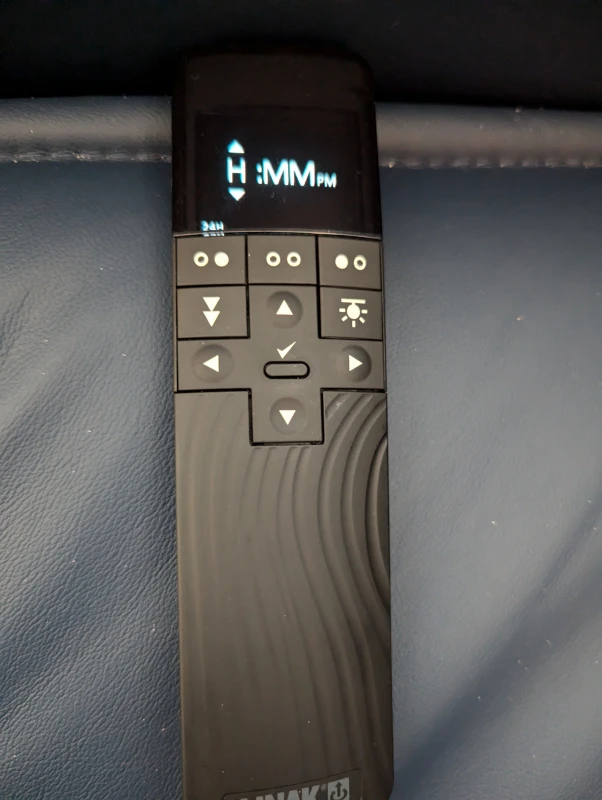

the remote fell to the floor, put in new batteries, but this is theonly screen I get. Now I have no bed to sleep in tonight, 76 yrs old with cardiac and back issues - please help soon
